Offgridtec presents you a revolutionary balcony power plant includingSolar flowstorage system (mpn: 020210), which comes with many technologies and protective functions. The Hyper 2000 hybrid inverter, which gives you the option of supplying the batteries from your balcony power station with solar or grid power, is the key to your flexibility.you can integrate up to four ab1000s or four ab2000s batteries into your system and achieve a maximum capacity of 7.68kWh. To generate the solar energy, you have four reliable solar modules with a generator output of 445w each and TopCon technology. The four solar inputs on the Hyper make installation simple and at the same time reduce energy loss compared to parallel connections.
Highlights of the system
- Plug & play - plug in and save money
- Control your own consumption
- Make your lifestyle more environmentally friendly
- Quickly amortizing investment
- Flexible storage option with extension (0.96kWh-7.68kWh)
- Groundbreaking technologies and protective functions
- monitoring and control via app possible
- Save up to €779/year in electricity costs*
*A balcony power plant with 1780w solar power, 1200w output power of the Hyper 2000 and two ab2000s batteries can generate up to 5.34kWh per day. Based on an electricity tariff of 0.4€/kWh, savings of up to 744€/year are possible. With optimum module orientation, the best possible weather conditions and a corresponding base load. Source: Yield database& Federal Government
The balcony power plant contains:
- 4x Trina Solar 445w Vertex s+ Dual-Glass N-Type TopCon solar module
- 1x Zendure SolarFlow Hyper 2000 Hub with microinverter
- 1x Zendure Satellite Smart Plug App Control Smart Socket(Selectable)
- Zendure Solarflow extension battery (selectable)

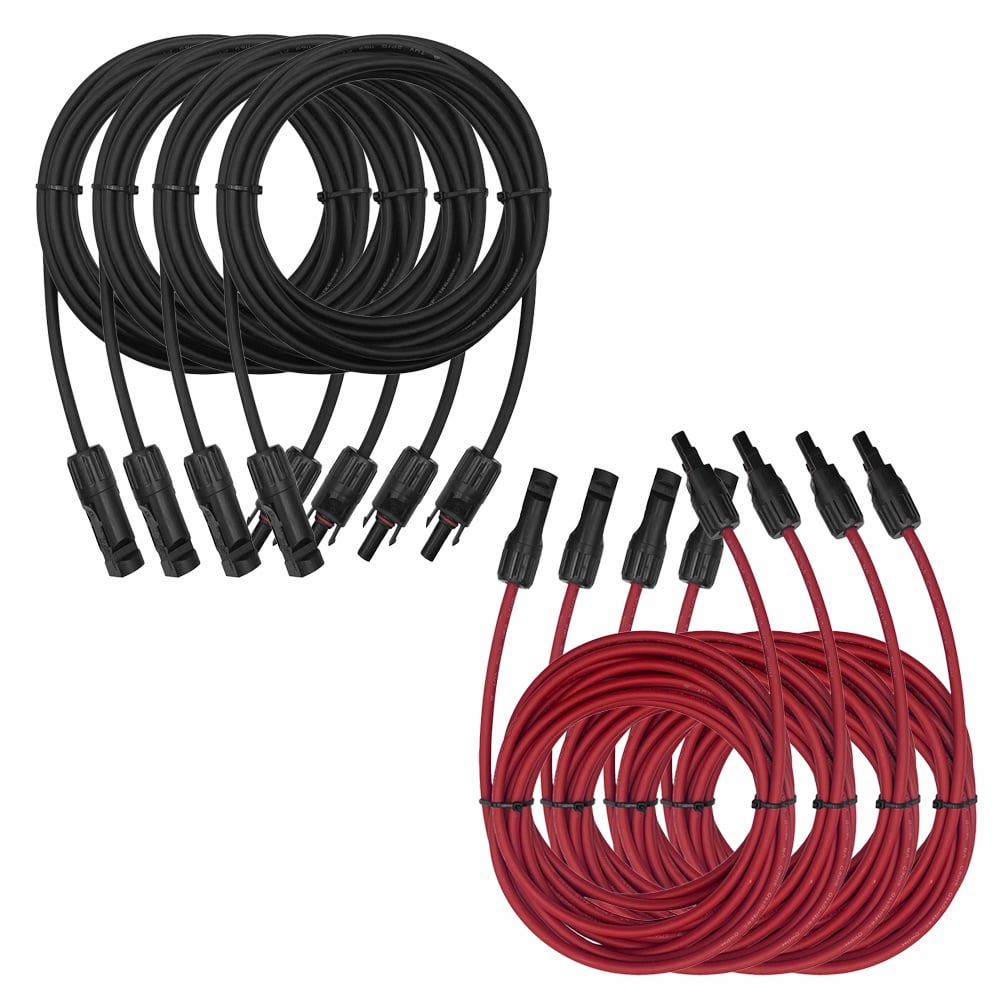

- 4x connection cable mc4 to mc4 6mm² 5m
How does the SolarFlow balcony power station work with the Hyper 2000?
During the day:during the day, the Hyper converts the energy generated by the solar panels into AC power for your home. When excess solar power is generated that would be fed back into the grid, the Hyper 2000 sends it to the batteries for storage, reducing energy waste. This can be configured in the Zendure app or by using a compatible smart electricity meter.
At night: At night, the Hyper then converts the stored energy into AC power for your home, significantly improving energy efficiency. This reduces the waste of excess solar energy and helps you get the most cost benefit from your system.
- If the power generation of the solar panels is higher than the set AC output power, the Hyper 2000 stores the surplus in the connected batteries
- If the power generation of the solar panels is lower than the set AC output power, the entire power generation of the panels is delivered to your home and the battery is discharged to reach the set AC output power
- If there is no power generation from the solar panels, the Hyper 2000 uses the batteries to supply your home with power

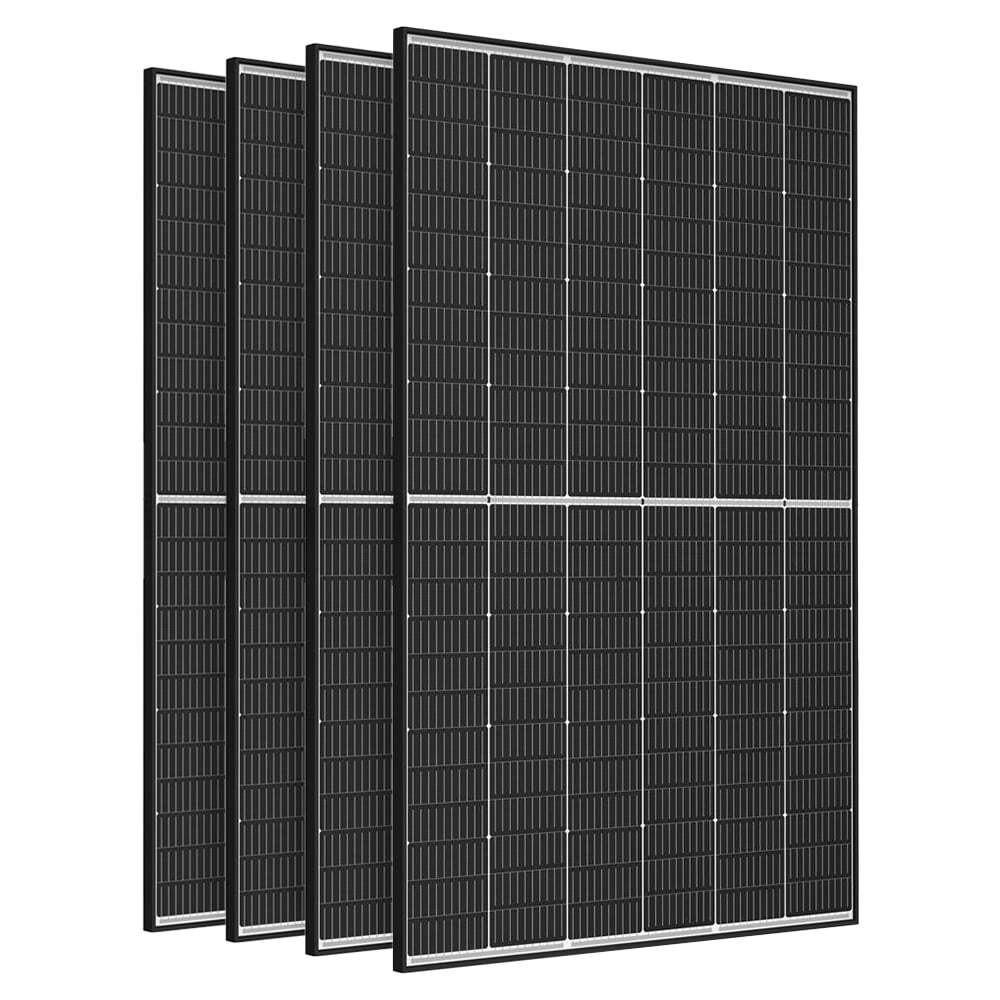

Trina Solar Vertex s+ 445w solar panel (dual glass)
The Trina Solar Vertex s+ (mpn: tsm-neg9r.28) is an effective solar module with an output of 445w that uses monocrystalline TOPCon cells and dual-glass technology. Thanks to the multi-busbar technology, it offers improved absorption, low series resistance, improved current dissipation and reliability. It is certified for extreme wind and snow loads of 5400 - 4000 Pa and has highly transparent, 1.6 mm thick glass with anti-reflective coating. The frame is made of 30 mm wide anodized aluminium alloy.
- Multi-busbar technology
- Dual-glass design
- High-density cell connection technology
- N-type i-TOPCon cell technology
Technical data
- Power (Pmax): 445 W
- Voltage (Vmp): 44.3 V
- Max. Current (Imp): 10.05 A
- Open circuit voltage (Voc): 52.6 V
- Short-circuit current (Isc): 10.71 A
- Number of cells: 144
- Protection class junction box: IP68
- Dimensions: 1762 x 1134 x 30 mm
- Weight: 21.1 kg

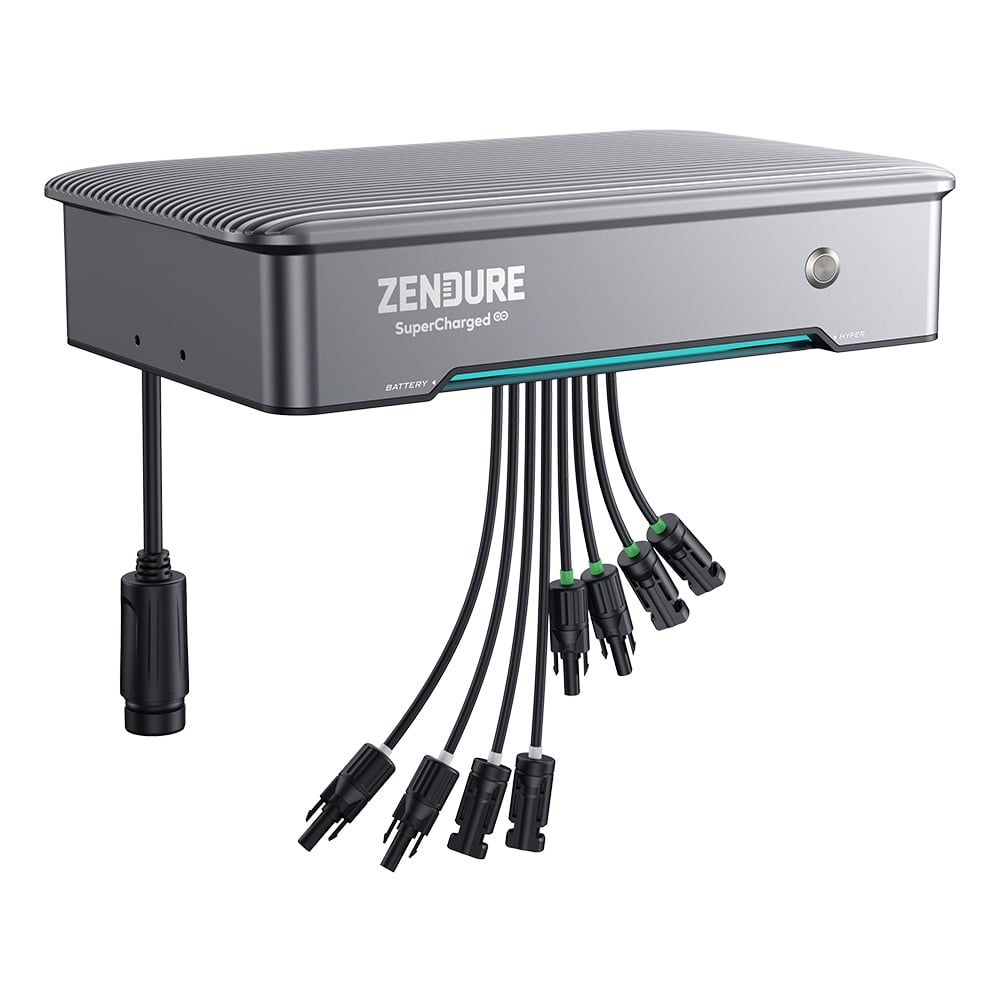

Zendure Hyper 2000
The innovative Hyper 2000 from Zendureis a hybrid inverter that connects your SolarFlow balcony power station to the grid via plug & play. This allows you to charge your batteries not only with solar energy, but also with energy from the grid. Up to 1200w bidirectional AC power can also be set. Several Hyper modules recognize and connect to each other, provided they are connected to the same phase; a three-phase installation is also possible.
- Automatic multi-set connection thanks to ZenLink
- Time-of-use automation
- Intelligent anti-discharge technology
Technical data
- PV input
- AC power input/output
- Rated power: 1200w
- Rated voltage: 220V/230V/240V
- Frequency: 50Hz
- Rated current: 5.5A
- General information
- Protection class: IP65
- Weight: 5.4 kg (excluding cable and bracket)
- Dimensions: 350 x 202 x 78 mm

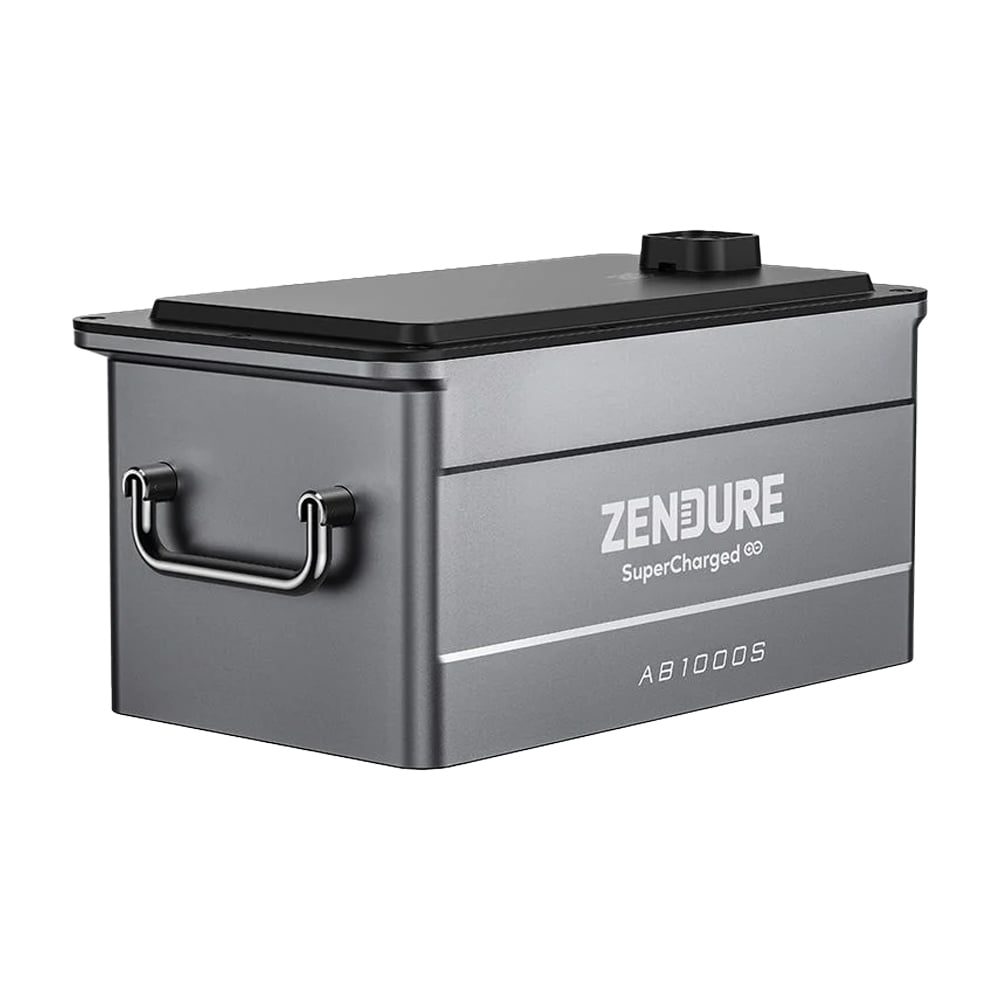

Zendure Solarflow expansion batteries
Technical data ab1000s
- Capacity: 960Wh (20ah / 48V)
- Battery type: LiFePO4
- Max. Expansion capacity: 4 x 960Wh = 3840 Wh
- Protection class: IP65
- Weight: 11.5 kg
- Dimensions: 350 x 200 x 186.5 mm
Technical data ab2000s
- Capacity: 1920Wh (40Ah / 48V)
- Battery type: LiFePO4
- Max. Expansion capacity: 4 x 1920Wh = 7680 Wh
- Protection class: IP65
- Weight: 25 kg
- Dimensions: 450 x 280 x 420mm
All technologies at a glance
Aerosol fire suppression system:prevents the formation of flames in the battery without generating harmful gases. With this advanced technology, you can fully rely on the safety and protection of your Solarasystem.
Anti-thermal runaway technology: The ab1000s ensures that your energy storage system always maintains the optimum temperature at all times. This prevents accidents caused by overheating and fires.
Intelligent AC overcharge protection: If the solar radiation is ever insufficient, the system automatically switches to mains power. This smooth transition prevents over-discharging and ensures that your batteries last longer.
Battery balancing technology: It prioritizes the charging of low capacity battery cells, prevents both over-discharging and over-charging and ensures balanced charging and discharging of all cells.
Automatic self-heating function: Powerful and consistent even in extreme cold. The system uses solar energy to heat the storage unit at low temperatures so that they can be charged without any problems.
