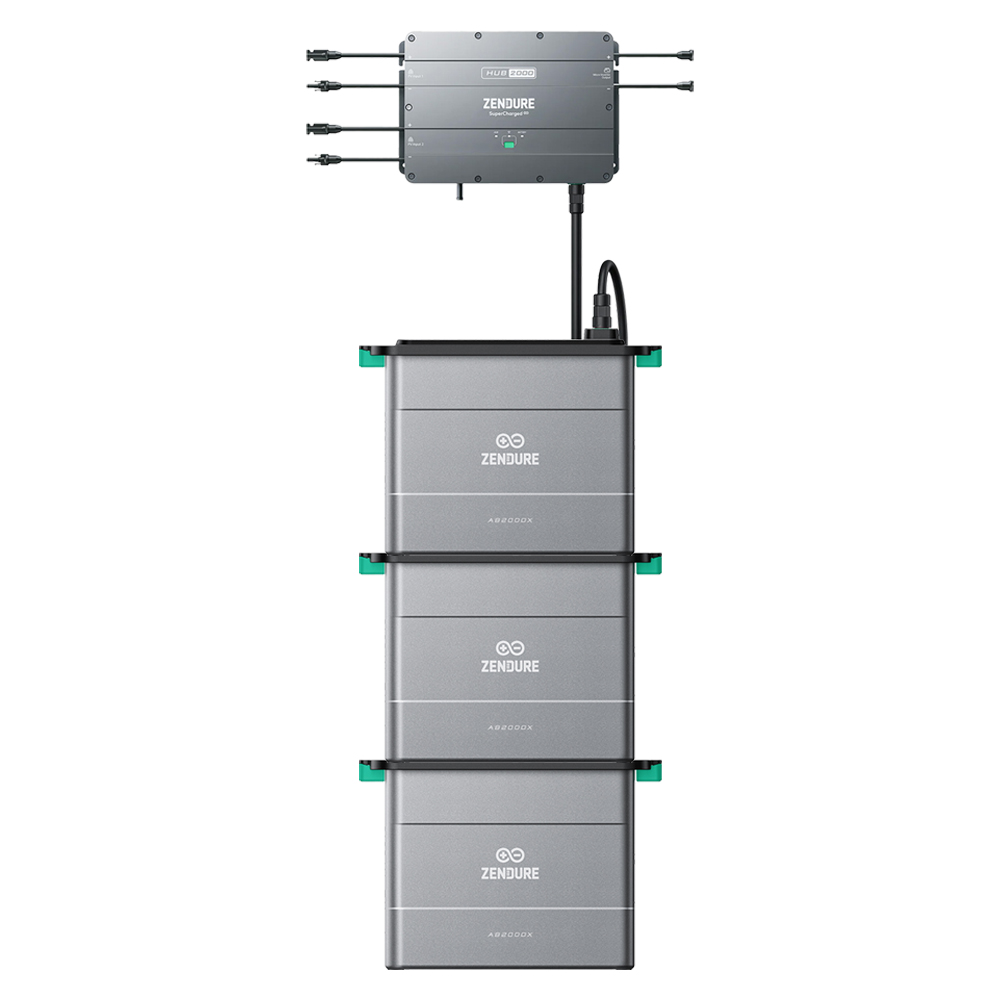

Zendure SolarFlow Smart pv Hub 2000 with expansion battery
Shipped in 2-5 days
€3,327.24*
€2,796.00**
Similar Products
Shipped in 3-6 Werktage
Shipped in 3-6 Werktage
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Product is expected to be back in stock on 27 December 2024
Product is expected to be back in stock on 27 December 2024
Shipped in 2-5 days
Shipped in 2-5 days
Addon Products
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 1-3 days
Shipped in 1-3 days
Shipped in 1-3 days
Shipped in 1-3 days
Shipped in 1-3 days
Shipped in 1-3 days
Shipped in 1-3 days
Shipped in 1-3 days
With the SolarFlow Zendure is one of the first to combine a balcony power plant with a storage option. Thanks to the SolarFlow, the supply of solar energy via a mini-pv system is no longer limited to the daytime. The energy generated is stored in the batteries after the consumers have been supplied and can therefore also be used at night or when there is little sunshine.
To use the SolarFlow system, at least one Solar paneland a Micro inverter is required. Here you can find suitable systems.
Overview of the system
- Dual MPPT pv input - 1200w per tracker
- Total capacity of 7,680wh possible (modular expansion)
- Compatible with 99% of all balcony power plants
- ip65 waterproof protection
- Monitoring and control via app possible
- 10 year manufacturer's warranty
- Simple integration
- TÜV Rheinland certified (id 1111272000)
The set contains:
- 1x SolarFlow Smart pv Hub 2000 MPPT
- Zendure Solarflow expansion battery (optionally selectable)
- 4x solar cable (3m)
- 1x battery cable (1.5m)
- 4x microinverter cable (0.5m)
- 2x mc4 Y-plug
- 6x mounting screws (M4.7x39mm)
- 2x flat washer
- 1x antenna
- 1x user manual + warranty certificate
how does SolarFlow work?
During the day the energy generated by the pv modules is fed to the micro inverter via the pv hub and converted into alternating current to power the appliances in the house. Surplus energy is intelligently stored in the batteries so that it can be used at night. This enables savings of up to 32% on the annual electricity bill. The intelligent control ensures that the surplus energy is stored efficiently, while the pv hub (with adjustable range from 100w to 1200w) supplies 600w to the microinverter as standard to fully cover the electricity demand during peak times
During the Night the surplus energy stored in the batteries (with the option to expand up to 3840wh capacity) is used to power a variety of appliances. These range from high wattage appliances such as air conditioners and refrigerators to devices such as wifi routers, lamps, laptops and many others.
Compatible with a wide range of balcony power stations
Thanks to the universal mc4 connections, SolarFlow is compatible with 99% of balcony power stations. This includes popular brands such as Hoymilesdeye, Priwatt etc. This seamless integration saves time and money as existing balcony power stations can also be easily and quickly combined with the SolarFlow. Due to the compact, stackable design, little space is required for installation and cabling is kept to a minimum.
waterproof protection
The PowerHub and the batteries are protected by a robust metal surface and have an ip65 protection class, which offers complete protection against dust and water. The set can be installed both inside and outside the home.
Zendure app
The Zendure app allows you to monitor the SolarFlow and change settings. The information is displayed in real time, including weather and green energy consumption, so that you can make the optimum configuration for your system. The app can also be used to retrieve historical data.
Zendure SolarFlow Smart pv Hub 2000 MPPT
The Smart pv Hub 2000 MPPT acts as a link between your balcony power plant and the LiFePO4 storage units of your SolarFlow system. The energy generated by the balcony power station is stored in the LiFePO4 batteries after the loads have been supplied. In this way, the stored energy can also be used efficiently at night or when there is little sunlight. The new Smart pv Hub 2000 can process even more solar power than the previous Smart pv Hub 1200.
Technical data
- Recommended input power pv modules: 1200 w (per tracker)
- Max. Input voltage: 60 V
- MPPT voltage range: 16-60 V
- MPPT voltage range at full power: 35-60 V
- Number of mppt: 2
- Max. Input current: 2x26 A
- Operating temperature range: -20°C - +45°C
- Protection class: ip65
- Weight: 5.2 kg
- Dimensions: 363 x 246 x 64 mm
Zendure Solarflow extension batteries
Technical data AB1000
- Capacity: 960wh (20Ah / 48V)
- Battery type: LiFePO4
- Max. Extension capacity: 4 x 960wh = 3840 wh
- Protection class: ip65
- Weight: 11.5 kg
- Dimensions: 350 x 200 x 186.5 mm
Technical data AB2000
- Capacity: 1920wh (40Ah / 48V)
- Battery type: LiFePO4
- Max. Extension capacity: 4 x 1920wh = 7680 wh
- Protection class: ip65
- Weight: 25 kg
- Dimensions: 450 x 280 x 420mm
