Zendure SolarFlow 1800w hms-800w-2t balcony power station Bifacial Full Black - 5m connection cable 1x ab1000S
Shipped in 2-5 days
€1,367.52*
€1,149.18**
The Zendure balcony power plant (MPN 019800) presents an excellent solution for generating a portion of your required household electricity and thus significantly reducing overall electricity expenses. The system is equipped with 4 powerful bifacial 450W solar modules, the compact micro-inverter HMS-800W-2T, and the Smart PV Hub 2000. The included HMS connection cable makes installation of all components effortless, thanks to its simple plug-and-play principle.
Additionally, you can choose between 1 to 4 AB1000S or AB2000 batteries to store the generated solar energy. This allows for a total capacity of up to 7,680Wh. These batteries enable efficient energy storage, ensuring the utilization of solar power even with low sunlight or during the night. The AB1000S also offers enhanced technologies and safety features, such as a fire suppression system, a self-heating function, battery balancing, and an integrated battery management system, allowing you to easily control and track all data and facts via the app.
The balcony power plant includes:
- 4x Luxen Solar 450W Bifacial TopCon N5 Full Black Solar Modules
- 1x Hoymiles HMS-800W-2T Micro-Inverter
- Zendure SolarFlow expansion battery (optional choice)
- 1x Zendure SolarFlow Smart PV Hub 2000 MPPT
- 1x Hoymiles HMS Connection Cable Field Connector Plug & Play 5m

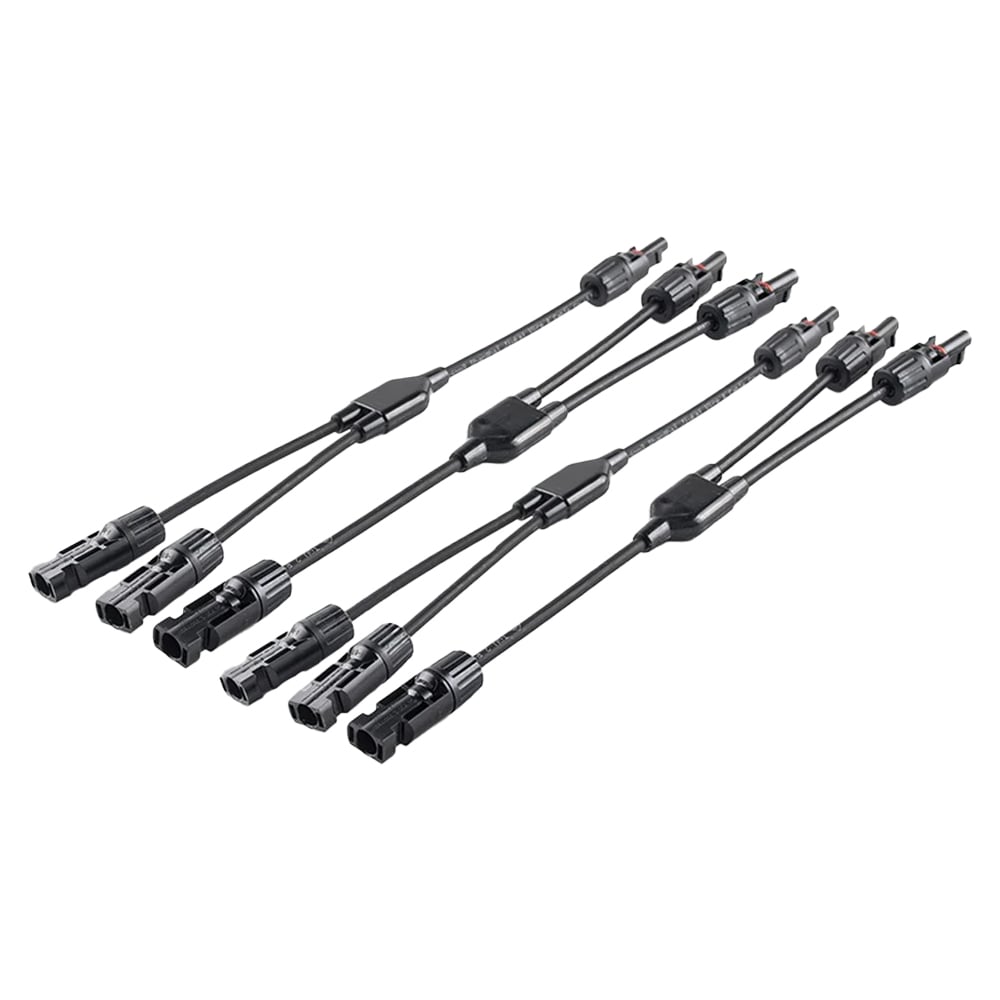

- 2x Offgridtec Dual Branch Sockets Y-Connector

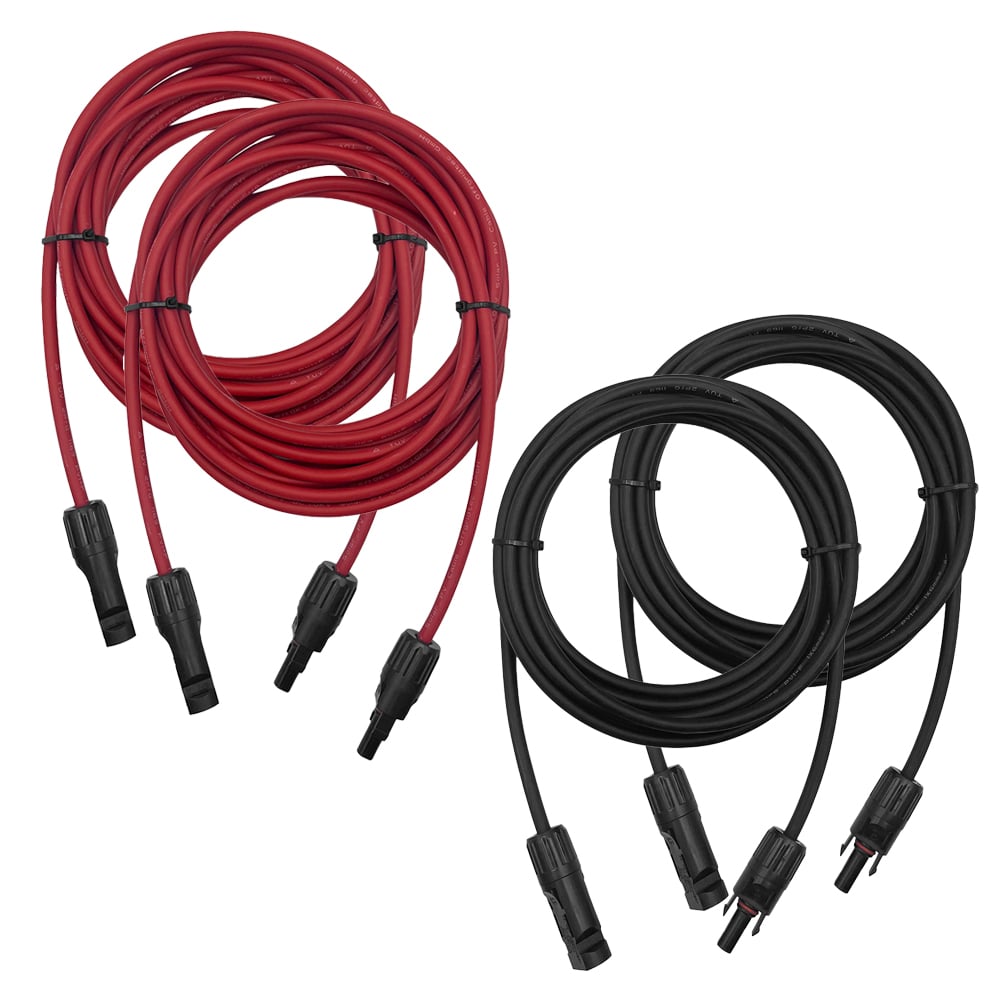

- 2x MC4 to MC4 connection cables 6mm² 5m
Luxen Solar 450W Full Black Solar Module
The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as LECO N-TOPCon cell technology and a 96-cell half-layout to maximize efficiency. Additionally, it utilizes SMBB half-cut cell technology, which contributes to performance optimization.
- LECO N-TOPCon cell technology
- SMBB half-cut cell technology
- Low BOS & LCOE
- Bifacial cell module technology
- Excellent anti-PID and low LID performance
- Reduced hotspot risk
- 3 bypass diodes - minimized power loss in shading
- High cell efficiency of over 22.52%
Technical Data
- Maximum power: 450W
- Module voltage (Vmp): 30.08V
- Maximum current (Imp): 14.96A
- Open-circuit voltage (Voc): 35.21V
- Short-circuit current (Isc): 16.02A
- Module efficiency: 22.52%
- Maximum operating voltage: 1500V DC
- Operating temperature range: -40°C to +85°C
- Dimensions: 1762 x 1134 x 30mm
- Cells: 96 (6x16)
- Protection class IP68
- Connection: MC4
- Weight: 24kg

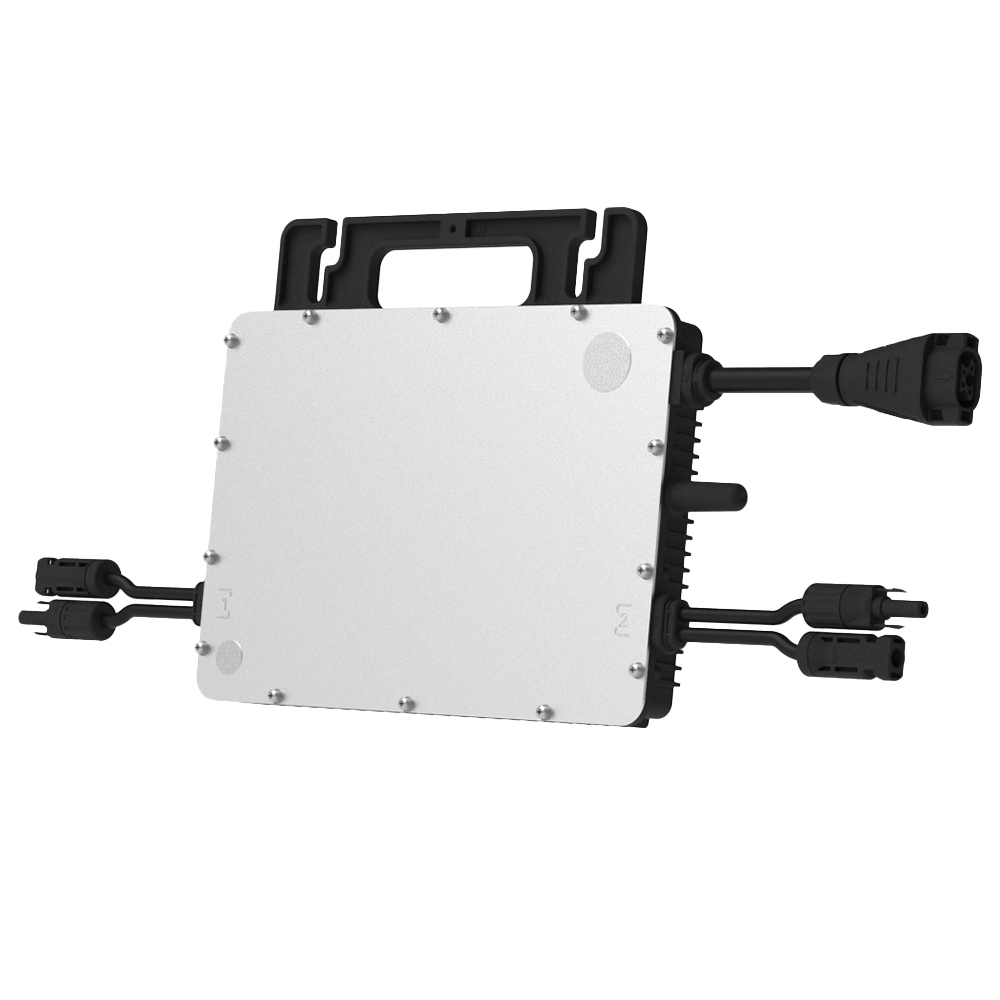

HMS-800W-2T
The HMS-800W-2T by Hoymiles is the perfect micro-inverter for your balcony power plant. In addition to the integrated high-quality WiFi module, this compact lightweight (only 3.2kg) is ideally suited for solar power generation with up to two solar panels with a power output of 320 to 540+W each.
- Integrated WiFi module
- High-quality energy harvest with high MPPT accuracy
- Peak efficiency of 96.7%
Technical Data
- MPPT voltage range: 16-60V
- Startup voltage: 22V
- Maximum input voltage: 65V
- CEC peak efficiency: 96.70%
- Number of MPPTs: 2
Zendure SolarFlow Expansion Batteries

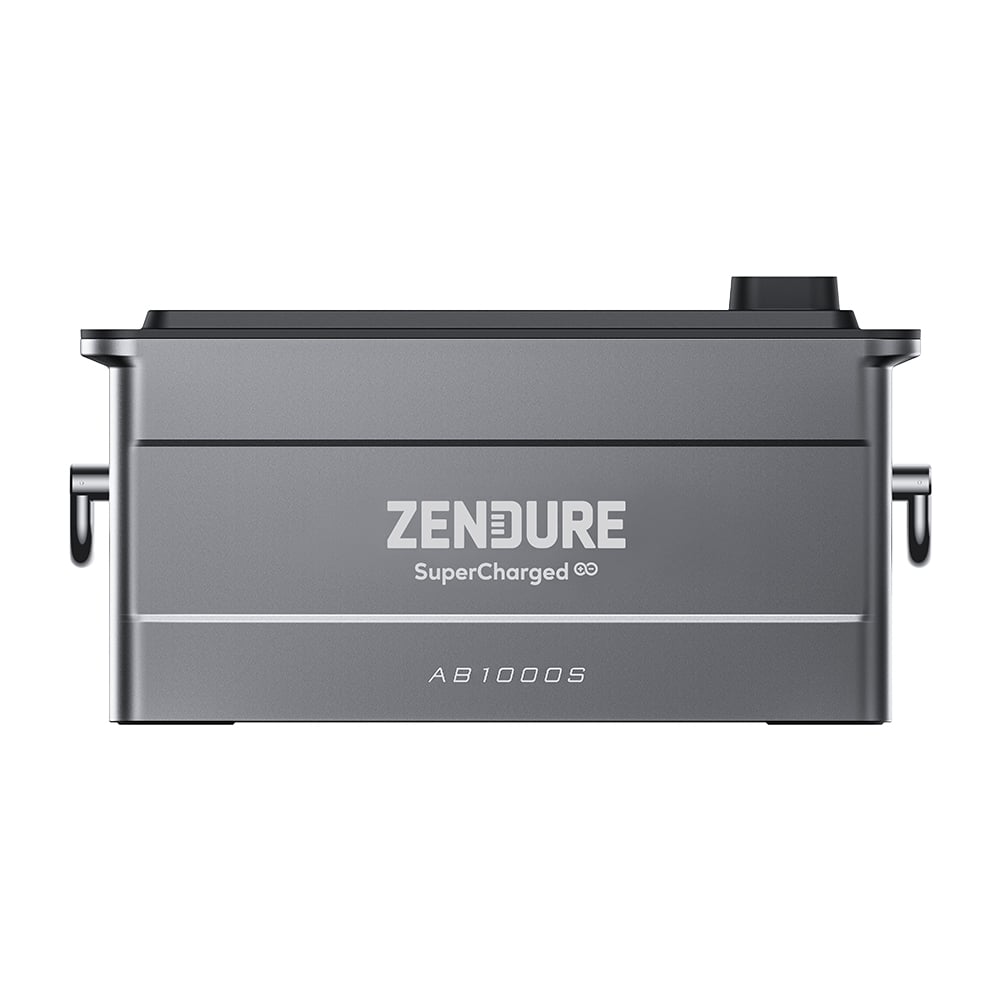

Technical Data AB1000S
- Capacity: 960Wh (20Ah / 48V)
- Battery type: LiFePO4
- Maximum expansion capacity: 4 x 960Wh = 3840 Wh
- Protection class: IP65
- Weight: 11.5 kg
- Dimensions: 350 x 200 x 186.5 mm
Technical Data AB2000
- Capacity: 1920Wh (40Ah / 48V)
- Battery type: LiFePO4
- Maximum expansion capacity: 4 x 1920Wh = 7680 Wh
- Protection class: IP65
- Weight: 25 kg
- Dimensions: 450 x 280 x 420mm

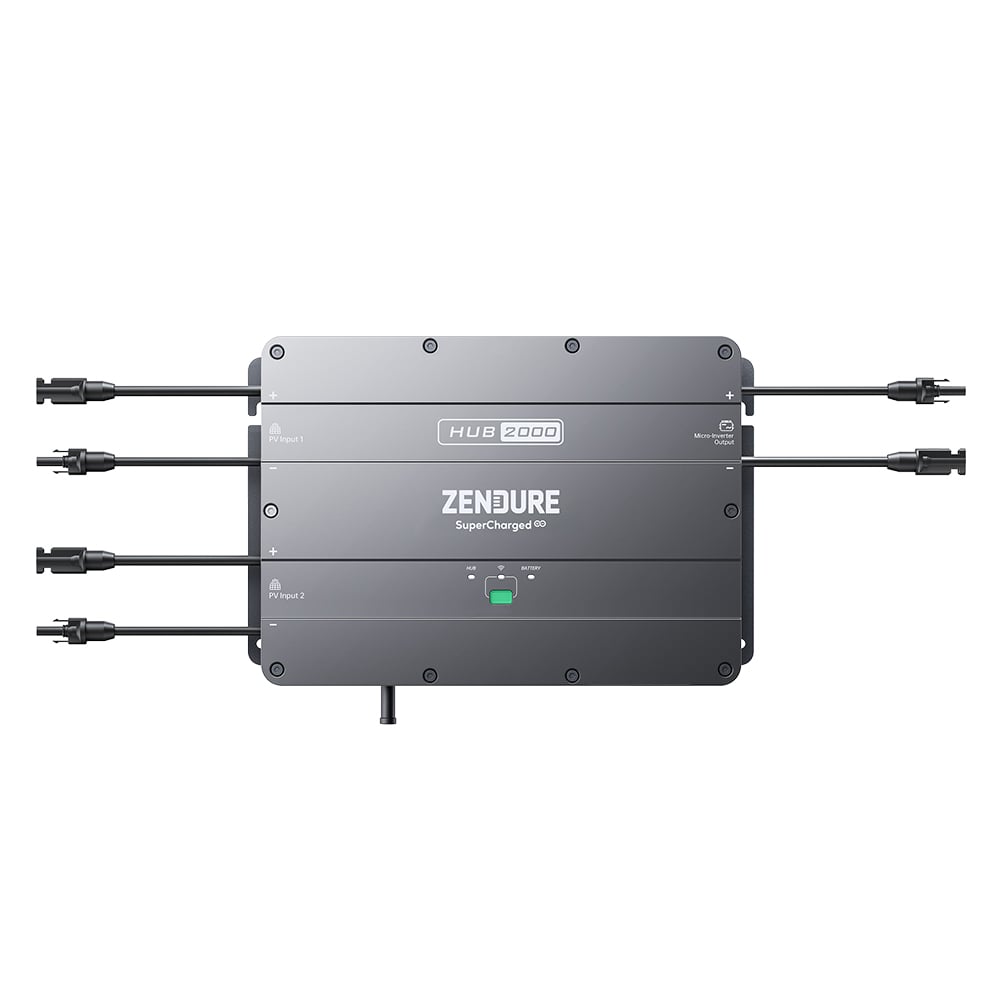

Zendure SolarFlow Smart PV Hub 2000 MPPT
Technical Data
- Recommended input power PV modules: 1200 W (per tracker)
- Maximum input voltage: 60 V
- MPPT voltage range: 16-60 V
- MPPT voltage range at full power: 35-60 V
- Number of MPPTs: 2
- Maximum input current: 2x26 A

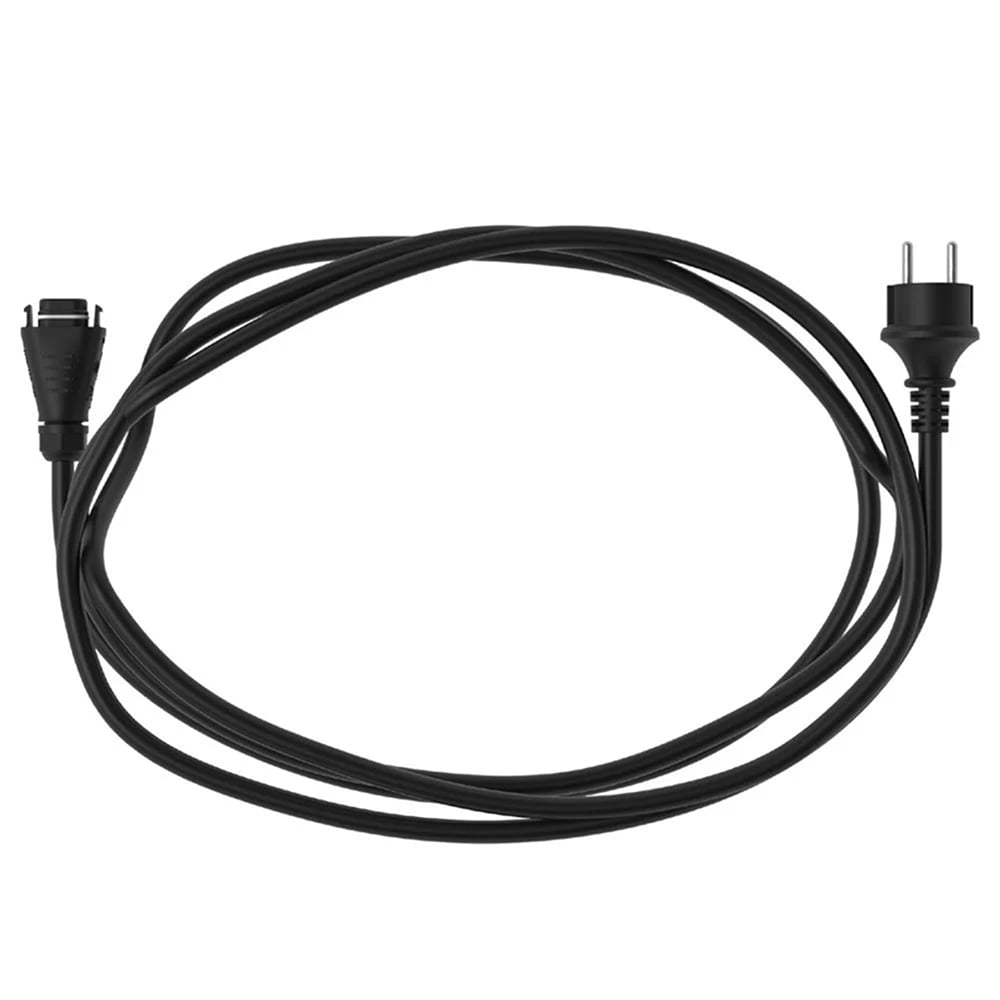

HMS Connection Cable Field Connector Plug & Play
The Hoymiles HMS Plug & Play connection cable is specifically designed for use in PV systems with only one HMS inverter. It consists of a field connector, an AC cable, and an AC plug. The field connector is connected to the inverter, and the plug is connected to the household socket.
- Cable type: PV07AC-F
- Cable length: 5m
- Rated voltage: 250V
- Rated current: 12A
Balcony Power Plants in Germany
Currently, there are no laws or regulations in Germany governing the generation of solar power for private consumption. The limit of a maximum of 600W AC PV power is a reserve value that, according to current VDE standards, can be fed into an existing socket circuit of a house without overloading it. For independent circuits without additional loads, nothing is specified. Any electrical installation must be carried out in accordance with VDE standards. However, operating a balcony power plant through the usual Schuko socket is not fundamentally prohibited. Reporting to the Federal Network Agency is mandatory. However, there are currently no known cases of fines for failing to report balcony power plants, nor insurmountable issues with network operators. Compliance with and implementation of standards and obligations is the responsibility of the system operator. Many technical and legal pieces of information can already be found on relevant websites.
