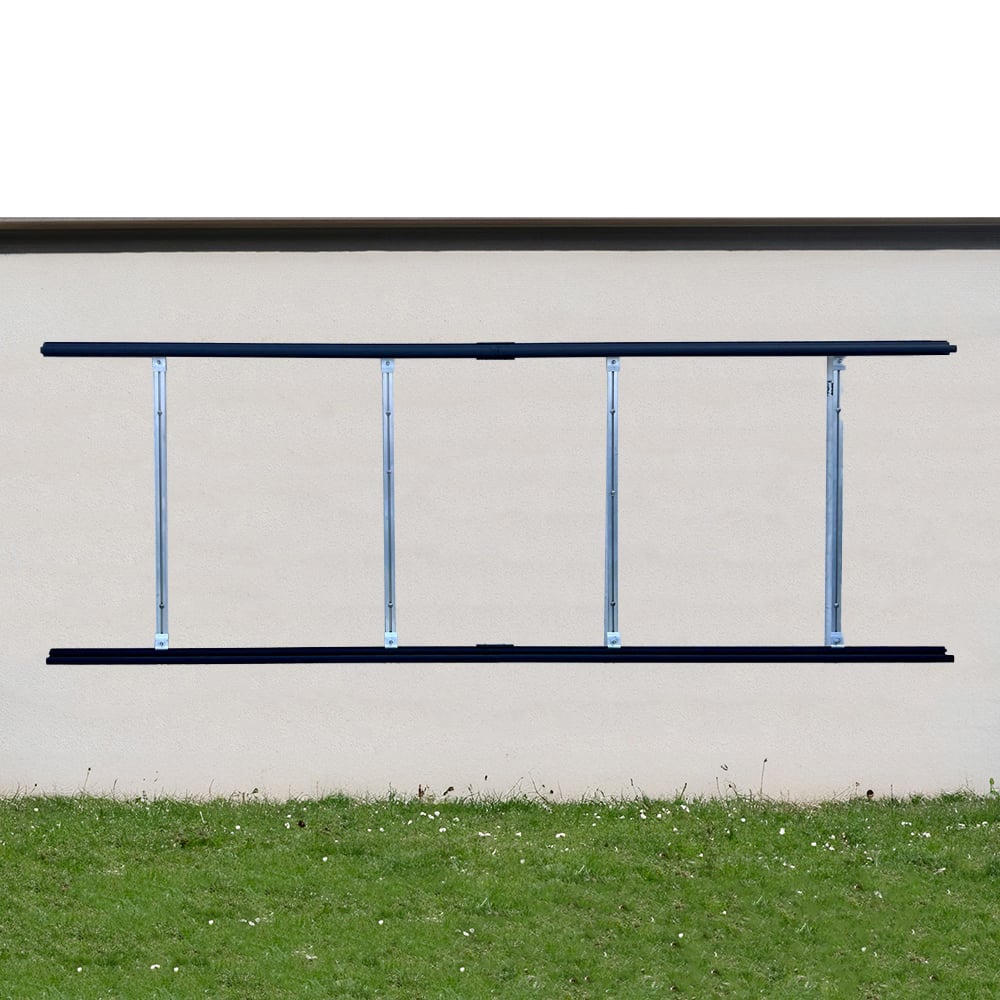

The WandPV Premium (MPN 7203) from Wattstone provides you with an innovative mounting system that offers you full and efficient alignment and use of your solar module. With the associated support rails, insertion rails and dowels, the horizontal installation of up to 2 solar modules and an inverter is child's play. The equipment is versatile and is suitable for mounting on solid walls as well as on wooden structures and provides a high electricity yield despite the low position of the sun. As the solar panels are suspended in the insert rails, they guarantee you long-lasting performance and work free from stress.

The mounting set is suitable for solar modules with a frame height of max. 30 mm and max. 1762 x 1130 mm.

The mounting system at a glance

  • Installation of 2 solar modules next to each other
  • concealed installation of one inverter
  • With building authority approval
  • Long-lasting performance
  • Elegant design
  • Space-saving
  • Innovative
  • Easy installation

Other important information

  • Installation on solid masonry or wood with m8 screws and plugs
  • Max. Dimensions of the PV modules: 1762 x 1130 x 30 mm
  • Installation takes approx. 1 hour

Scope of delivery:

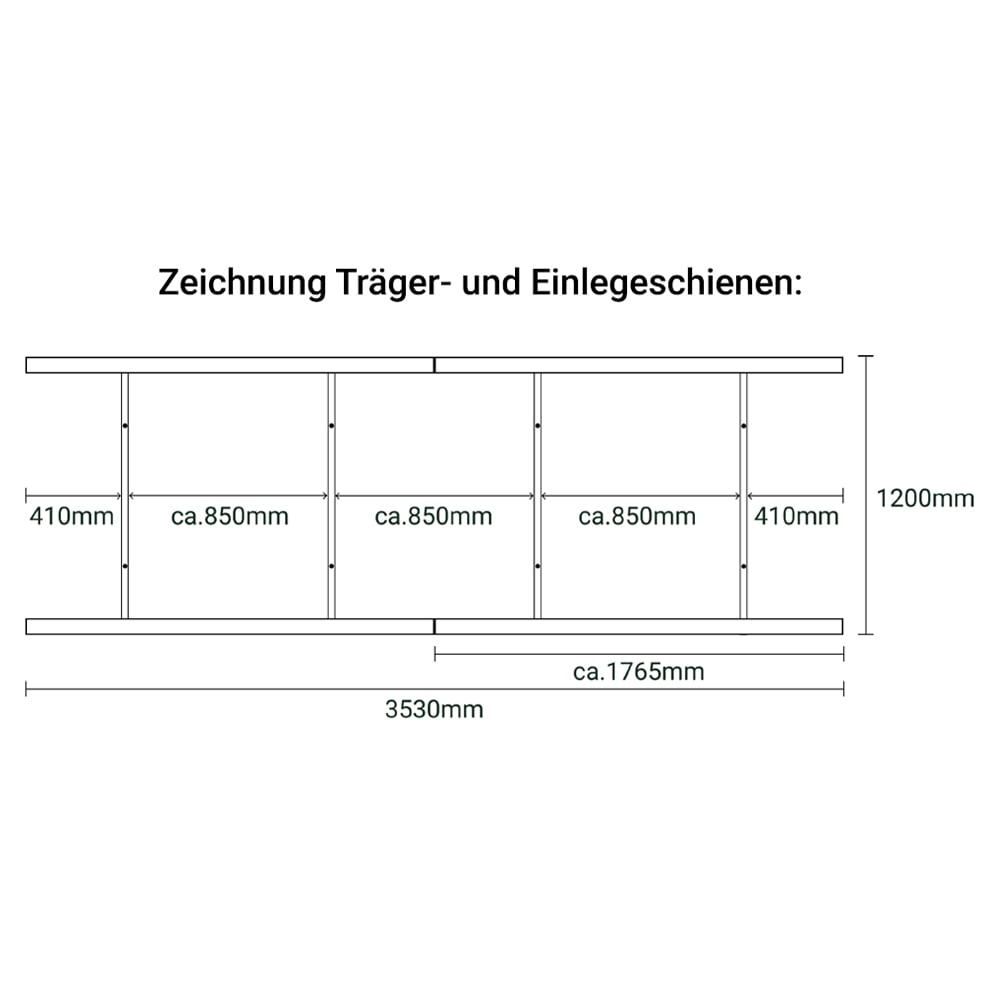

4x insertion rail 30mm/1765mm black anodized
4x base rail 40x40x1200mm silver aluminum
4x edge stop black with screw and alternative one-way safety screw
8x cross ties standard els with slotted screw m8 and lock nut
2x rail connector for insertion rails black
8x pan head screw 8x100mm with multi-purpose dowel
2x slot nut with screw m8x 12mm with washer

Wattstone_Wand-PV_Montageanleitung.pdf Download
Compatible with: solar modules up to 1762x1130x30 mm dimensions
Manufacturer: Wattstone
ean: 4262439880387
mpn: 7203
