Wattstone east-west PV elevation flat roof for 2 solar modules 0° concrete base aluminum-laminated building protection mat
Maximize the output of your Solarasystem with our PV mounting kit (mpn 019920). This innovative mounting system allows you to install your solar modules side by side in an east-west orientation. This arrangement allows you to make optimum use of the sun's energy from sunrise to sunset and significantly increase the output of your Solarasystem.
With the concrete bases from Wattstoneconcrete bases ensure that your solar modules are securely anchored, while the east-west connectors provide additional stability for your system. This set is the perfect solution to maximize the energy production of your Solarasystem throughout the day. The set is suitable for solar panels with a module height of 30 mm.

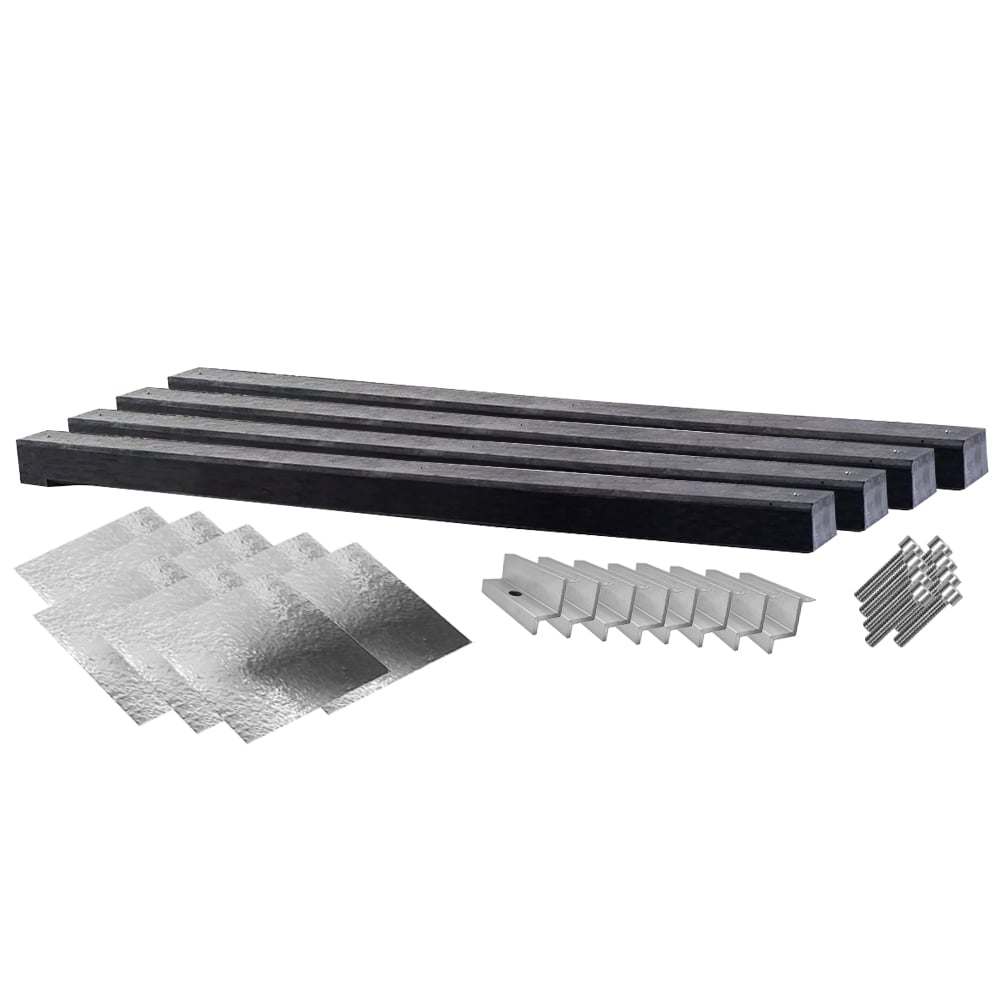

The set includes:
- Wattstone concrete base - Quantity depending on the number of solar modules
- Wattstone building protection mats -selection: aluminum-laminated or black

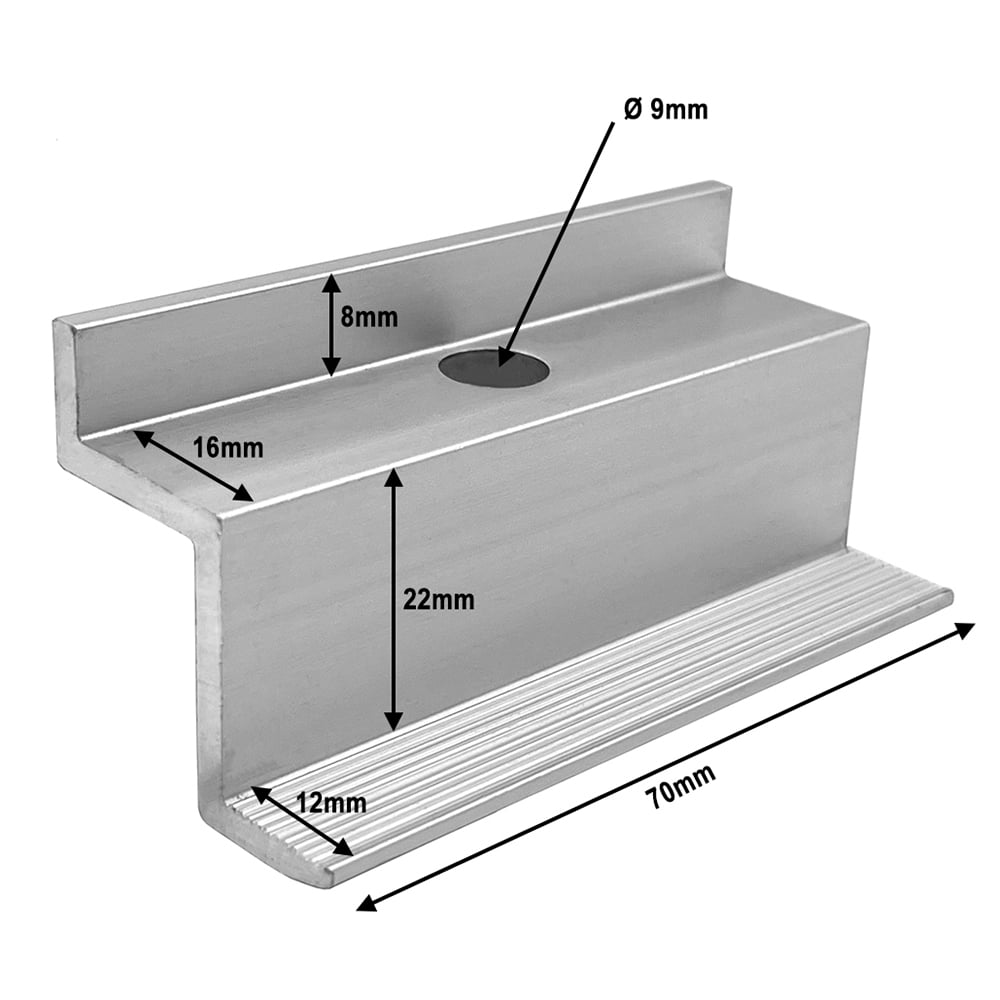

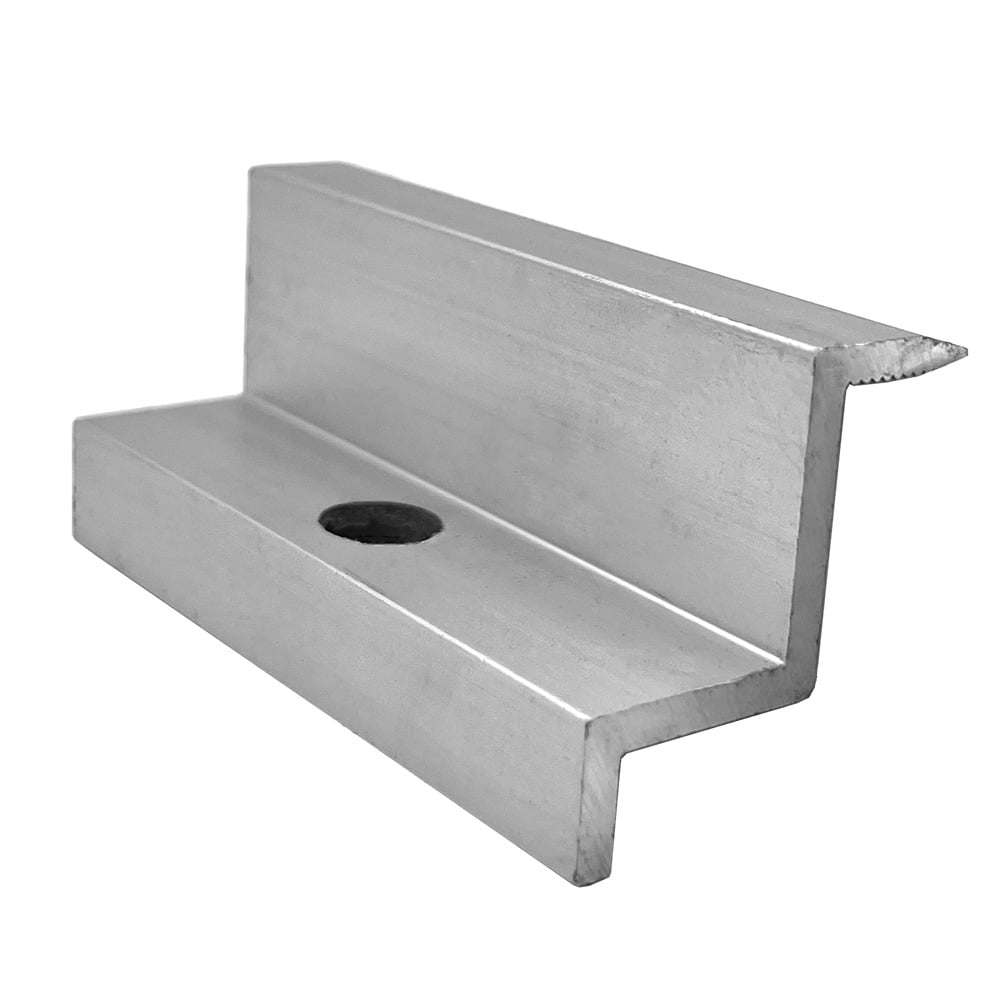

- Offgridtec Module end clamps
- Offgridtec Module center clamps (no center clamps are required for 2 solar modules)
- Wattstone east-west connector - for 10° and 15° concrete base sets
Maximize your performance
By connecting the solar modules in series, the voltage of your Solarasystem is significantly increased. This leads to more efficient energy conversion and lower line losses throughout the system.
Optimum use of space
This installation method enables maximum utilization of the available roof or floor space. By positioning the modules in rows, the space can be optimally utilized without creating excess gaps.

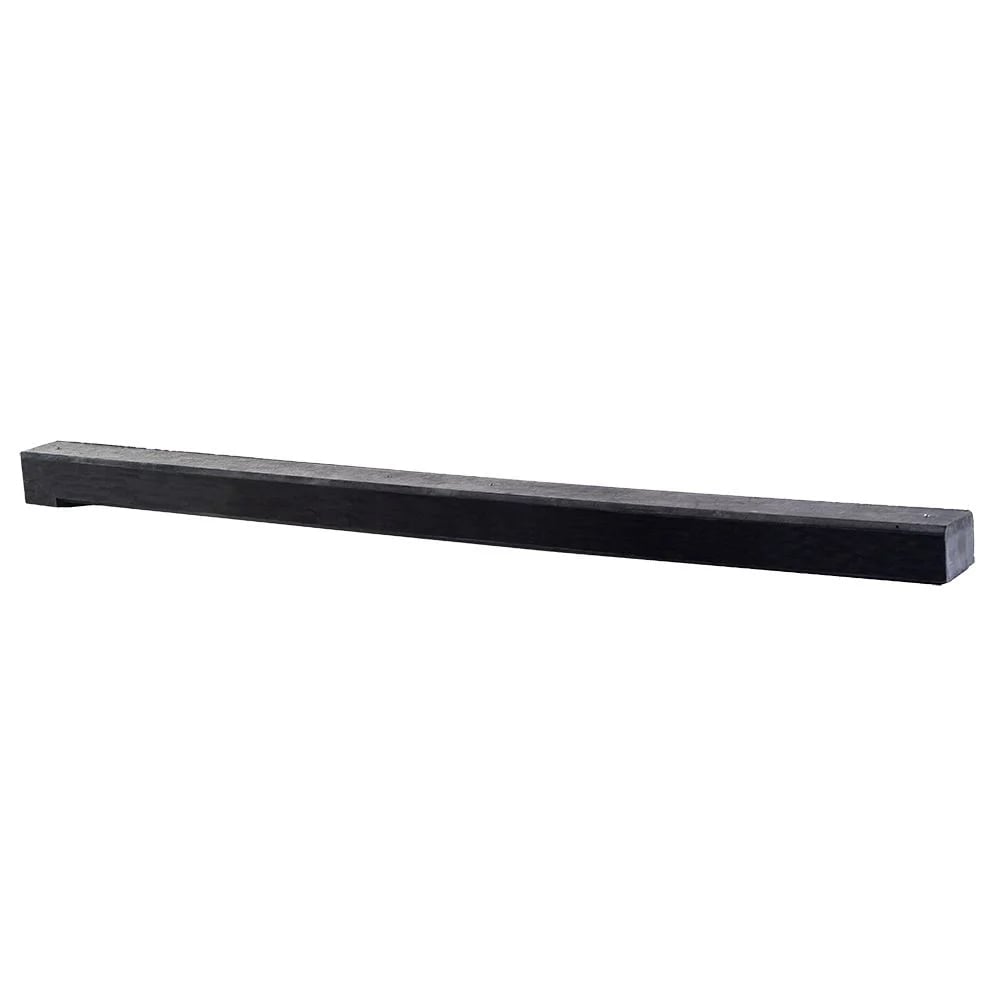

The Wattstone concrete base
- Flat roof mounting
- Selectable between 0, 6, 10 and 15 degree angle of inclination
- Substructure and weighting in one
- No drilling of the roof structure necessary
- No complicated assembly with tools
- Concrete base made of fine-pored exposed concrete
- Integrated m8 thread
- Quick and easy installation
- Color: anthracite
Traditional PV mounting systems usually require anchoring, bonding or ballasting to the roof. Concrete slabs are often used as ballast. With the robust concrete bases from wattstone as the basis for the surface structure, these steps are completely eliminated. The concrete base lies securely on smooth bitumen, bitumen with slate, pvc, epdm and smooth concrete, both in dry and wet conditions.

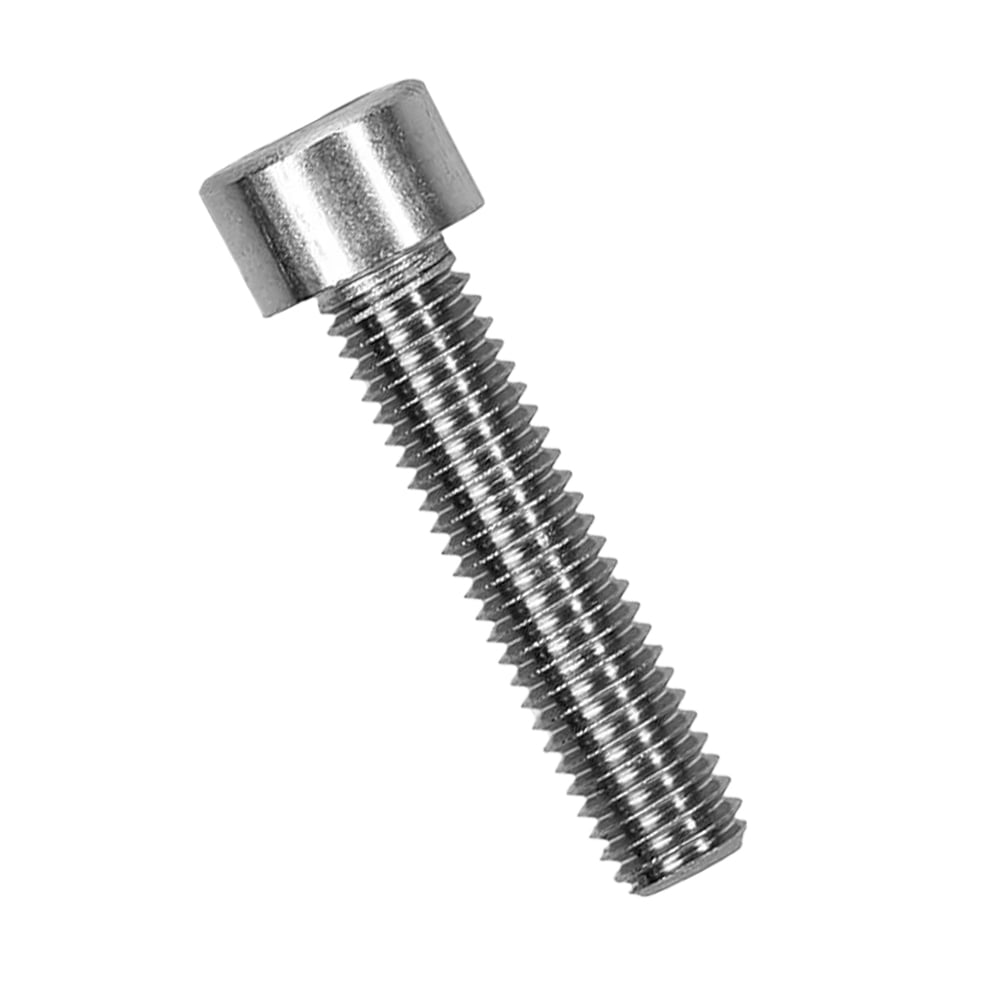

m8 thread
The integrated m8 threads are used to securely fasten PV modules. 2 threads for module fastening and 1 thread for optional installation of cable ducts or wind deflectors on the back are already cast into the concrete base.
East-west connector
The east-west connector from wattstone was specially developed for concrete bases with a 10 and 15 degree angle of inclination. The use of the connector ensures increased stability, particularly in windy areas. No connector is required for the flatter 0° and 6° concrete bases, as these heavy concrete bases already offer a high degree of inherent stability against wind loads. The connector is therefore only supplied with the 10° and 15° concrete base sets.
- 5mm galvanized steel
- powder-coated
- incl. stiffening rib
- Color: anthracite
- Dimensions: 310 x 32mm
Wattstone building protection mats

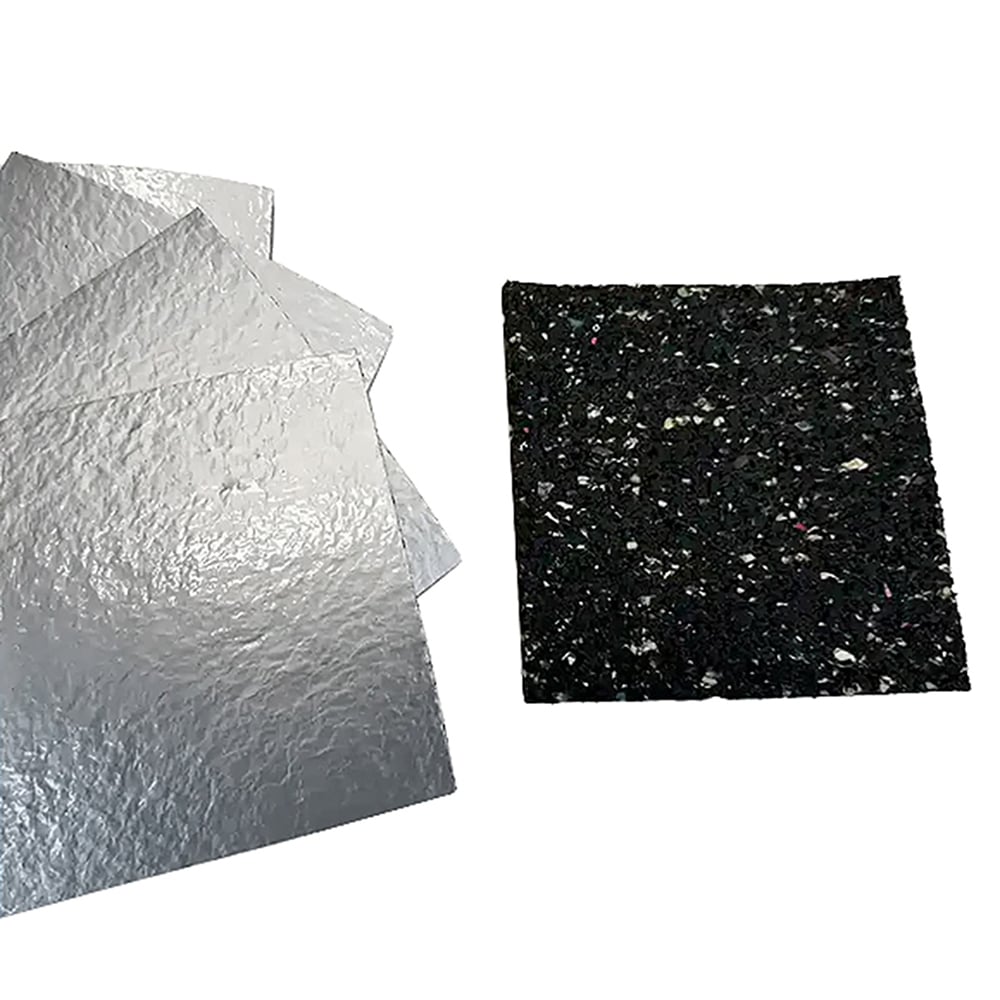

The building protection mats from Wattstone serve as a safe means of protection for all building protection applications, as well as for all classic applications on flat roofs and buildings. The mats, which are supplied in a set of 4, are ideal as a base for Wattstone concrete supports. They are easy to lay, can be walked on immediately and are extremely durable and highly resilient.
Protection for roofs and floors
- Protects flat roofs, roof cladding and buildings
- Support for wood and concrete foundations
- For underlayment and vibration decoupling
- Recognized protective layer according to din 18195, part 10
Format, color and material
- Format: 6 x 150 x 150 mm

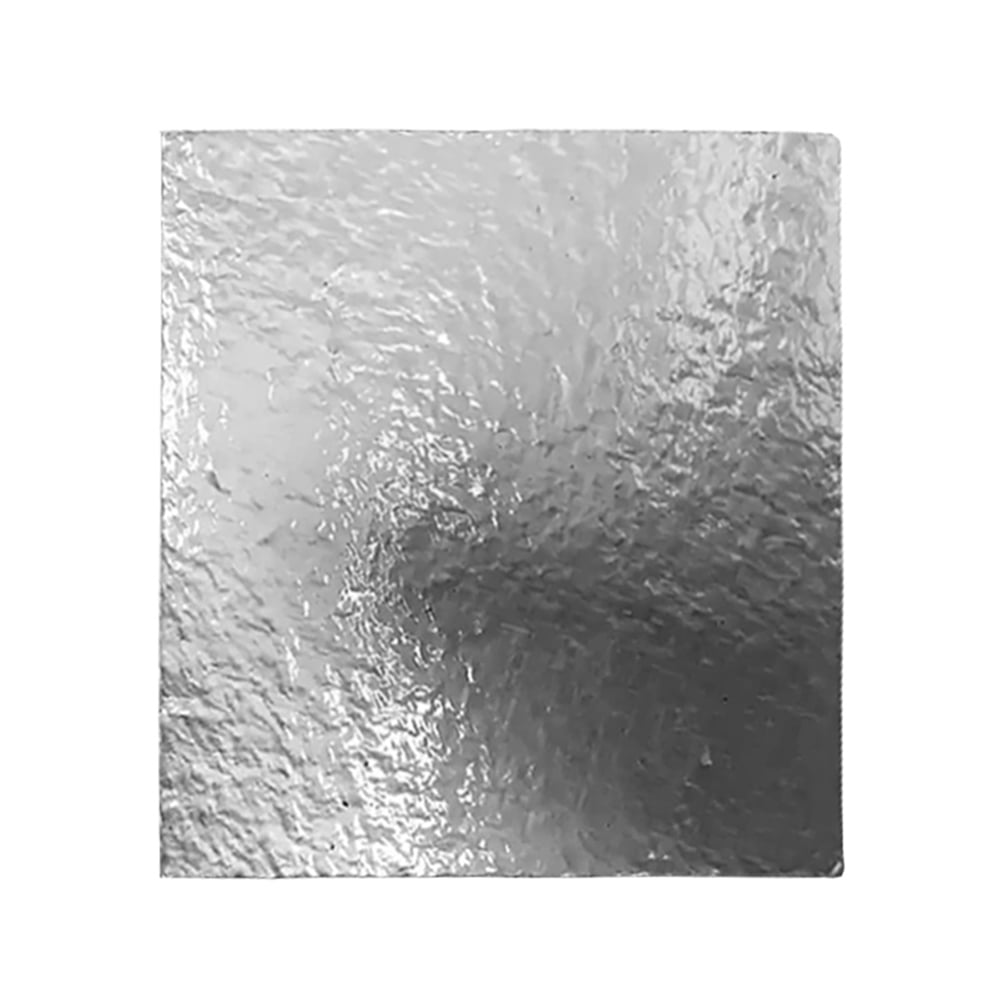

- Color: Black or aluminum-laminated (underside laminated with aluminum foil)
- Material: PUR-bonded rubber granulate
