Wattstone 6 degree concrete base for PV modules flat roof natural gray

The 6 degree concrete base from Wattstone (mpn 7001n) not only offers a stable substructure for your solar modules but also maximum flexibility. Discover the ease of installation by dispensing with drilling into the roof structure and instead using the high-quality L-bricks with integrated m8 thread. With a length of 180 cm, the flat roof mounting bracket is perfect for large modules from 420w-580w for upright installation. By using the optimum tilt angle of 6 degrees, the full potential of your Solarasystem is exploited and optimum energy generation is guaranteed.

The Wattstone 6 degree concrete base

• Substructure and ballast in one
• no drilling of the roof structure necessary
• no complicated assembly with tools
• Concrete base made of fine-pored exposed concrete
• integrated m8 thread
• quick and easy installation

Technical data

• 2x reinforcing steel D=8mm
• Weight: 48kg

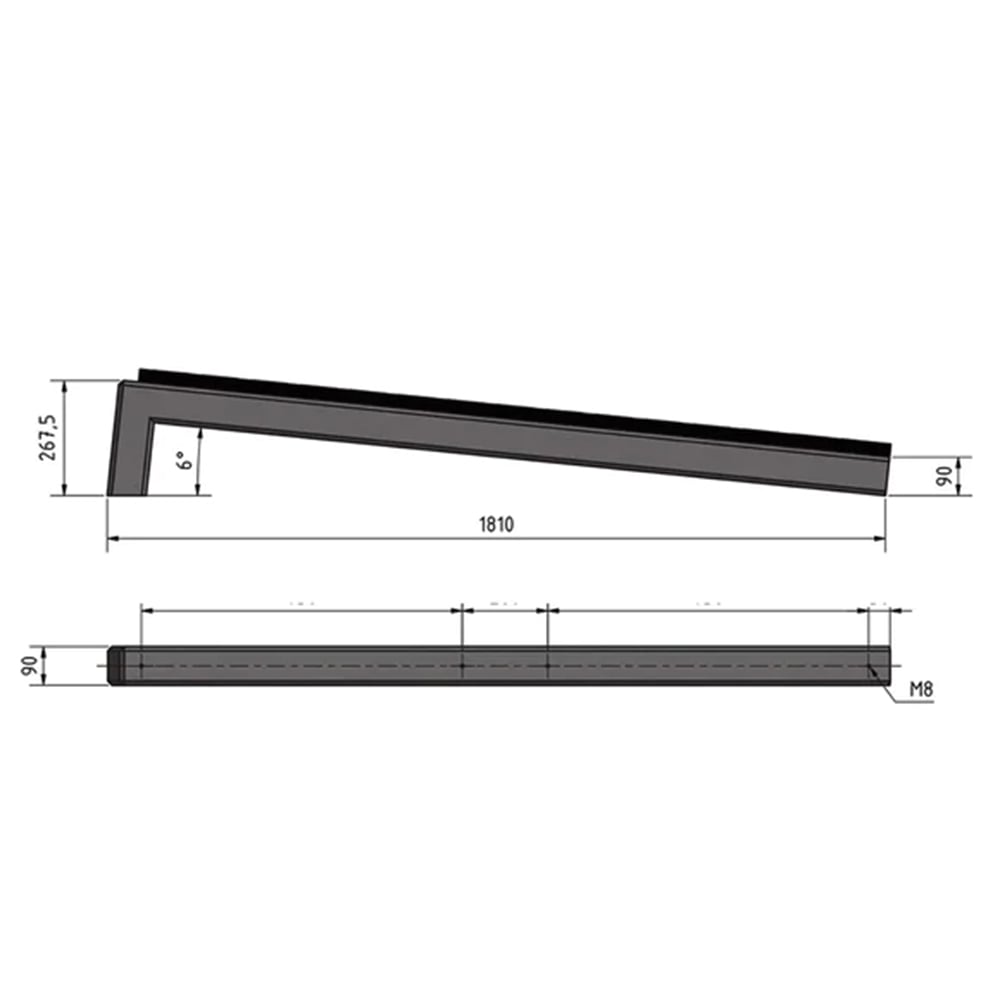

• Dimensions: 1810 x 120 x 227 mm
• Color: Natural grey

Simple assembly

• 6 degree tilt angle PV module
• max. 5 degree angle of inclination substrate
• horizontal or vertical mounting of the PV modules
• Underlay building protection mats
• no drilling of the roof structure necessary
• 60 cm distance between the module rows
• Recommended orientation east or west
• horizontal fastening with module end or center clamps, stainless steel screws with spring washer recommended

Traditional PV panel mounting systems usually require anchoring, bonding or ballasting to the roof. Concrete slabs are often used as ballast. With the robust concrete bases from wattstone as the basis for the surface structure, these steps are completely eliminated. The concrete base lies securely on smooth bitumen, bitumen with slate, pvc, epdm and smooth concrete, both in dry and wet conditions.

You will need the following components to install a PV module:

• 2 wattstone concrete bases
• 4 matching module end clamps, each with m8 screws and washers
• 8 building protection mats pads, dimensions 150x150x5mm
  (rubber granulate carpet pad)
• 1 angle wrench 6mm

m8 thread

The integrated m8 threads are used to securely fasten PV modules. 2 threads are already cast into the concrete base for module fastening and 1 thread for optional installation of cable ducts or wind deflectors on the rear.

Certification

• Wind tunnel tested ( din en 1991-1-4: 2021)
• Friction coefficient tested

Scope of delivery

1x Wattstone 6 degree concrete base flat roof natural gray
