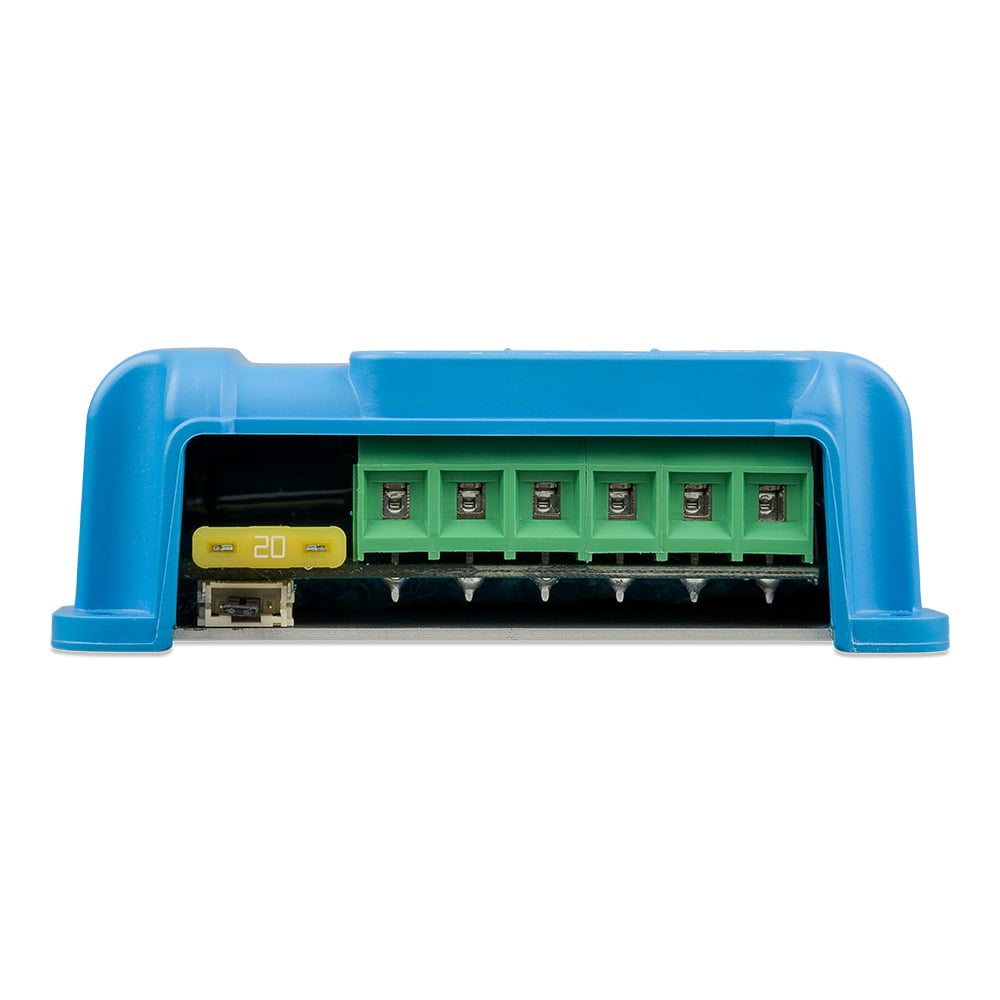

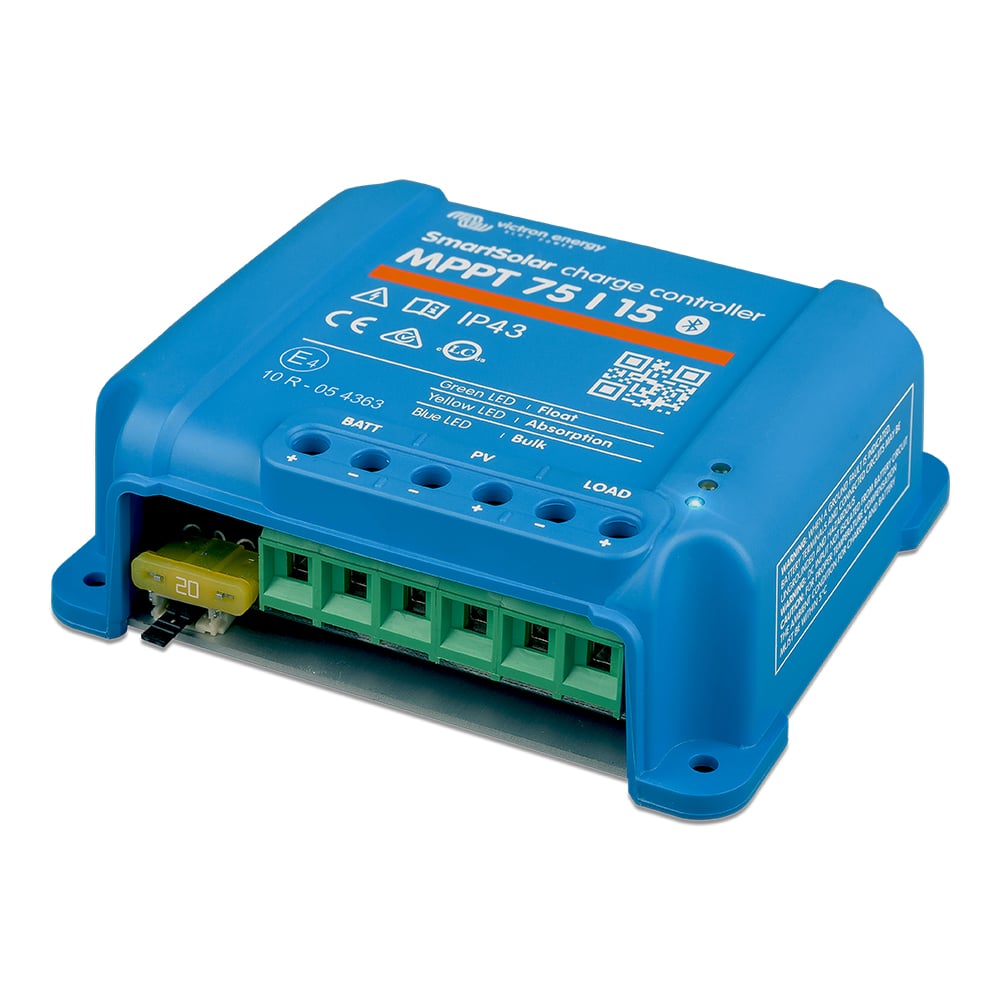

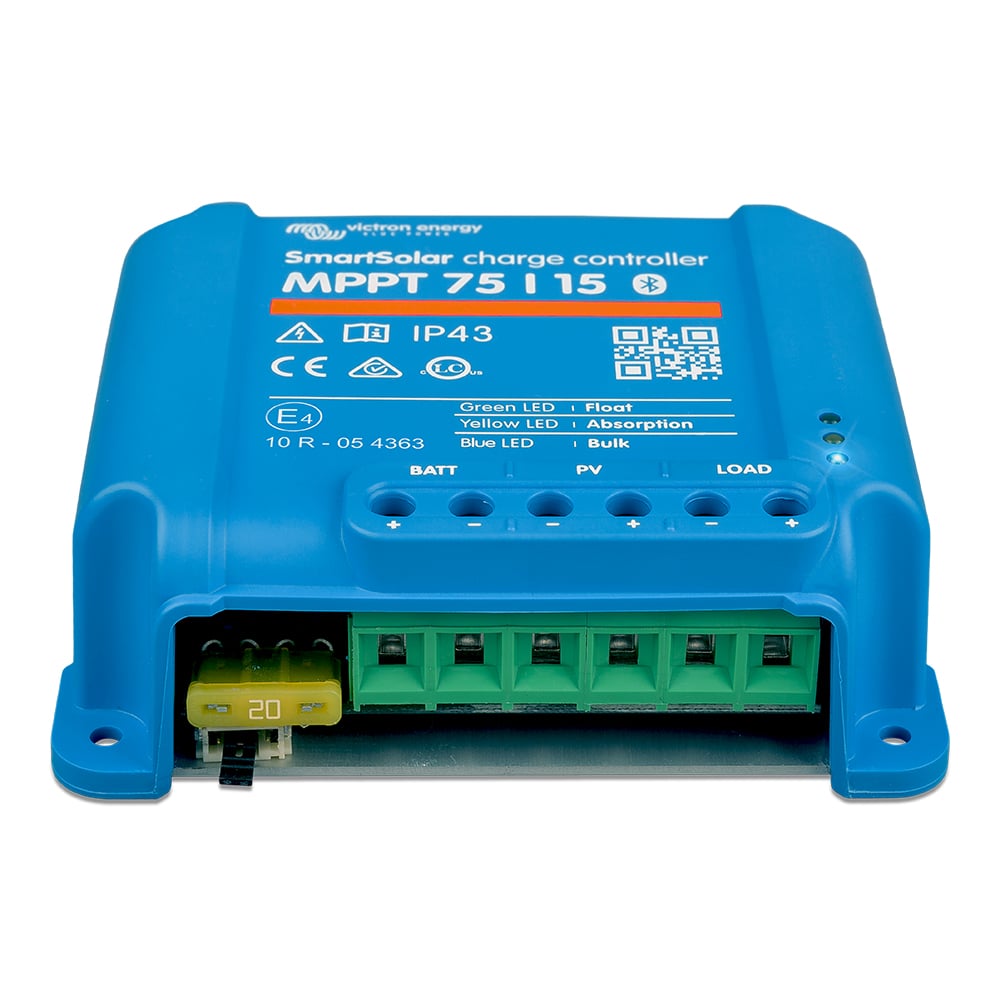

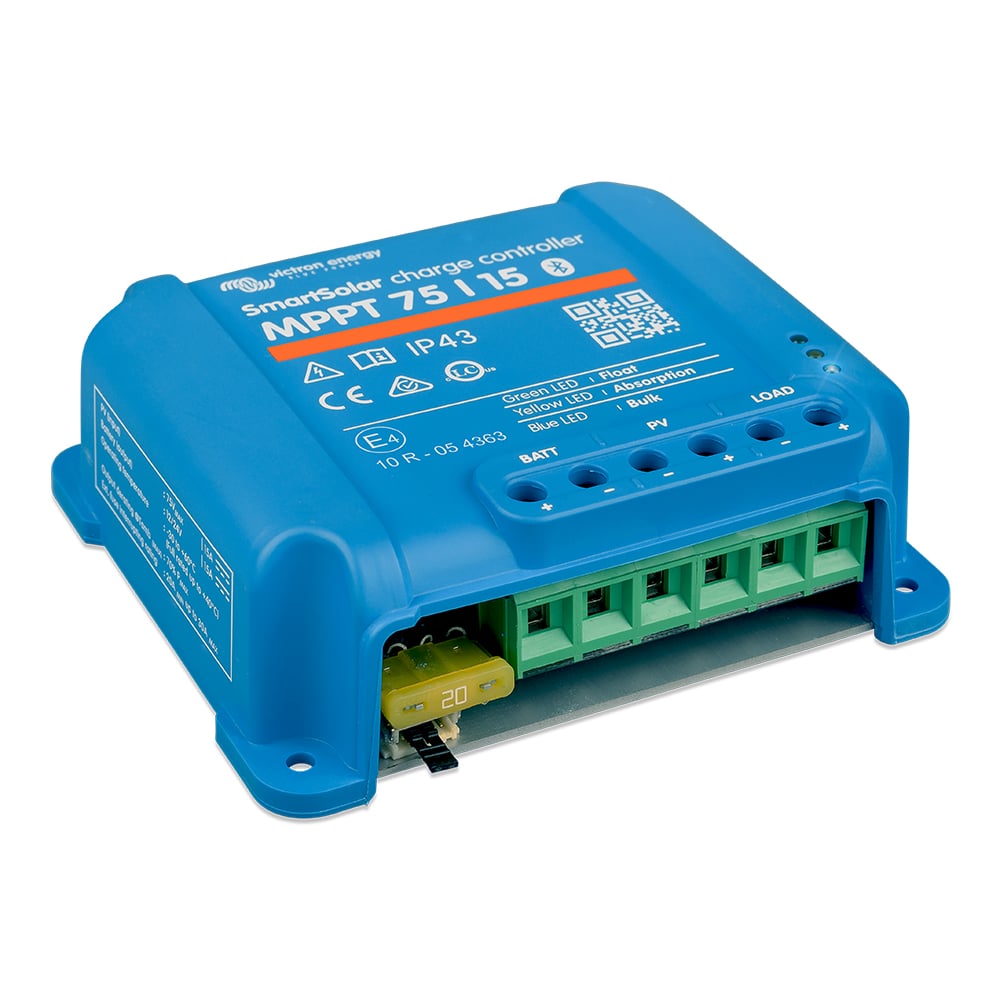

Victron Smartsolar MPPT 75/15 15A 12V 24V controller

The Smartsolar 75/15 from Victron Energy (mpn scc075015060r) is a mppt solar charge controller with 15a max charge current for charging 12v and 24v batteries. Unlike the Bluesolar 75/15, the Smart version has integrated Bluetooth, which eliminates the need to purchase a Bluetooth dongel. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control gx or the mppt Control.

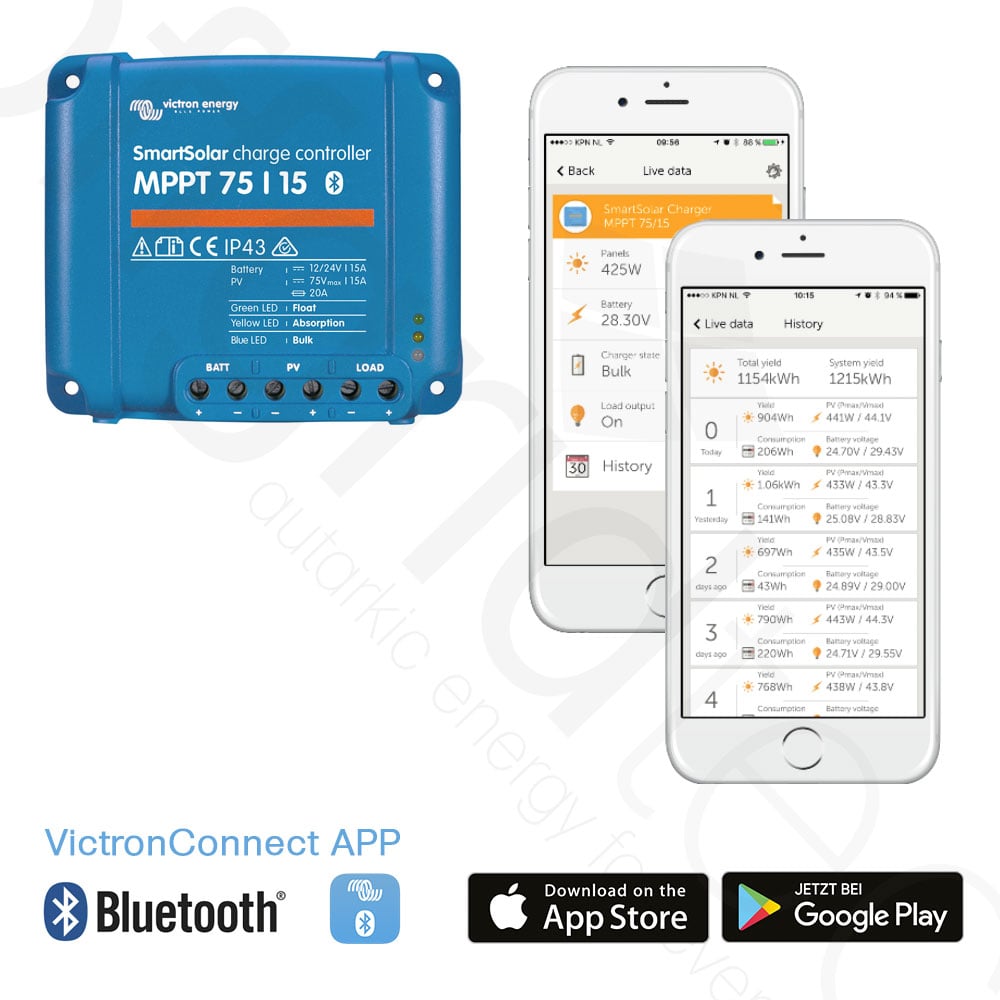

The integrated Bluetooth in the SmartSolar series is the wireless solution to setup, monitor and update the controller using Apple and Android smartphones, tablets or other devices. Optional, the MPPT-WireBox-S 75 10/15 from Victron Energy is the ideal complement for your SmartSolar charge controller. It securely covers the cable inputs or connection terminals of the controller, protecting them from external influences and contact.

The most important technical features at a glance

• 15a max. charging current, suitable for 12v and 24v batteries
• nominal PV power for 12v systems: 220W
• nominal PV power for 24v systems: 440W
• 15a load output
• high peak efficiency of 98%
• freely programmable battery charging algorithm (via the free Victron Connect APP)
• Light dimming functions programmable (via the free Victron Connect APP)
• Ultra fast maximum power point tracking
• max. PV open circuit voltage: 75V
• Charging algorithm: multi-stage, adaptive
• integrated Bluetooth modu

Ultra fast maximum power point tracking

Especially in overcast conditions when light intensity is constantly changing, an ultra-fast mppt controller improves power output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers.

intelligent load output

Deep discharge of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an algorithm for intelligent battery management can be selected: see BatteryLife.
The load output is short-circuit proof.

Battery Life: intelligent battery management

If the solar charge controller is not able to charge the battery to its full capacity within a day, the status of the battery will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charging) will damage a lead-acid battery within a few weeks or months.

The Battery-Life algorithm monitors the battery's state of charge and, if necessary, raises the load disconnect threshold day by day (i.e., disconnects the load earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point, the load disconnection threshold is modulated so that charging to near 100% is achieved about once a week.

Scope of delivery:

1x Victron EnergySCC075015060R Smartsolar mppt 75/15 15a 12v 24v solar charge controller
1x user manual
