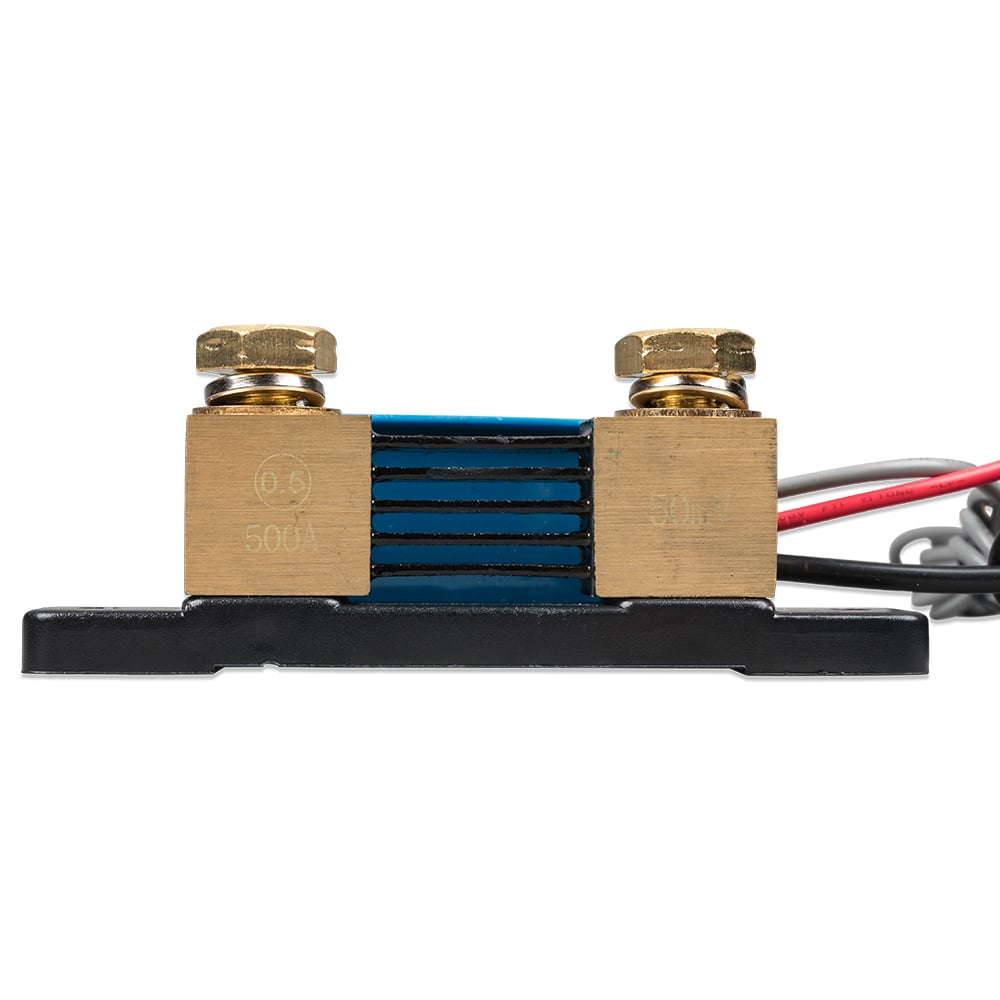

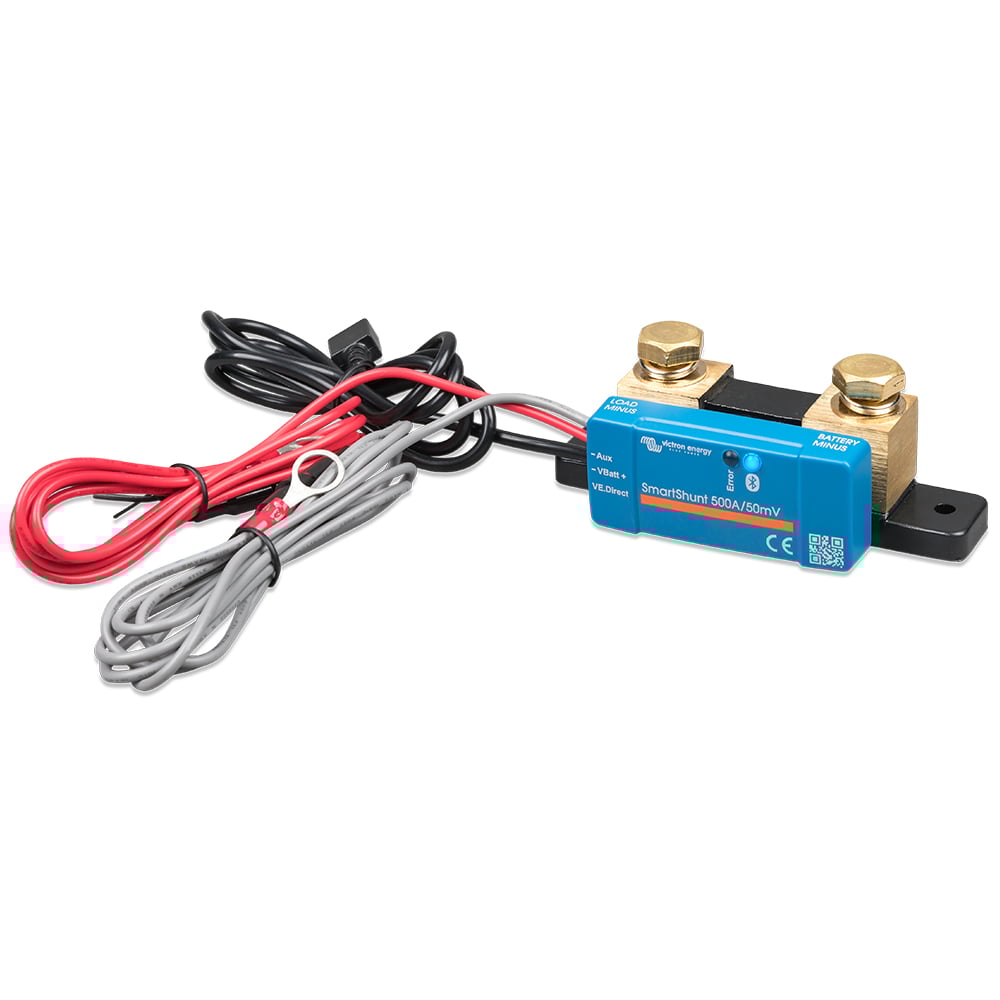

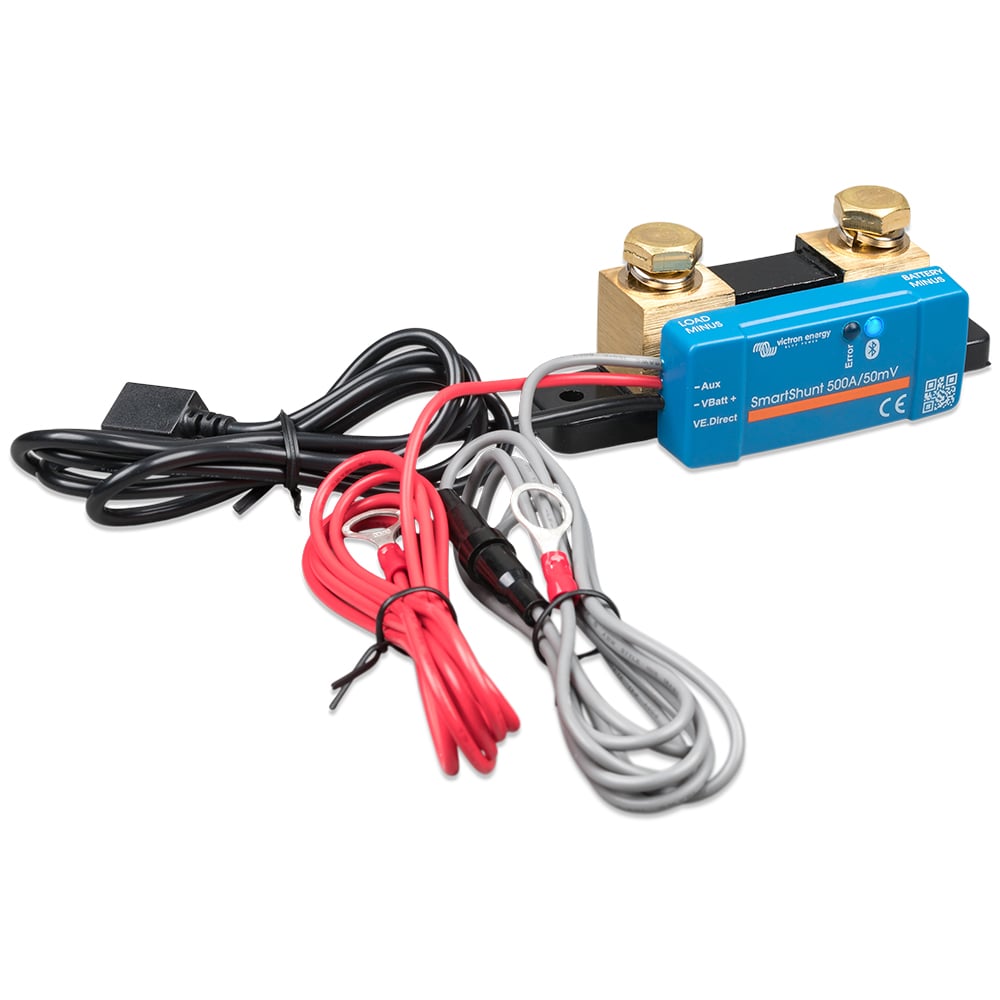

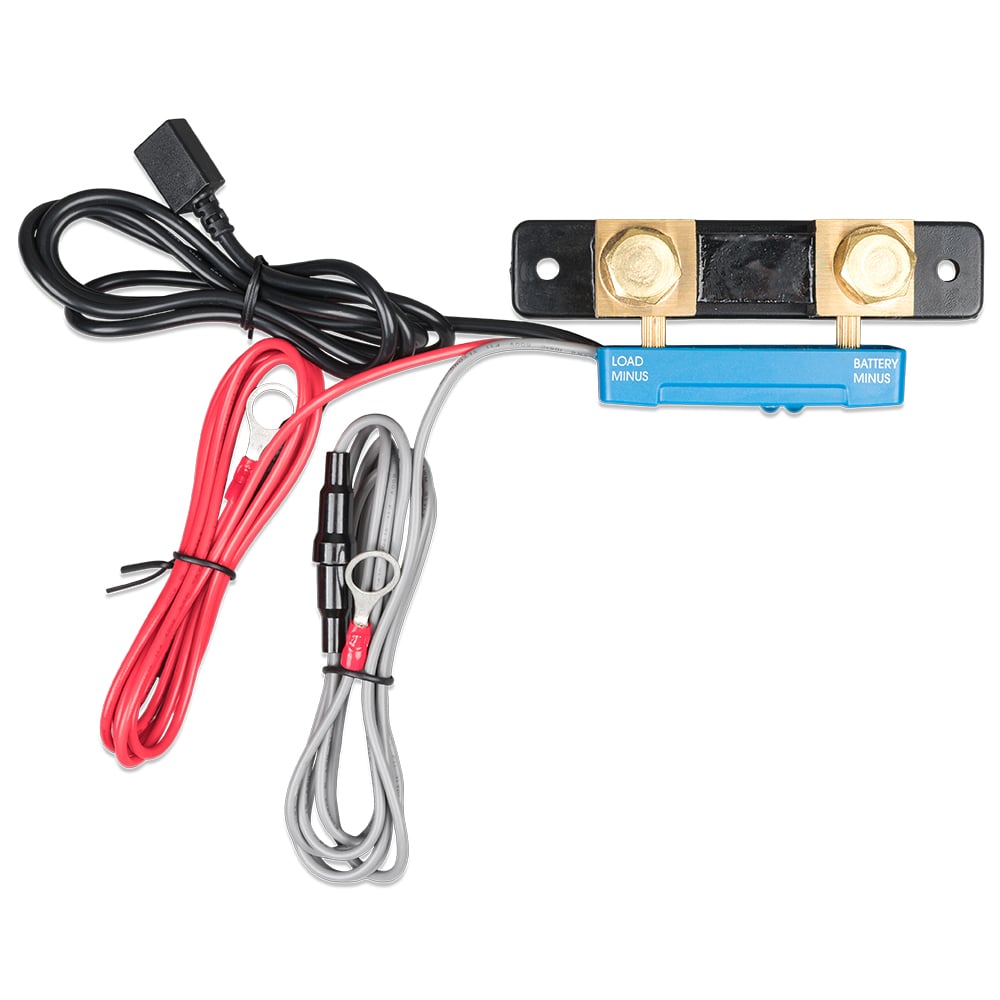

Victron SmartShunt IP65 500A/50mV battery monitor

The intelligent SmartShunt 500a from Victron Energy is a multifunctional battery motor that allows you to view all information via your cell phone or the VictronConnect app, giving you easy access to all monitored battery parameters. This includes the charge status, remaining runtime, historical data and much more. There is also the option of connecting the SmartShunt to a GX device, such as a Cerbo-GXor the Color Control GXand read out information from it. The connection is made via a VE.Direct cable. The waterproof battery monitor is also an excellent option for BMV battery monitoring. Especially in systems where battery monitoring is required but less cabling and clutter is desired.

about the SmartShunt

• Multifunctional battery motor
• Connection via Bluetooth with the VictronConnect app
• Connection with a GX device
• Battery monitoring
• Waterproof according to IP65
• Bolts for shunt connections: M10
• The following variations are also available:
  • 1000 A
  • 2000 A

Why a battery monitor?

Batteries are used in a variety of applications, mostly to store energy for future use. However, the actual amount of energy stored cannot be read directly from the battery. Factors such as undercharging or overcharging, deep discharging, excessive charging or discharging currents and high ambient temperatures can shorten the battery's service life. An advanced battery monitor enables these to be monitored and provides important feedback to you as the user. As a result, suitable measures can be taken if necessary to profitably extend the service life. The investment in the battery monitor therefore pays for itself quickly.

The VictronConnect app

The app is essential for setting up and monitoring! The following connection options are available:

• Bluetooth
• usb, via the optional interface
• Remotely controlled via a GX device and the VRM portal

The app is available for the following platforms:

• Android
• Apple ios (usb is not supported, only a connection via Bluetooth is possible)
• MacOs
• Windows (Bluetooth is not supported, only a connection via usb is possible)

The app can be downloaded from the respective app stores or from the Victron product page. Alternatively, a QR code is available. You can also find instructions for VictronConnect in the appendix.

Technical data

• Power supply voltage range: 6.5-70v DC
• Current consumption: <1 mA
• Input voltage range, additional battery: 6.5-70v DC
• Battery capacity: 1-9999 Ah
• Operating temperature range: -40°C - +50°C
• Temperature measuring range: -20°C - +50°C
• Dimensions: 46 x 120 x 54 mm
• Protection class IP65

Scope of delivery:

1x Victron SmartShunt 500a/50mV battery monitor IP65
