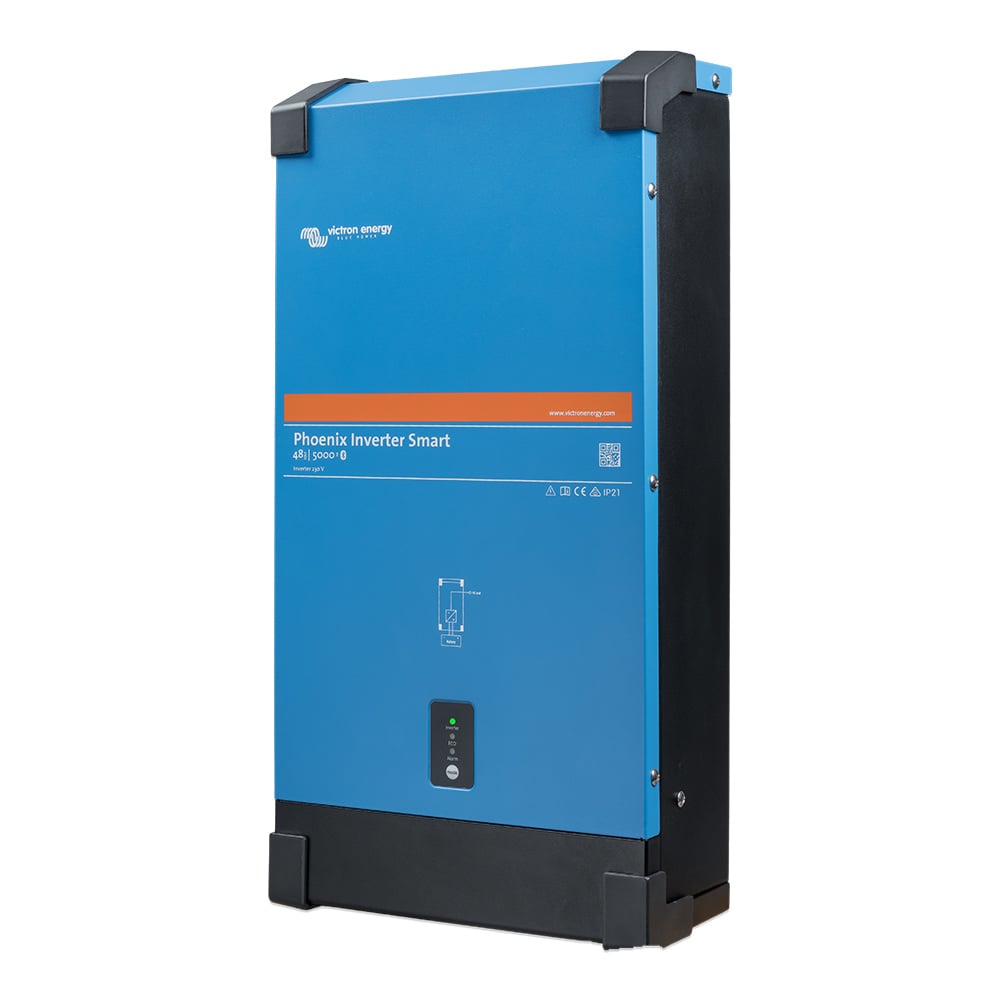

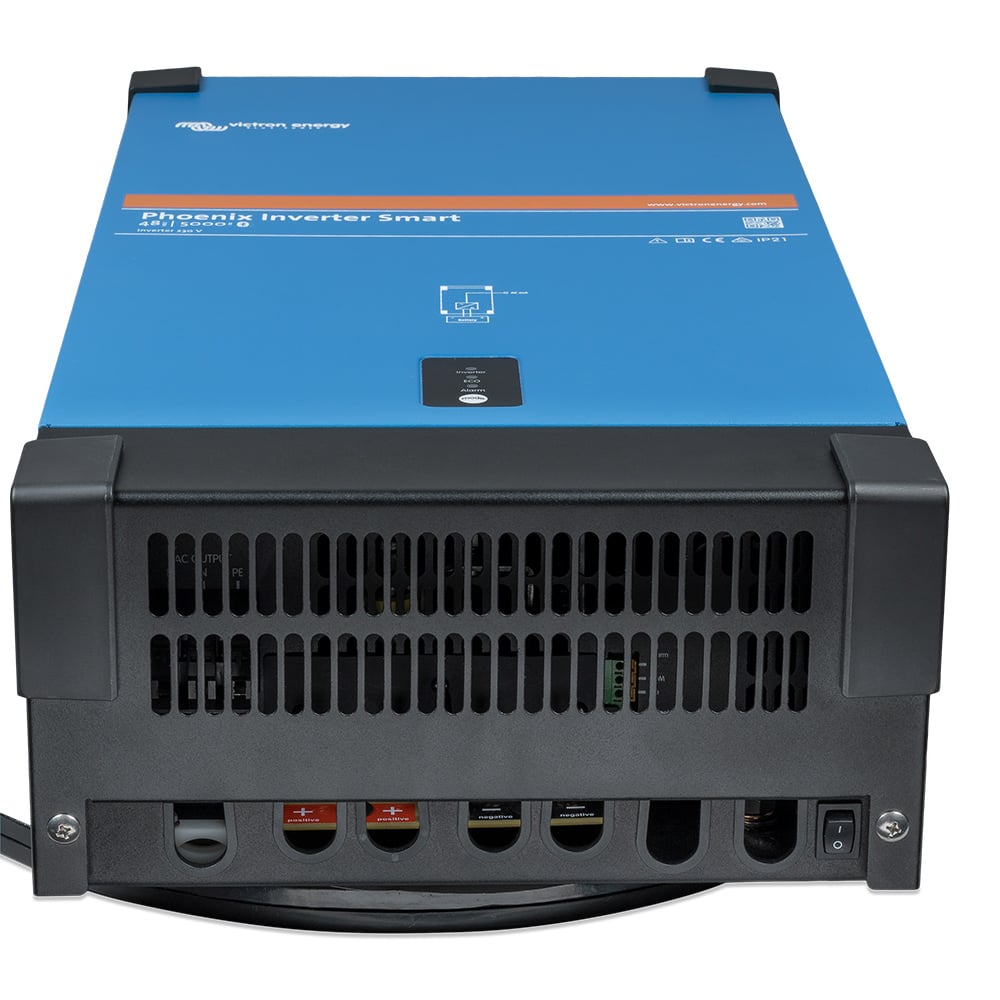

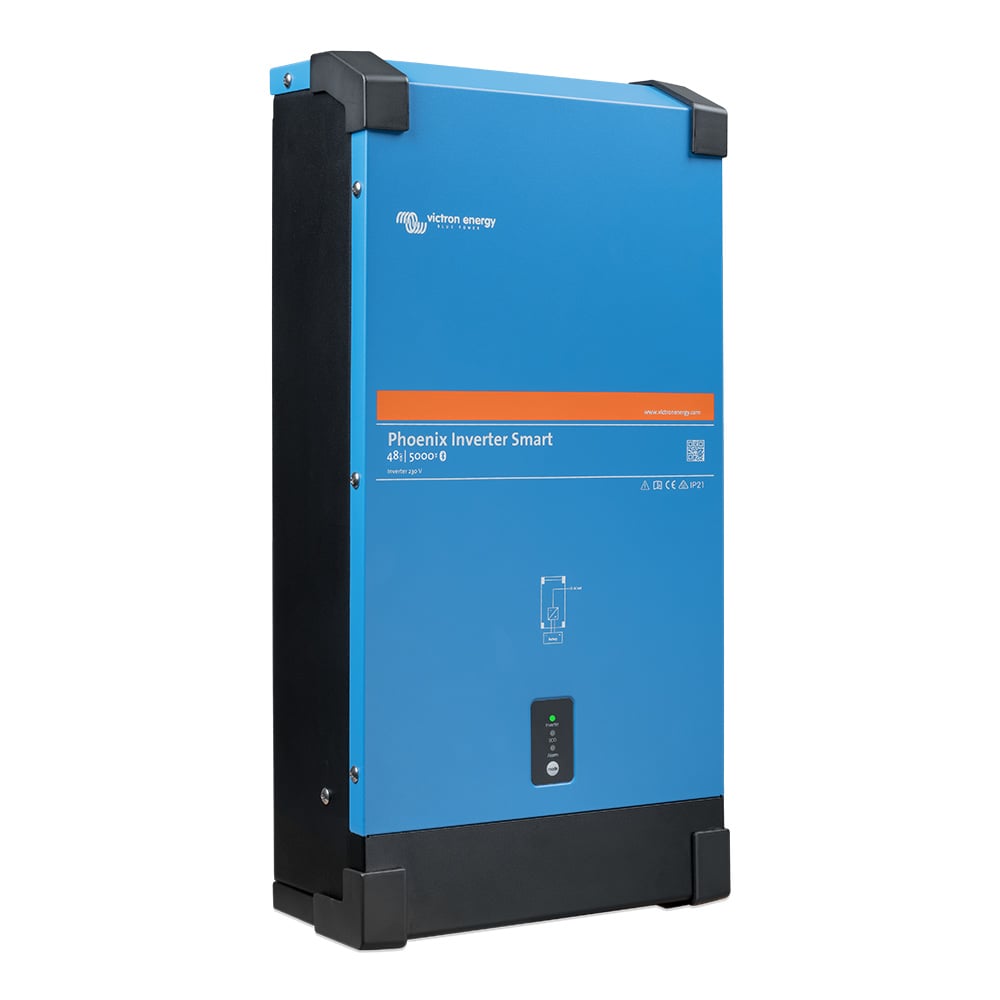

Victron Phoenix Inverter 48/5000 230v Smart

The Phoenix 48/5000 Smart Inverter from Victron Energy Victron Energy (mpn pin482500000), is an advanced inverter based on the proven Phoenix series. It offers 5000w of continuous power and is rated for 48v battery voltage. Compared to the previous models, the Phoenix-Smart series has a Bluetooth module and VE.Direct output for wireless remote monitoring and system configuration.

The Phoenix 48/5000 Smart is further characterized by its high switch-on power and reliability and, thanks to the integrated eco mode, also plays in the top league of this device class in terms of self-consumption and efficiency.

performance features Phoenix 48/5000 Smart

• for 48v battery voltage, output voltage 230 vac ±2%
• Output power (non-linear): 5000w, 4000w linear continuous load at 25 degrees ambient temperature
• 10000w peak power handling high starting currents
• integrated Bluetooth module and VE.Direct port for wireless monitoring and system integration
• designed for high inrush currents
• integrated alarm relay, eco mode
• monitoring of input and output voltage, load and alarms etc. via Bluetooth or VE.Direct
• integrated two-pole plug for connection of an on/off switch (remote control)

parameters configurable via Bluetooth or VE.Direct

• Low battery voltage alarm
• Threshold values for switching off and restarting at low battery voltage values
• Dynamic shutdown: load-dependent shutdown threshold value
• Output voltage: 230 vac ±2%, frequency: 50 hz or 60 hz
• Threshold for eco mode on/off and eco mode sensor
• Alarm relay

high reliability thanks to ring transformer topology

The complete bridging additionally with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or by the ambient temperature).

Very high inrush power

This is required for switching on loads such as voltage converters for led lamps, halogen lamps or power tools.

Eco mode

In eco mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period every 2.5 seconds (adjustable). if the load exceeds the preset threshold, the inverter remains on.

Remote on/off switching

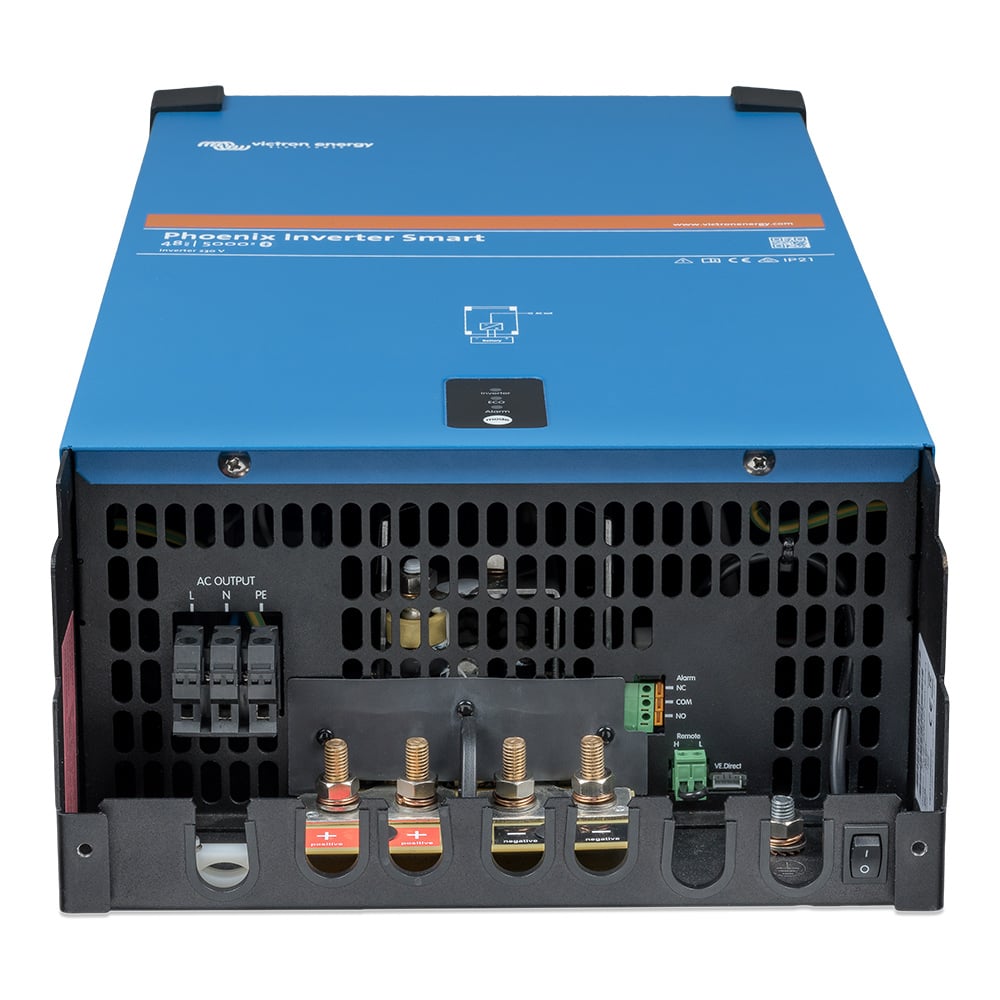

A remote on/off switch or relay contact can be connected to the two-pin connector. Alternatively, the h terminal (left) of the two-pin connector can be connected to a battery positive terminal or the l terminal (right) of the two-pin connector can be connected to the battery negative terminal (or to the body of a vehicle, for example).

scope of delivery:

1x Victron pin482500000 Phoenix Smart 48/5000
1x instruction manual
