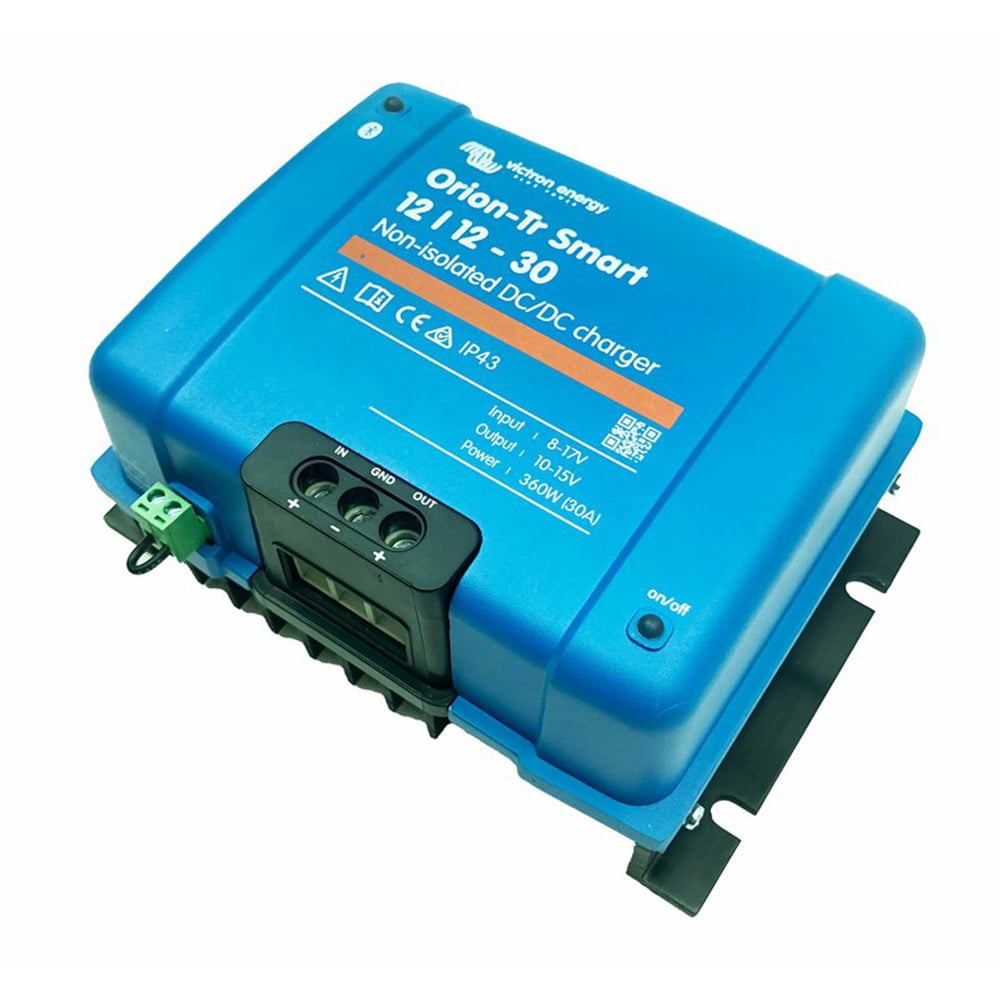

The Orion Tr-Smart dc-dc from Victron Energy (mpn ori121236140) is a professional, dc to dc adaptive 3-stage charger with integrated Bluetooth, known in the market as a battery-to-battery (b2b) charger. The charge booster is suitable for use in dual battery systems in vehicles or boats where the alternator and starting battery are used to charge the service battery. The charger can be used in 12v or 24V systems and is suitable for both lead acid and lithium batteries. Models up to 400w are available and an unlimited number of units can be connected in parallel to increase the output power.

Main features

  • Suitable for Bluetooth Smart
  • Fully programmable
  • Adaptive 3-step charging algorithm
  • Remote on/off
  • Short circuit proof
  • Parallel connection possible to increase output current
  • overtemperature protection
  • Protection class IP43

Suitable for Bluetooth Smart

Monitoring, changing settings and updating the charger when new software functions become available can be done with any Bluetooth enabled smartphone, tablet or other device.

Adaptive 3-stage charging algorithm: constant current - constant voltage - conservation

  • For lead acid batteries, it is important to keep the recording time short during shallow discharges to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery charges fully.
  • For lithium batteries, the recording time is fixed, by default 2 hours.
  • Alternatively, a fixed output voltage can be selected.

Remote on/off

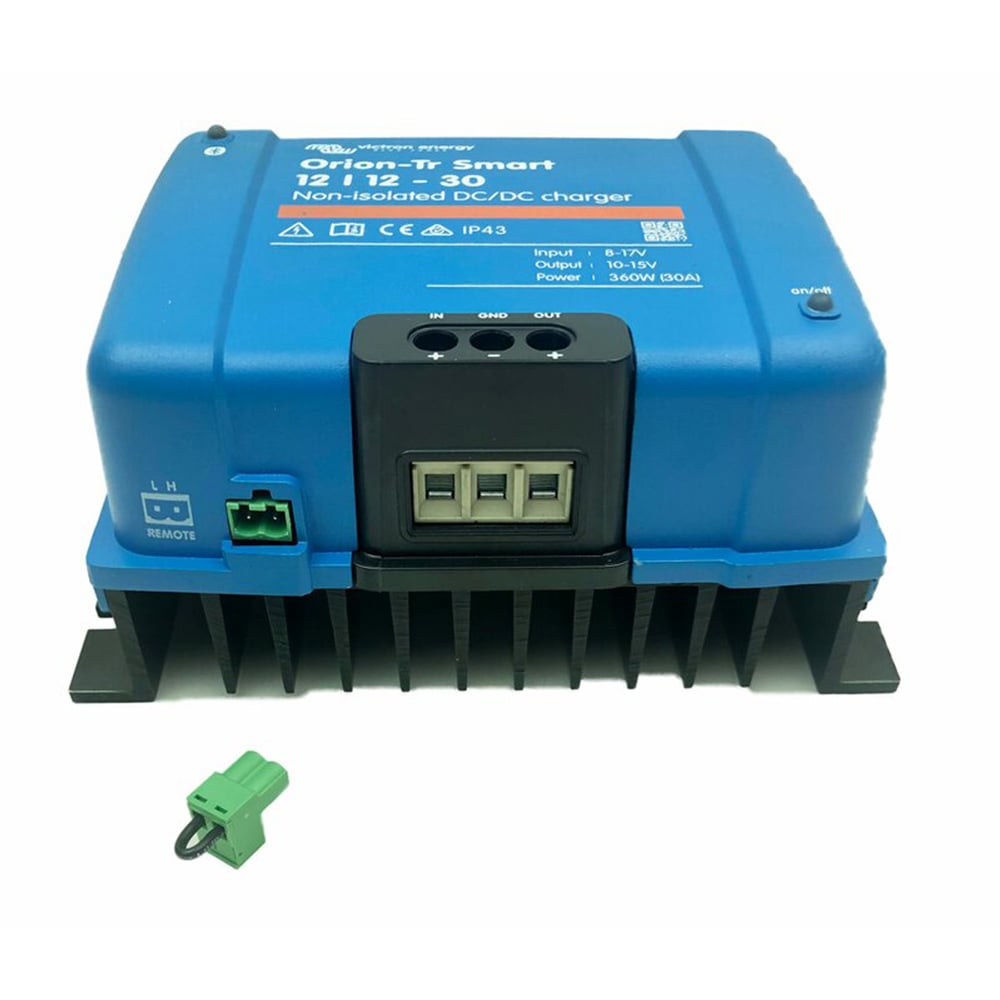

A remote on/off switch or relay contact can be connected to the two-pin connector. Alternatively, the h terminal (right) of the two-pin plug can be connected to a battery positive terminal or the l terminal (left) of the two-pin plug can be connected to the battery negative terminal (or to the body of a vehicle, for example).

Technical data

  • Input voltage range: 10-17 V
  • Rated output voltage: 12.2 V
  • Output voltage setting range: 10-15 V
  • Output voltage tolerance: ±0.2 V
  • Cont. Output current at nominal output voltage and 40°: 30 A
  • Cont. Output power at 40°C: 360 W
  • Operating temperature range: -20°C - +55°C
  • Weight: 1.8 kg
  • Dimensions: 130 x 186 x 70 mm

scope of delivery:

1x Victron Energy Orion-Tr Smart dc/dc charge booster 12/12-30a (360w) ORI121236140

Victron_Orion-Tr-Smart-Charger-Non-Isolated_ECE-R10-6-4723.pdf Download
Victron_VictronConnect_Manual.pdf Download
Victron_Orion-Tr-Smart-Charger-Non-Isolated_Dimensions.pdf Download
Victron_Orion-Tr-Smart-Charger-Non-Isolated_Manual.pdf Download
Victron_Orion-Tr-Smart-Charger-Non-Isolated_Datenblatt.pdf Download
Victron_VictronConnect_Handbuch.pdf Download
Victron_Orion-Tr-Smart-Charger-Non-Isolated_Handbuch.pdf Download
Victron_Orion-Tr-Smart-Charger-Non-Isolated_CE.pdf Download
Victron_Orion-Tr-Smart-Charger-Non-Isolated_Datasheet.pdf Download
Ambient temperature: -20°C - +55°C
Input voltage: 10V-17V
Manufacturer: Victron Energy
Protection type: IP43
Weight: 1,8kg
ean: 8719076048954
mpn: ORI121236140
