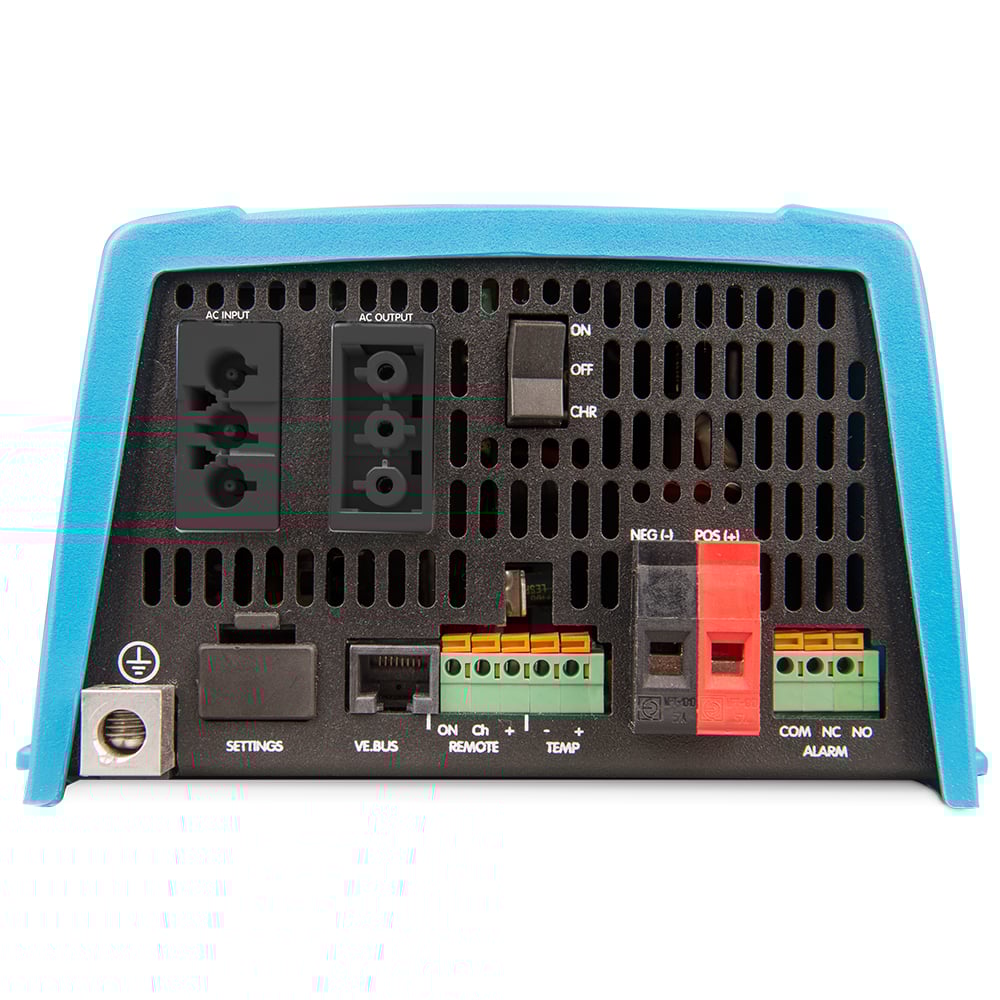

Victron MultiPlus 24/500/10-16 230V Inverter 24V
The MultiPlus 24/500/10 (cmp245010000) from Victron Energy is a slimmed down version of the successful Multiplus Series and delivers 430w of continuous power at 230v and 50Hz. Besides the sine wave voltage converter that converts the 24v dc voltage of your battery into a perfect 230v ac 50Hz sine wave voltage, the MultiPlus 500 is also equipped with a 10a strong battery charger and a 16a transfer switch. This makes it very interesting for a wide range of applications and at a comparatively very reasonable price.
essential features of the MultiPlus 24/500/10
- 430w continuous power and 900w peak power, for 24v battery voltage
- Device combination sine wave voltage converter, 16a transfer switch and 10a battery charger
- delivers purest 230v sine wave voltage and a clean 50Hz frequency
- thanks to transfer switch can be used as usv solution for uninterruptible power supply
- can be used for grid connected self-consumption systems that only draw power from the grid operator when battery capacity is insufficient or other programmable events have occurred
- programmable relay
- proven quality and reliability
- provides solid protection against overload and overheating
- versatile in mobile and stationary applications
- can also be used for highly sensitive electrical equipment
- applicable in usv solutions
programmable relay
The MultiPlus 24/500/10 has a programmable multi-function relay that operates as an alarm relay in the basic setting. However, this relay can be programmed for a variety of additional functions, such as a start relay for a generator
Control and remote operability
Configuration takes place via a 3-position switch (DIP switch) directly on the MultiPlusi. the maximum charging currentsta¨rke of the AC input can be set. A VE.Bus or other communication ports as in the MultiPlus series have been omitted.
lightning fast automatic 16a transfer switch
In the event of a power supply interruption or generator shutdown, MultiPlus immediately switches to inverter mode to supply the connected loads. This happens so fast (less than 20 milliseconds) that e.g. the operation of computers or other electronic equipment continues without interruption (uninterruptible power supply - ups functionality)
powerful 4-stage battery charger
Adaptive 4-stage charging characteristic: constant current ("bulk") phase, constant voltage ("absorption") phase, charge retention voltage ("float") phase, storage voltage ("storage") phase
The battery charging system, controlled by microprocessors, can be adapted to different battery types. The charging process is adapted to the battery usage by adaptive control
other highlights of the consumed charger include:
- variable constant voltage time
- 2 DC outputs for charging board and starter battery
- Extended battery life due to temperature compensation
- less battery aging due to integrated storage mode
- less harmful gas formation due to battery save mode
For a detailed description of the charger's performance, please refer to the user manual which you can find under "Downloads" above.
BackUp system: alternating current even in case of power failure
The MultiPlus 500 can be used in non-grid connected applications as well as in grid connected PV systems or alternative energy systems. Software is available to detect a grid failure.
Scope of deliveryg
1x Victron Multi cmp245010000 24/500/10
1x instruction manual
