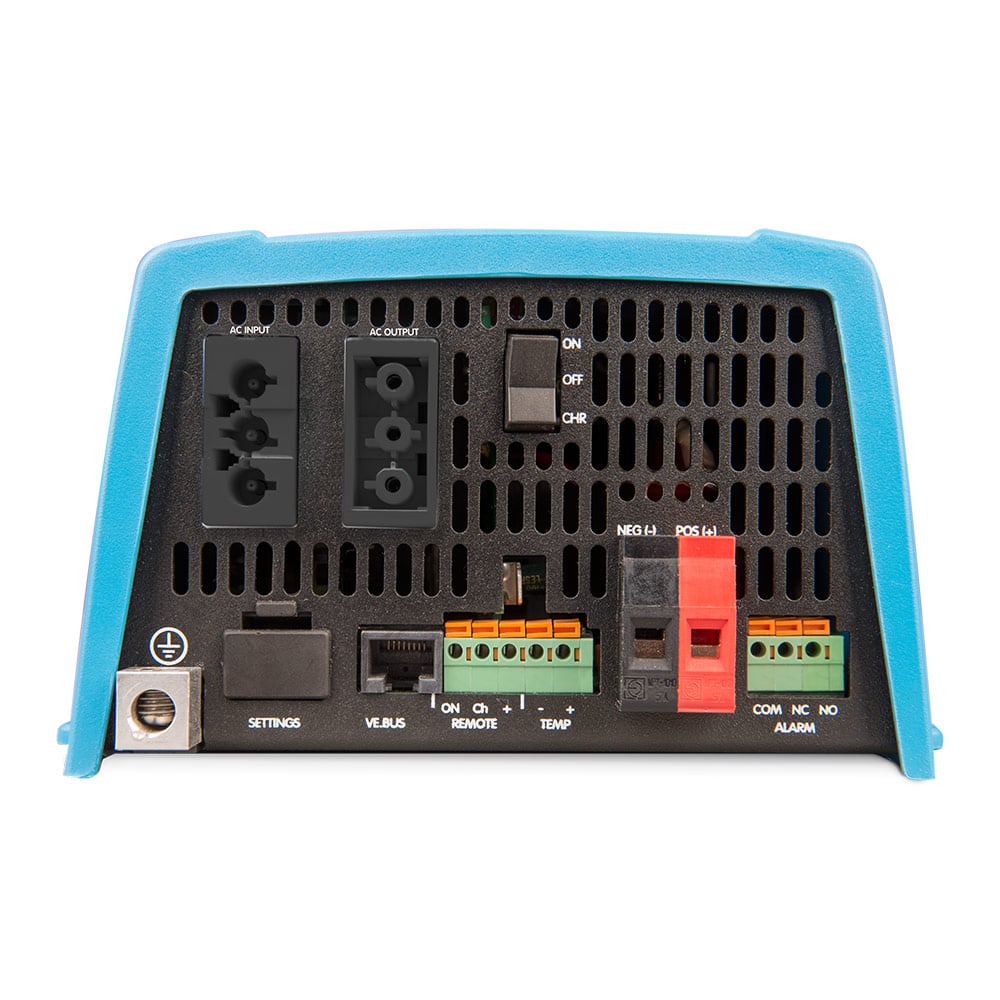

Victron MultiPlus 12/800/35-16 230V VE.Bus 12V Inverter

The new MultiPlus 12/800/35-16 (Victron Energy, pmp121800000) is the successor to the Multiplus Compact 12/800. This unit is an advanced device combination consisting of a powerful pure sine wave inverter, an advanced 50a battery charger utilizing adaptive charging technology, and a 16a high speed AC transfer switch.

In the event of a mains fault or, if shore power or on-board generator is interrupted, the multi's inverter is automatically switched on and takes over the supply to the connected loads. The switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed.

main features of the MultiPlus 12/800/35-16

• Cont. Output power at 25°c: 700w / 800w at non-linear load
• Victron Energy mpn: pmp121800000
• for 12v system voltage
• integrated 35a mains charger for your batteries
• integrated 16a mains transfer switch
• USV operation possible
• Extensive accessories available
• Usable in numerous applications, whether on land or mobile

proven reliability

The complete bridging additionally with a ring transformer topology has proven itself for years. The inverter is short-circuit proof and protected against overheating (whether caused by overload or ambient temperature)

PowerControl - (Multiplus 800va 1200va only)

The Multi Control remote control panel can be used to set the maximum mains or generator current to be drawn. The MultiPlus then takes into account other connected AC loads and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded

PowerAssist - (Multiplus 800va 1200va only)

Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries

High switch-on power

This is required for switching on loads with high inrush currents, such as voltage converters for LED lamps, halogen lamps or power tools

Search mode

When the search mode is set to 'on', the power consumption of the inverter is reduced by approximately 70% during no-load operation. In this mode, when operating in inverter mode, the Multi will turn off at zero load or low load and turn on again every two seconds for a short period of time. if the output current exceeds a set limit, the inverter resumes operation. If this is not the case, the inverter switches off again

programmable relay

In the default setting, the multifunction relay acts as an alarm relay, i.e. it switches off the device in the event of faults (device becomes too hot, ripple voltage at the input too high, battery voltage too low)

Scope of delivery:

Victron Energy pmp121800000, MultiPlus 12/800/35-16
