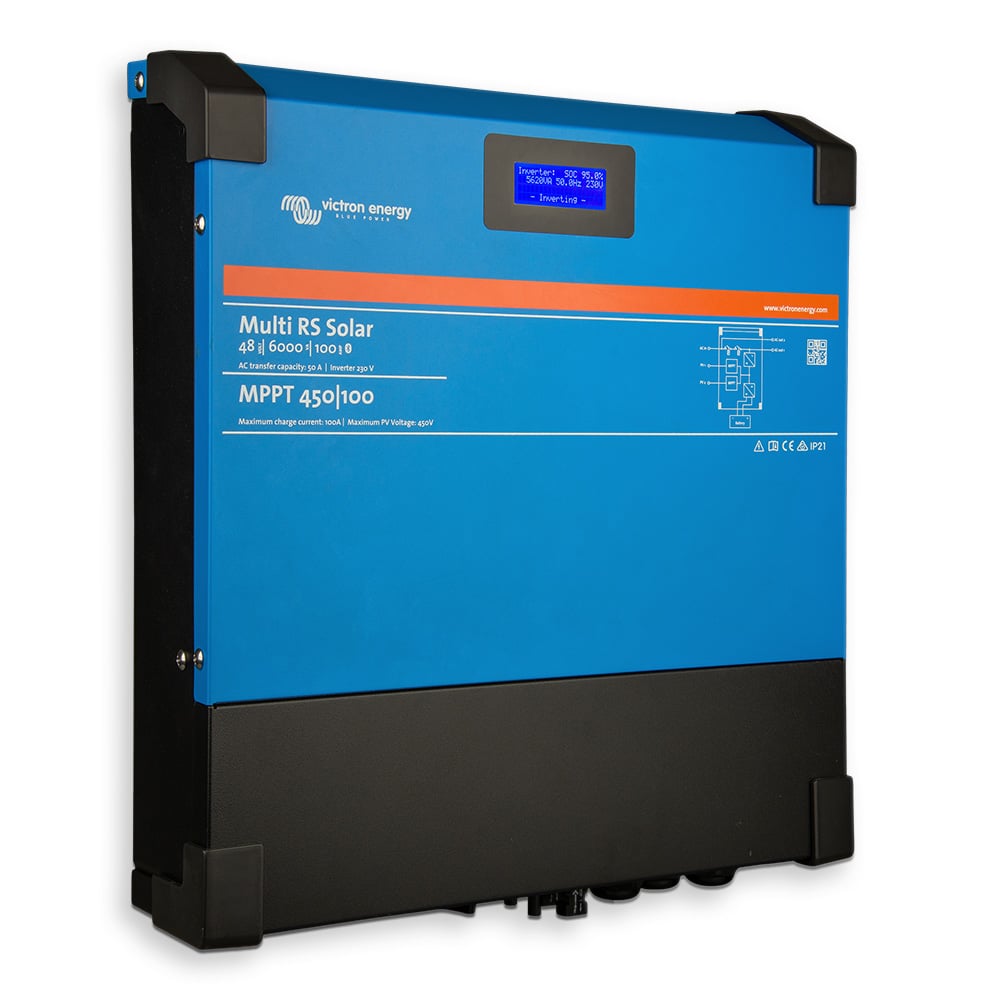

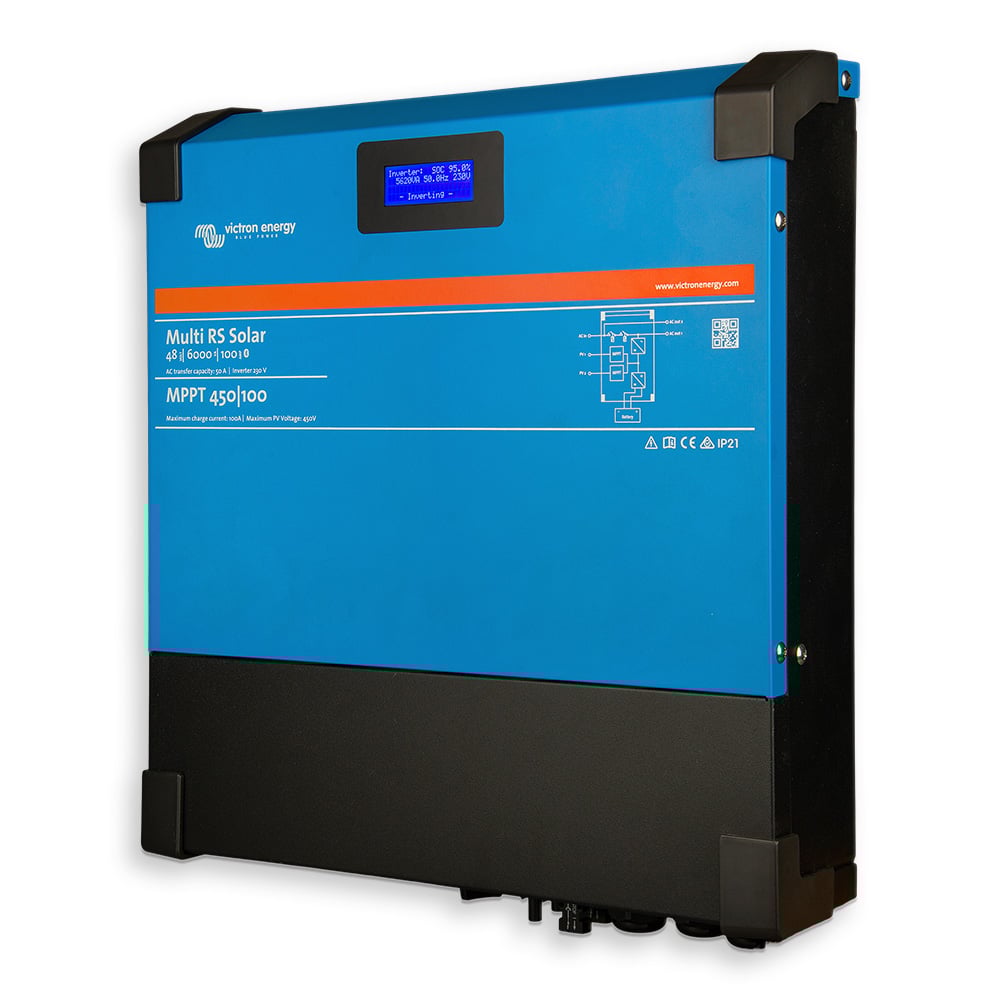

Victron Multi RS Solar 48/6000/100-450/100 dual hybrid inverter

The Multi rs Solar 48/6000/100-450/100 Dual (mpn pmr482602020) from the renowned product range of victron Energy combines the functions of a hybrid inverter and a battery charger in an extremely powerful device combination to meet your energy needs efficiently and reliably.in mid-2023, the original single MPPT tracker was further developed into this dual MPPT tracker model with two independent MPPT tracker inputs for a total of 6 kwp Pv power. Thanks to high-frequency technology and a new design, the powerful device combination weighs just 11 kg, has excellent efficiency, low standby power and is also very quiet in operation.

Dual model with 4 operating modes

• Hybrid mode: Stores excess solar energy in a battery for use at night or during periods of high demand. Supplies additional power from the battery when demand exceeds grid capacity.
• Reserve mode: Switches to reserve mode during a grid outage.
• Mains-independent mode: Operates without a mains connection.
• Generator mode: Controls the generator to minimize runtime. Supplies additional power from the battery if the demand exceeds the capacity of the generator.

The victron Multi rs Solar

• Hybrid inverter/charger
• Dual MPPT tracker and 6000 va power
• Efficient battery charging, pulse width modulation (pwm)
• Protection functions: Device fuse fks
• MasterBus-compatible: Integration into energy management systems
• versatile applications
• Programmable relay
• Energy optimization through backfeed
• User-friendly, intuitive display

Powerful and flexible

The state-of-the-art device combination offers an impressive peak output of 6000 va (watts), which can handle even demanding applications such as powering household appliances, office equipment or electric vehicles. It not only provides a reliable power supply, but also allows you to feed surplus energy back into the batteries and thus increase self-consumption. With an input voltage of 48 v and a charging current of 100 a, this device allows you to charge your batteries quickly and efficiently. The integrated pulse width modulation (pwm) for charging voltage regulation ensures optimum charging of your batteries, while the device fuse fks (Fast-Blow Fuse) protects the device and your energy system from overloading and short circuits.

PowerControl and Powerassist

The PowerControl function limits the maximum mains or generator current to make the Multi rs consider other aC loads. It then only uses excess current to charge the battery, thus avoiding overloads. The Powerassist function ensures that batteries are immediately supported during short-term load peaks and recharged when the load is reduced.

Simple operation and monitoring

With a user-friendly display and intuitive user interface, you can easily monitor and adjust the operating status and settings, as well as the battery, inverter and solar parameters, of the victron Multi rs Solar 48/6000/100-450/100 Dual. Thanks to MasterBus compatibility, you can seamlessly integrate the device into an intelligent energy management system and centrally control multiple devices using a smartphone or other Bluetooth-enabled device via the victronConnect app.

Technical data:

inverter:

• DC input voltage range: 38-62 v
• aC output voltage: 230 VAc ± 2 %
• Frequency: 50 Hz ± 0.1 %
• max. continuous current: 25 a aC
• max. output power: 5300 W at 52 VDC
• Peak power: 9 kw for 3 s / 7 kw for 4 min
• Short-circuit output current: 45 a
• max. overcurrent protection of the AC output: 30 a
• efficiency: 96.5 % at 1 k w load

Solar:

• max. Pv load voltage: 450 v
• starting voltage: 120 V
• MPPT operating voltage range 80-450 v
• max. operational Pv input current limitation: 13 a
• max. Pv conversion power: total 6 kw - 3kw per tracker
• max. Pv short-circuit current: 16 a
• Earth fault tripping level: 30 ma
• Insulation failure level: 100 kΩ

Charger:

• Rated voltage: 230 vaC
• Input voltage range: 187-265 vaC
• Rated frequency: 50 Hz
• Input frequency: 45-65 Hz
• aC inrush current: N.z.
• programmable charging voltage range: 36-60 v
• Charging voltage "constant voltage": 57.6 v (adjustable)
• "Float" charging voltage: 55.2 v (adjustable)
• max. charging current of aC: 88 a @ 57.6 vDC
• max. charging current in total (aC+Pv): 100 a direct current
• Battery temperature sensor: supplied
• Battery voltage sensor: yes

general:

• Additional output (aC-out-2): yes
• Three-phase and parallel operation: 2x 2023 Q4
• connections: vE.Direct, vE.Can & Bluetooth
• Bluetooth frequency and power: 2402-2480 Mhz, 4 dBm
• Operating temperature range -40 to +65 °C
• Maximum altitude 2000 m
• Humidity: max. 95 % non-condensing
• Protection class: IP21

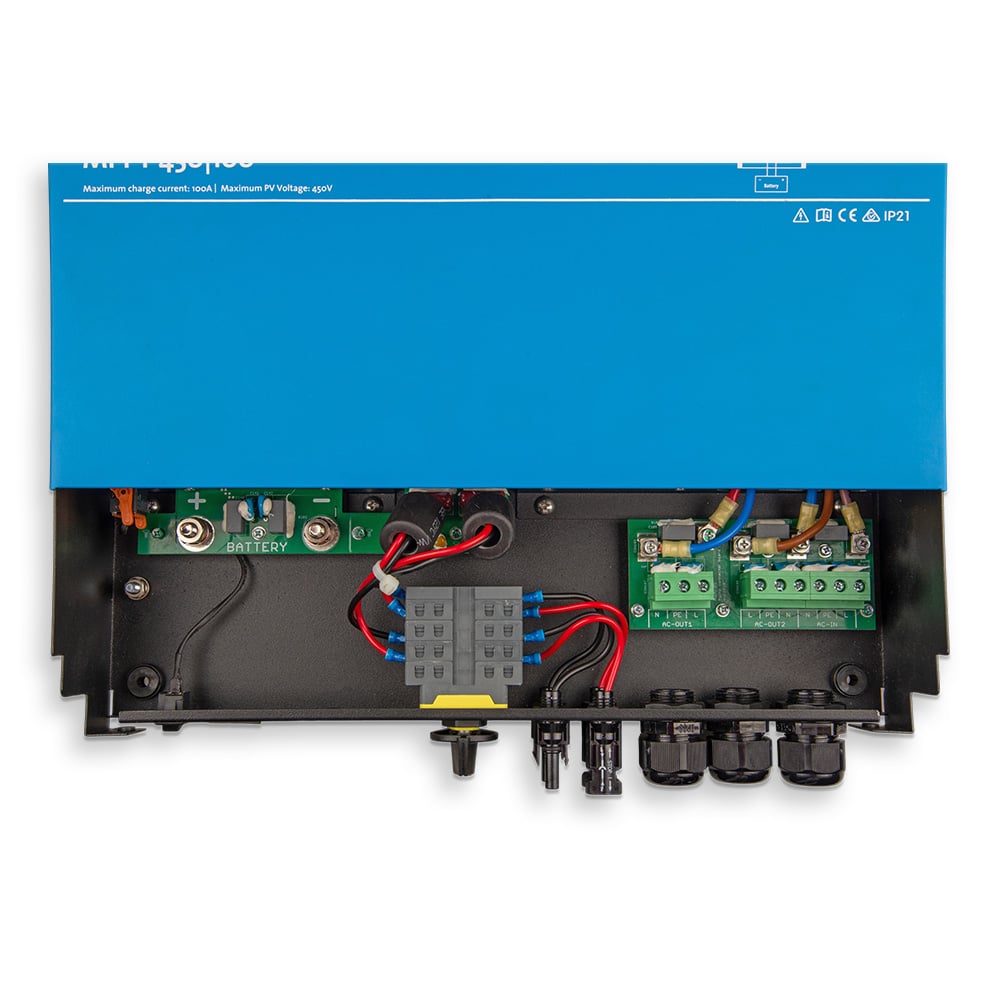

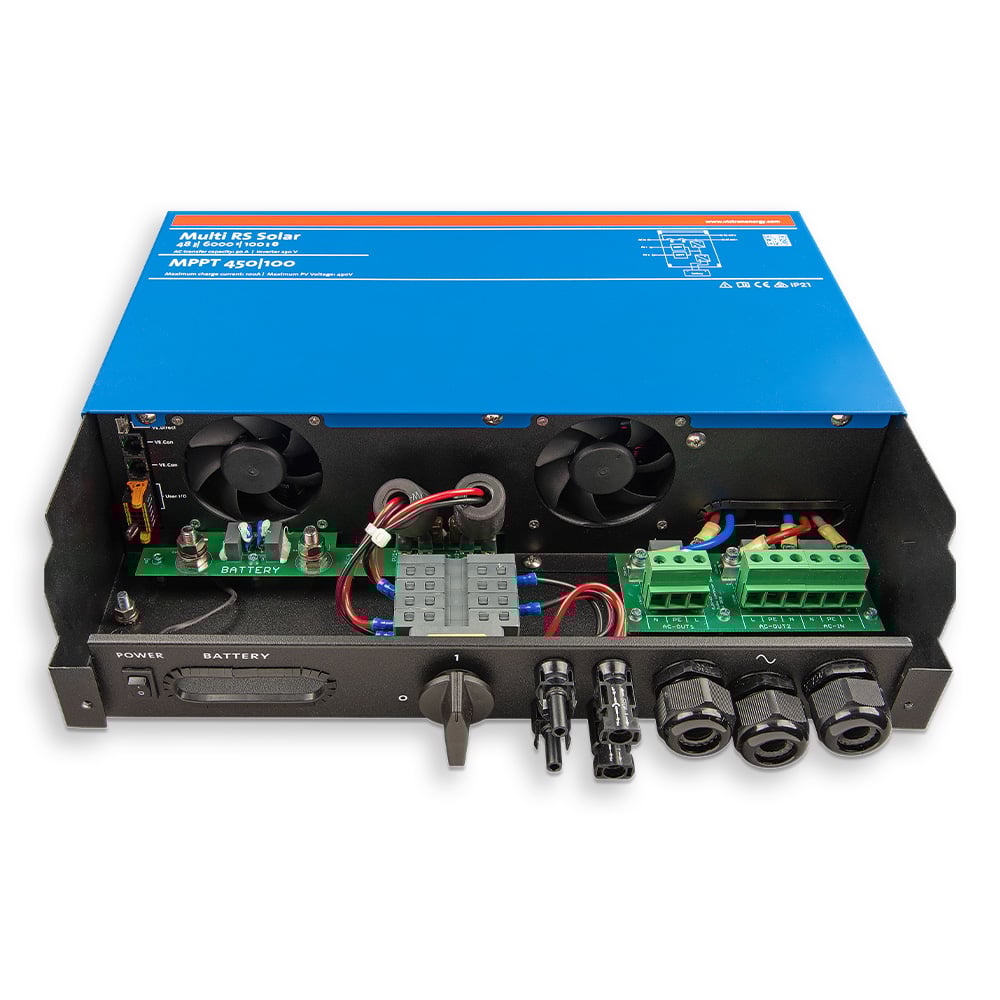

• Battery connection: M8 bolt
• PV connection: 2 strings with MC4
• 230 VAC connection: screw terminals 10 mm² (6 awG)
• dimensions: 425 × 460 × 125 mm
• Weight: 12.3 kg

Scope of delivery:

1× victron Multi rs Solar 48/6000/100-450/100 Dual
