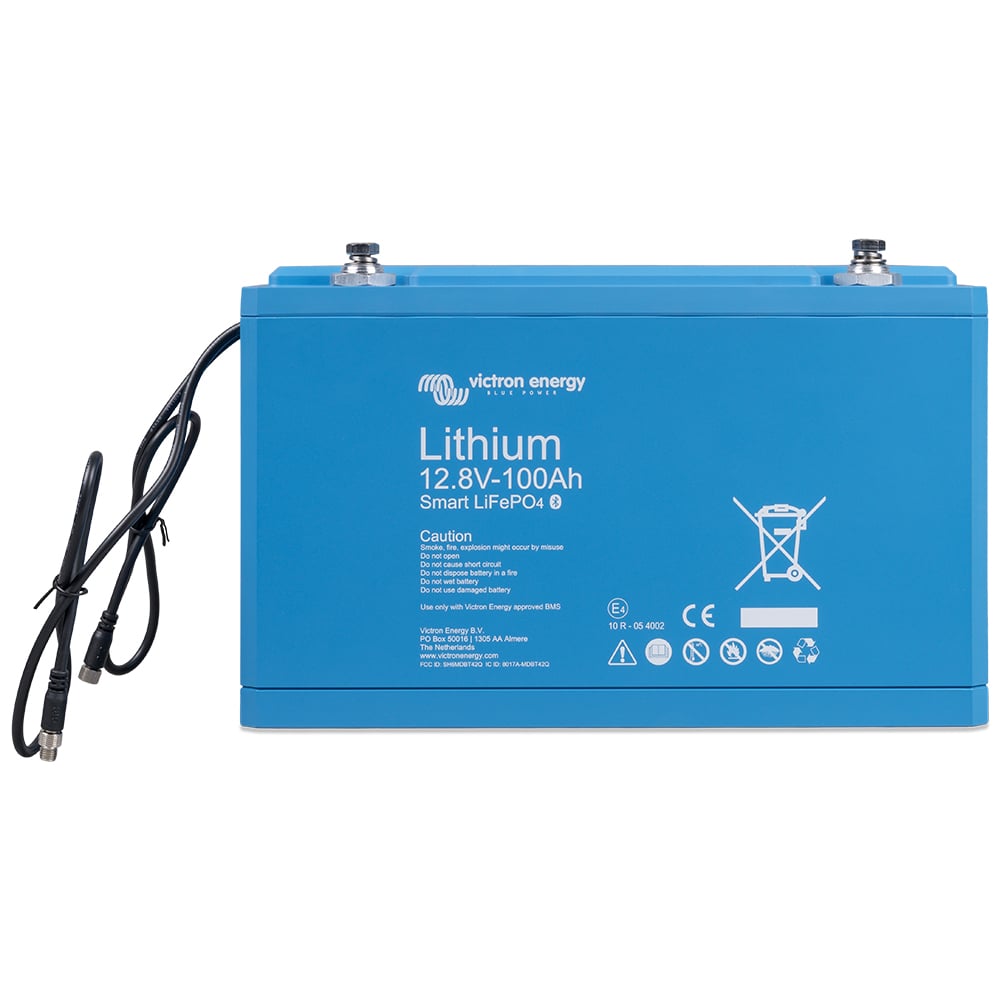

Victron LiFePO4 12,8/100 Smart Batterie 12,8V 100Ah 1280Wh

The LiFePO4 12.8v 100ah Smart Battery (mpn bat512110610) from Victron Energy is a LiFePO4 battery of the latest generation. When fully charged, the LiFePO4 12.8/100 Smart stores a whopping 1280Wh of power, with a very low self-discharge rate and superior battery life. The LiFePO4 battery family from Victron already features integrated cell balancing and a bms (battery management system) interface. The integrated Bluetooth for connection with the Li-Ion App completes the overall package.

Victron LiFePO4 12.8v 100ah Smart Battery

• Rated voltage: 12.8v
• built-in bluetooth to connect with Victron Li-Ion app
• Victron Part number: bat512110610
• Rated energy at 25°c*: 1280Wh
• Rated capacity at 25°c/0°c/-25°c: 100ah / 80Ah / 50Ah
• Number of cycles at 80%/70%/50% depth of discharge: 2500 / 3000 / 5000 cycles
• recommended continuous discharge current: 100a
• maximum continuous discharge current: 200a
• Weight: 16kg
• Connection terminal: m8

For more technical data, please refer to the official data sheet and below in the "technical data" section.

efficient, economical..: LiFePO4 12.8v 100ah Smart Battery

While LiFePO4 batteries are expensive compared to agm batteries or gel batteries, the higher initial cost will more than pay for itself in most cases. With a lifetime of up to 5000 cycles, they exceed the maximum lifetime of even the best lead-acid batteries many times over. In addition, the lfp 12.8/100 scores 70% in terms of space savings and weight savings. The energy efficiency of 92% is also significantly higher than the 80% of lead-acid batteries, which can be of essential importance for off-grid systems, especially for off-grid solar and/or wind power plants.

Multi-talented: infinitely flexible with lithium technology from Victron Energy

LiFePO4 smart batteries from Victron can be implemented in almost all common applications. In the mobile sector, this technology has played an important role for quite some time. But thanks to the fact that these batteries are much easier to charge than conventional lead-acid batteries and that irregular charging cannot harm them, they are also making their way into land applications and can now be found in almost all system classes.

Parallel and series connection up to max. 3000ah at 48v

Thanks to the integrated cell balancing and cell monitoring function, you can easily connect up to 10 batteries of this type in parallel and up to 4 blocks of 10 in series, resulting in a maximum of 3000Ah at 48v - this corresponds to a maximum storable nominal energy of around 154,000 Wh (when used with the 300Ah 12.8v version).

integrated Bluetooth for smart handling

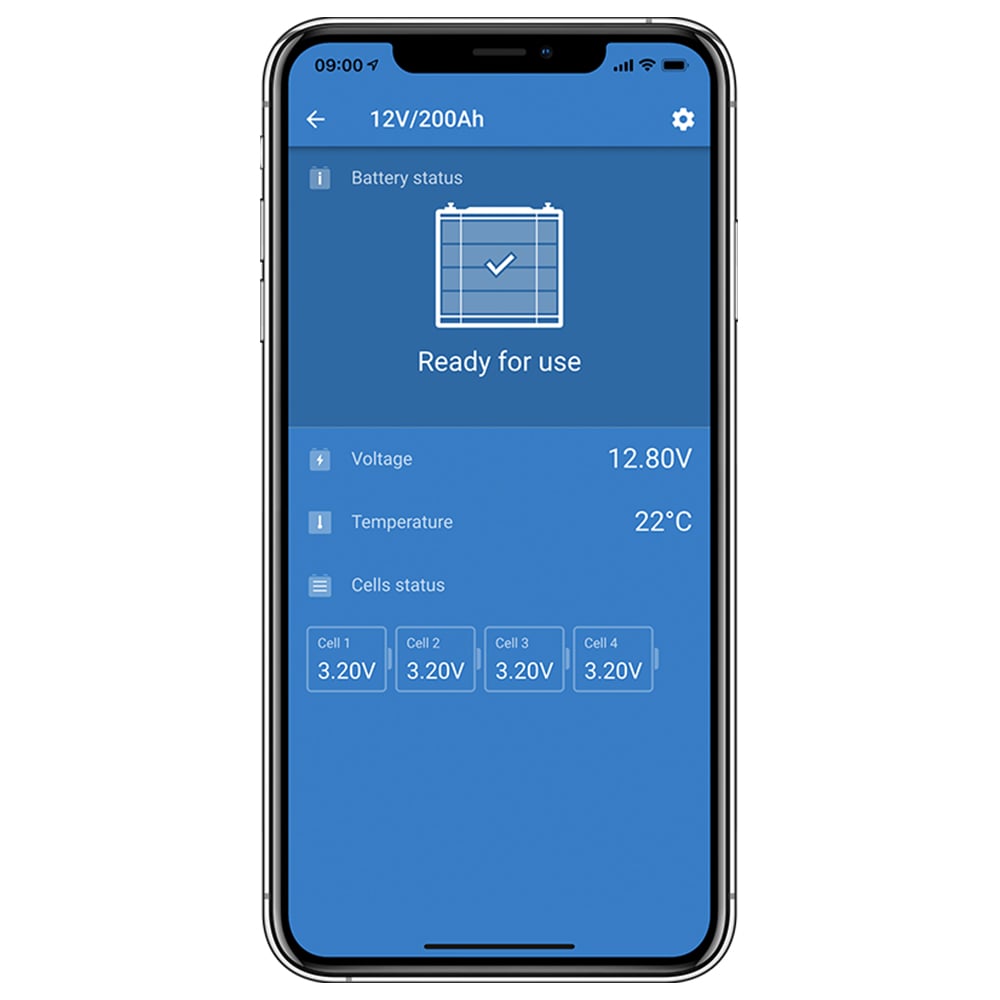

Cell voltages, temperature and alarm status can be monitored via Bluetooth. This is very useful to detect a (possible) problem like cell imbalance in time.

IMPORTANT NOTICE: The use of an additional bms is mandatory to interrupt/shut down the load when the voltage of a battery cell drops below 2.5v or to stop charging when the voltage of a battery cell rises above 4.2v and to shut down the system when the temperature of the cell exceeds 50°c.

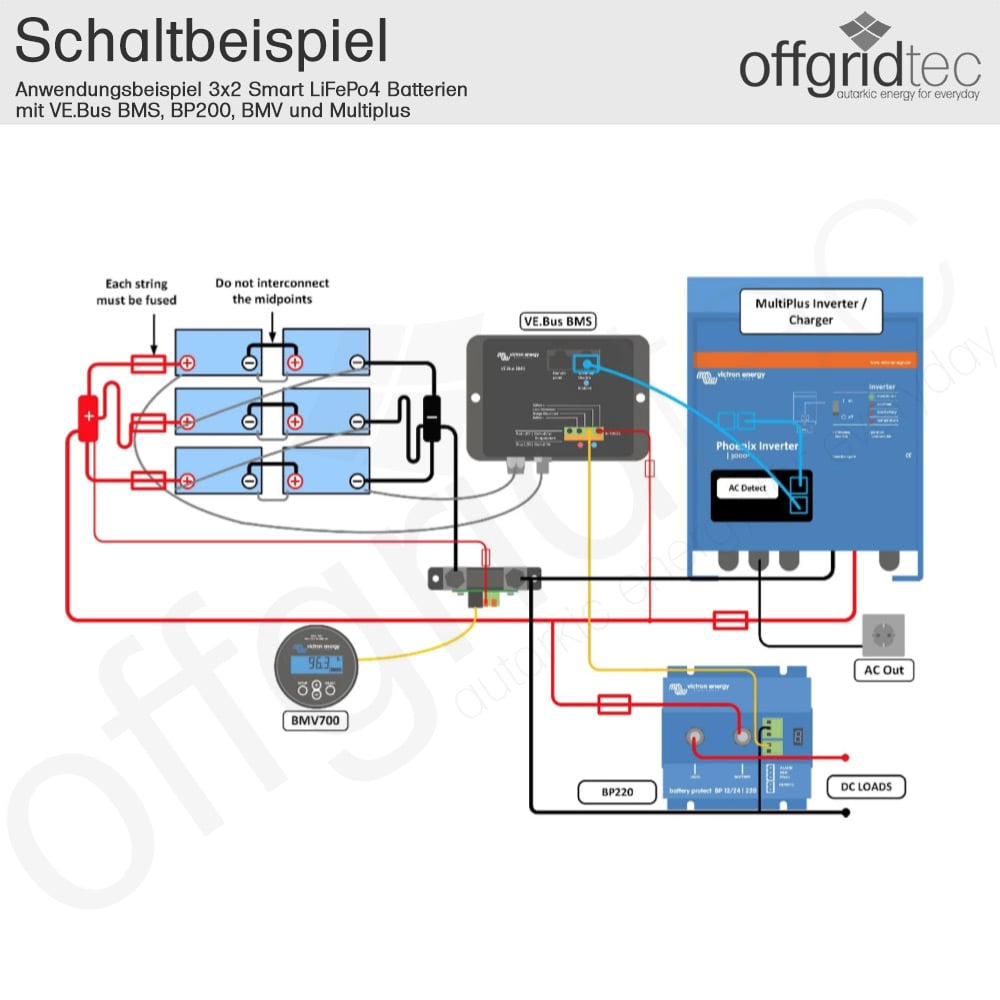

For this you have the choice between the bms 12/200 and the ve.bus bms - For further details of the devices, please refer to the respective article descriptions.

Due to the classification as dangerous goods, this product will be shipped by freight forwarding!

Scope of delivery:

1x Victron Energy bat512110610 LiFePO4 12.8v 100ah Smart Battery
1x user manual
