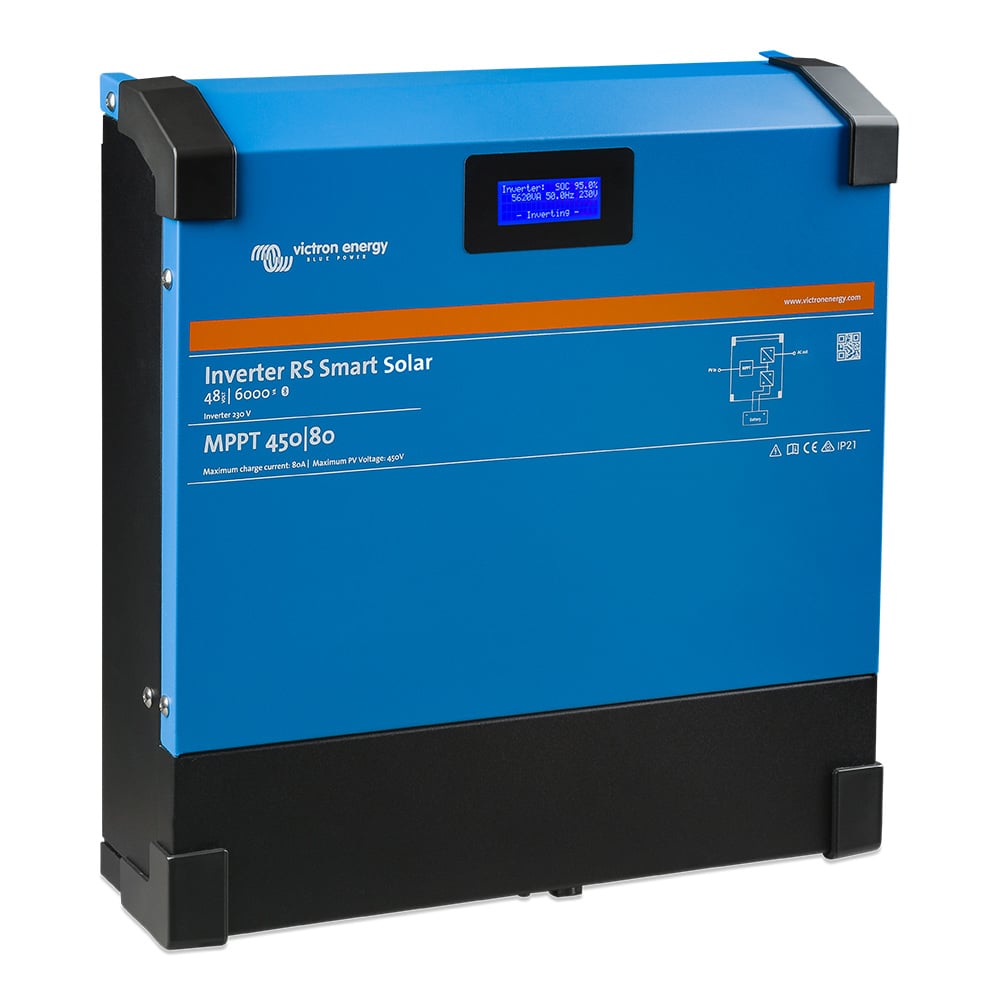

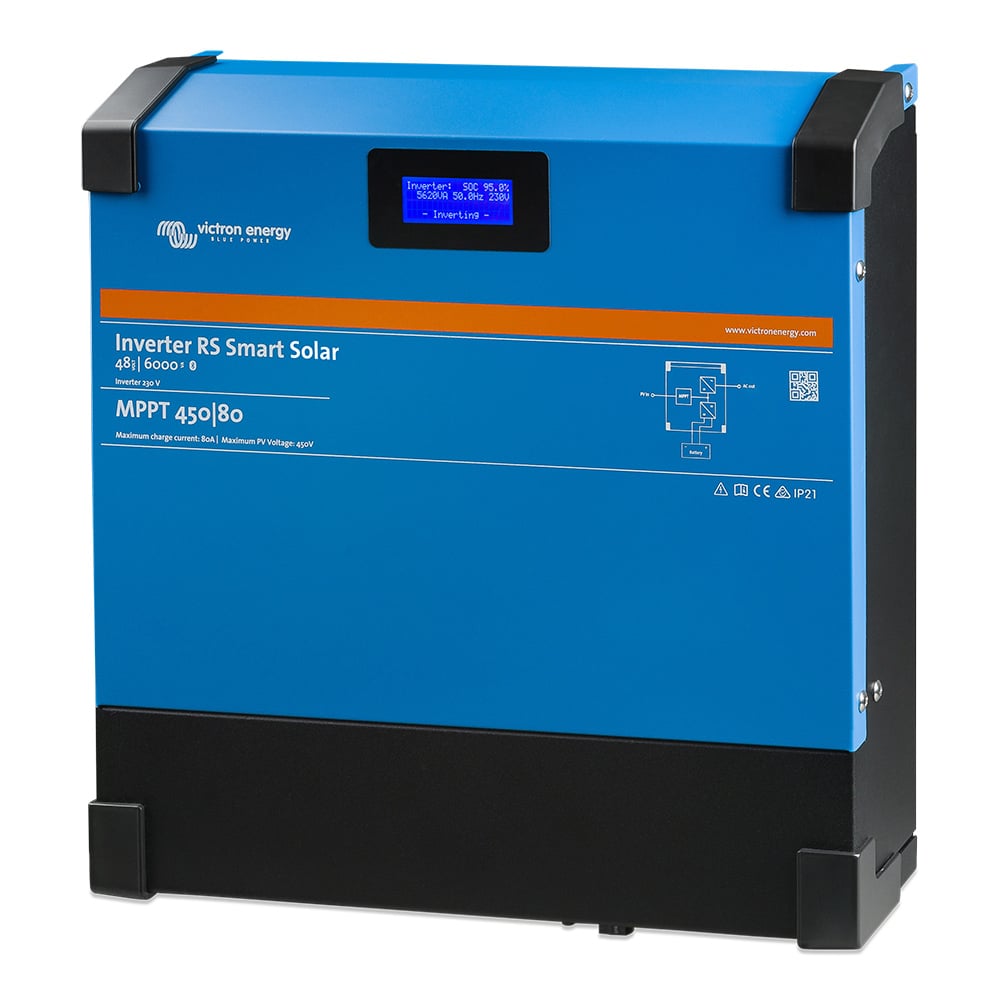

Victron Inverter rs 48/6000 230v Smart Solar

The rs Smart Solar inverter from Victron Energy (mpn pin482601000) is a combination of a powerful 48vdc, 6kVA 230vac inverter and a high voltage 80-450 vdc, 4 kW mppt solar charger. Thanks to its advanced design and high frequency technology, the inverter weighs only 11 kg and has excellent efficiency, low standby power and very quiet operation. The inverter generates a perfect sine wave capable of powering high power devices. It is powered by a bidirectional DC-DC converter that either charges the battery when excess solar energy is available or converts from the battery when it is needed.

The inverter is equipped with a display to show battery, inverter and solar charger details. These parameters can also be read via Bluetooth from the VictronConnect app. In addition, the inverter has a VE.Direct port and a VE.Can port for connection to a GX device for system monitoring.

Features

• Off-grid solar inverter
• Combination of inverter, bidirectional DC-DC converter and MPPT
• Wide MPPT voltage range: 80-450vdc, PV starting voltage 120VDC
• Lightweight, efficient and quiet
• VE.Can and VE.Direct connection

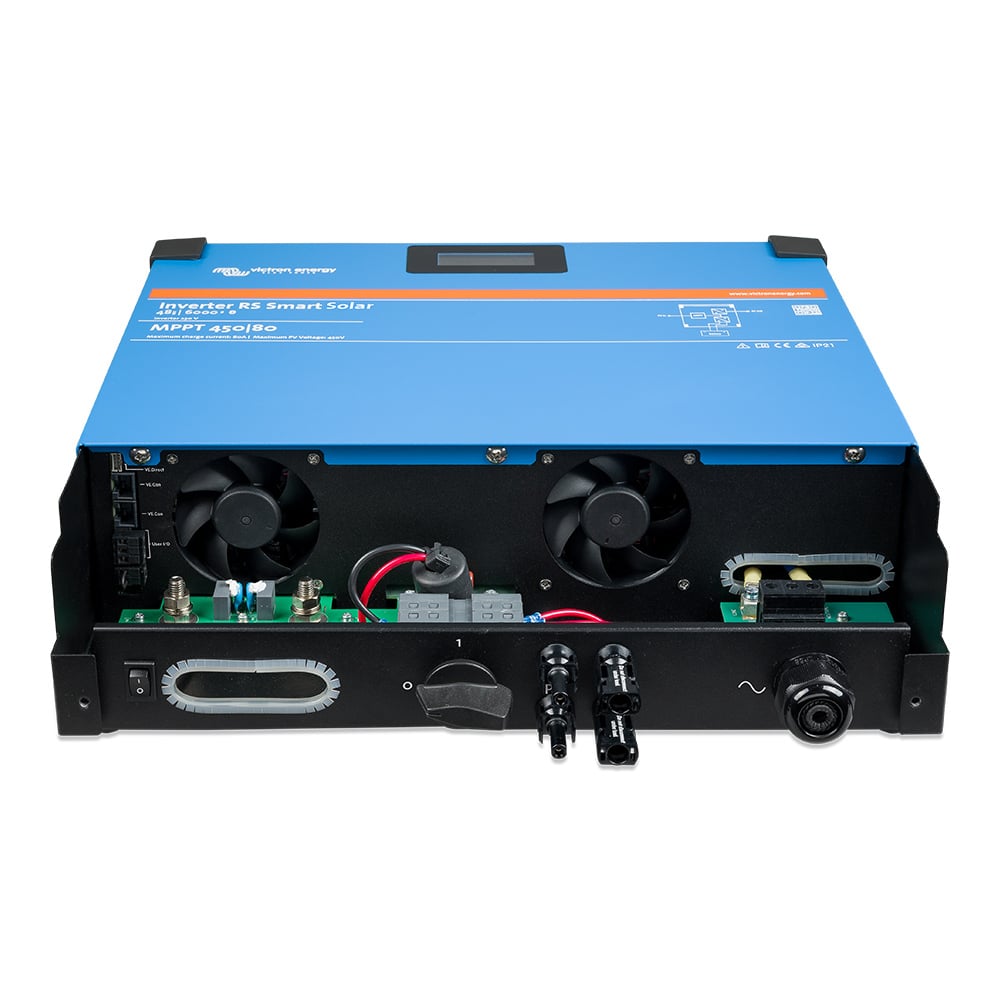

• Built-in PV isolator
• I/O connections

Lightweight, efficient and quiet

Thanks to high frequency technology and a new design, this powerful inverter weighs only 11 kg. It also has excellent efficiency, low standby power and very quiet operation.

Display and Bluetooth

The display reads the battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Bluetooth-enabled device. In addition, Bluetooth can be used to set up the system and change settings using VictronConnect.

Technical data

Inverter

• Input voltage range: 38-64v DC
• Output voltage: 230v ac ±2%, frequency: 50 Hz ±0.1%
• Output power: increases linearly from 4800w at 46vdc to 5300w at 52VDC
• Peak power: 9000w for 3 seconds

Charger

• Constant charging voltage: 57.6 VDC
• Float charge voltage: 55.2 VDC
• Max. Charge current: 100A
• Battery temperature sensor: Yes

General

• Operating temperature range: -40°C - +65°C
• Humidity: max. 95% (non-condensing)
• Protection class: IP21
• Weight: 11 kg
• Dimensions: 425 x 440 x 125 mm

Scope of delivery:

1x Victron Inverter rs Smart Solar 48/6000 (pin482601000)
1x instruction manual
