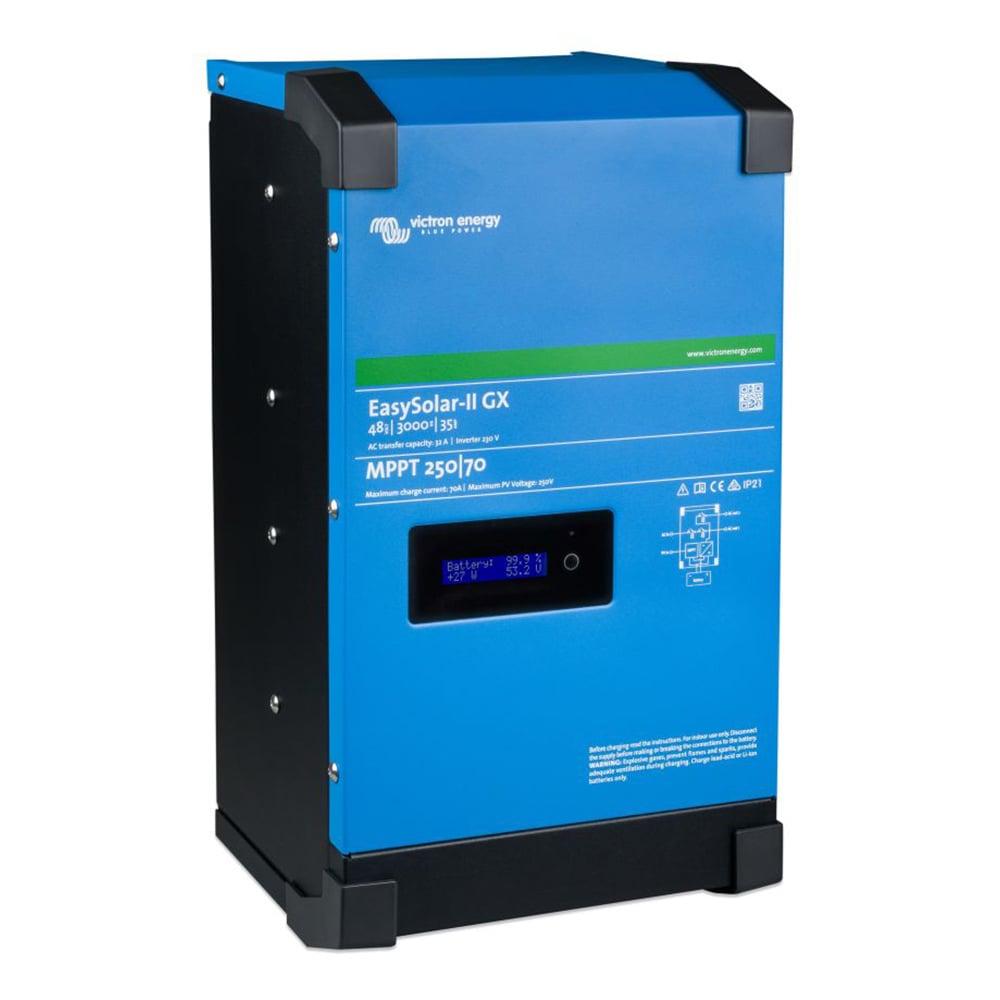

The Victron EasySolar-II device combination from Victron (mpn pmp482307010) combines an inverter/charger, a solar charge controller and a gx device. The elements are pre-wired and integrated into a single unit. This greatly simplifies most installations and saves time and money.

Components

  • MultiPlus II inverter/charger
  • SmartSolar mppt 250/70-Tr solar charge controller
  • gx device with 2x 16 characters display

Display and Wi-Fi

The display shows parameters for battery, inverter and solar charge controller. The parameters can be accessed using a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and change settings.

Solar charge controller

The DC output of the SmartSolar mppt is connected in parallel with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar mppt

gx device

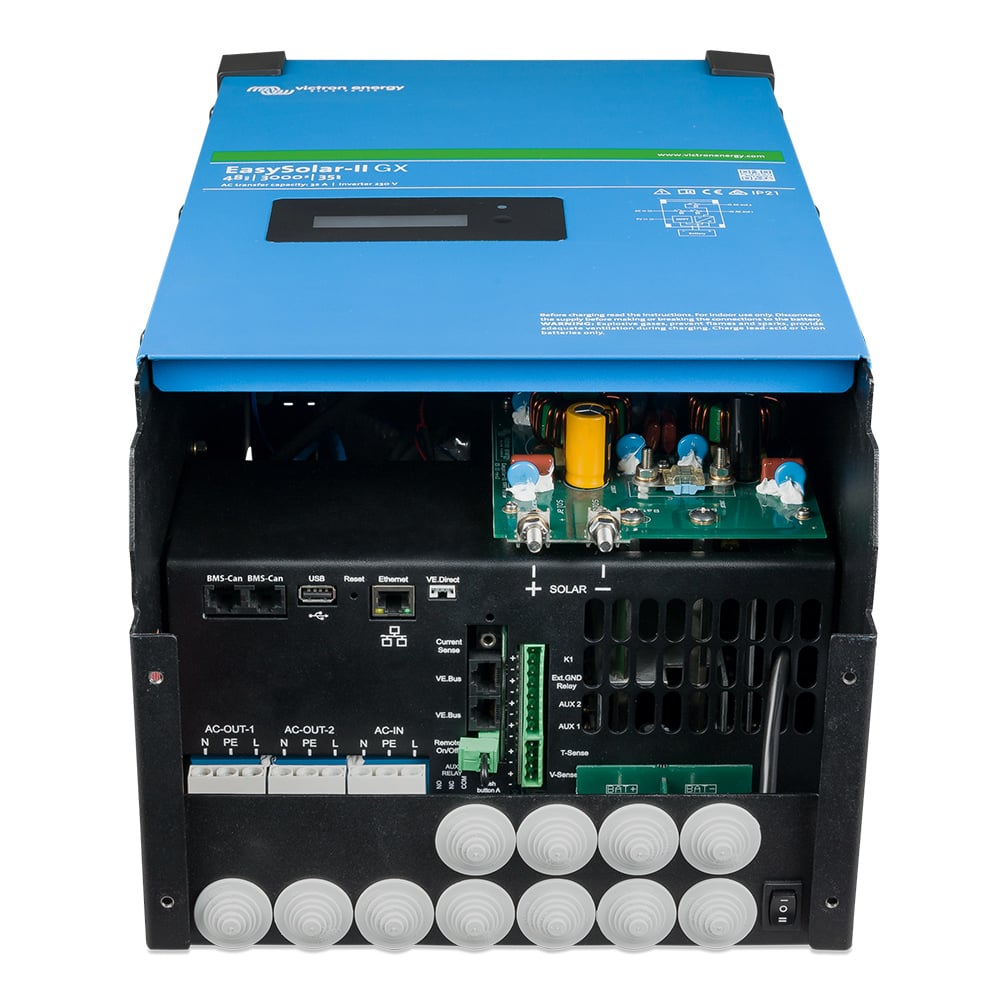

The integrated gx device includes:

  • A BMS-Can interface. This can be used to connect to a compatible CAN bus managed battery. Note that this is not a VE.Can compatible connection.
  • A USB port
  • An Ethernet port
  • One VE.Direct port

The gx device controls the MultiPlus-II and SmartSolar mppt with one VE.Bus and one VE.Direct connection each.

Technical data

  • Inverter: input voltage range 38-66v - output voltage 230 vac - const. Output power 3000w - Peak power 5500W
  • Charger: Input voltage range 187-265 vac - Input frequency 45-65Hz - Max. Battery charging current 35A
  • Solar charge controller: Max. Output current 70a - Max. PV power 4000w - Max. PV open circuit voltage 250v - Constant charge voltage 57.6V
  • Interfaces: BMS-Can, usb, Ethernet, VE.Direct, Wi-Fi
  • Protection class: IP21
  • Dimensions: 506 x 275 x 237 mm
  • Weight: 26kg

Scope of delivery:

1x Victron Energy EasySolar-II gx 48/3000/35-32 mppt 250/70 gx
1x user manual

Victron_ESS_Installationshandbuch.pdf Download
Victron_EasySolar-II_Einheitenzertifikat.pdf Download
Victron_EasySolar-II_Handbuch.pdf Download
Victron_Automatic-Generator.pdf Download
Victron_EasySolar-II_Dimensions.PDF Download
Victron_EasySolar-II_Certificate-ESS.pdf Download
Victron_EasySolar_CE.pdf Download
Victron_ESS_Installation-Manual.pdf Download
Victron_EasySolar-II_Manual.pdf Download
Victron_EasySolar-II_Certificate-ESS-EN-50549-1.pdf Download
Victron_EasySolar-II_Datasheet.pdf Download
Victron_EasySolar-II_Datenblatt.pdf Download
Continuous output: 3000W
Manufacturer: Victron Energy
Protection type: IP21
Weight: 26 kg
ean: 8719076045786
mpn: PMP482307010
