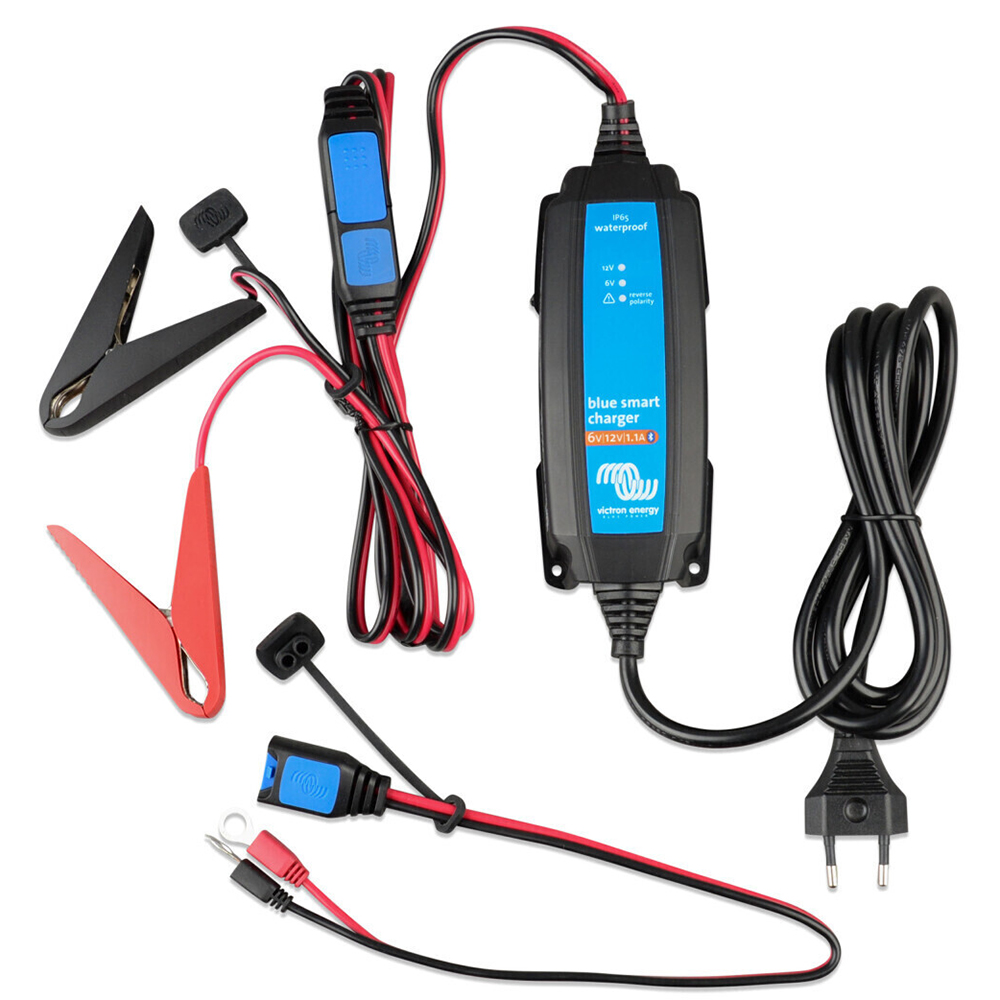

Victron Blue Smart ip65 6v/12v 230v battery charger

The Blue Smart ip65 6/12 230v (bpc120134034r) from Victron Energy is a highly efficient charger with integrated Bluetooth that has been specially developed for battery charging in smaller applications. It charges both 6v and 12v batteries of various types and delivers a maximum charging current of 1.1a. Together with the free VictronConnect app, you can monitor and configure the status of your battery easily and smartly via your smartphone, tablet or computer.

Highlights of the Blue Smart ip65 6v/12v battery charger

• Automatic power supply function
• Lithium-ion battery mode
• 7-stage intelligent charging algorithm
• powerful down to -30°C (extreme cold)
• Protection against splash water, dust and chemicals
• Restoration of deeply discharged batteries
• Low energy mode
• Bluetooth Smart

Application areas

• Motorcycles and scooters
• Smaller cars
• Boats and yachts
• Motorhomes and caravans
• Workshop equipment

Low power mode

An optional mode that limits the maximum charging current to a significantly reduced level. Recommended when charging batteries with a lower capacity with a high-current charger.

Recovery function of a deeply discharged "dead" battery

Unlike other chargers, the Blue Smart ip65 charger attempts to reactivate a deeply discharged battery by first applying a weak charging current. As soon as the voltage at the battery connections has reached a sufficient level again, the charger switches to normal charging mode.

Silent operation

The operation of the charger is completely silent, there is no fan and no moving parts.

Technical data

• Charging current: 1.1A
• Efficiency: 82%
• Input voltage: 100 - 250 VAC
• Frequency range: 45 - 65 Hz
• Low current mode: 0.5A
• Reverse current: 0.1Ah/month
• Operating temperature range: -30 to +50°C
• Humidity (non-condensing): Max. 95%
• Protection class: ip65
• Dimensions: 38 x 64 x 153 mm
• Weight: 0.4 kg

Protection against:

• Reverse polarity
• Output short circuit
• overheating

Scope of delivery

1x Victron bpc120134034r Blue Smart 6v/12v ip65 230v battery charger
1x connection terminals
1x m8 cable lugs
