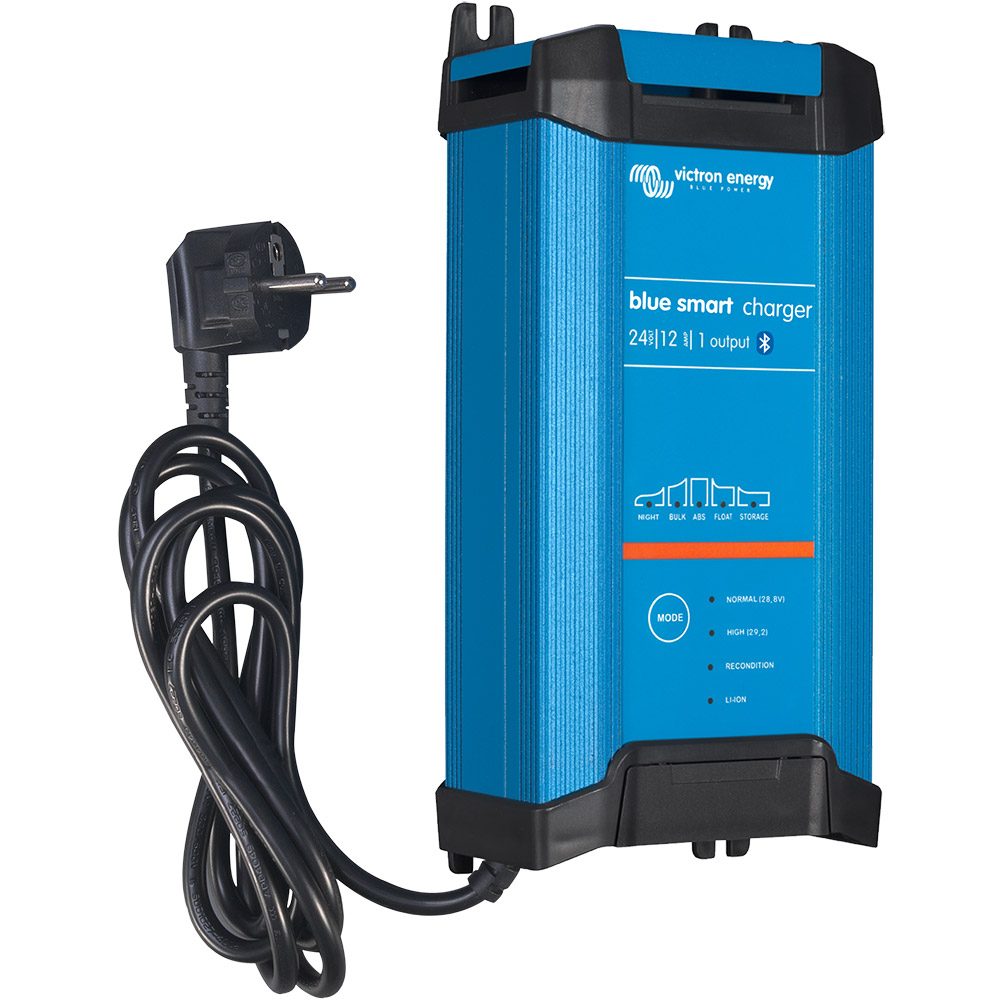

Victron Blue Smart ip22 24/12(1) Charger 24v 12a 1 battery

The Blue Smart ip22 24/12(1) battery charger from Victron Energy (mpn bpc241242002), is a professional, compact 24v 12a battery charger of the latest generation with a charging output and built-in Bluetooth! The Blue Smart ip22 24/12(1) charger can be used with equipment in your workshop or with motor vehicles such as with (classic) cars, motorcycles, boats and motorhomes and charges both classic 24v lead batteries and modern lithium batteries. It offers

Highlights of the 24/12(1) Blue Smart ip22 Charger

intelligent charging, until the perfect battery state...

The seven-stage charging algorithm gets the most out of your battery. The charger provides the battery with the energy it needs, keeps it in a healthy state, ensures better performance... and a longer life

Restoring deep-discharged "dead" batteries

Unlike most other brands and product lines, the Blue Smart ip22 charger will attempt to recharge a deep-discharged battery by imposing a weak charging current on it. Normal charging operation will then resume once sufficient voltage is present between the battery terminals.

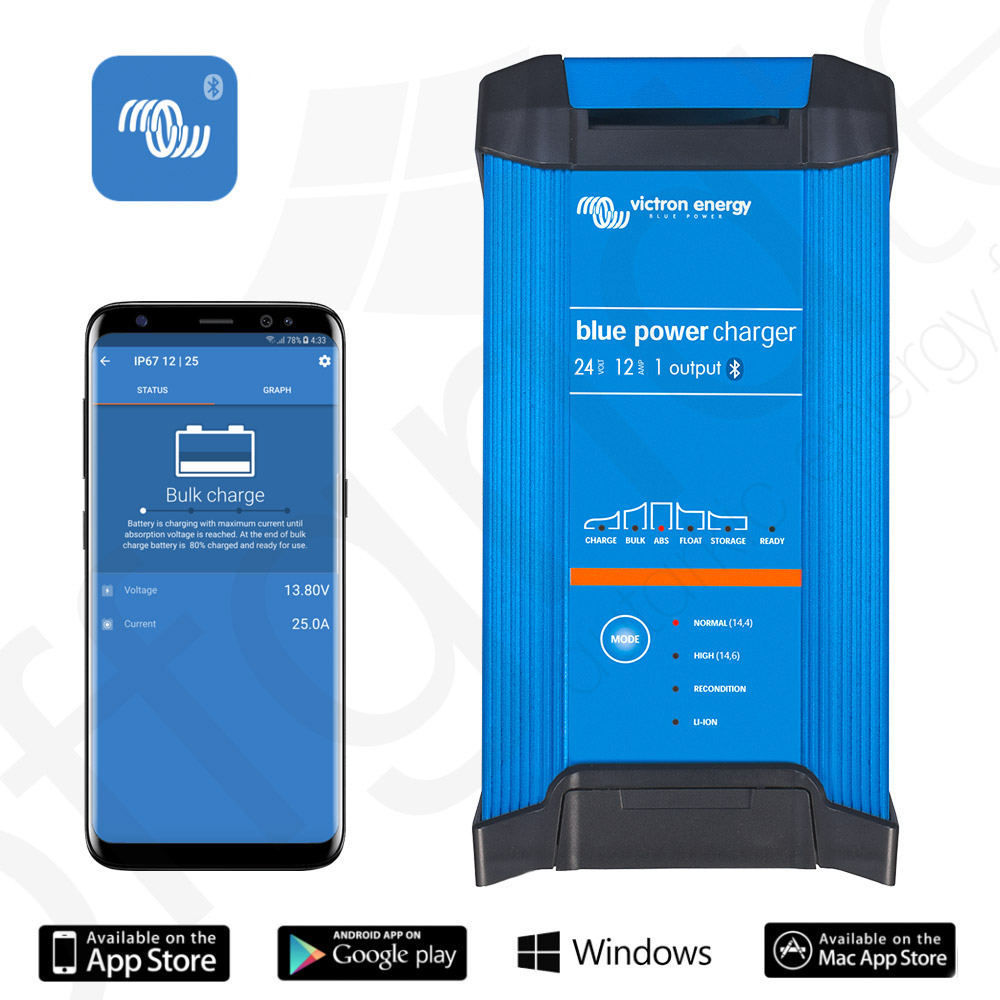

Retrieving battery status remotely, with the VictronConnect app

The Blue Smart ip22 24/12(1) charger features built-in Bluetooth. This allows the status of the charger and battery to be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect App

the most important technical features of the 24/12(1) Blue Smart ip22 Charger

• Victron Part number: bpc241242002
• charges 24v lead acid, gel, agm and lithium batteries
• 12a maximum charge current
• 1 battery charge output
• very compact dimensions: 235 x 108 x 65mm
• highly advanced, seven-stage charging algorithm
• with integrated Bluetooth for use with the free VictronConnect app

other features of the 24/12(1) Blue Smart ip22 battery charger

trend-setting efficiency

With up to 94% efficiency, these chargers generate up to four times less heat compared to the industry standard. Also, after the battery is fully charged, power consumption drops to less than 0.5 watts, about five to ten times better than the industry standard.

adaptive 7-stage charging algorithm

The 24/12(1) Blue Smart charger features microprocessor-controlled "adaptive" battery management. "Adaptive" means that the charging process is automatically adjusted to the type of battery usage.

Storage mode: less maintenance and aging when the battery is at rest

Storage mode is activated whenever there has been no discharge within 24 hours. The charge maintenance voltage is then lowered to 2.2V/cell (13.2v for a 24v battery) to minimize gas generation and thus prevent corrosion on the positive plates. Once a week, the voltage is increased to the level of the gassing voltage. This provides a type of equalization charge that prevents electrolyte stratification and sulfation, the two main causes of premature battery failure.

Scope of delivery:

1x Victron Energy bpc241242002 24/12(1) ip22 Blue Smart Charger 1x instruction manual
