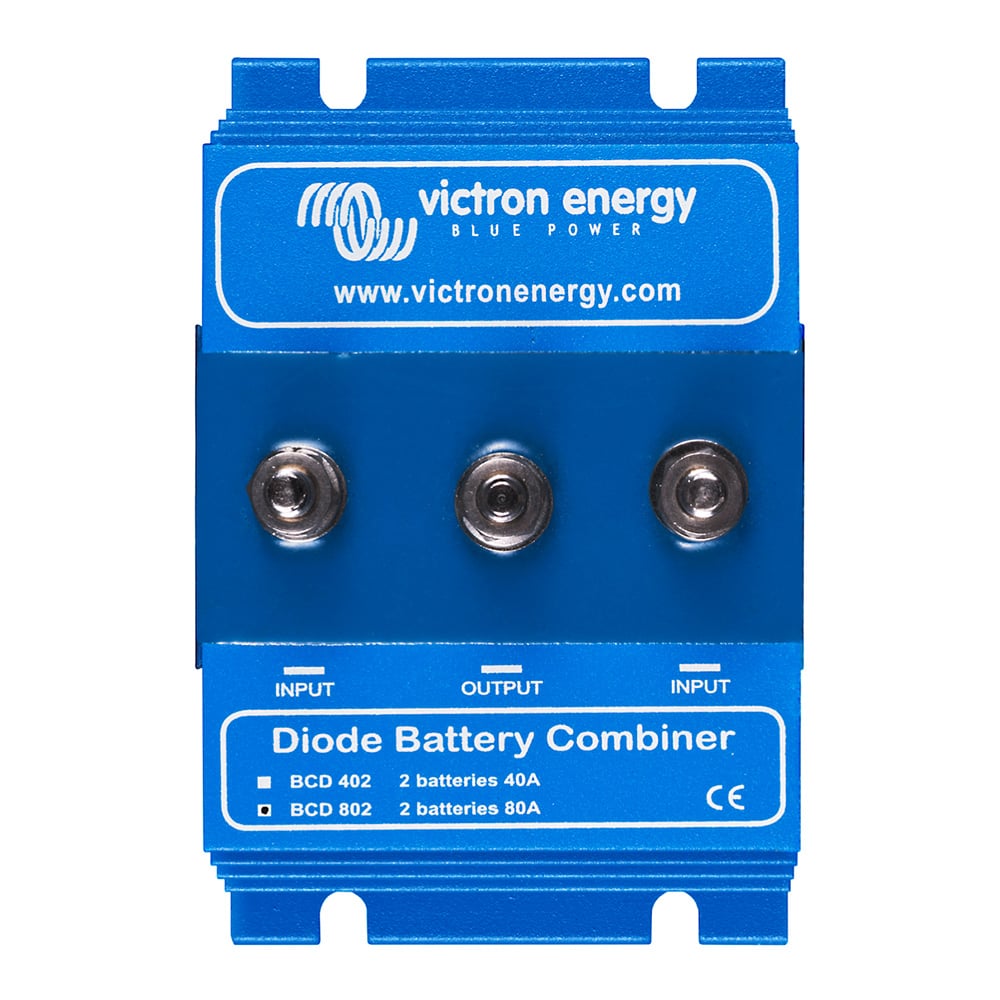

Victron BCD 802 Diode Battery Combiner 80A
Product number:
8-67-009315
8-67-009315
4
1
Product number:
8-67-009315
The Victron BCD 802 2 with 80A DC-performance (MPN BCD000802000) is a diode battery combiner and is used to to supply important consumers with a stable DC-current. Thanks to these diodes this current can come from 2 sources, for example 2 battery circuits.

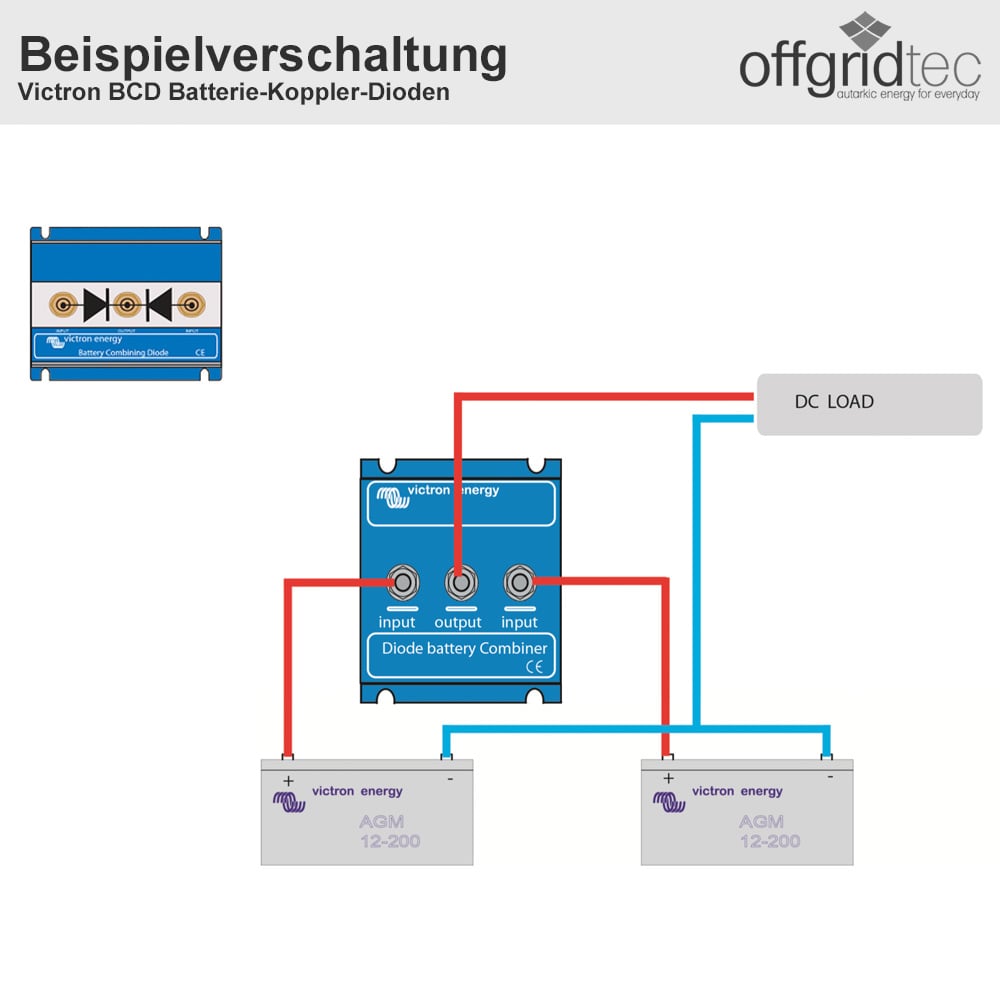

If one source is not sufficient the second one is used additionally. Diode battery combiners are used to ensure a constant DC-current for important consumers, for example an electronical motor-control-system. With help of these combiners two or more DC-sources can be connected parallely. If one source is not sufficient or if there is a failure power supply is not interrupted. Argo battery combiners produce only a very small voltage loss due to the use of Schottky-diodes: voltage loss (low current) at ~ 0.3V and nominal output ~ 0.45V.
If one source is not sufficient the second one is used additionally. Diode battery combiners are used to ensure a constant DC-current for important consumers, for example an electronical motor-control-system. With help of these combiners two or more DC-sources can be connected parallely. If one source is not sufficient or if there is a failure power supply is not interrupted. Argo battery combiners produce only a very small voltage loss due to the use of Schottky-diodes: voltage loss (low current) at ~ 0.3V and nominal output ~ 0.45V.
Delivery scope:
1x Victron BCD000802000 Victron BCD 802 2 Diode Battery Combiner 80A DC
Manufacturer:
Victron Energy
Product Type:
Victron BCD 802 2 batteries 80A (combiner diode)
Manufactuerer Information
Victron Energy
Victron Energy B.V.
De Paal 35
1351 JG Almere
Netherlands
Mail: sales@victronenergy.com
Tel.: +31 365359700
