SparBundle Ecoflow Delta Pro Powerstation with 2 x Offgridtec 400W solar module 2 x 3.6kWh additional battery and Smart Home Panel

The bundle consisting of the EcoFlow DELTA Pro Powerstation and a matching solar module (MPN 4-01-014615) offers the ideal power supply for camping and outdoor adventures, at home or as a backup solution in the event of a power failure. It is optionally available with two foldable 400W FSP-Max solar cases, two 400W EcoFlow solar bags or three 430W Luxen solar modules. The SmartHome panel, a spare battery or a second power station can also be selected as an option.

Characteristics:

• Ideal for use in camping and outdoor areas, on expeditions or as an emergency power supply
• Charging with solar energy
• Supplies up to 14 consumers simultaneously
• All components perfectly matched to each other
• Quick and easy installation according to the plug & play principle
• Portable and lightweight design for all components

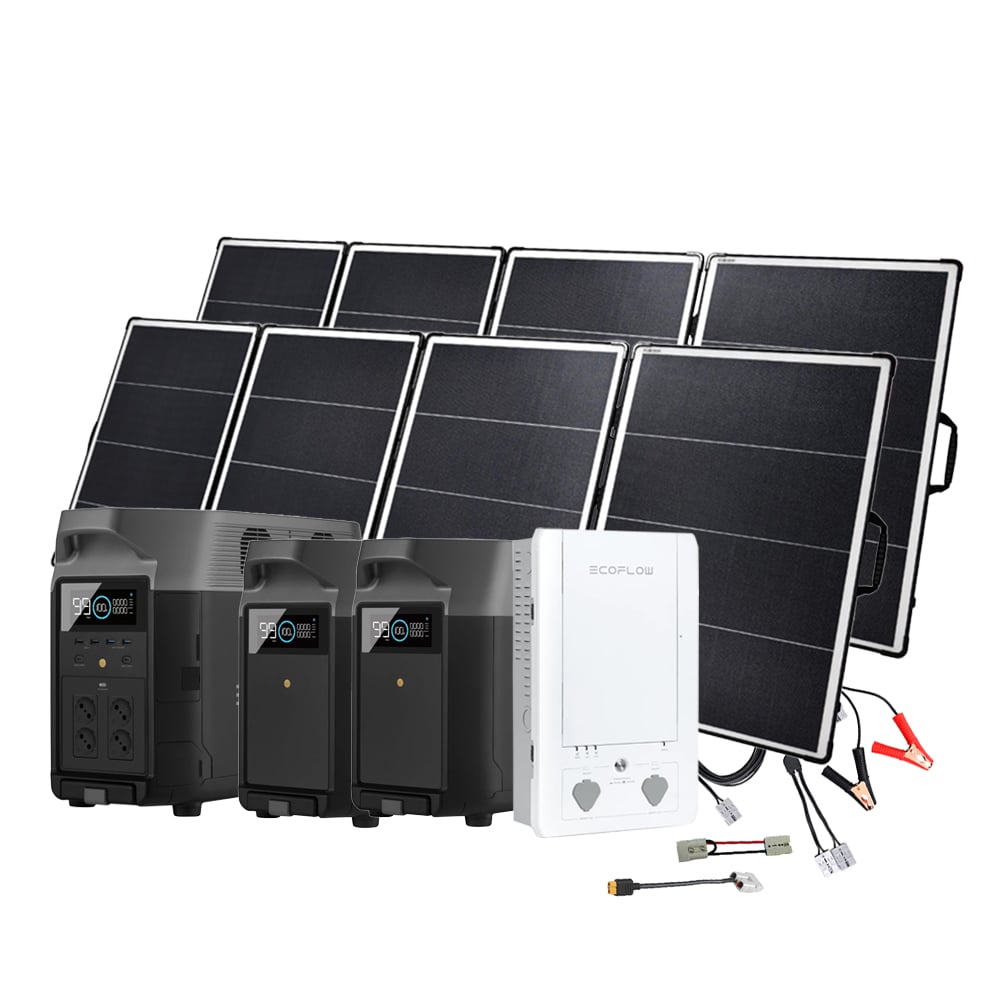

The EcoFlow DELTA Pro + Offgridtec® solar panel bundle includes

2x Offgridtec FSP-Max 400W foldable solar module (solar case)
+ Adapter cable Anderson plug series connection
+ adapter cable Anderson to XT60 20cm
Or: 2x Offgridtec Ecoflow 400W foldable solar module (solar case)
+ Ecoflow XT60i solar cable
Or: 3x 430W Luxen solar module Full Black + Ecoflow XT60i solar cable
EcoFlow DELTA Pro Powerstation 3.6Wh

Optional extra:

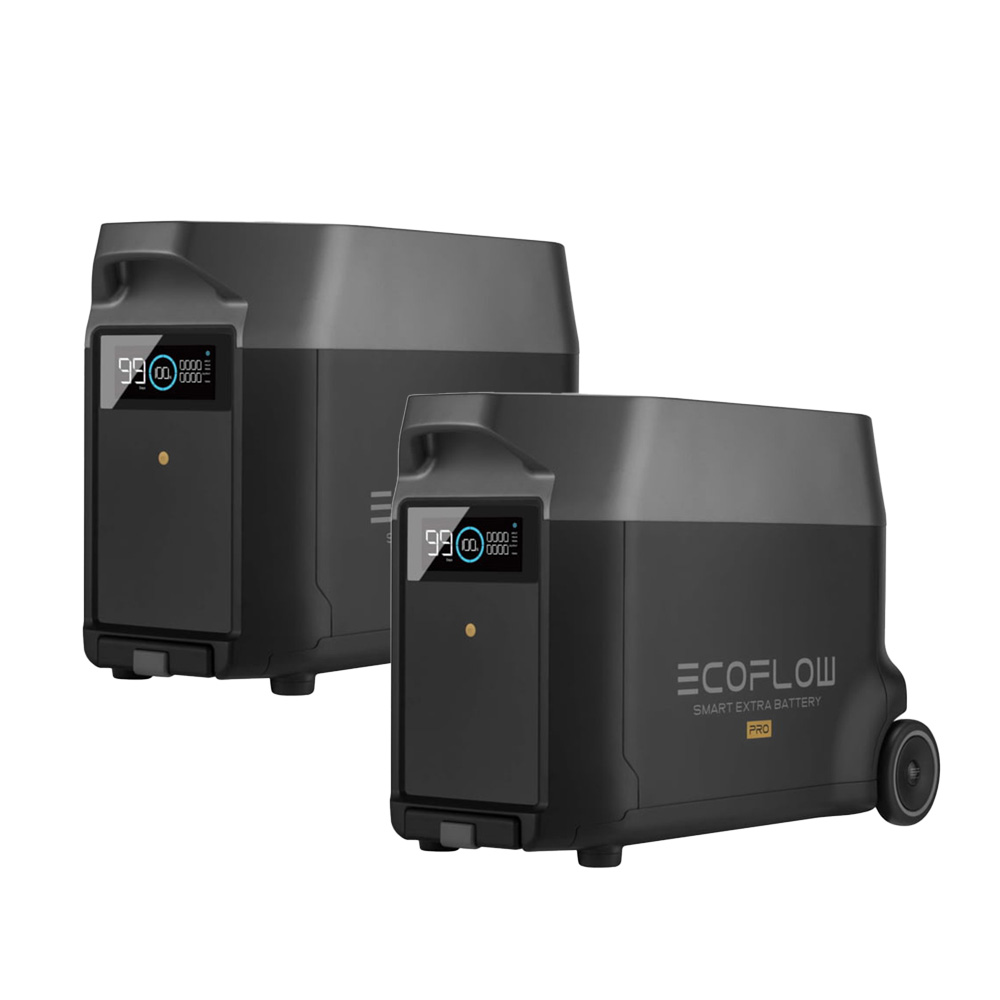

• Ecoflow Delta Pro Extra Smart Battery

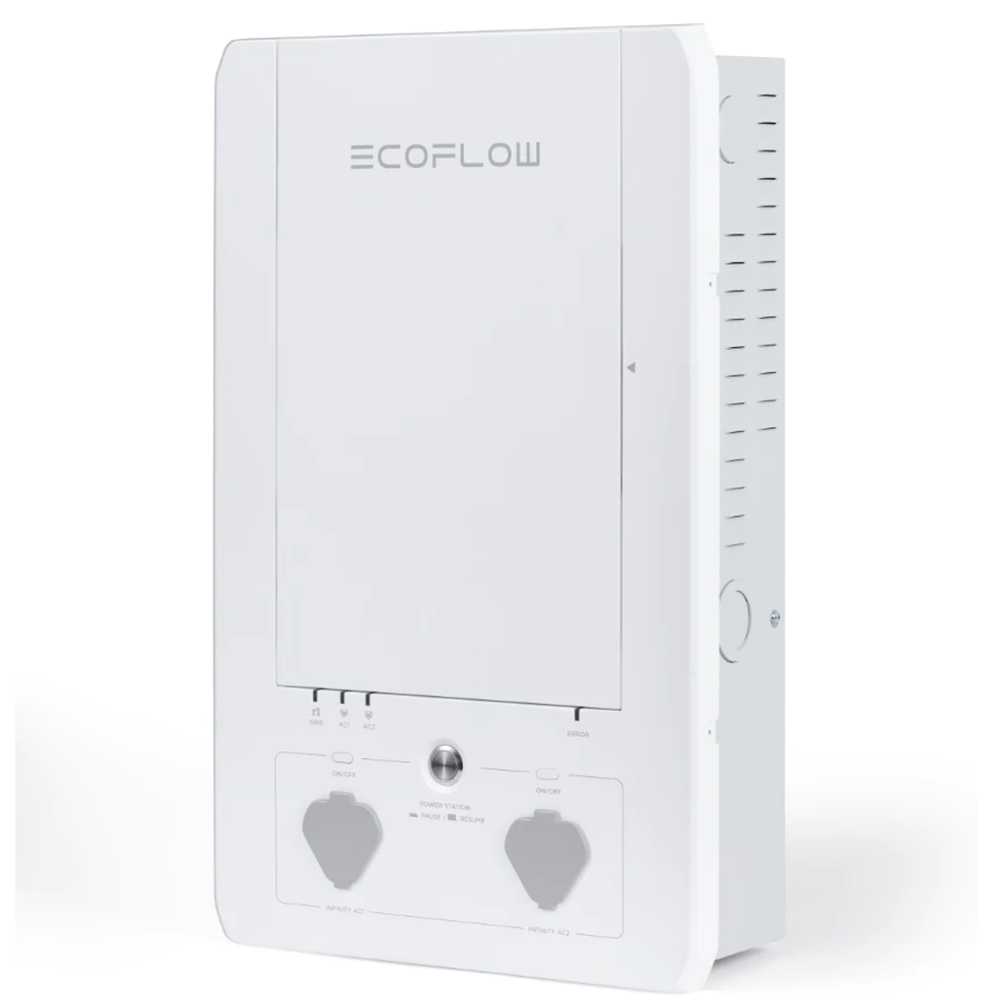

• Ecoflow Delta Smart Home Panel (Note: The installation of the EcoFlow Smart Home Panel must be carried out by a licensed electrician)

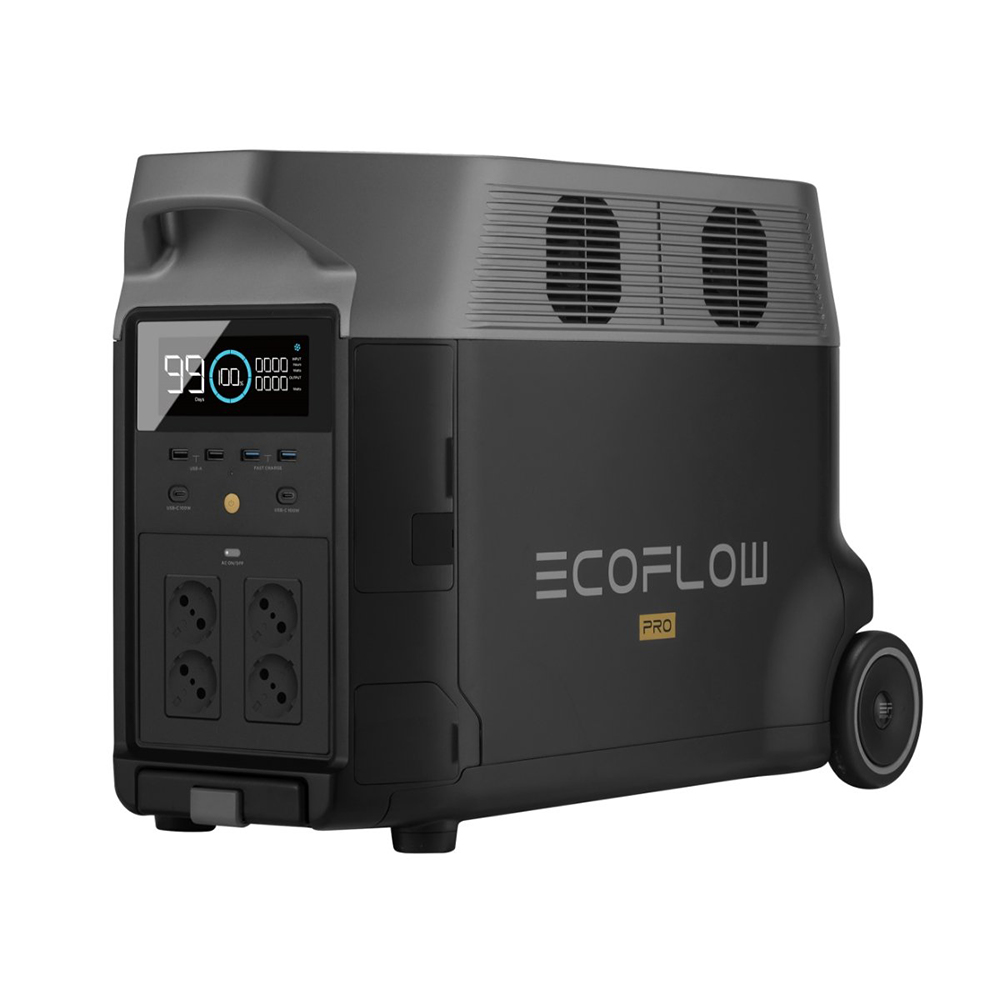

EcoFlow DELTA Pro Kraftstation

With the DELTA Pro (MPN 50034008), EcoFlow presents the largest version of its premium DELTA series in the mobile power station range to date. With its numerous connection and charging options, this portable power station is a versatile all-rounder for use at home, as a backup in the event of a power cut or for camping and outdoor adventures.

With its 3600Wh capacity and 3600W inverter, the DELTA Pro can power almost any device, such as kitchen appliances, lights, mobile phones and laptops or tools. With the DELTA Pro Smart additional batteries, the capacity can even be extended by up to 7.2kWh (sold separately).

Inputs and outputs of the EcoFlow DELTA Pro:

• AC charging input: Max. 2900W, 230V - 12.5A
• Car charging input: supports 12V/24V battery, standard 8A
• Solar charging input: 11-150V, max. 15A, max. 1600W
• AC output (4x): total 3600W (peak 7200W), 230V/16A
• Max. Device power supported by X-Boost: 4500W
• USB-A output (2x): 5V - 2.4A, max. 12W per port
• USB-A fast charging (2x): 5V/2.4A, 9V/2A, 12V/1.5A, max. 18W per port
• USB-C output (2x): 5/9/12/15/20V - 5A, max. 100W per port
• DC5521 output (2x): 12.6V - 3A, 38W per port
• Car charger output (1x): 126W - 12.6V/DC - max. 10A
• Anderson port (1x): 30A, 12.6V
• Supports W-Lan & Bluetooth
• Supports up to 2 DELTA Pro Smart Extra batteries & intelligent generator (sold separately)

Technical Data:

• Dimensions: 635 x 284 x 420 mm
• Weight: approx. 45 kg
• Warranty: 3 year manufacturer's warranty
• Capacity: 3600Wh
• Cell chemistry: LFP
• Service life: 3,500 cycles up to 80% capacity - 6,500 cycles up to 50% capacity
• Charging temperature: 0°C - +45°C
• Discharge temperature: -20°C - +45°C

Choose between the FSP-Max 400W, 400W EcoFlow or the 430W Luxen solar panels!

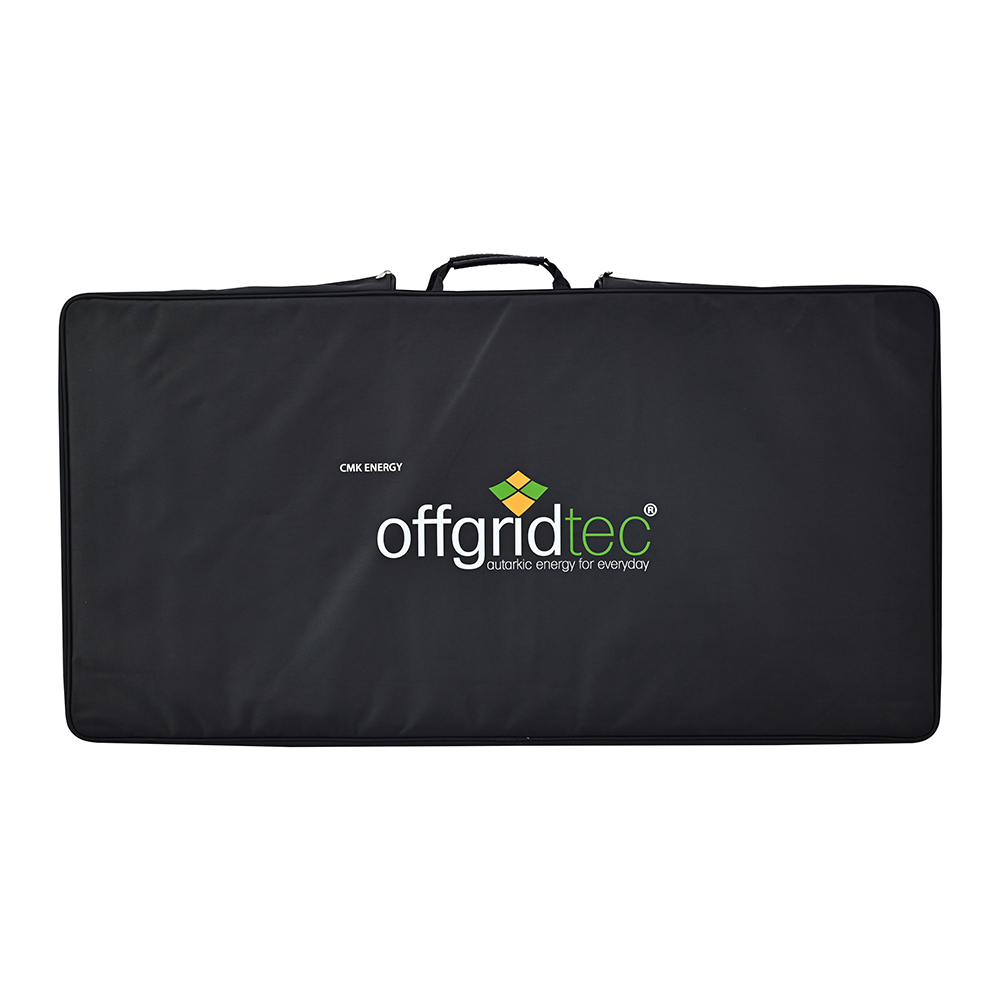

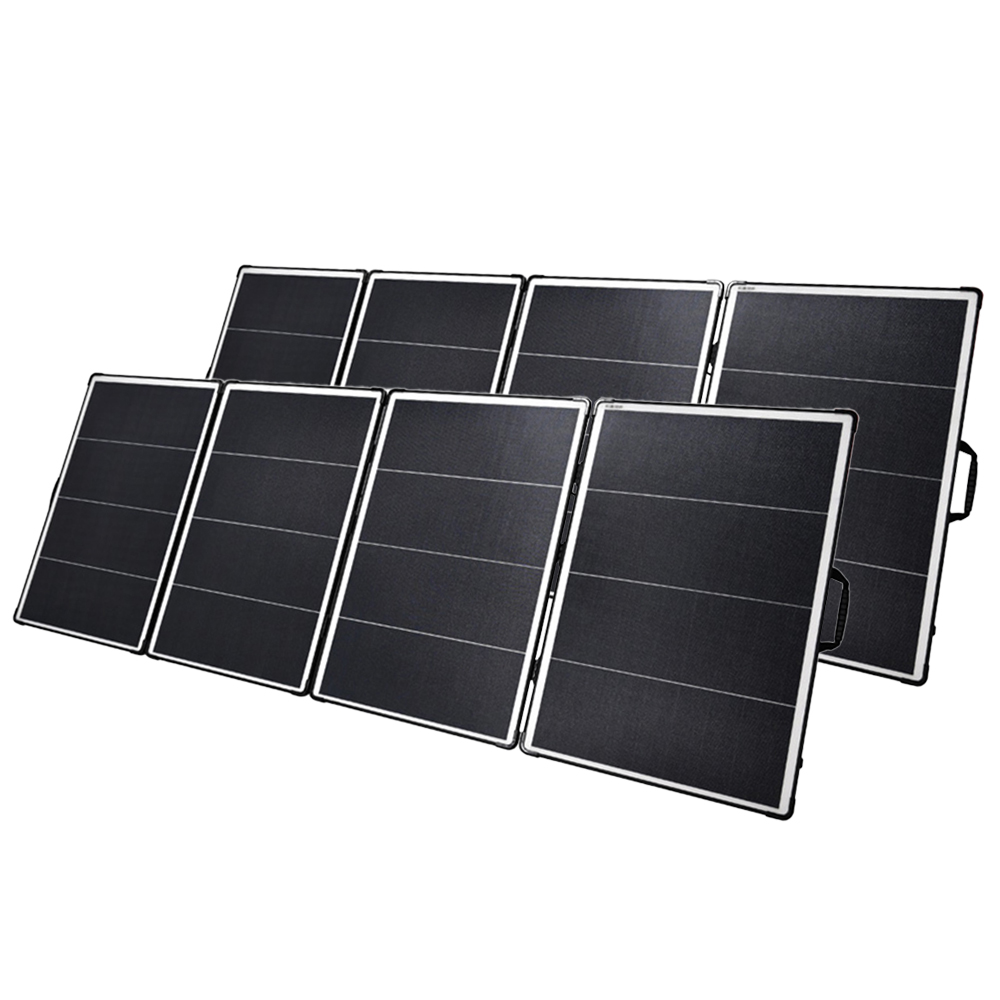

The FSP-Max 400W from Offgridtec is a foldable high-end solar module with connection kit, as well as permanently integrated fold-out supports so that the module can be set up easily and anywhere at a 45 degree angle. The module is equipped with high-efficiency monocrystalline PERC solar cells, which have an efficiency of over 23%, delivering a full 400Wp of solar power with optimum orientation and sunshine.

With the compact, foldable design and a shoulder strap, you can easily carry the EcoFlow 400W solar panels to your campsite or store them in your motorhome while you are travelling. The bag, to protect the module when not in use, can be easily and quickly transformed into a handy stand to find just the right angle to catch the sun's rays. Connect the modules to any EcoFlow Delta power station to charge them efficiently. Thanks to the universal solar connectors, connection to third-party generators is also possible.

The monocrystalline and bifacial 430W Series N5 solar module from Luxen Solar impresses with a combination of different technologies, such as N-TOPCon cell technology and a 108 half-cell layout. SMBB half-cut cell technology was also used during production to increase performance. The state-of-the-art solar module represents the pinnacle of solar technology, offering impressive power output and low LCOE. The elegant full-black design makes it a good choice when it comes to finding a solar cell for rooftop installations on residential buildings or for balcony power plants and many other applications.

Optimised cabling

The bundle contains all the cables required to connect the Powerstation to the selected solar module.

The EcoFlow 400W solar bags and the Luxen 430W solar modules include an EcoFlow XT60i solar cable (5m).

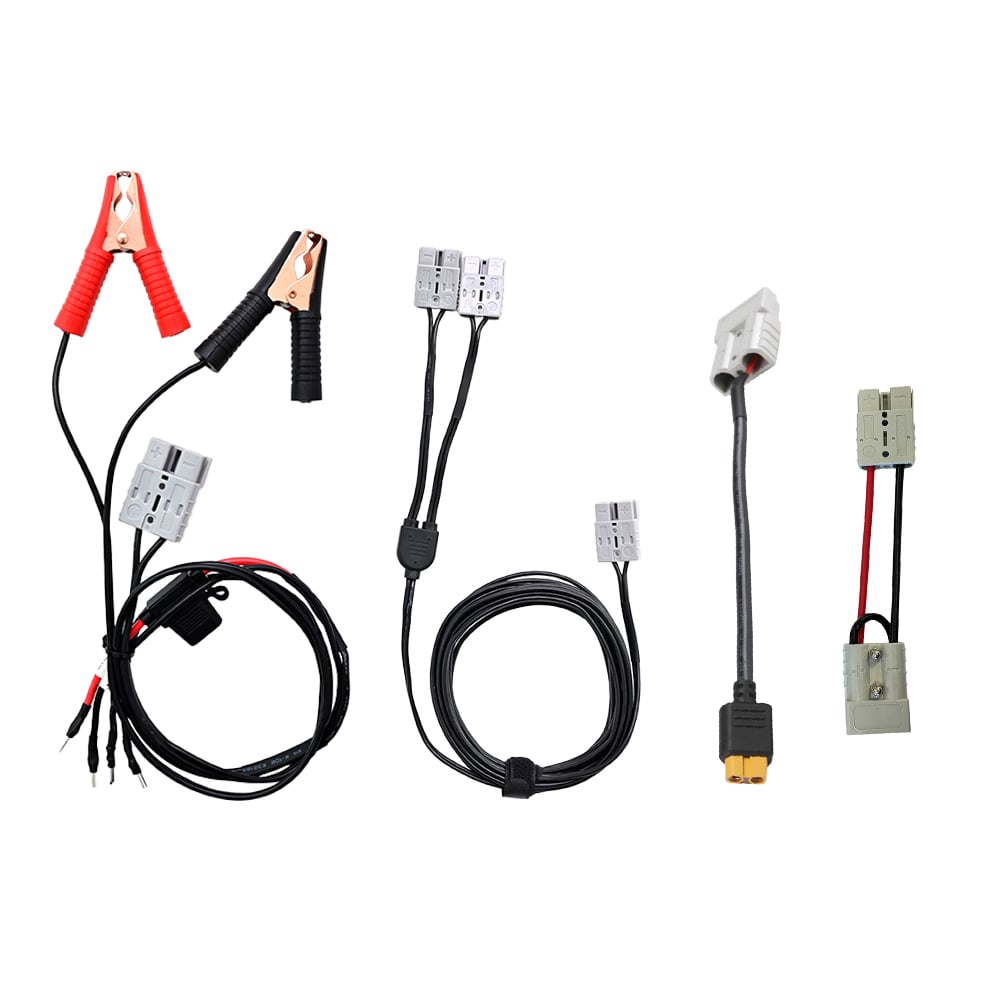

The FSP-Max solar bags include a connection kit. With the XT60 to Anderson adapter, you can connect the module's connection cable directly to the mobile power station and charge it with solar energy. The Anderson plug adapter cable has an Anderson plug for the solar modules at both ends. Thanks to the plug and play principle, connecting two modules in series is simple and straightforward.

.
