Pylontech Force-H3 fc1000 control unit hv bms

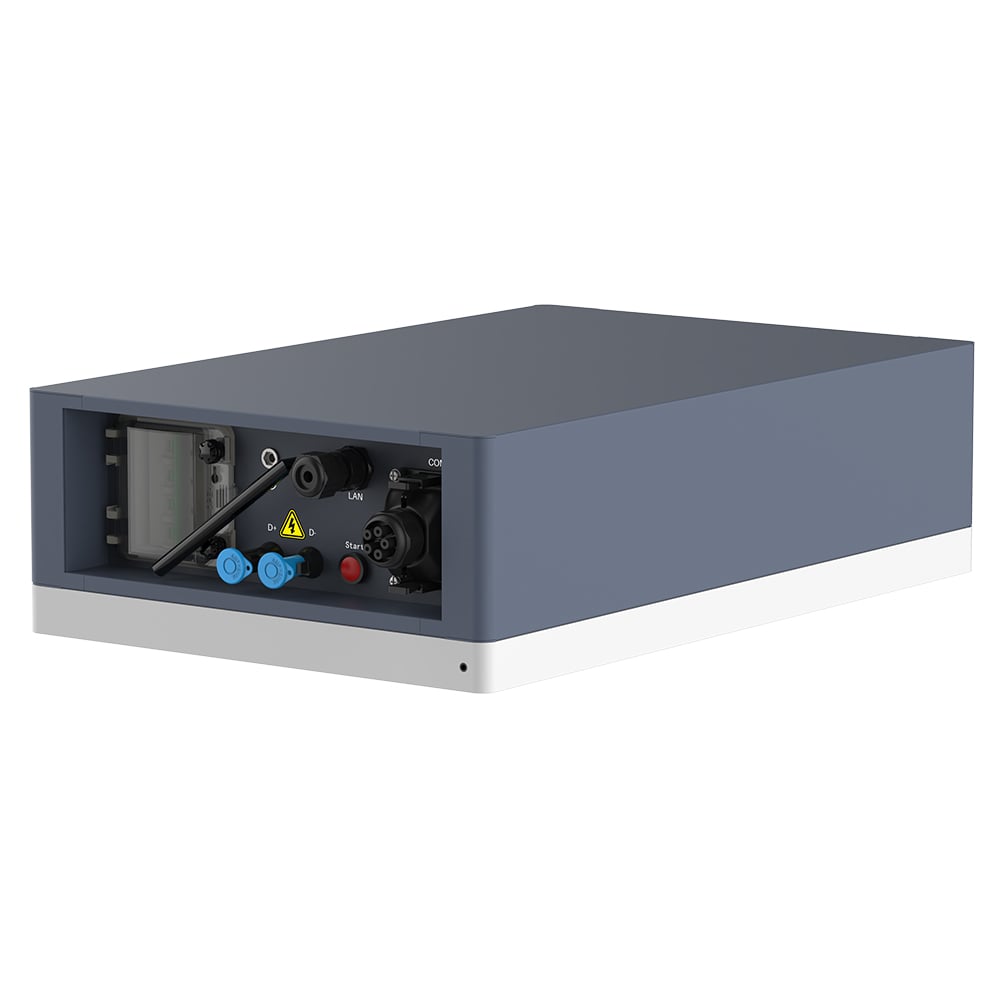

The Pylontech Force-H3 control unit (mpn fc1000) is the central battery management system for the Force-H3 high-voltage batteries, which reliably protects each battery module from unfavorable operating conditions and ensures safe, uninterrupted operation. Regardless of the number of storage modules used, only one bms is required per tower. A tower consists of a minimum of 2 to a maximum of 6 Force-H3 5.12 kWh battery modules, which enables a storage capacity of 10.24 to 35.8 kWh. In addition, the new H3 series can now operate up to 6 towers in parallel in one system.

The Force-H3 bms protects against:

• Deep discharge and overcharging
• overvoltage during charging
• currents too high during charging and discharging
• over- and undertemperature
• Short circuit and reverse polarity

Compatibility

The tried and tested communication protocol from Pylontech is directly supported by a large number of inverters. One Kompatibilitätsliste for Pylontech with over 30 brands and companies, including Victron Energy, Growatt, Solis and many more, can be found as a download in our appendices.

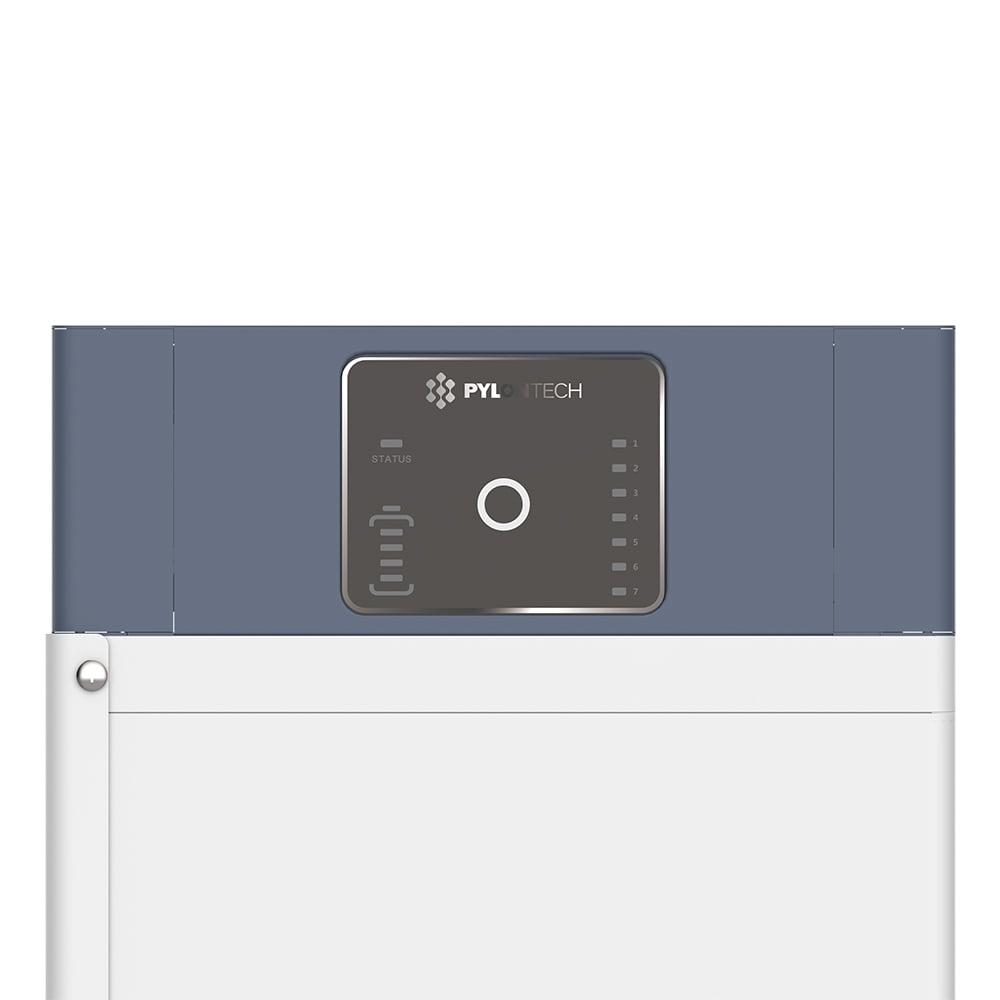

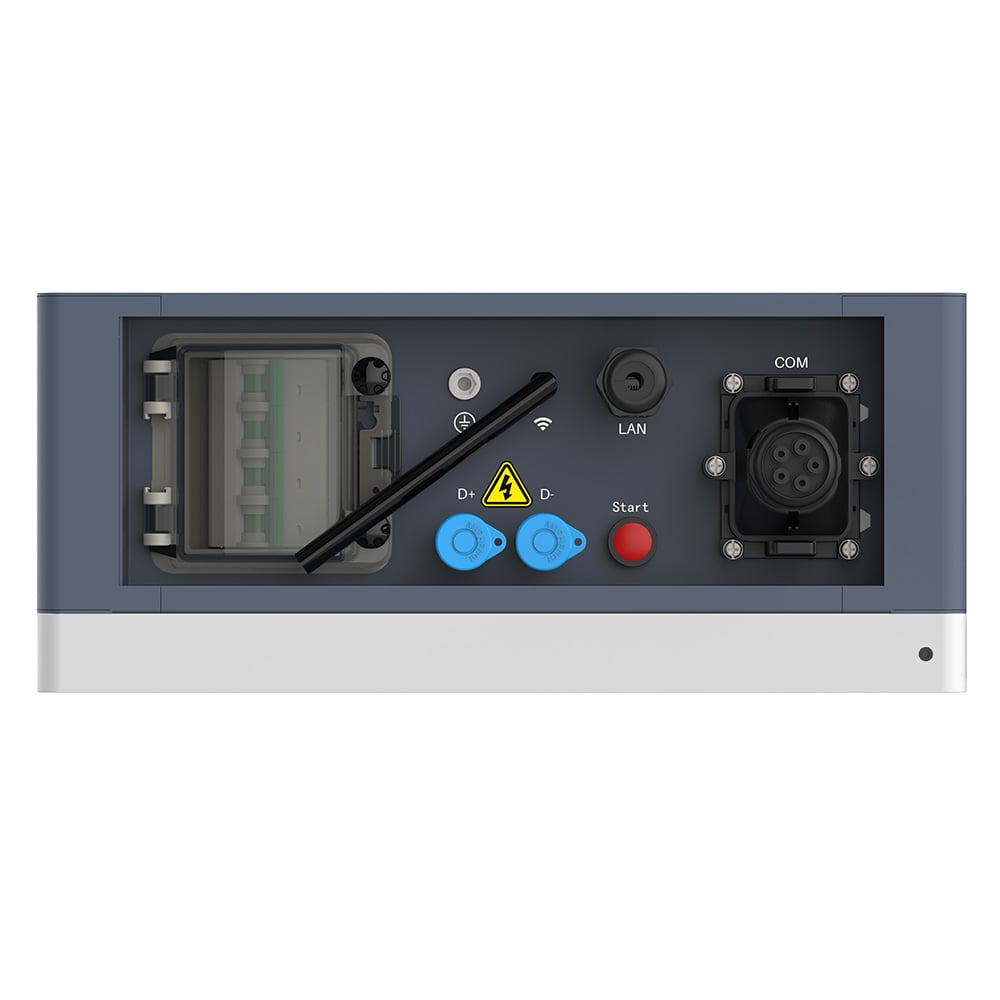

Intuitive control panel with LED displays

The current status of the battery tower can be checked at any time using the control panel on the control unit. In addition, the communication speed (baud rate) can be set directly on the unit.

Group management

With the Pylontech Force-H3, several groups of battery modules can be connected in parallel to further increase the storage capacity. Up to 6 groups can be operated in parallel, allowing a maximum total capacity of 215.04 kWh to be achieved. Each group can be configured independently, which allows a high degree of flexibility when scaling the storage system. Despite the parallel grouping, the system is easy to control thanks to the central battery management system, ensuring that all modules work efficiently and safely.

Technical data

• Operating voltage range: 172.8 - 921.6 VDC
• Charging/discharging current: 55 A
• Dimensions: 540 x 350 x 150 mm
• Weight: 12 kg
• max. number of modules per tower: 6 modules
• Capacity per tower: 10.24 to 35.8kWh (depending on the number of modules)
• Battery compatibility: compatible with Force-H3 battery modules

Scope of delivery:

1x Pylontech Force-H3 bms
Tower base (540 x 350 x 40 mm)
2x RJ45 communication cable
2x 3m power cable
1x 1m earthing cable
Mounting accessories
1x product manual
