Pylontech Force H2 3.55 kWh 96V high-voltage battery LiFePO4

The Force-H2 3.55kWh battery module from Pylontech (mpn fh9637m) is a 96v high-voltage battery of the latest generation, which once again features the proven lithium iron phosphate storage technology. These batteries are characterized above all by a long service life and a high level of safety, even at high power. Thanks to their very good cycle stability and high load limit, the battery storage systems are an ideal partner for a powerful photovoltaic system, which can charge the storage system several times a day.

A Kompatibilitätsliste for suitable inverters for Pylontech batteries with over 30 brands and companies, including Victron Energy, Growatt, Solis and many more, can be found as a download in our appendices! (Pylontech Compatibility List)

Features of the Force-H2 series

• LiFePO4 storage technology
• Dual active protection at BMS level
• High charging and discharging capacity possible
• Cycle life: over 5000 at 95% DoD
• Pre-charge function to protect the ESS system from overvoltage function
• Reliable performance thanks to durable components
• Flexibly expandable
• Compact and space-saving
• Service life over 15 years
• Compatible with many available inverters
• Easy installation thanks to modular design

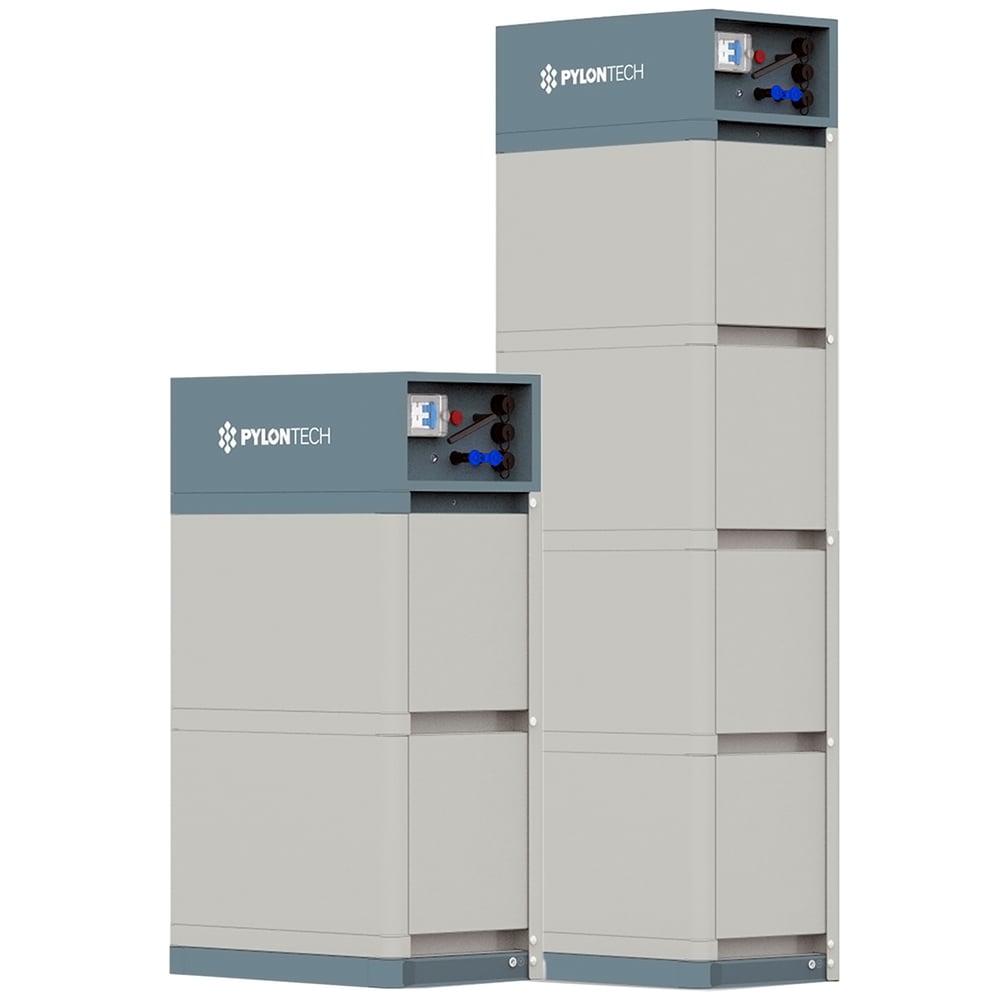

Flexible expansion

With the Force-H2 series, the flexible configuration of the capacity comes to the fore. This can be expanded from 7.1 kWh to 14.2 kWh. The modular design is simple and therefore allows easy installation with uncomplicated cable connections. A further advance of the new storage system is that, unlike other systems, a battery cabinet is no longer required. Thanks to its versatile and space-saving use, the Force H2 series is suitable for a wide range of application scenarios.

Long cycle life

The extremely long cycle life of the LiFePo4 cells used make Pylontech Force-H2 modules the ideal storage solution for photovoltaic systems. Regardless of whether the solar system is a grid-connected or stand-alone system, the Pylontech storage system offers several advantages over typical lead batteries and other lithium technologies.

Optimum coverage of self-consumption

In residential buildings, the energy demand is higher in the morning and evening, while the solar energy generated only reaches its maximum value at midday. The battery storage systems in the Force series from Pylontech compensate for this difference between consumption and generation of electrical energy. Even a small battery storage system with a capacity of up to 15 kWh can noticeably optimize self-consumption in a multi-person household and counteract the constantly rising cost of electricity. Larger storage systems enable a longer service life by specifically reducing the depth of discharge or increase the reserves in the event of a cloudy day or power outage.

Technical data

• Battery type: Lithium iron phosphate (LiFePo4)
• Rated voltage: 96v DC
• Storage capacity: 3552 Wh
• Communication: can, Modbus
• Weight: 35 kg
• Dimensions: 450 x 296 x 296 mm
• Protection class: IP55
• Operating temperature range: 0 - +50°C
• Storage temperature range: -20°C - +60°C
• Warranty: 15-year manufacturer's warranty
• Certification: vde2510-50,iec62619, iec62477-1, iec62040-1, cec, CE, UN38.8

Due to the classification as dangerous goods, this product will be shipped by a forwarding agent!

Scope of delivery:

1x Pylontech Force-H2 3.55 kWh 96v storage system
1x 3.5m DC cable set
1x rj45 data cable
1x mounting screws
1x instruction manual
