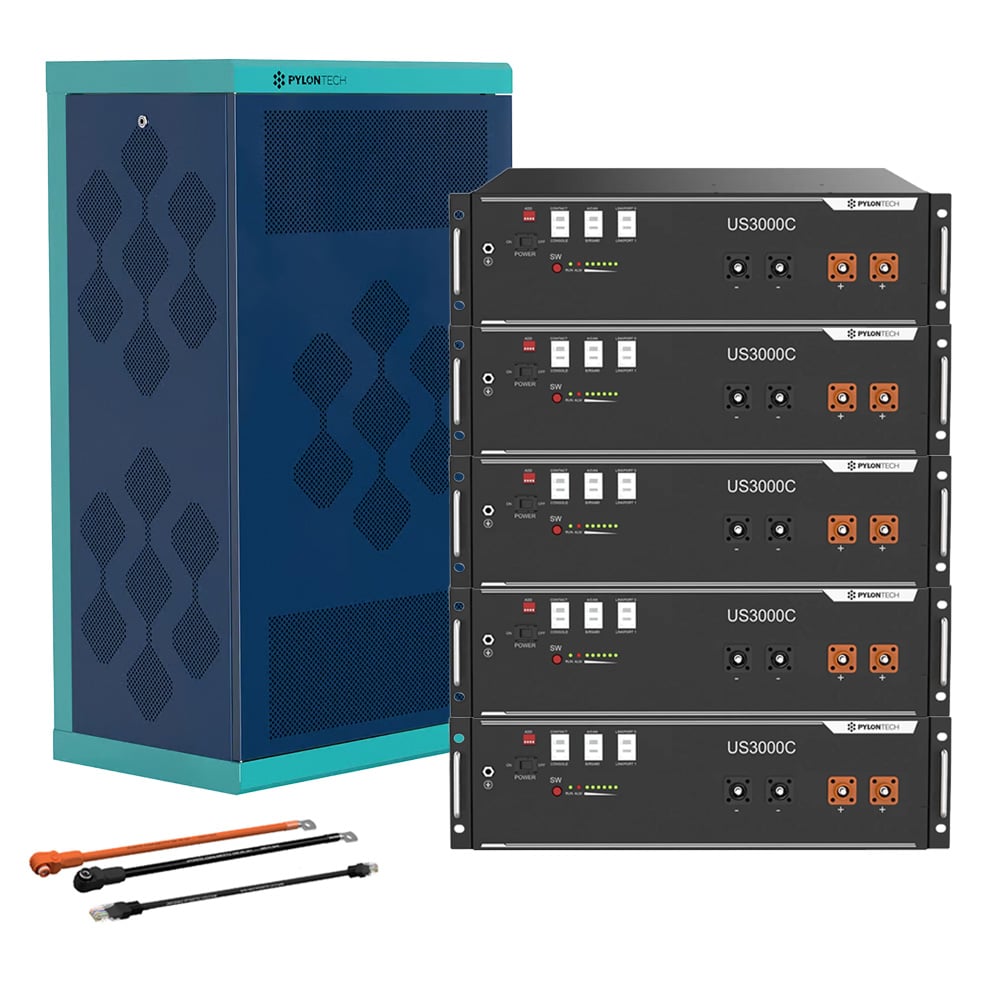

Pylontech 5x us3000c LiFePO4 battery 17.5kWh with inverter connection cable set and battery cabinet
Shipped in 2-5 days
€5,358.62*
€4,503.04**
Similar Products
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Addon Products
2 Meter (€13.53* / 1 Meter)
Content: 2 Meter (€13.53* / 1 Meter)
Shipped in 1-3 days
Shipped in 1-3 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 1-3 days
Shipped in 1-3 days
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
The us3000c (mpn us3000c) from Pylontech is a lithium storage tank of the latest generation. The storage tank has been specially developed to fully meet the high demands placed on a solar storage tank today. Maximum safety and a long service life are guaranteed even with regular deep discharges thanks to the latest technology.
The latest battery from the market-leading manufacturer, now with 3.5 kWh per module, once again has a battery management system (bms) built into each module and therefore offers a high level of safety. This means that the individual cells are monitored internally and protected against overvoltage, overtemperature, etc. in a balanced manner. The battery is compatible and certified with many available inverters.
Features
- Extremely cycle-resistant - over 6000 cycles at 95% DoD
- More usable energy content than the predecessor model US3000
- Service life over 10 years
- Absolutely intrinsically safe lithium technology
- Compatible with many available inverters
- Automatic address setting when connected in multi-groups
- High charging and discharging capacity possible
- Integrated BMS
- Very high storage density - low weight and compact design
- Easy installation thanks to modular design
- Absolutely maintenance-free and durable
- Built-in soft-start function, which is able to reduce the current surge when the inverter is started from the battery
- Dual active protection at BMS level
- Supports WakeUp by 5-12V signal from rj45 port
- Pre-charge function to protect the ESS system from overvoltage function
Battery management system in each module
The battery management system integrated in each module protects every battery cell installed from harmful influences over the entire service life of the module and effectively prevents premature failure.
Protection against:
- overcharging
- overvoltage during charging
- currents too high during charging and discharging
- over- and undertemperature
- Short circuit and reverse polarity
Continuous monitoring of the individual cell voltages (cell balance)
Modular design
The system has a modular design and can be configured precisely to the required storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS.
Long cycle life
The extremely long cycle life of the LiFePo4 cells used make Pylontech us3000c modules the ideal storage solution for photovoltaic systems. Regardless of whether the solar system is a grid-connected or stand-alone system, the Pylontech storage system offers several advantages over typical lead batteries and other lithium technologies.
Combine your Pylontech set according to your requirements

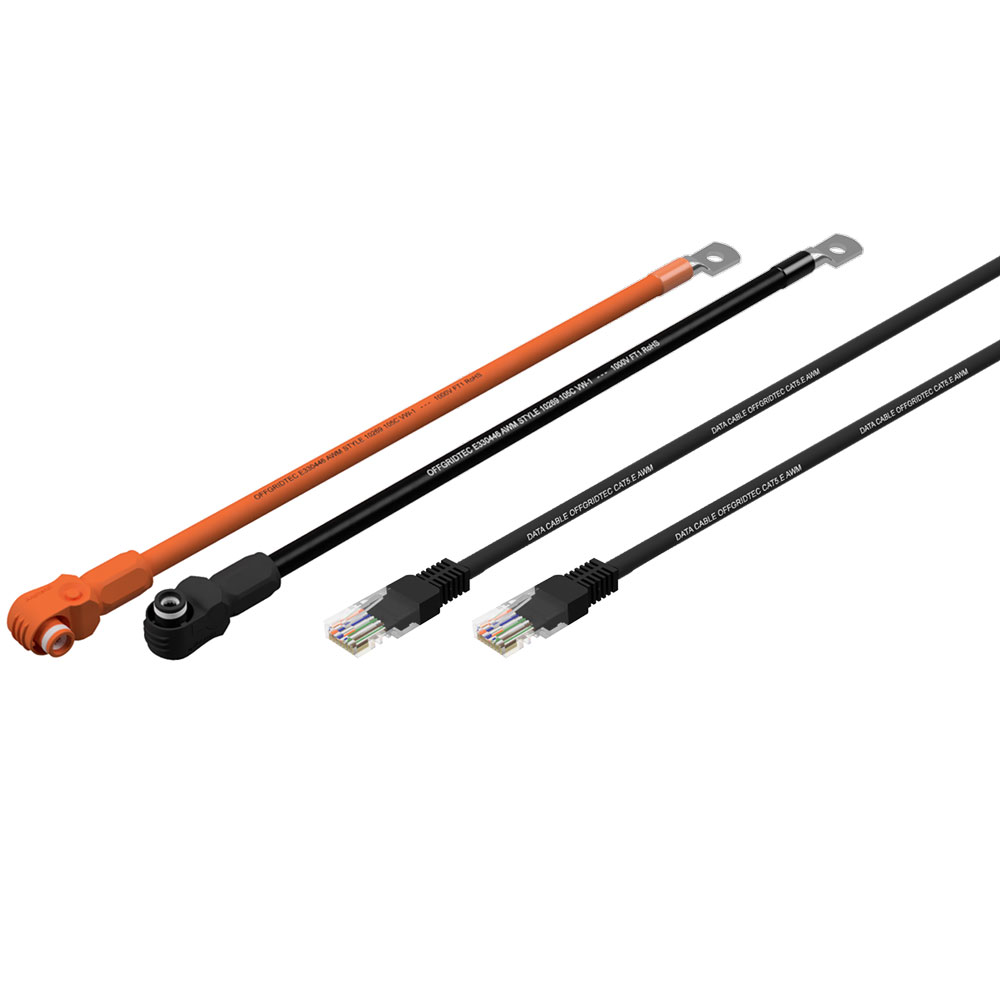

Depending on your selection you will receive between 1 and 8 units of Pylontech us3000c (3.5 - 28 kWh). You will receive an optional battery cabinet to match the selected us3000c quantity. The set includes a battery connection cable set (Pylontech to inverter). The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross-section of 25mm² each and a CAN data cable with rj45 connectors on both sides. The set is required to connect the batteries from Pylontech to an inverter.
Technical data
- Battery type: Lithium iron phosphate (LiFePo4)
- Nominal voltage: 48V
- Nominal capacity: 3552 Wh
- Usable capacity (95% DoD): 3374 Wh
- Discharge voltage range: 44.5 - 53.5V
- Charging voltage range: 52.5 - 53.5V
- Max. Peak (discharge) charging current: 90A
- Max. (discharging) charging current: 74A
- Recommended charge/discharge current: 37A
- Communication: rs485, CAN
- Weight: 32 kg
- Dimensions: 442 x 420 x 132 mm
- Protection class: IP20
- Charging temperature range: 0°C - +50°C
- Discharge temperature range: -10°C - +50°C
- Storage temperature range: -20°C - +60°C
- Service life: over 10 years
- Cycle life: over 6000 at 95% DoD
- BMS / monitoring: integrated in each module
- Warranty: 10 year manufacturer's warranty
- Certification: TÜV, ce, UN38.8
Due to the classification as dangerous goods, this product will be shipped by a forwarding agent!
Scope of delivery (per selection):
1 - 8 x Pylontech us3000c LiFePO4, 3.5 kWh per battery (quantity depending on selection)
0 - 1 x battery cabinet
1 x battery connection cable set Pylontech to inverter
