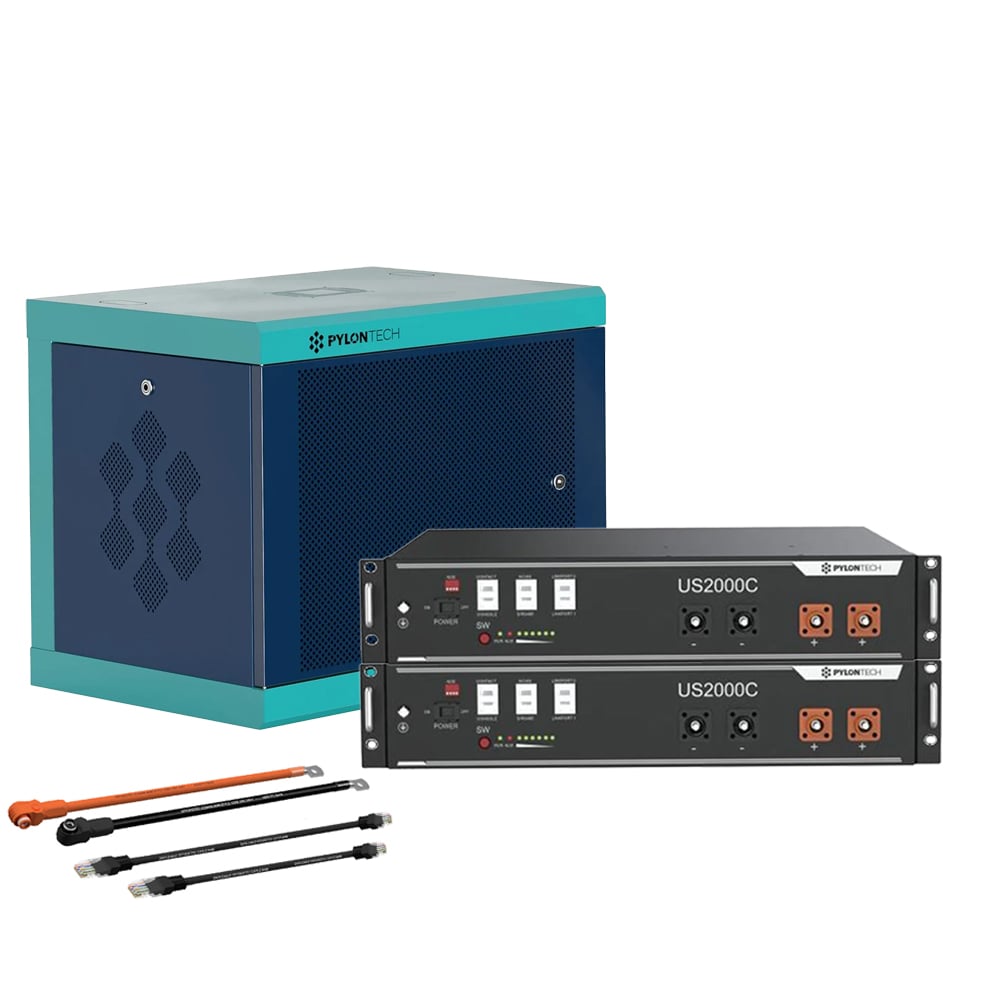

Pylontech 2x us2000c LiFePO4 battery 4.8kWh with inverter connection cable set and battery cabinet
Shipped in 2-5 days
€1,700.91*
€1,429.34**
Similar Products
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 2-5 days
Addon Products
2 Meter (€13.53* / 1 Meter)
Content: 2 Meter (€13.53* / 1 Meter)
Shipped in 1-3 days
Shipped in 1-3 days
Shipped in 2-5 days
Shipped in 2-5 days
Shipped in 1-3 days
Shipped in 1-3 days
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage

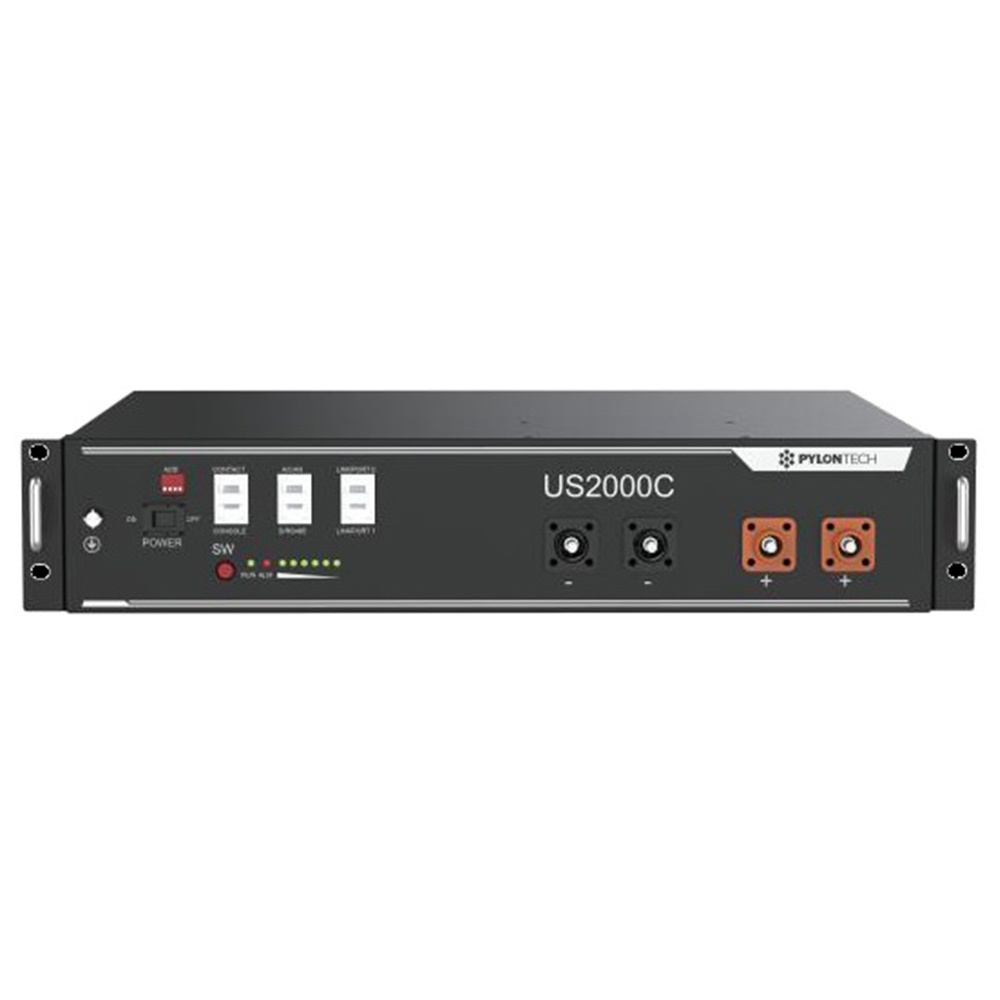

The Pylontech us2000c (mpn us2000nb02v00201) is a lithium storage tank of the latest generation. The accumulator has been specially developed to fully meet the high demands placed on a solar accumulator today. Maximum safety and a long service life are guaranteed even with regular deep discharge thanks to the latest technology.
The latest battery of the market-leading manufacturer with now 2.4kWh per module has again a battery management system (bms) built into each module and therefore offers a lot of security. Internally, the individual cells are thus monitored and balanced against overvoltage, overtemperature, deep discharge, etc. protected. The battery is compatible and certified with many available inverters.
Features
- Extremely cycle resistant - over 6000 cycles at 95% DoD
- More usable energy content than the predecessor model US2000
- Lifetime over 10 years
- Absolutely intrinsically safe lithium technology
- Compatible with many available inverters
- Automatic address setting when connected in multi-groups
- High charging and discharging power possible
- Integrated BMS
- Very high storage density - low weight and compact design
- Easy installation thanks to modular design
- Absolutely maintenance-free and durable
- Built-in soft-start function capable of reducing the surge current when the inverter is started from the battery
- Dual active protection at BMS level
- Supports WakeUp by 5-12V signal from rj45 port
- Pre-charge function to protect ESS system from overvoltage function
Battery management system in each module
The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire life of the module and effectively prevents premature failure.
Protection against:
- Deep discharge and overcharge
- overvoltage during charging
- excessive currents during charging and discharging
- over and under temperature
- Short circuit and reverse polarity
Constant monitoring of the individual cell voltages (cell balance)
Modular design
The system has a modular design and can be configured precisely to the desired storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) accumulator and an integrated BMS.
High cycle life
The extremely high cycle life of the installed LiFePo4 cells make Pylontech us2000c modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage offers several advantages over typical lead-acid batteries and other lithium technologies.
Combine your Pylontech set according to your wishes

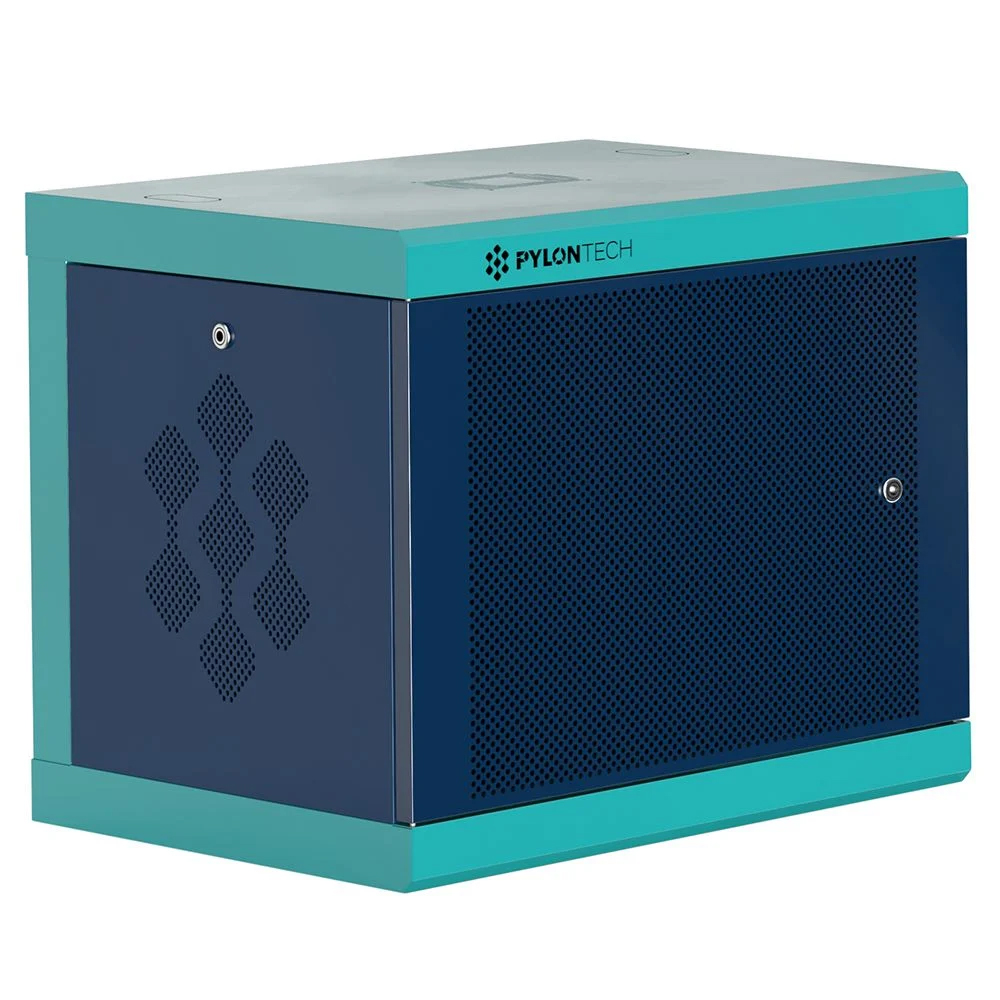

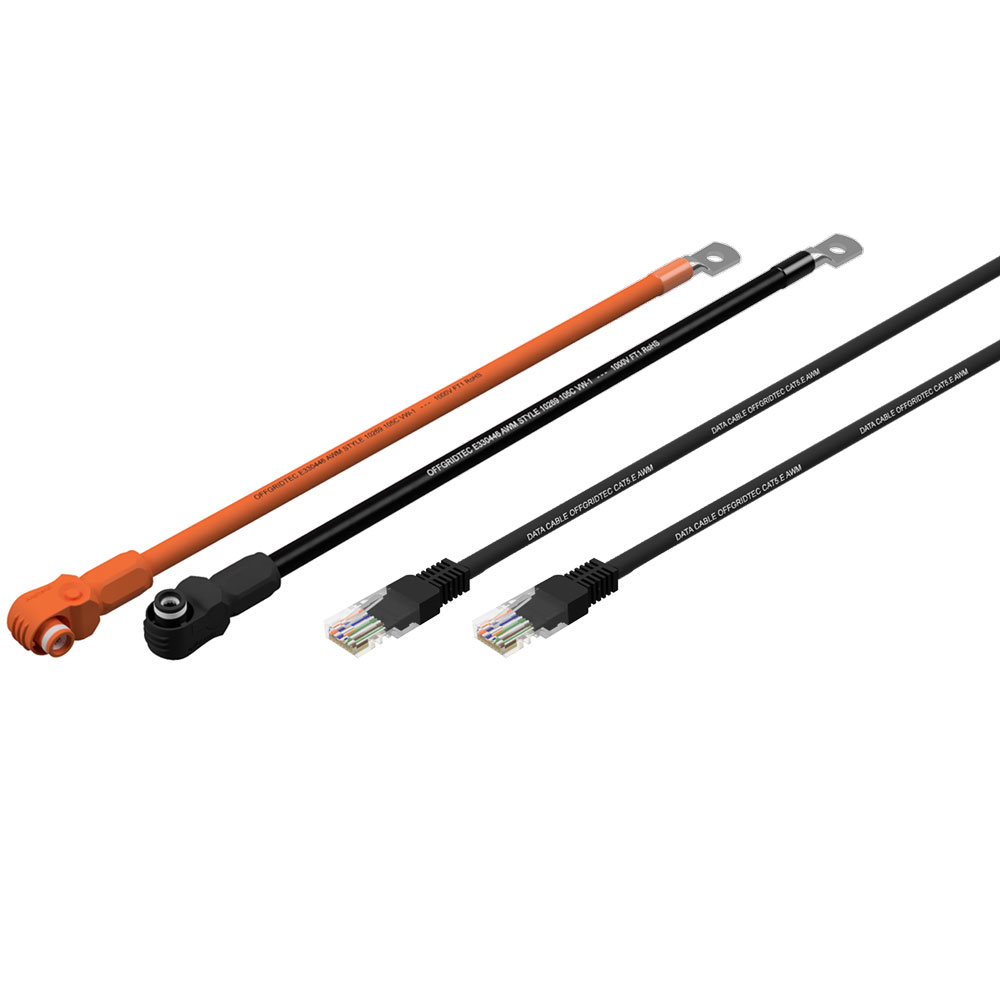

Per selection you will receive between 2 and 12 pieces Pylontech us2000c (4.8 - 28.8 kWh). Matching the selected us2000c quantity, you can choose a battery cabinet, as well as a battery connection cable set (Pylontech to inverter). The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross section of 25mm² each and a CAN data cable with rj45 connectors on both sides. The set is needed to connect the batteries of Pylontech with an inverter.
Technical data
- Battery type: Lithium iron phosphate (LiFePo4)
- Rated voltage: 48V
- Rated capacity: 50 Ah / 2.4 kWh
- Usable capacity (95% DoD): 47.5 Ah / 2.28 kWh
- Discharge voltage range: 44.5 - 53.5V
- Charging voltage range: 52.5 - 53.5V
- Max. (discharge) charging current: 90A
- Communication: rs485, CAN
- Weight: 24 kg
- Dimensions: 442 x 410 x 89 mm
- Protection class: IP20
- Operating temperature range: 0°C - +50°C
- Storage temperature range: -20°C - +60°C
- Service life: over 10 years
- Cycle life: over 6000 at 95% DoD
- BMS / monitoring: integrated in each module
- Warranty: 10 years manufacturer warranty
- Certification: iec62619, ce, UN38.3
Due to classification as dangerous goods, this product will be shipped by freight forwarding!
Scope of delivery (per selection)
2 - 12 x Pylontech us2000c LiFePO4 (2.4 kWh per battery)
0 - 1 x battery cabinet
0 - 1 x battery connection cable set Pylontech to inverter
