Offgridtec® SPR-Ultra-80 80W SLIM 12V High-End Solarpanel

The SPR-Ultra 80W / 12V high-end solar panel from Offgridtec (MPN 013095) is a monocrystalline module with back-contacted high-power solar cells from the American manufacturer Sunpower - currently the best that can be processed, with an efficiency of over 24%. This is where the world's best solar cells and the new back-contact process meet. The result is a high-end product at a solid price. In addition, we took special care in the production of this series to ensure that the rest of the module also does justice to the valuable solar cells. This panel is significantly lighter and smaller in area than conventional solar cells of the same power. The narrow design makes the module ideal for motor homes, boats/yachts and other small areas. Also the light output in worse conditions is higher with the SP series than with our normal mono series.

Important features

• Efficiency of over 24%
• Lighter and smaller than other mono modules with the same power output
• Monocrystalline high power solar cells (made in USA)
• Ideal for motorhomes, boats/yachts and small, especially narrow areas
• Very good yield even in low light conditions
• Patented Back-Contact Technology (Only the pure cells are visible on the front side)

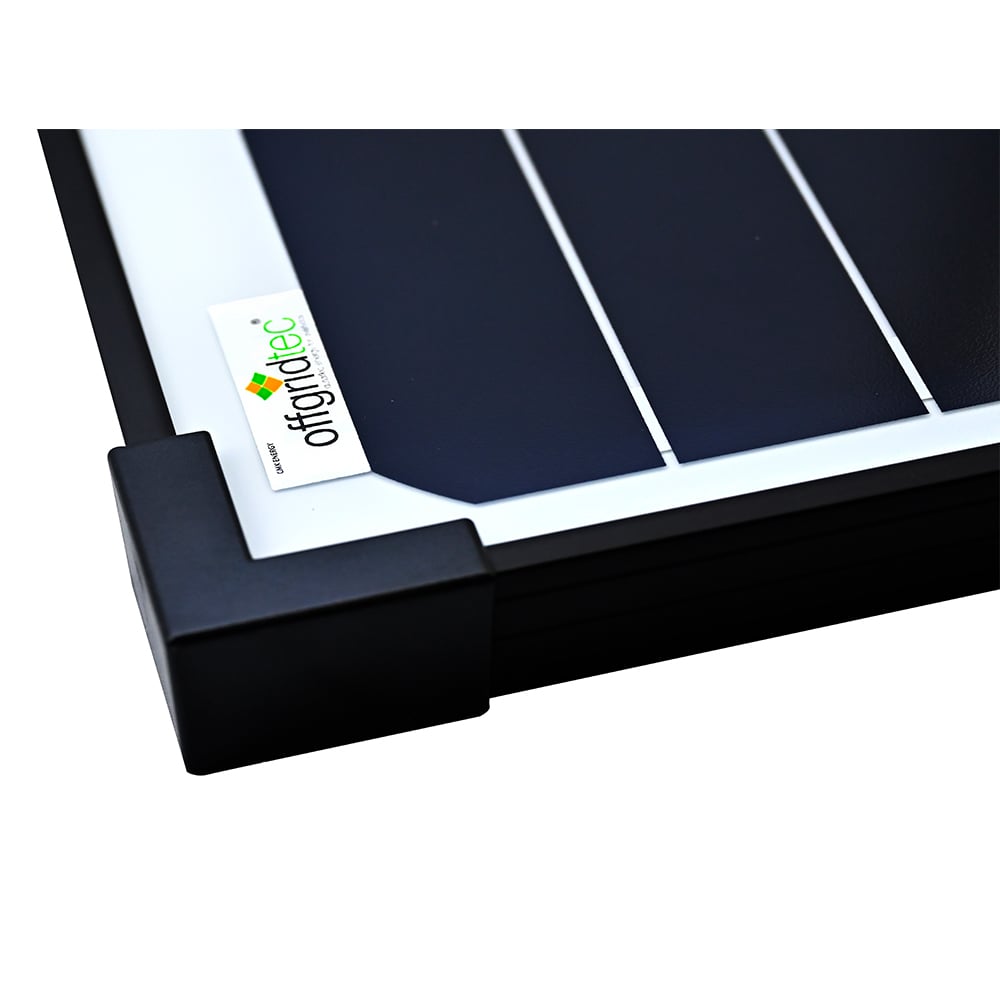

• Black aluminum frame
• Extremely durable
• Elegant appearance

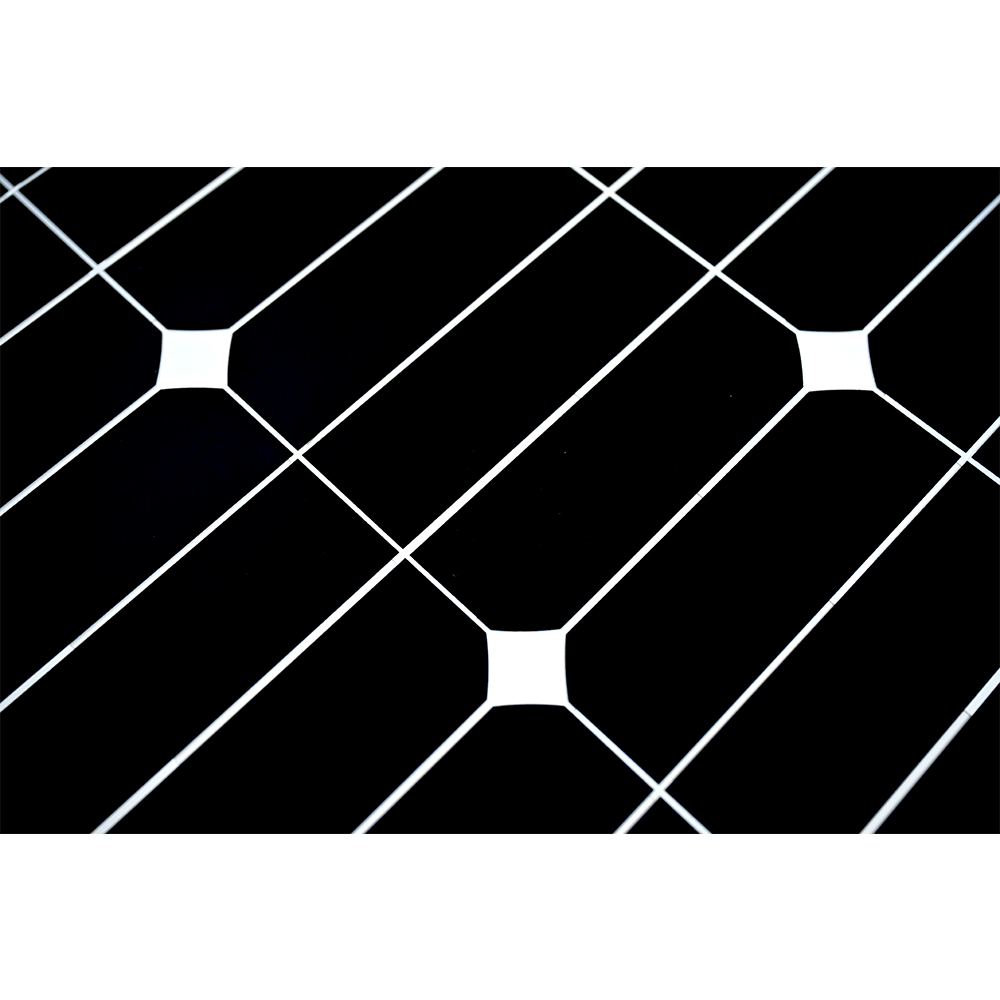

Only monocrystalline SunPower solar cells of the highest quality are used in the production of our modules. In contrast to conventional solar modules, the cells are connected to each other on the back side (back contact), which increases the cell efficiency and ensures a noble appearance.

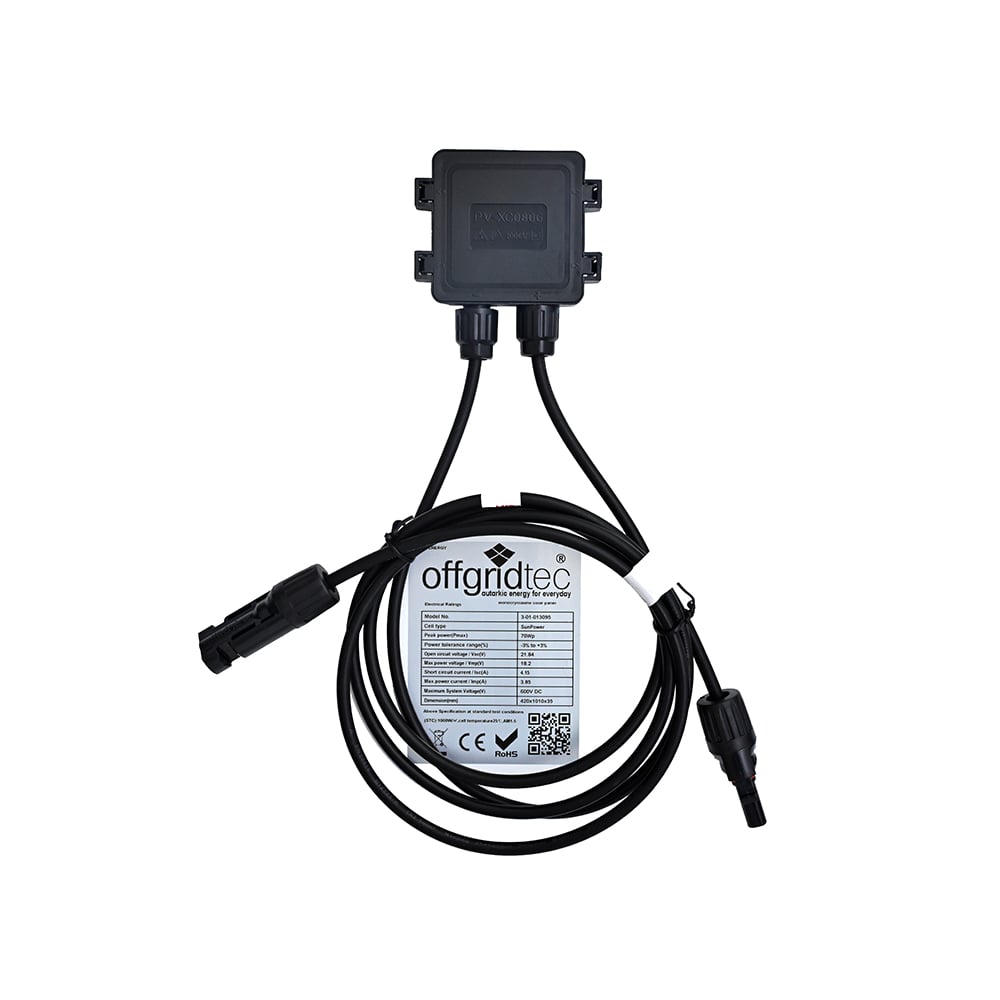

The module has a black aluminum frame and has a specially hardened ESG solar glass. The connection cables are 90cm long and equipped with MC4 connectors.

Technical data

• Generator power: 80 Wp
• Module voltage (Vmp): 18,2 V
• Max. Current (Imp): 4,4 A
• Open circuit voltage (Voc): 21,42 V
• Short circuit current (Isc): 4,66 A
• Max. System voltage: 600V / DC
• Celltype: monocrystalline SPR-Cells
• Ambient temperature: -40°C - +85°C
• Tolerance: ±3%
• Measuring (LxWxH): 1010 x 420 x 35 mm
• Weight: 4,9 kg

Scope of delivery:

1x Offgridtec SPR-Ultra 80W Slim 12V High-End Solarpanel
