Offgridtec® mobileBlack m 100w motorhome solar system 30a mPPT duo charge controller olp perc solar module

The Offgridtec® mobileblack series impresses with an appealing optical design in noble black and with its extremely convincing performance parameters. Starting with the olp solar modules in the latest shingle design and an outstanding cell efficiency of over 22%, up to the Offgridtec® mppt Pro dual charge controller, one can really speak of a successful selection and product composition from Offgridtec.

100w mobileblack m caravan complete system

This complete system contains everything you need to charge your batteries mobile. The dual controller included in the set allows you to charge your on-board battery and at the same time charge the starter battery, because it has a corresponding secondary charging output. The scope of delivery includes extensive information material, in which the assembly and connection are explained step by step - this concerns both the technical connection and the bonding of the retaining spoilers and the roof duct. The grommet is made of the same material as the spoilers - the peg screw connection complies with protection class ip68 and is therefore absolutely watertight when installed correctly.

scope of delivery of the mobileblack m 100w caravan solar system

• 1x Offgridtec® olp solar panel 100w V2 perc with shingle technology - 018475
• 1x Offgridtec abs cable gland 1-way - black with waterproof peg gland
• 1x Offgridtec© ABS Corner Profile Set Heavy Duty Black 150x150mm
• 1x Offgridtec 8m 2x6mm h07rnf - connection cable solar module to solar charge controller in caravan design
• 1x Offgridtec 1,5m 10mm² battery connection cable with mIDI fuse holder and 40a mIDI fuse - connection cable solar charge controller to battery with battery pole terminals and m8 cable lug connection
• 1x Offgridtec® 30a mppt dual solar charge controller with auxiliary charge and aes switching output

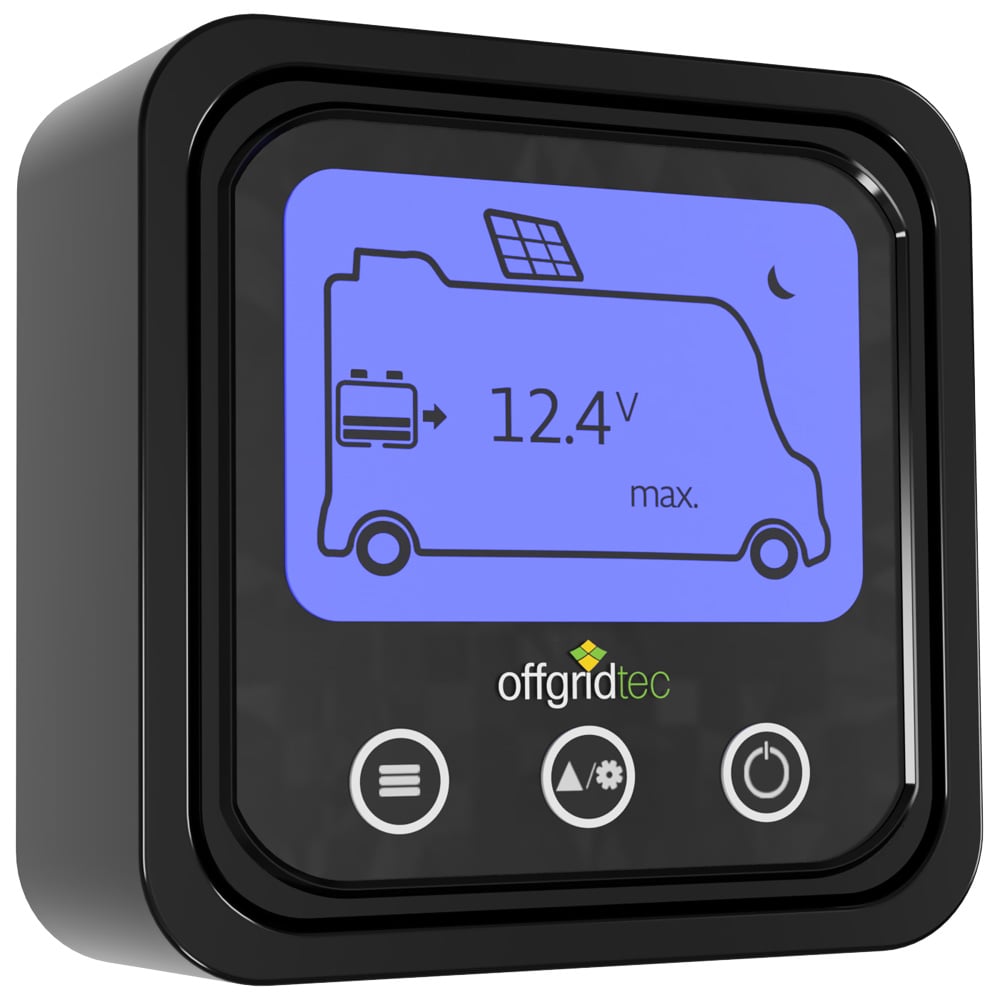

• 1x remote display for mppt Pro Duo charge controller

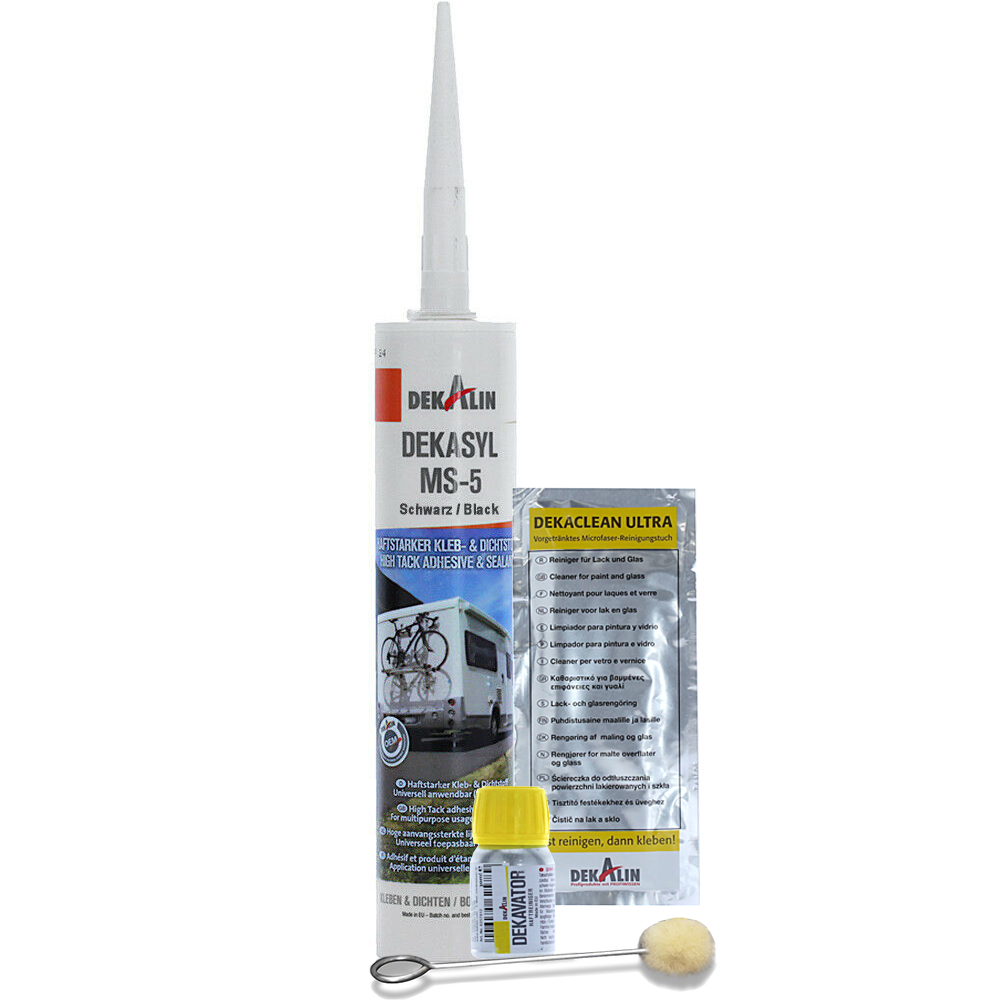

• 1x Dekalin adhesive set with Dekasyl mS-5 polymer adhesive, Dekavator bonding agent, cleaning cloth and operating instructions
• 1x mC-4 extension cable 50cm to connect a connection cable located at the module with the module connection cable

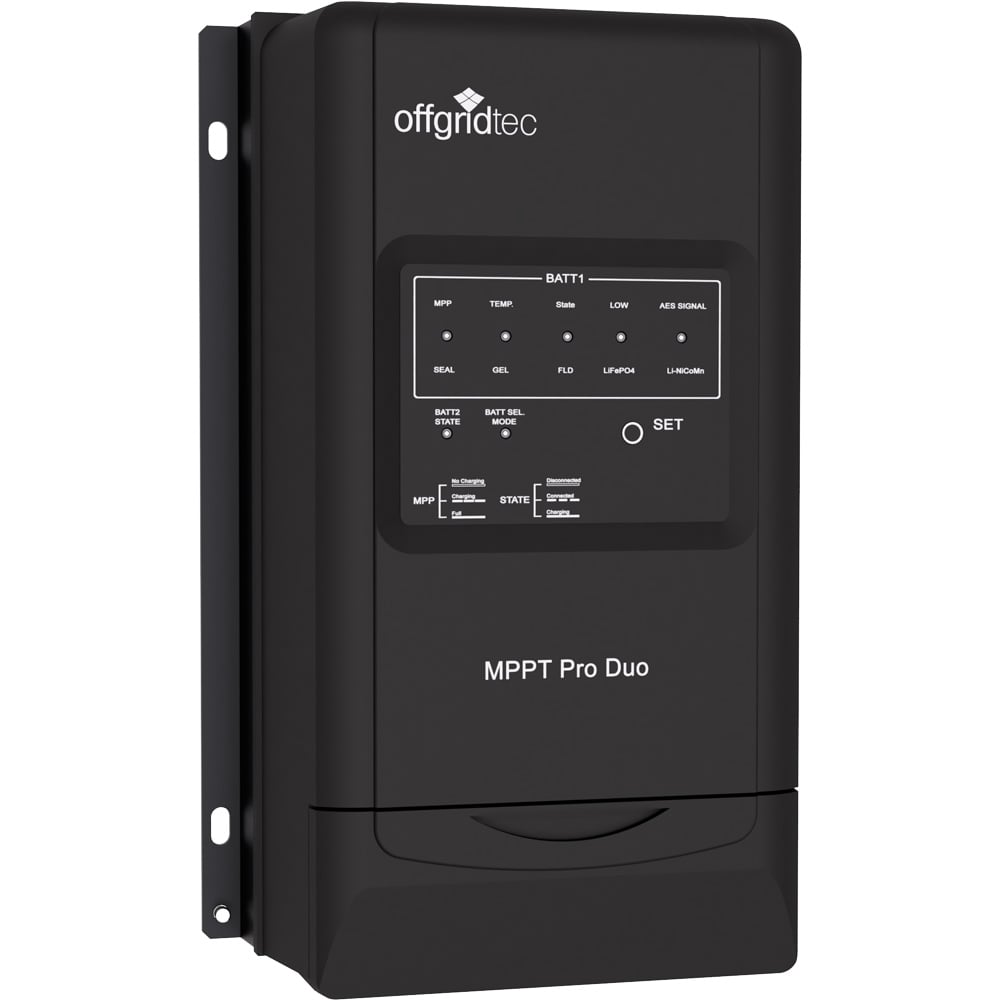

The Offgridtec® mppt Pro Duo 30a solar charge controller

The mppt Pro Duo controller can handle a maximum charge current of 30a. This means that this system is theoretically expandable to nearly 400w of solar module power. In addition, the device has a secondary charge output via which the starter battery can be charged in parallel to the on-board battery during longer periods of standstill - a feature that is certainly very appreciated in the mobile home. So that in terms of efficiency can really be spoken of the optimum, the device also has an aes switching output - this allows in excess solar power, the automatic switching of refrigerators with "aes" from gas to 12v operation.

• maximum charging current 30a - 390w module power theoretically usable
• 30a load output for 12v loads directly on the charge controller
• the clear remote display allows the regulator to be mounted in hard-to-reach places in the vehicle without limiting the operation and overview of the system parameters
• aes control signal for car refrigerator to avoid energy waste
• 100V maximum pv input voltage
• Digital circuit control of adaptive three-stage charging mode to improve battery life
• max power point tracking technology with ultra-fast tracking speed and guaranteed tracking efficiency of 99.5% minimum
• Dimensions: 24.7cm x 16.5cm x 6.9cm (lxwxh)
• Weight: 1,4KG
• Power consumption: 26mA at 12v
• Active temperature equalization for optimal charging and ensuring long battery life
• Supports all major battery types (lead acid, AGm, gel, liFePo4)
• max. efficiency: 98

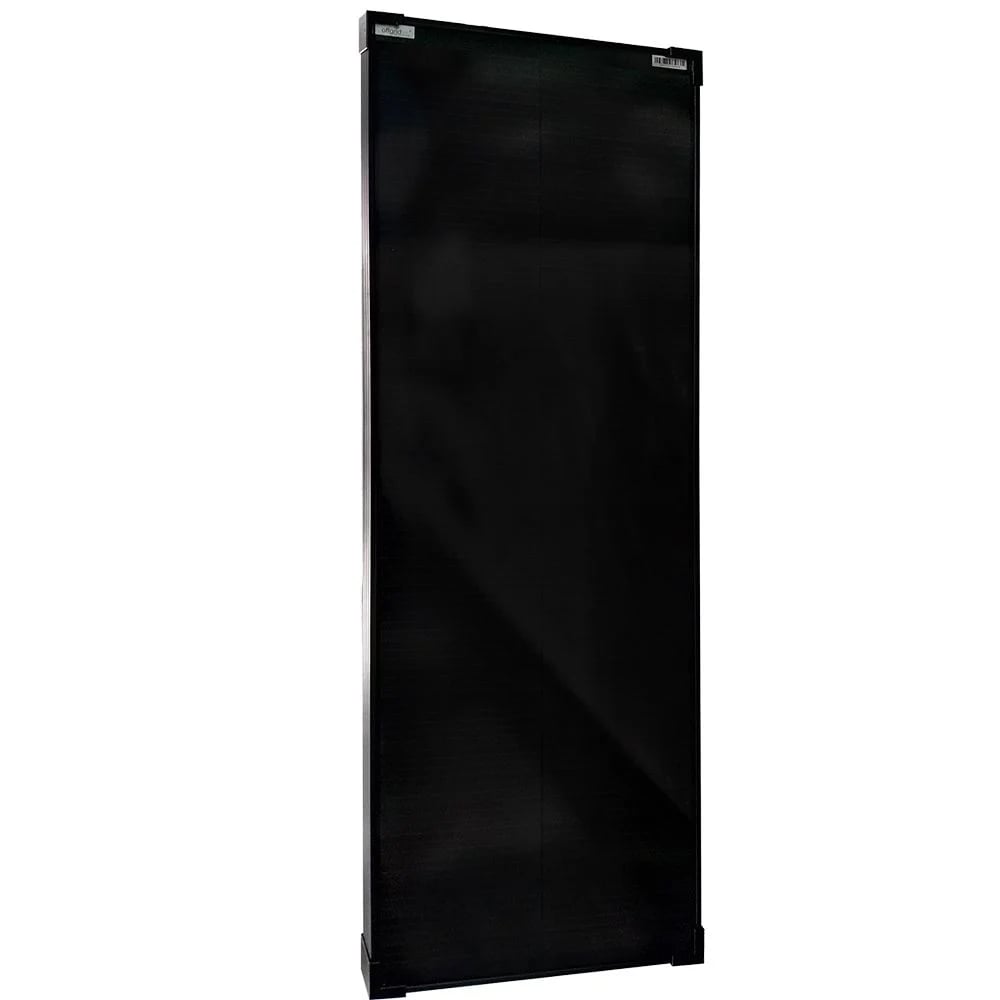

The 100w V2 olp solar panel with the latest shingle technology

The 100w V2 olp solar module with perc technology used in the system impresses on the one hand with its unique module design with overlapping wafer arrangement (overlapping design), and on the other hand with its high module efficiency, which makes this module particularly interesting for applications on vehicles due to the limited space available.

• module voltage (Vmp): 19.4V
• max. current (Imp): 5,16A
• open circuit voltage (Voc): 22.90V
• Short circuit current (Isc): 5.46A
• Cell efficiency: >22%
• Ambient temperature: -40°C - +85°C
• Weight: 6,28KG
• Dimensions: 450 x 1195 x 35mm
• Protection class junction box: ip68 (waterproof)
• pre-assembled connectors: mC4 compatible connectors

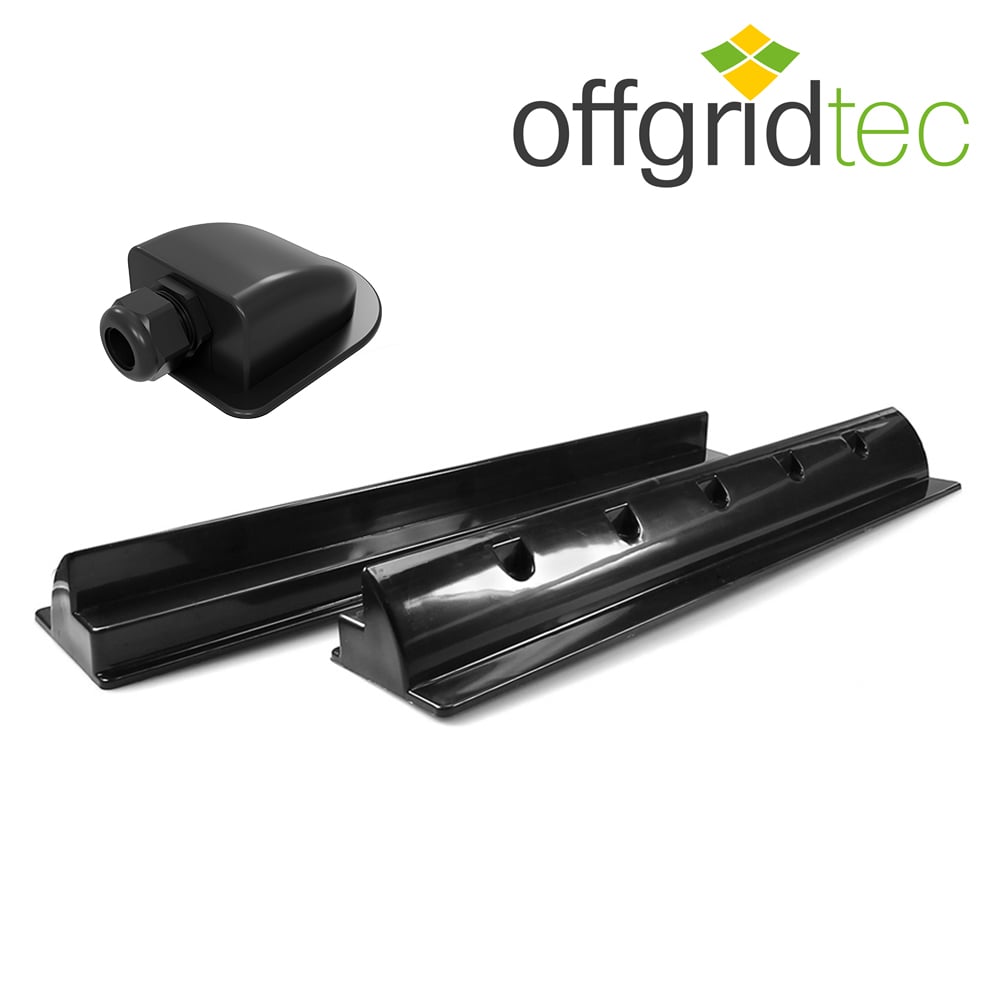

The Professional Solar Mounting System

Our ABS corner plastic profiles for space-saving installation provide a sturdy attachment for solar modules with a maximum power of 150W. Larger modules should be additionally supported on the longitudinal sides with our 180mm connecting profiles to prevent sagging of the module frame. This set is the Heavy Duty version, which is considerably more stable compared to the Light Duty version, and the corners can also be climbed if necessary.

For adhesive, we recommend Sika 252 automotive adhesive or Dekalin adhesive (not included). Both types are available from us in black.

Features of the 150mm x 150mm Solar Corner Profiles in Black:

• Space requirement per corner bracket: 150mm x 150mm
• Manufacturer: Offgridtec
• Part number: 010860
• Material: ABS

• Finish: polished
• Color: black
• Weight (Set): 0.498 kilograms"

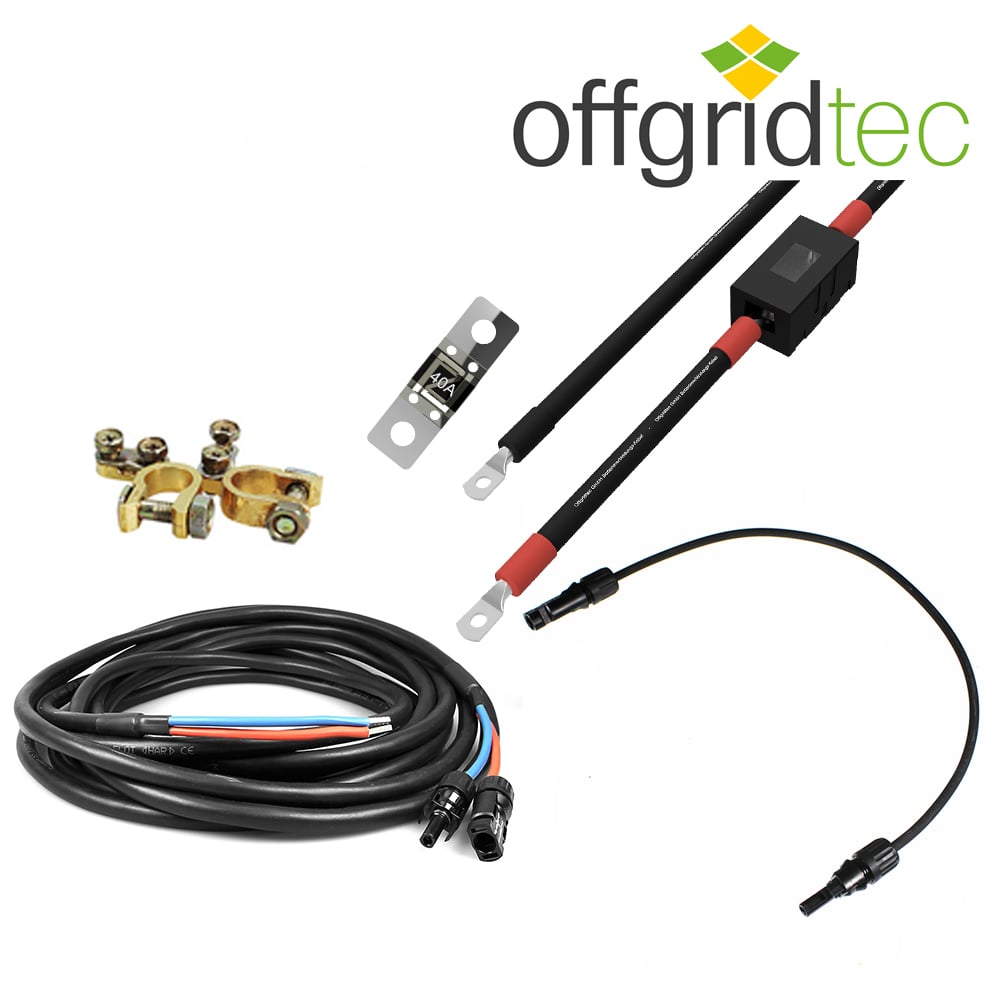

The professional cabling set

All necessary cables are delivered plug and play and are already pre-crimped with professional tools. So you don't need to buy special pliers for the mC-4 connectors.

Individual system customization possible on request

We strive to implement every wish of our customers in the best possible way. With the individual requirements of a solar system, this is of course not always 100% possible. If you should therefore wish adaptations at one of our systems send us simply a mail to info@offgridtec.com - just tell us briefly which system your request refers to, which change you would like to have (e.g. additional module, color spoiler, adhesive or bushing, other charge controller, etc.) and you will receive an appropriate offer from our sales team as soon as possible.

scope of delivery:

1x Offgridtec 4-01-012875 Offgridtec® mobileblack m 100w 12v mppt caravan solar system
