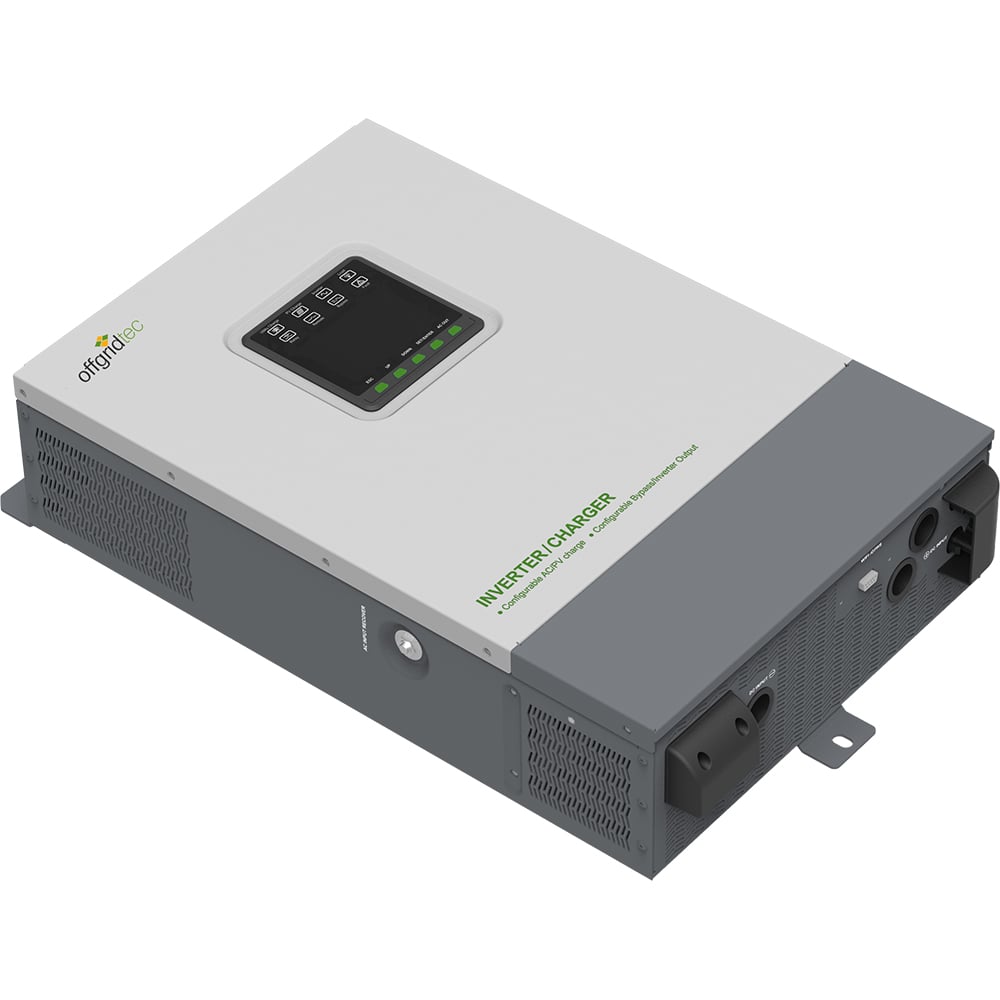

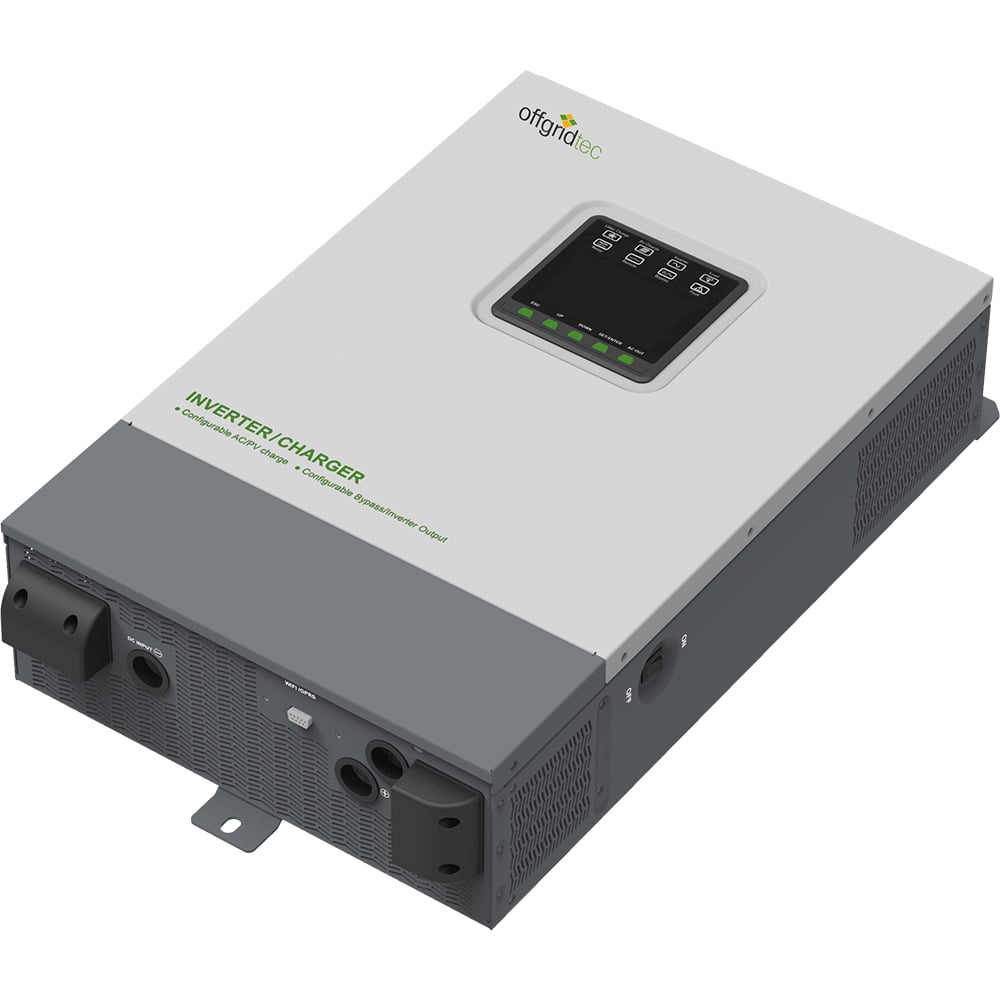

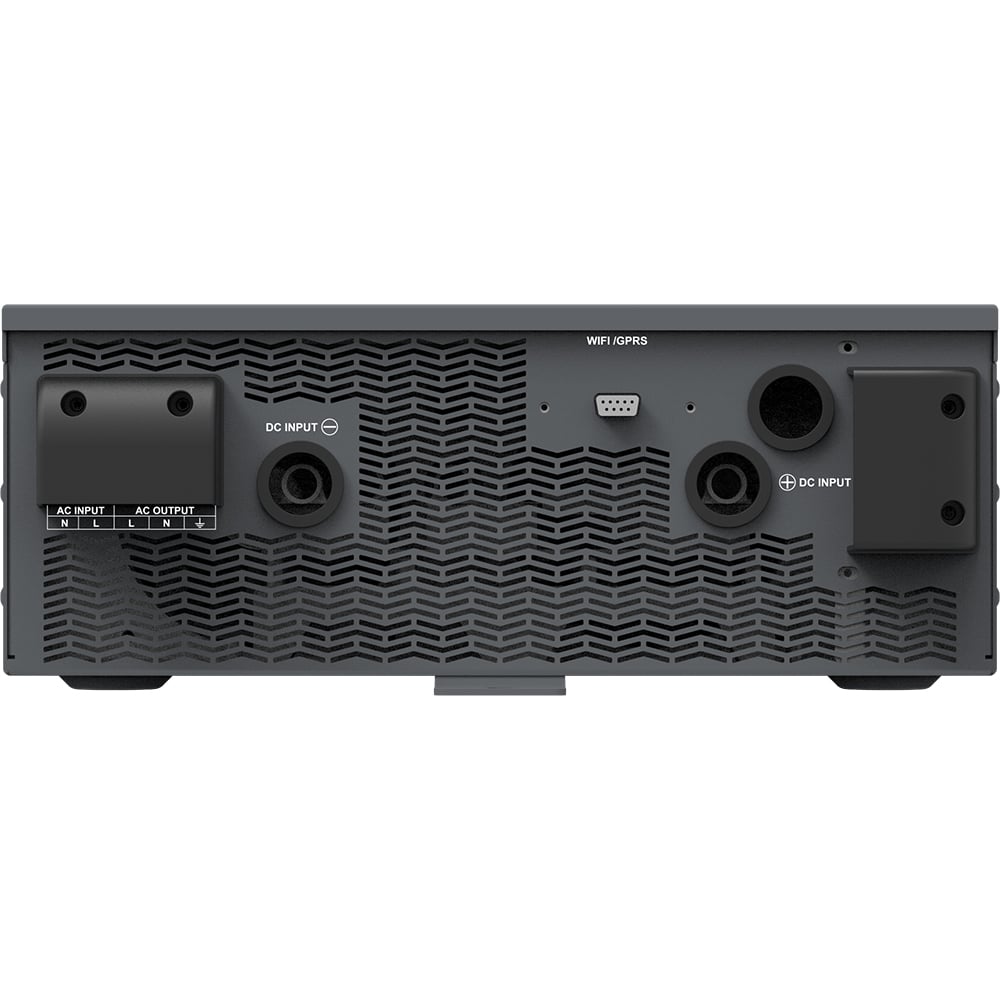

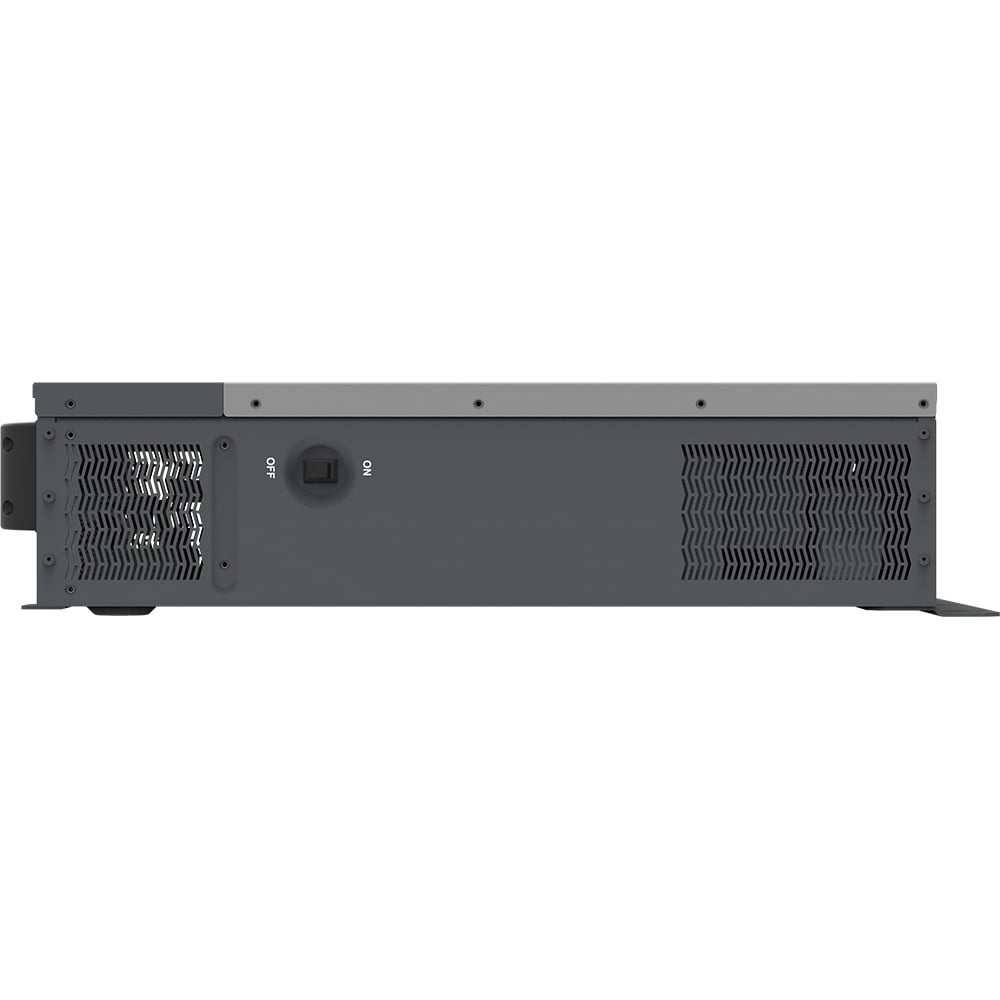

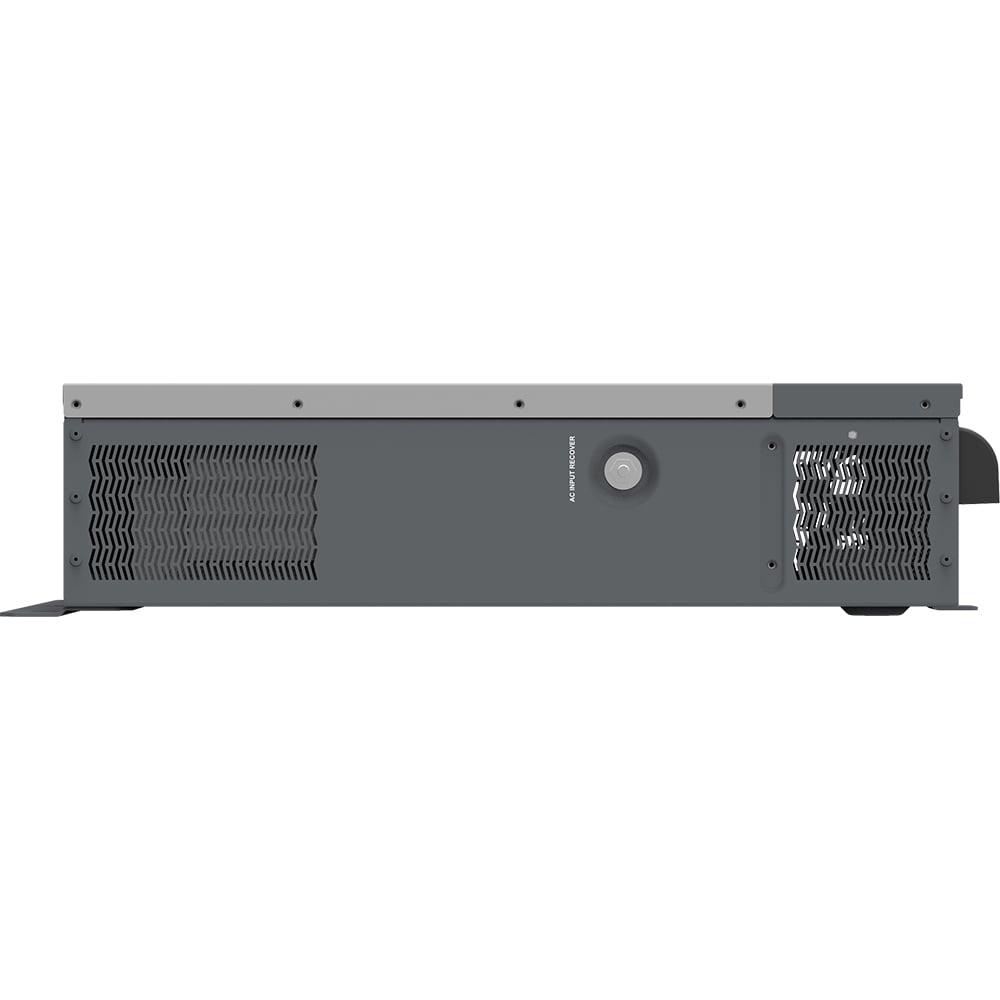

Offgridtec® ic-24/3000/100/80 3000w inverter 100a mppt charge controller 80a charger combi 24v 230v

The ic-24/3000/100/80 from Offgridtec (mpn 013700) is a new device combination that combines an inverter, battery charger and mppt charge controller. The device is ideally suited for energy storage devices as it integrates charging from the grid and from solar energy, as well as AC output. The powerful multi-core chip in the product with the advanced control algorithm enables intelligent management of the system.
The device is suitable for battery systems with 24v voltage and battery types agm, gel, fld and LiFePO4. The integrated PFC technology achieves a high power factor of ac-dc charges and reduces grid capacity usage

Key features:

• Fully intelligent digital energy storage equipment
• Advanced MPP tracking technology
• Fully digitally controlled ac-dc charging modules
• High output voltage stability
• Three charging modes and two output modes
• LCD display to show various system parameters
• Multiple LED indicators for dynamic status display
• Supports cold and soft start
• RS485 isolated communication interface
• Optional BMS link connection

Various modes for a wide range of applications

The device has a total of three charging modes. Solar priority can be set, a combination of utility and solar modes, or solar-only mode. AC output modes can be selected between utility and inverter priority. In order to maximize the solar energy utilization, the user can select the energy sources according to the actual demand and use the utility flexibly as a supplement. The IC unit can increase the guaranteed power supply rate of the system, which is suitable for solar power, utility/oil generator hybrid systems.

Technical features ic-24/3000/100/80:

• Suitable for battery voltage: 24 V/DC
• Maximum solar short-circuit current: 16A
• Battery input voltage range: 21.6 - 32 V/DC
• Protection class: IP30
• Rel. humidity: <95% (N.C.)
• Operating ambient temperature: -20°C - +50°C (full input and output power)
• Dimensions: 642.5 x 381.6 x 149 mm
• Weight: 19 kg

Inverter with 3000w continuous power

DC-AC inverter module is based on fully digital and intelligent design. It uses advanced SPWM technology, outputs a pure sine wave and converts 24v/DC to 220/230v/ac. The module is suitable for AC loads of home appliances, power tools, electronic audio and video equipment and many other applications. Thanks to the innovative voltage, current and power control with multiple control loops, the device has a good dynamic response, high resistance to voltage spikes and high operational reliability.

Technical features:

• Continuous output power: 3000w
• Peak power (3s): 6000W
• Output voltage range: 220v -6%~+3% / 230v -10%~+3%
• Output frequency: 50/60 ±0.2Hz
• Output wave: Pure sine wave
• Max. Rated power efficiency: 91%
• Mains to inverter transfer time: 10ms
• Transfer time inverter to mains: 15ms

mppt charge controller with 100a max. PV charge current

The charge controller module uses the latest optimized mppt technology. This process can help maximize the solar yield by ensuring the charge controller always gets the maximum out of the solar module power curve in changing conditions.

Technical features:

• Max. PV open circuit voltage: 450v (at min. operating ambient temperature)
• Max. PV open circuit voltage: 395v (at 25°C ambient temperature)
• Max. PV input power: 4000W
• Max. PV charging current: 100a
• Tracking efficiency: >99.5%
• Temperature compensation coefficient: -3mV /°C / 2v (default)

Battery charger with 80a max. charge current

The ac-dc charger features a fully digital double control loop and has high response speed and stability. A wide ac input voltage and charging current limit can be set. This module has full input and output protection functions. With utility bypass charging function, the module can supply power to the load directly and charge the battery at the same time.

Technical features:

• Utility power supply input voltage: 176 - 246 v/ac (standard)
• Input frequency of the supply network: 40 - 65 Hz
• Max. Mains charging current: 80a

Extensive protection functions

The IC device series has a wide range of protective functions:

• PV limit current & reverse polarity
• Reverse current at night
• AC-IN over- & undervoltage
• Utility input over current
• Battery overvoltage & overdischarge, and polarity reversal
• Load output short circuit & overload
• Device overheating

Scope of delivery:

1x Offgridtec ic-24/3000/100/80 device combination
1x instruction manual
