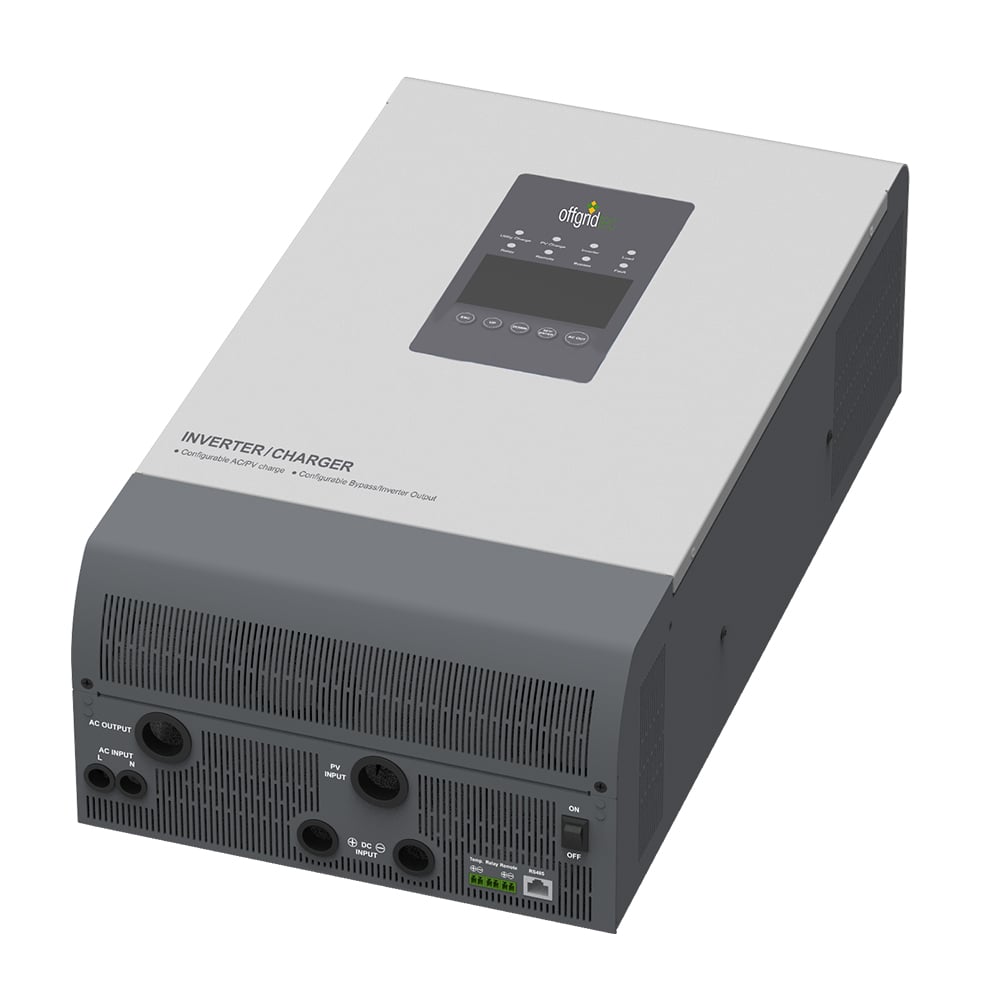

Offgridtec® ic-12/800/30/20 800w inverter 30a mppt charge controller 20a charger combi 12v 230v

The ic-12/800/30/20 from Offgridtec (mpn 013695) is a new device combination that combines an inverter, battery charger and mppt charge controller. The device is ideally suited for energy storage devices as it integrates charging from the grid and from solar energy, as well as AC output. The powerful multi-core chip in the product with the advanced control algorithm enables intelligent management of the system.
The device is suitable for battery systems with 12v voltage and lead-acid battery type (lead-acid, vrla-agm, -gel). Furthermore, the ic offers the function of adjusting the charging ratio of mains supply and Solaranlagen for different applications.

Important features:

• Fully intelligent digital energy storage equipment
• Advanced MPP tracking technology
• Fully digitally controlled ac-dc charging modules
• High output voltage stability
• Four charging modes and two output modes
• LCD display to show various system parameters
• Supports cold and soft start

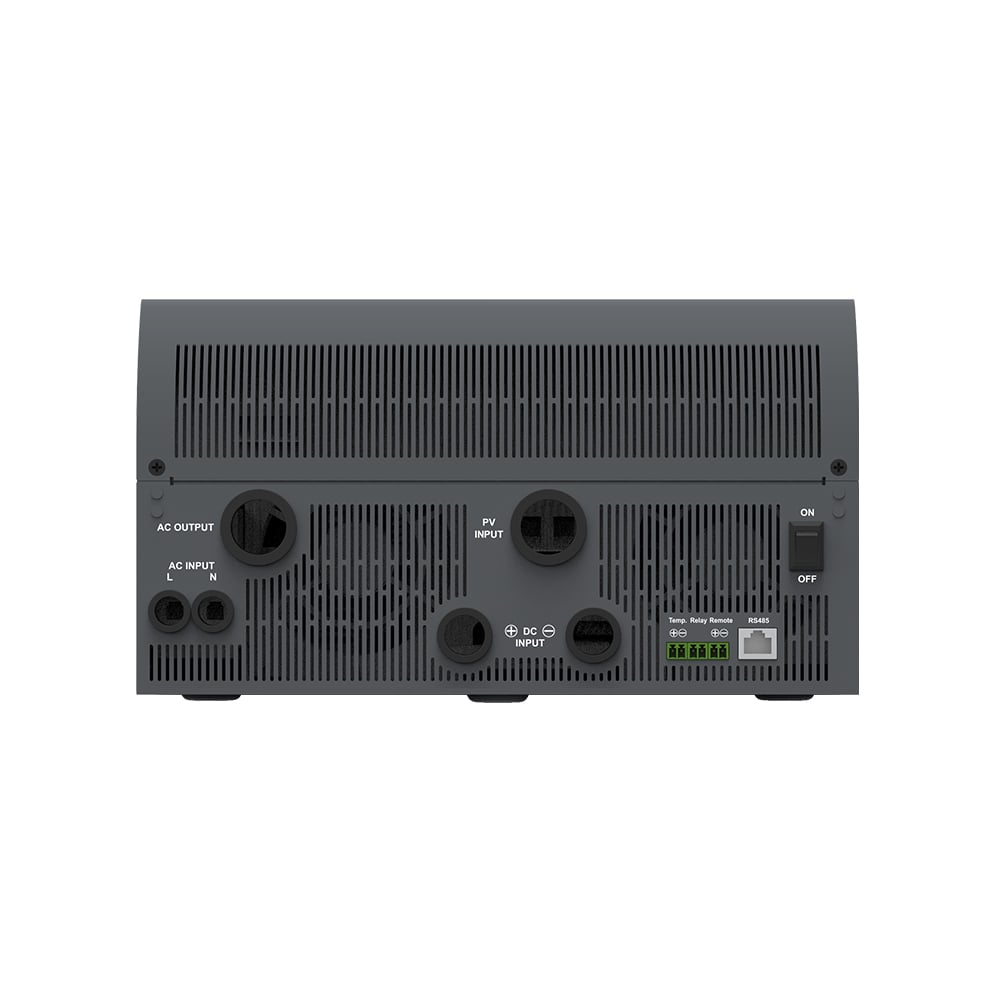

• RS485 isolated communication interface

Different modes for various applications

The device has a total of four charging modes. Priority can be set for mains operation or solar operation, a combination of mains and solar operation or pure solar operation. The output modes can be selected between battery and power supply.

Technical features ic-12/800/30/20:

• Suitable for battery voltage: 12 V/DC
• Maximum solar short-circuit current: 30A
• Battery input voltage range: 10.8 - 16 V/DC
• Protection class: IP30
• Rel. humidity: <95% (N.C.)
• Operating ambient temperature: -20°C - +50°C (full input and output power)
• Dimensions: 386 x 300 x 126 mm
• Weight: 7.3 kg

Inverter with 800w continuous power

DC-AC inverter module is based on fully digital and intelligent design. It uses advanced SPWM technology, outputs a pure sine wave and converts 12v/DC to 220/230v/ac. The module is suitable for AC loads of home appliances, power tools, electronic audio and video equipment and many other applications. Thanks to the innovative voltage, current and power control with multiple control loops, the device has a good dynamic response, high resistance to voltage spikes and high operational reliability.

Technical features:

• Continuous output power: 800w
• Output power (15min): 1000W
• overload output power (5s): 1600W
• Max. Surge power: 2000W
• Output voltage range: 220v -6%~+5% / 230v -10%~+5%
• Output frequency: 50/60 ±0.1Hz
• Output mode: Single phase
• Output wave: Pure sine wave
• Max. Efficiency: 91%
• Transfer time: 20ms (resistive load)

mppt charge controller with 30a max. PV charge current

The charge controller module uses the latest optimized mppt technology. This process can help maximize the solar yield by ensuring the charge controller always gets the maximum out of the solar module power curve in changing conditions.

Technical features:

• Max. PV open circuit voltage: 60v (at min. operating ambient temperature)
• Max. PV open circuit voltage: 46v (at 25°C ambient temperature)
• Max. PV input power: 390W
• Max. PV charging current: 30a
• Charging conversion efficiency: <98%
• Temperature compensation coefficient: -3mV /°C / 2v (default)

Battery charger with 20a max charge current

The ac-dc charger features a fully digital double control loop and has high response speed and stability. A wide ac input voltage and charging current limit can be set. This module has full input and output protection functions. With utility bypass charging function, the module can supply power to the load directly and charge the battery at the same time.

Technical features:

• Suitable for battery voltage: 12v/DC
• Operating voltage range: 160v/AC~280V/AC
• Starting voltage range: 170V/AC~270V/AC
• Max. Charging current: 20a

Extensive protection functions

The ic device series has a wide range of protective functions:

• PV limit current, -short circuit, -polarity reversal
• Reverse current blocking
• AC-IN over & under voltage
• Battery Overvoltage & Overdischarge
• Load output short circuit & overload
• Device overheating

Scope of delivery:

1x Offgridtec ic-12/800/30/20 device combination
