Offgridtec® Autarkic XXL-Master 24V 1200W Solar System - 3000W AC Power

Powerful All-in-One Complete Solar System

The 24v Autark XXL-Master is one of the larger complete systems of the Autark family and delivers an average daily yield of 4800 watt hours between March and October. The generated power is stored in two series connected 260Ah agm batteries - the high quality charge controller with integrated display gives you information about the state of charge of the battery while your 230v consumers can be operated at the sine wave voltage converter. Of course, the whole thing is delivered including a professional connection cable kit - plug it together and get started. The system is suitable for a wide range of applications - from 24v lighting, charging laptop, cell phone and camera batteries and other small consumers, to 230v household appliances with a maximum continuous power of 3000w (15min)

Features of the 24v Autarkic XXL-Master

• Average daily output between March and October: approx. 4.8KW
• Plug & Play ready to connect system - plug together and go
• Allows operation of 24v and 230v loads, as well as 5v usb consumers
• usb charging possibility directly at the charge controller (max. 2,4A)
• Easy to read lcd display informs about all operating parameters
• Flexible mounting possibility thanks to 8m connection cable from module to controller
• Extensive electronic protection functions, such as overload protection, overtemperature protection, undervoltage shutdown, short-circuit protection, reverse polarity protection, etc.
• rs485 communication port on the voltage transformer offers extensive configuration possibilities via pc (interface cable rs485 to usb not included)
• Charge controller enables temperature compensated charging - temperature sensor included in scope of delivery
• Configurable 12/24v load output at the charge controller for loads up to max. 45a - suitable e.g. for lighting control

Application areas

This complete system can be used in many ways. Whether as a stationary system on the mountain hut or in the allotment garden - the permanent operation of small coolers and refrigerators, as well as the charging of cell phones and laptops succeeds easily with this system. The installation on the motor home is also conceivable - we also have the corresponding brackets and adhesive sets for the attachment.

Extensive connection options

• 230v ac 50hz 2000w (15min - 3000w / peak - 6000w) sine wave voltage converter
• 24v consumer output with 45a power directly on the charge controller
• 2 x usb charge port on the charge controller with max. 2.4a (total)
• 1 x usb charge port at the voltage converter with max. 1a power

Parts list - what's inside

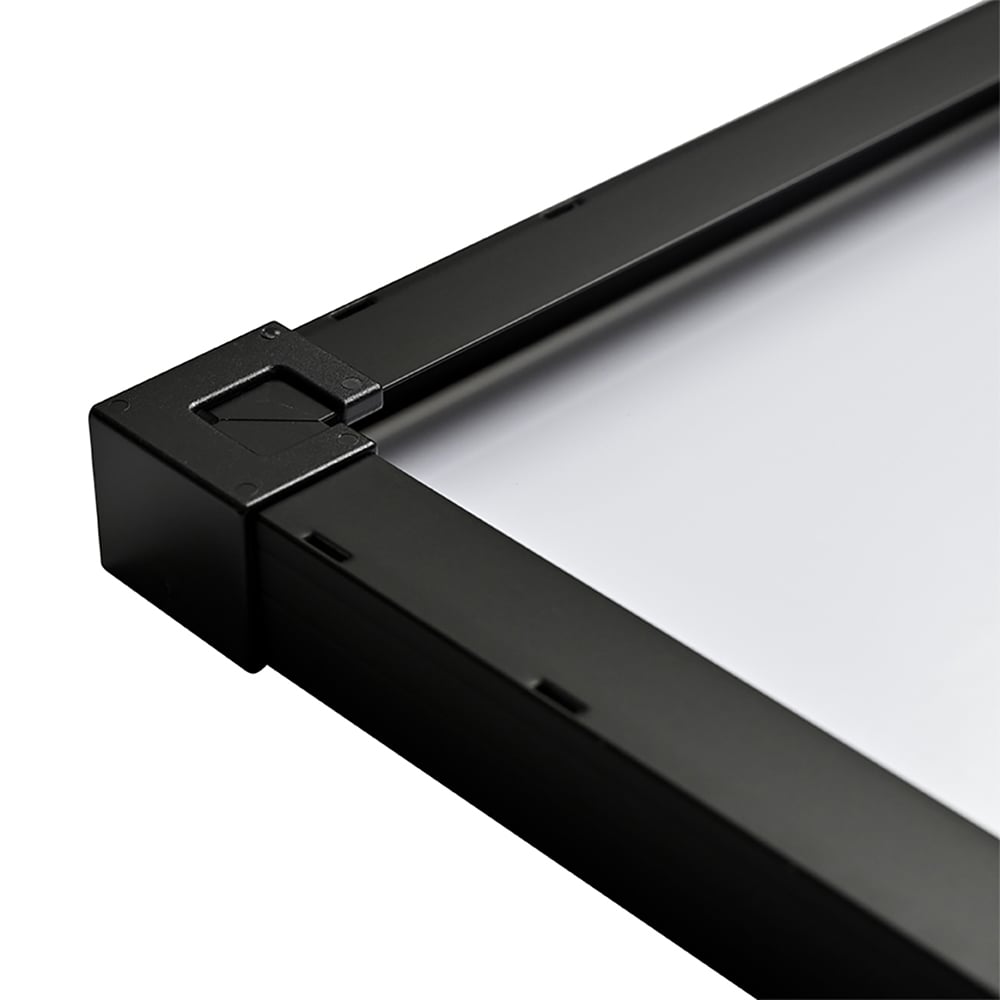

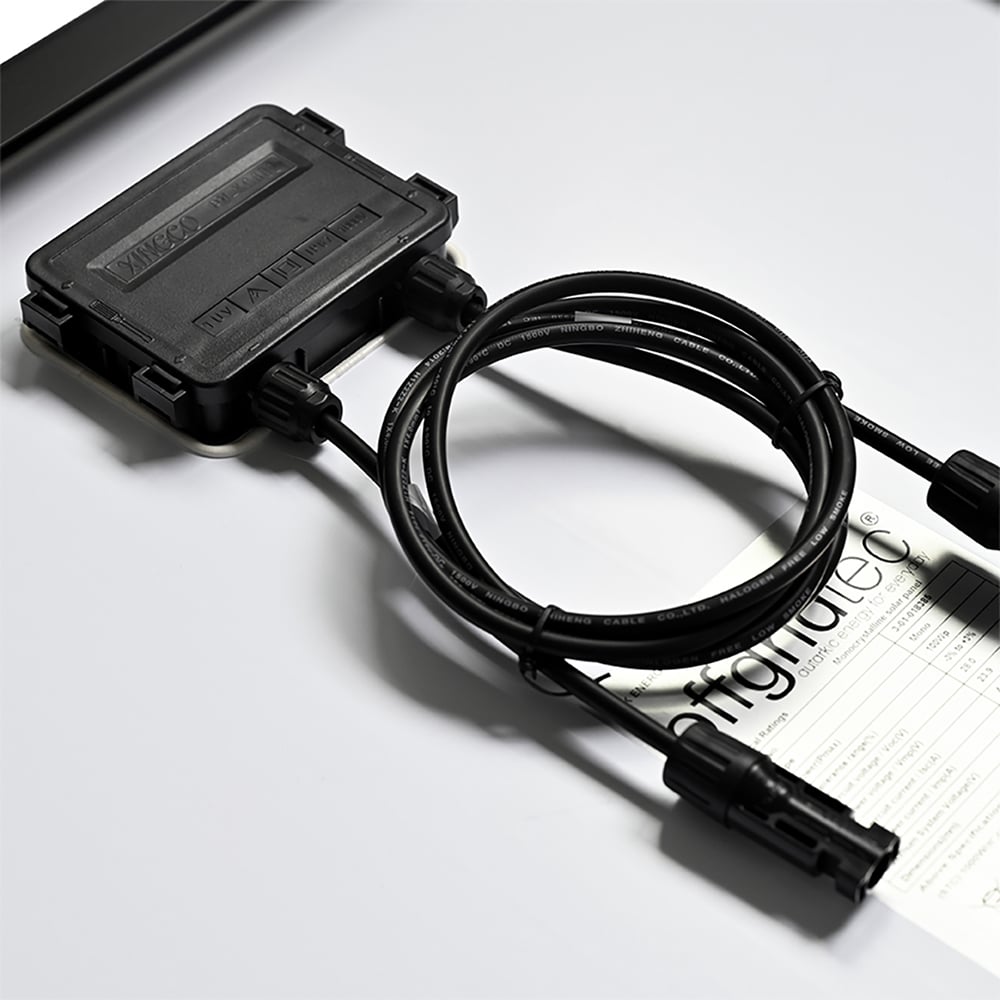

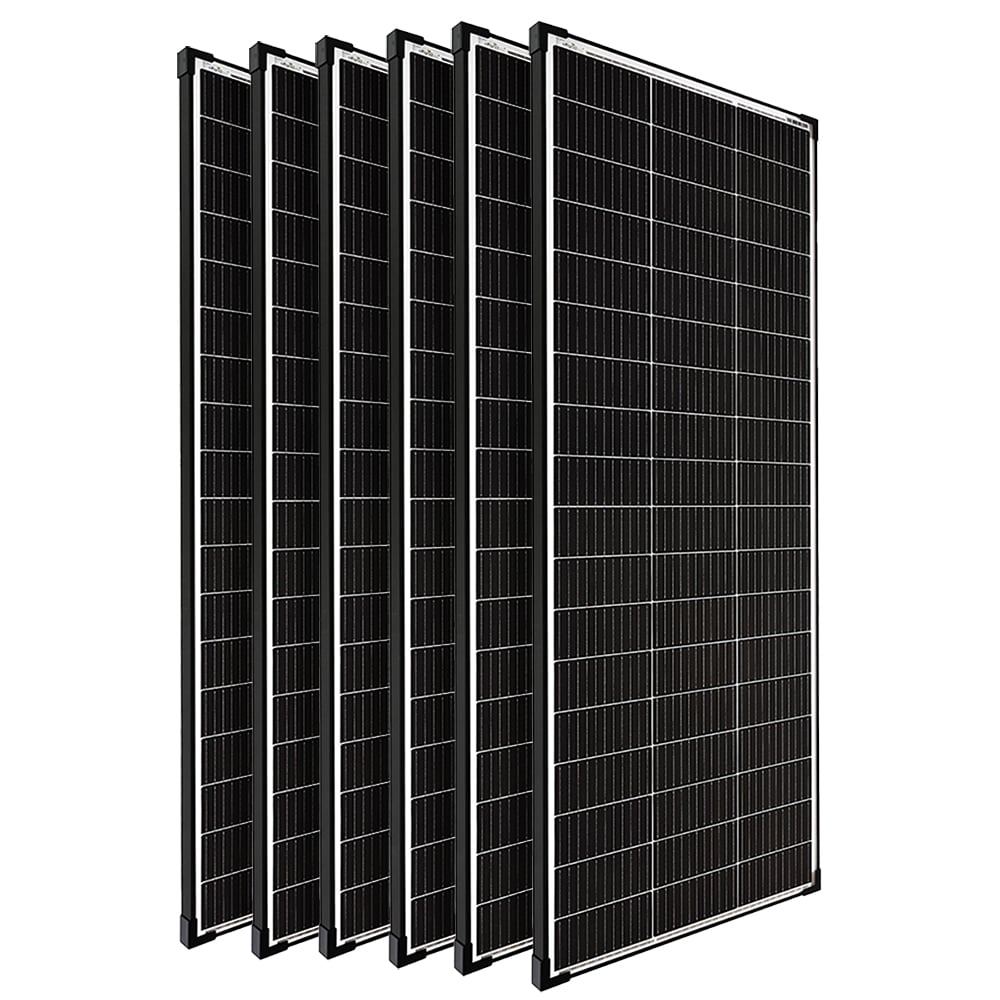

• 6 x 200w monocrystalline solar panel of Offgridtec1500 x 680 x 35mm

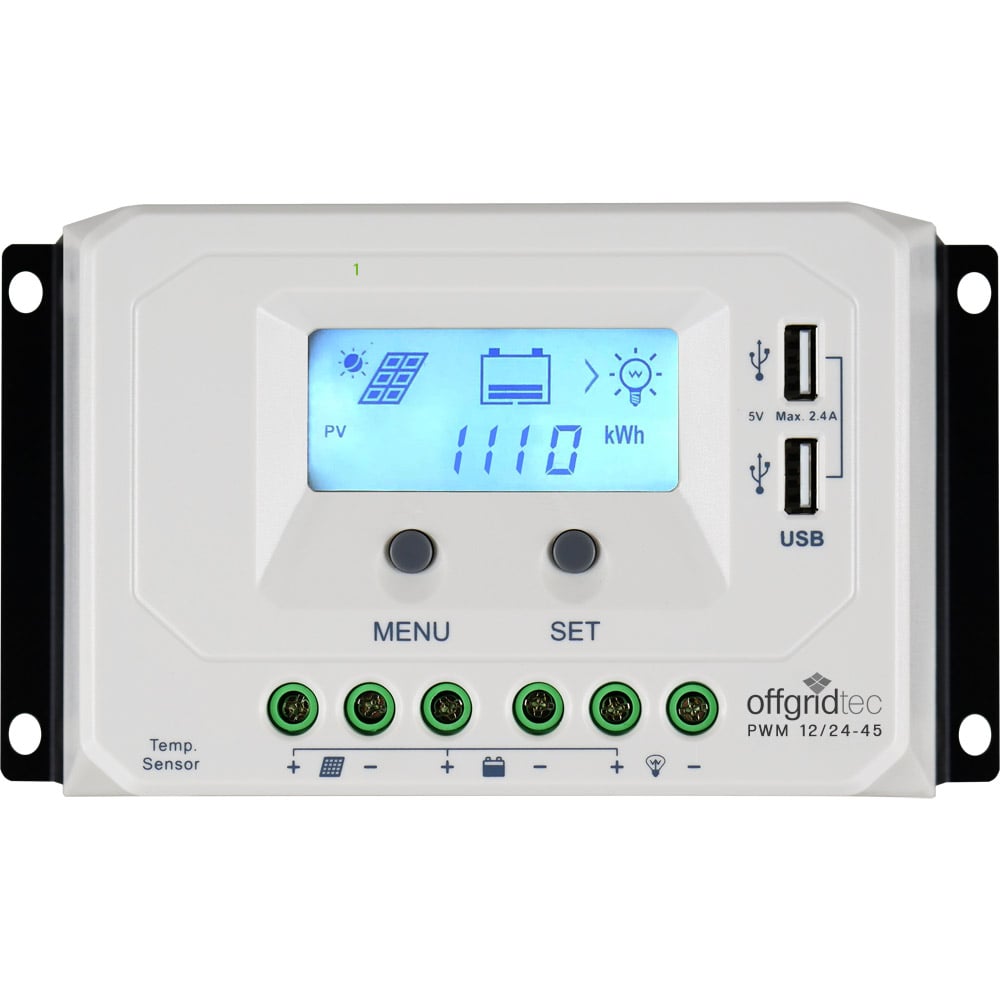

• 1 x 45a pwm charge controller with clear lcd display and usb charging possibility - the unit also has a 45a load output and is easy to operate - all important parameters can be read on the display

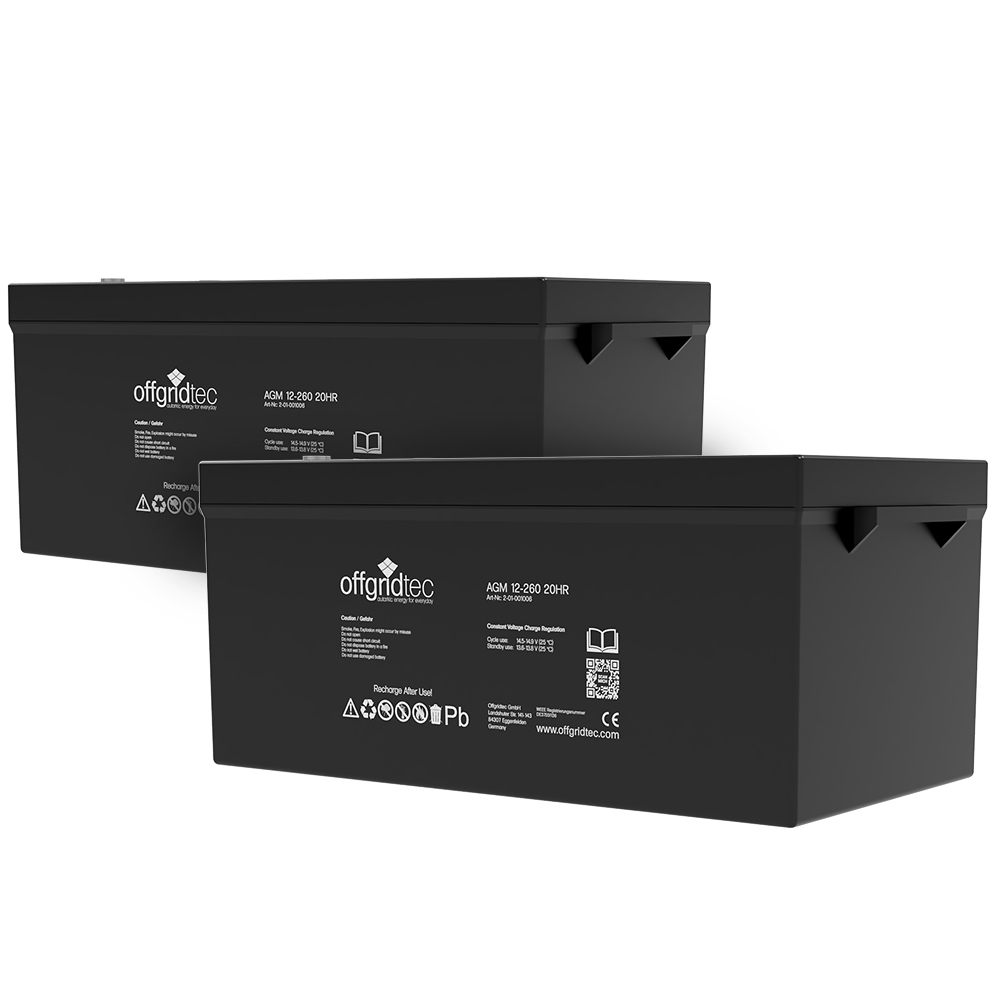

• 2 x 260Ah agm battery with m8 screw terminal Dimensions: 520 x 268 x 220mm(+29mm terminal) - the batteries are absolutely maintenance free and leak proof and last up to 10 years depending on usage

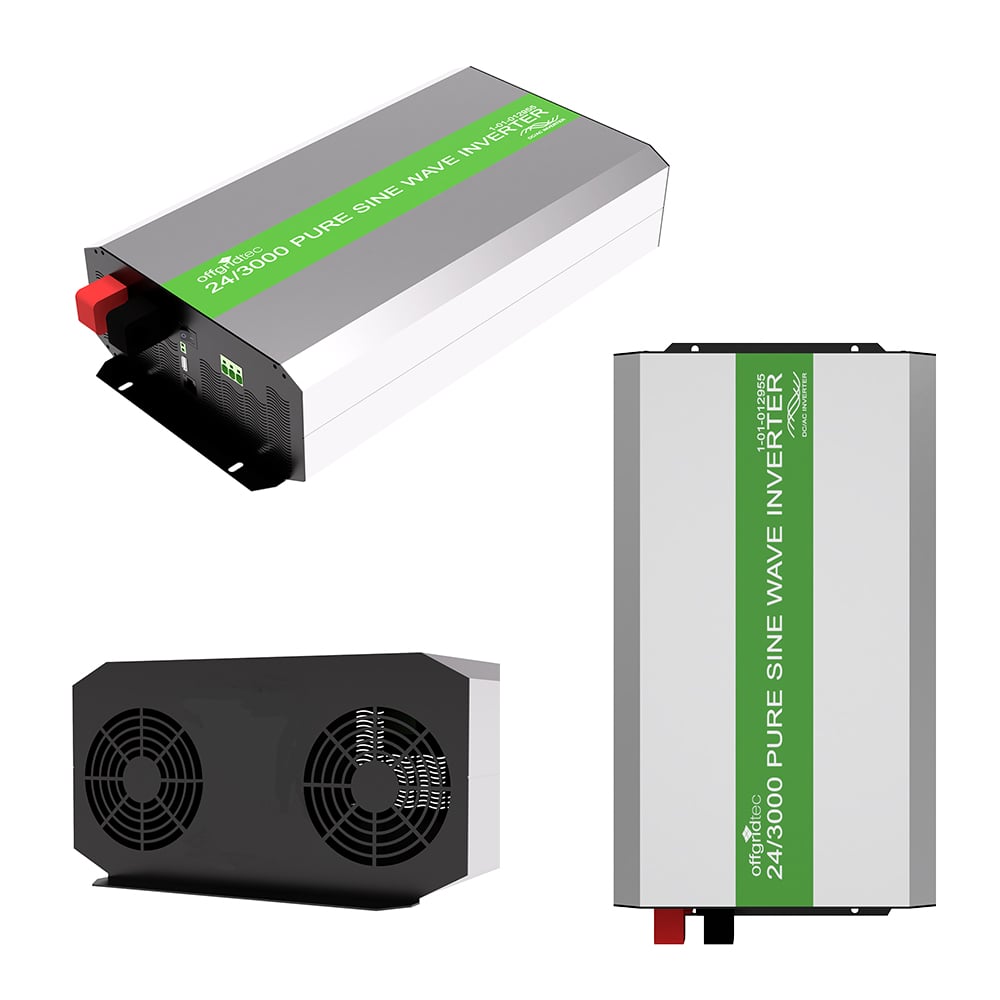

• 1 x 3000w 24v to 230v sine wave voltage converter- the rated power of 3000w can be output by the device for 15 minutes - beyond that the inverter can handle short time starting currents up to 6000w

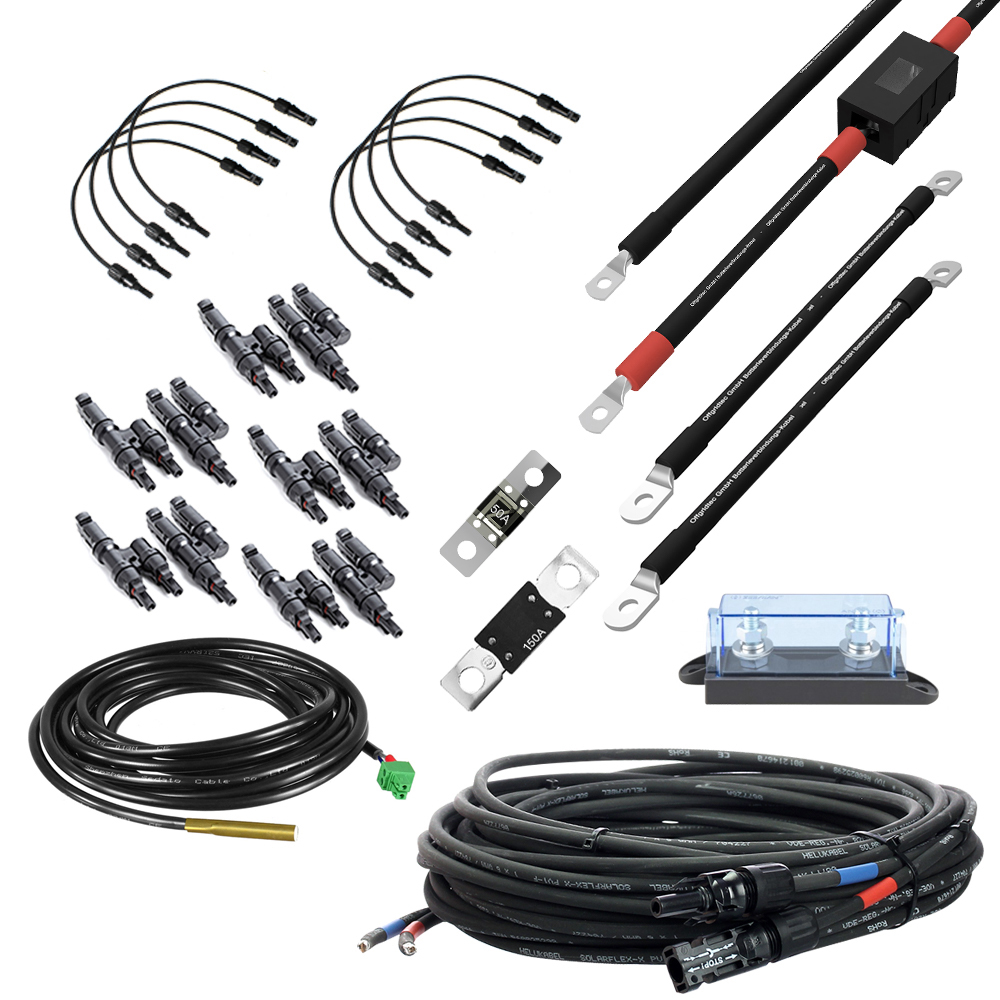

• 1 x 10m 10mm² professional connection cable solar module to charge controller with original Stäubli mc4 connectors and high quality Lapp Ölflex 1x10mm² solar cable (ready to connect cable harness to connect the 6 modules)
• 1 x 1.5m 10mm² professional battery connection cablewith MIDI fuse holder, 50a MIDI fuse and m8 ring terminals for the connection between charge controller and battery
• 1 x Temperature sensor with 3m length for connection of the controller to the battery
• 1 x 1m 35mm² connection cable from inverter to battery
• 1 x Fuse holder + 150A Mega fuse+ short connection cable for installation between voltage transformer and battery positive pole for protection against short circuit
• 1 x Battery jumper for connection from positive pole battery 1 to negative pole battery 2 (serial connection to 24v)

Roof mount for the solar module

Since there are different requirements for the mounting of a module and this varies greatly depending on the type of roof, the systems of the Autark series are not equipped with a roof mount as standard. This can of course be purchased additionally - find suitable suggestions here:

• Solar module holder for flat roof or wall mounting (6x needed)
• Mounting kit for pitched roof mounting on roof tiles, Frankfurter Pfanne etc. (2x needed)
• Fastening kit for pitched roof installation on roofing felt, corrugated hernite and sheet metal roofs with wooden substructure (2x needed)
• Fixing kit for pitched roof mounting on plain tiles (2x needed)

Scope of delivery:

1x 24v Solaranlage Autark XXL-Master with 6x 200w solar panel, 45a pwm charge controller with lcd display and usb ports, 3000w sine wave voltage converter, 2 x 260Ah agm rechargeable battery, user manuals
