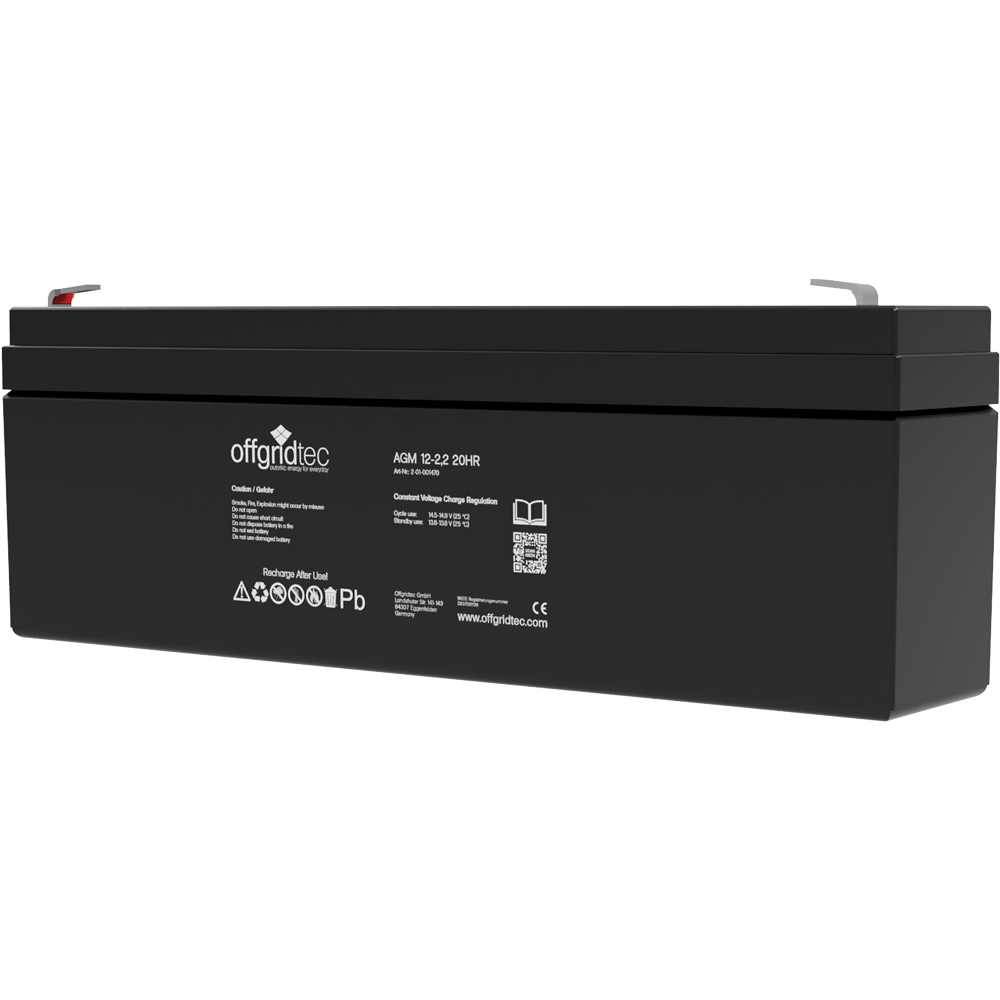

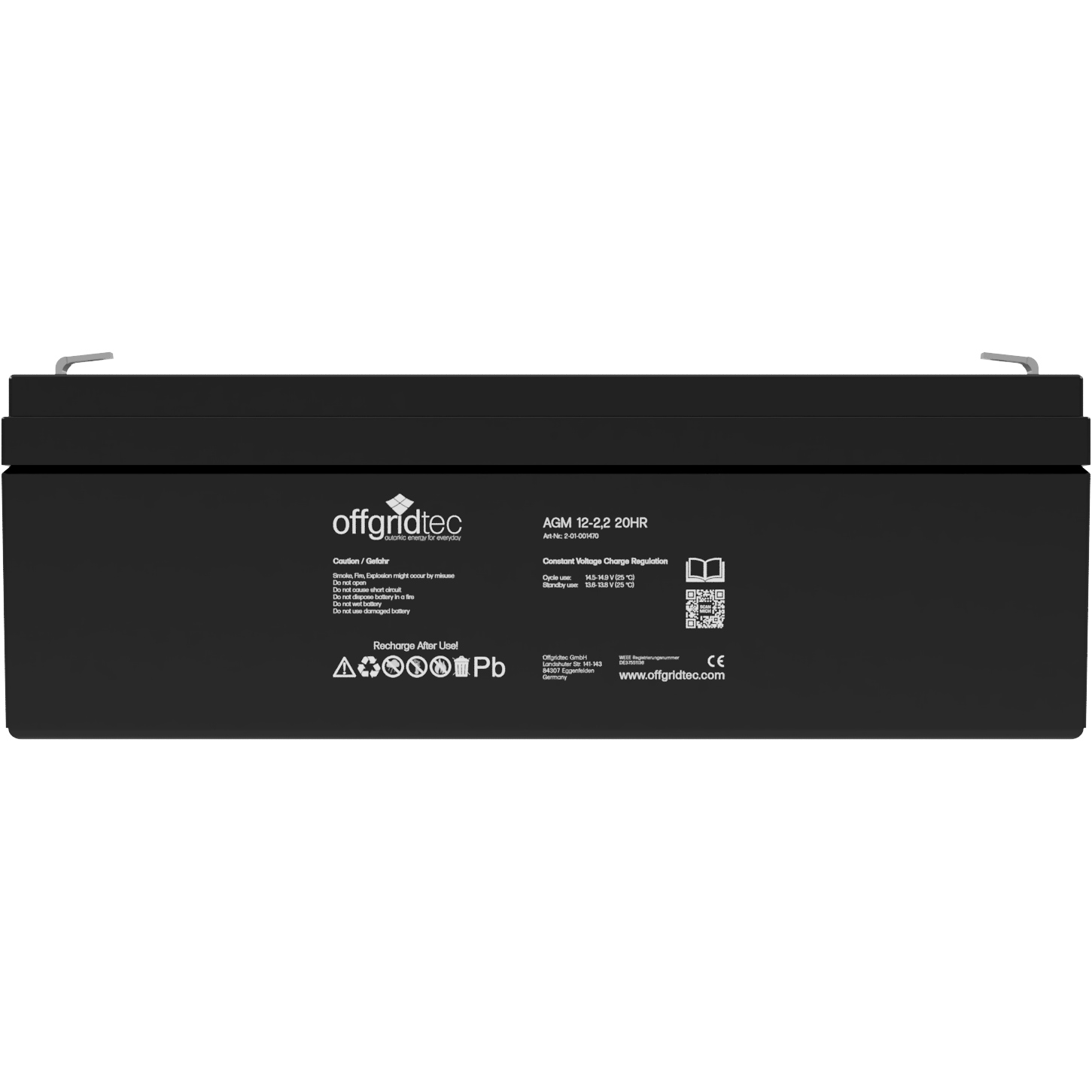

Offgridtec® AGM 2,2Ah 20HR 12V - Deep Cycle Solar Battery

Offgridtec AGM solar batteries are explicitly designed for use in solar and hybrid systems. AGM technology is clearly superior to conventional lead-acid batteries with liquid electrolyte and offers the following advantages:

Advantages of using Offgridtec AGM Technology

• absolutely safe from leakage, regardless of the position of the battery
• 100% maintenance-free over the entire service life
• Life expectancy up to 10 years (depending on usage pattern)
• Highest quality level: Our batteries are all A-quality and made of the best materials. This can best be seen in the weight of the batteries. Compare our products with those of other manufacturers!
• can be discharged deeper than lead-acid batteries
• mature technology, used in over 1000 Offgridtec solar systems
• very cycle-resistant, therefore predestined for use in solar systems

AGM batteries are somewhat more expensive to purchase than lead-acid batteries, but this pays off after just a few years, as lead-acid systems require much more maintenance and have a shorter life than AGM-based storage solutions.

Especially for smaller energy generation systems with a maximum storage capacity of 4-8kWh, AGM is the first choice.

Technical data

Battery type: AGM Cycle type
Storage capacity 20HR(0.1A,1.75V) : 2.0Ah
Storage capacity 10HR(0.18A,1.75V) : 1.8Ah
Storage capacity 5HR(0.32A,1.75V) : 1.6Ah
Storage capacity 1HR(1.2A,1.75V): 1.2Ah
System voltage: 12V
Charge voltage cyclic use: 14.4V-14.9V (-16.5mV/°C)
Charging voltage standby use: 13.6V-13.8V (-10mV/°C)
Max. charging current: 0.6A
Self-discharge: 3% (per month/at 25°C)

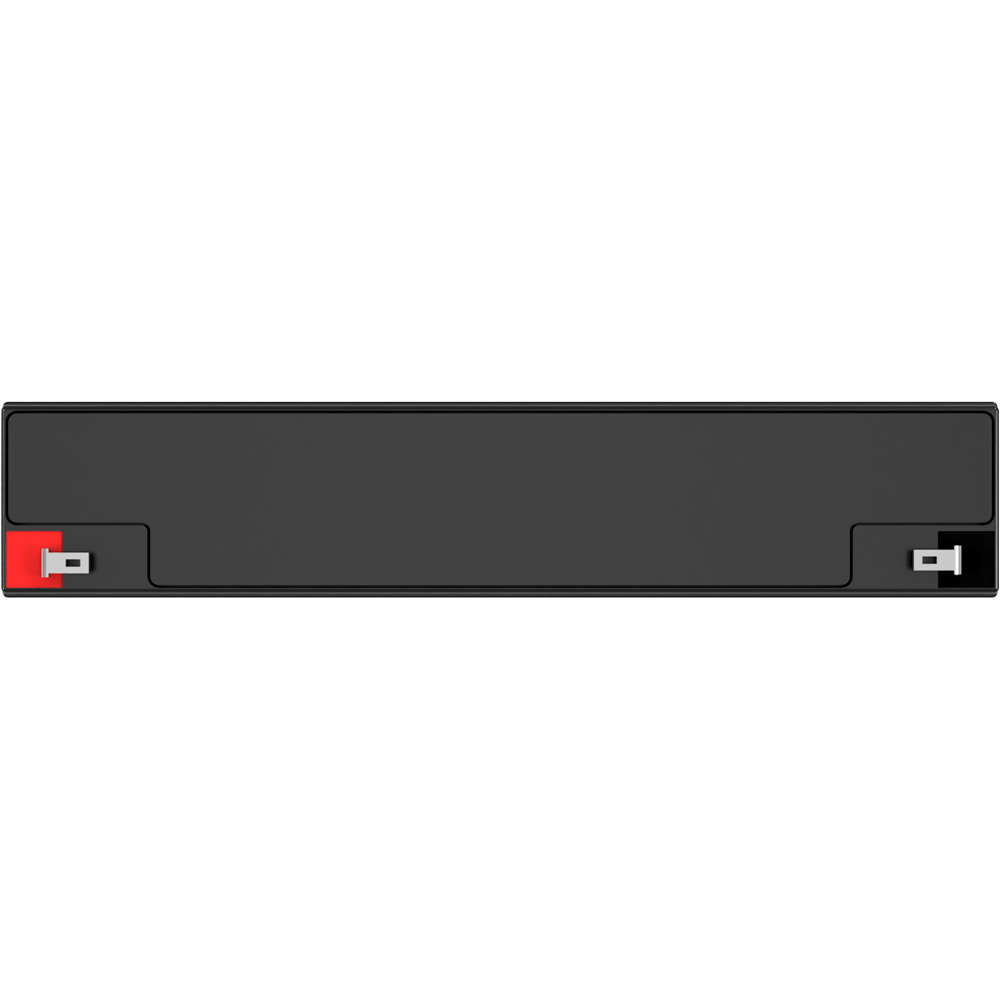

Terminal type: 4.75mm/0.8mm blade terminal
Dimensions: 175mm x 35mm x 60mm (*+6mm terminal)
Life expectancy: up to 10 years (depending on usage pattern)

Battery regulation

You are legally obliged to return batteries. You can return them after use to our sales outlet or to a local municipal collection point.

Important information according to Battery regulation

Ordinance on the return and disposal of used batteries. Batteries and rechargeable batteries do not belong in household waste. Consumers are legally obliged to return used batteries. They can be returned to Offgridtec.com or to public collection points in the community.

Pursuant to § 10 of the Battery Act, a deposit of 7.50 Euro including VAT must be charged by the seller if the end consumer does not have a used starter battery on hand at the time of purchase. If the seller does not charge a deposit because the used battery has been disposed of properly or has been exchanged for new, this amount is not deductible from the purchase Price.
