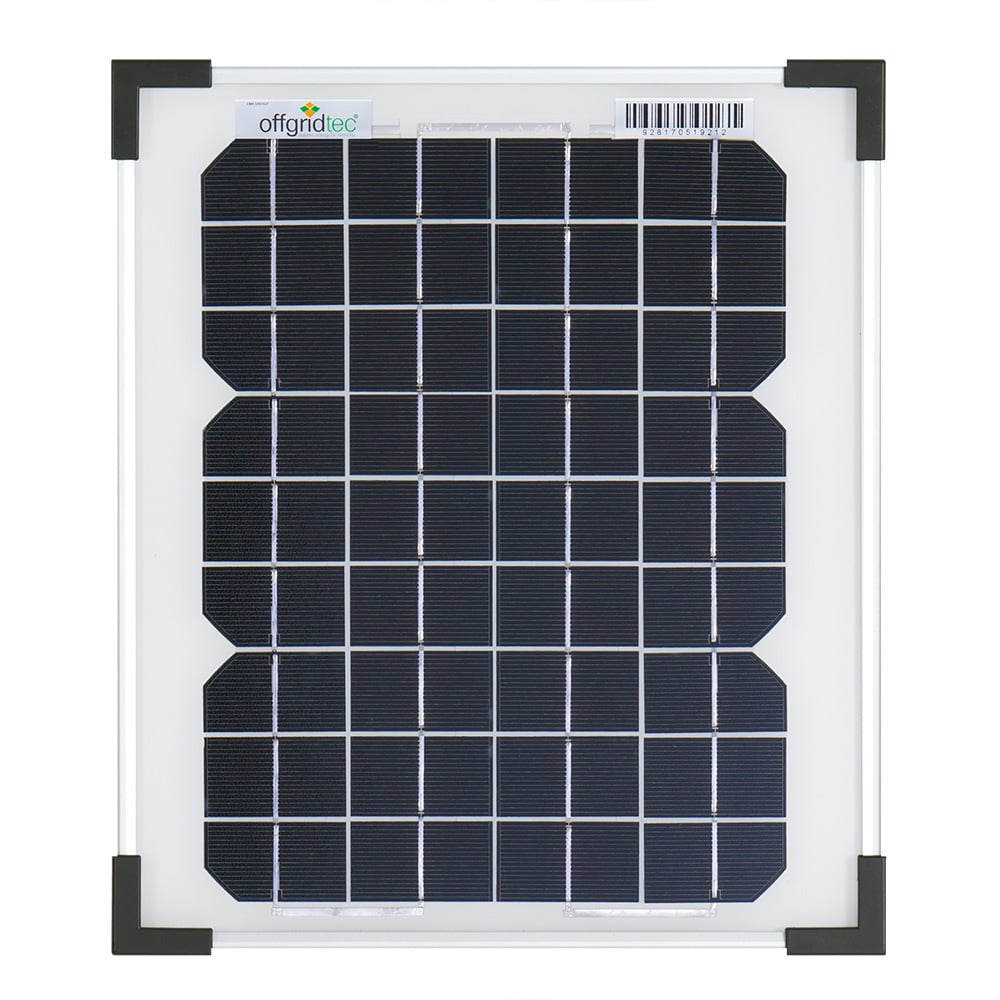

The 10W MONO solar module from Offgridtec (MPN 3-01-001265) works with monocrystalline solar cells with a high efficiency of >22% and is ideal for 12V systems thanks to its 20V operating voltage.

Only the highest quality cells are used in Offgridtec MONO solar modules and, thanks to state-of-the-art production, guarantee consistently high quality and performance with maximum service life.

Features of the Offgridtec 10W 12V mono solar module

  • Output (Pmax): 10W
  • proven quality directly from Offgridtec
  • high operating voltage of 20V, perfect for 12V systems
  • manufactured according to the latest standards
  • monocrystalline A-grade solar cells
  • extremely resistant ESG glass makes the module suitable for use even in the most adverse environmental conditions
  • 1 blocking diode - prevents current backflow when charging 12V batteries directly
  • 1 bypass diode - minimizes power loss when shaded
  • ideal for 12V systems on land or in mobile solar systems
  • 5-year warranty - information on warranty conditions can be found here

Proven, ready-to-use solar module

The MONO 10W 20V is one of over 40 proven solar panels from the Offgridtec portfolio and benefits from Offgridtec's experience in the production of high-quality 12V and 24V solar cells. Thanks to the extremely resistant solar glass, the module can also be used in very adverse operating conditions. It can withstand storms or extreme cold and heat without any problems and thanks to the monocrystalline A-grade cells, you can expect significant yields even on cloudy days.

The most important technical data at a glance

  • Working voltage (Vmp): 20 V
  • Open-circuit voltage (Voc): 24 V
  • max. current (Imp): 0.5 A
  • Short-circuit current (Isc): 0.54 A
  • max. system voltage: 600 V
  • permissible ambient temperature: -40°C - +85°C

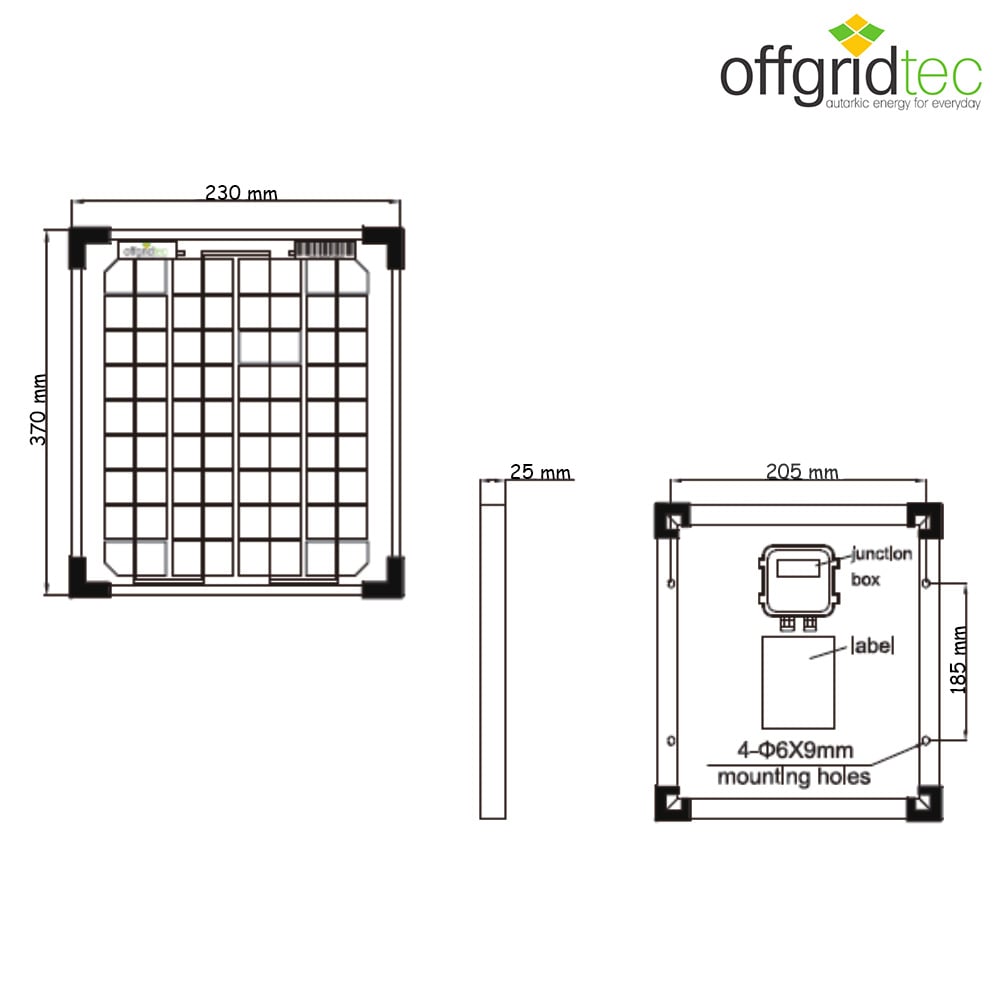

  • Dimensions: 230 x 370 x 25 mm
  • Weight: 1.0 kg
  • Part number: 3-01-001265

Universally applicable

Offgridtec's 10W 20V Mono can be used universally, for example in 12 volt solar systems on garden sheds, allotments or for the power supply of lighting applications, self-sufficient systems for signaling and monitoring technology and many more. But this panel also cuts a fine figure in mobile systems such as mobile home solar systems.

Thanks to the integrated blocking diode, no current backflow can occur when charging a 12V battery directly. This prevents the battery from discharging through the solar panel at night or in low light.

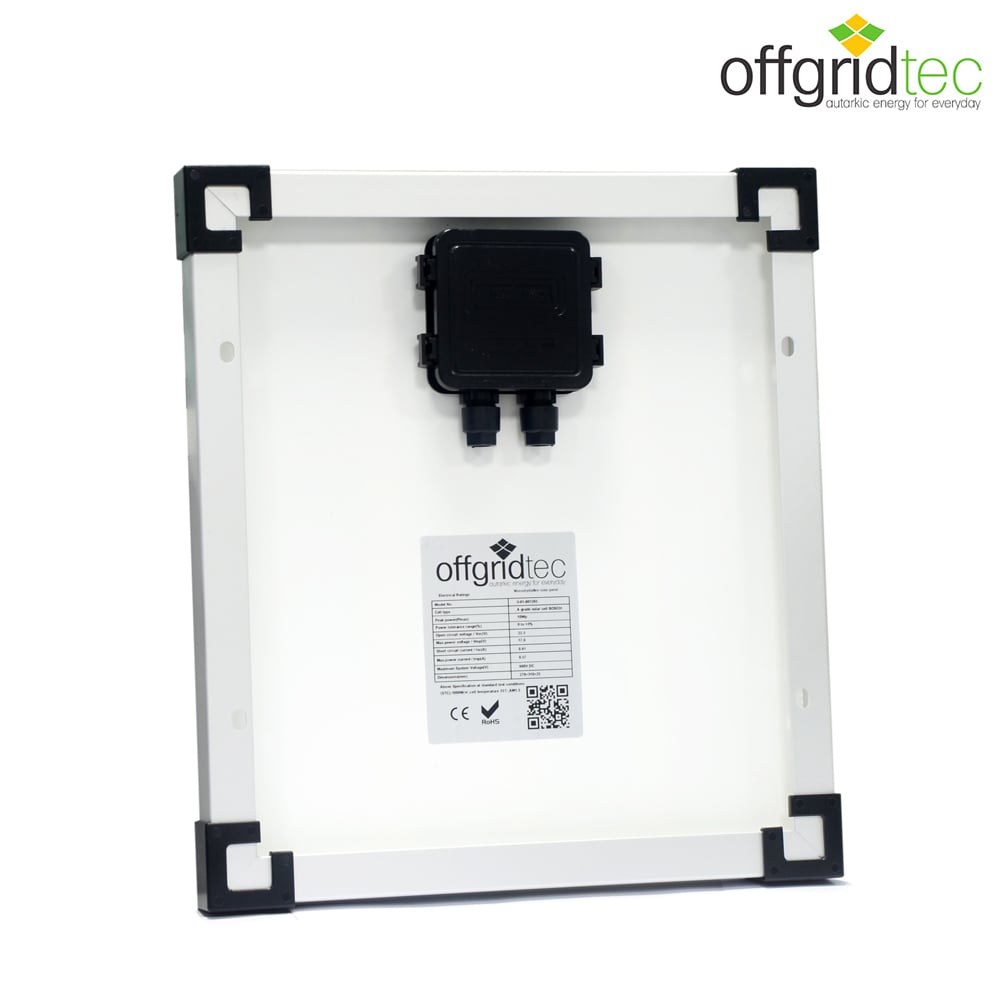

The module is supplied with a connection socket. Cables are not included.

Scope of delivery:

Offgridtec 3-01-001265 10W MONO 12V solar module

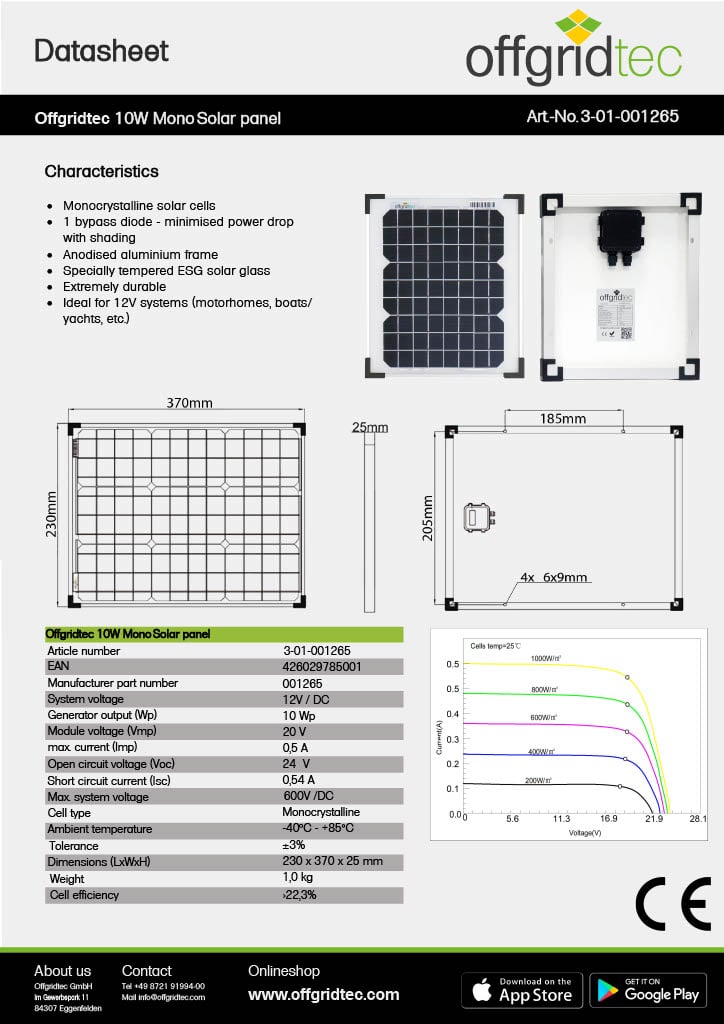

Datasheet-3-01-001265-DE+EN.pdf Download
Garantiebestimmung_Solarmodule.pdf Download
Datenblatt_Mono_Serie.pdf Download
Ambient temperature: -40°C - +85°C
Category name: 12V-24V solar modules
Cell efficiency: >18%
Cell type: monocrystalline
Generator output wp: 10 Wp
Manufacturer: Offgridtec
Max. System voltage: 600 V
Module voltage (VMP): 20V
Open circuit voltage (VOC): 24V
Short circuit current (ISC): 0,54A
Solar module - Format drill holes: 6 x 9 mm
Solar module - Number of cable entries: 2x PEG screw connection
Solar module - Terminal standard: M3.5 ring cable lug
Solar module - cable length: n. a.
Solar module - cell type: SW monocrystalline
Solar module - diodes installed: 1x IOSQO50 Bypass Diode
Solar module - frame thickness: 1 mm
Solar module - junction box: PV-HX025
Solar module - junction box (ABM): 75 x 70 x 20 mm
Solar module - junction box (IP): IP65
Solar module - junction box (K max.): 6 mm
Solar module - performance guarantee: 10 years*
Solar module - plug type: n. v.
Solar module - size connection cable: 1,5 mm - 2,5 mm
Solar module - terminal connection: Screw terminal and integrated crimp connector
System voltage: 12 V
Tolerance: +/- 3%
Weight: 1,0 kg
max. current (IMP): 0,5A
