Offgridtec© Autarkic XXL-Master 600W Solar System - 2000W AC Power 260Ah AGM Battery 12V 230V

Powerful All-in-One Complete Solar System

The Autark XXL-Master is one of the larger complete systems of the Autark family and delivers an average daily yield of 2400 watt hours between March and October. The generated power is stored in the cycle-proof 260Ah agm battery - the high quality charge controller with integrated display gives you information about the battery charge status while your 230v consumers can be operated at the sine wave voltage converter. Of course, the whole thing is delivered including a professional connection cable kit - plug it together and get started. The system is suitable for a wide range of applications - from 12v lighting, charging laptop, cell phone and camera batteries and other small consumers, to 230v household appliances with a maximum continuous power of 2000w

Features of the Autark XL-Master

• Average daily yield between March and October: approx. 2400Wh (approx. 200Ah)
• Plug & Play ready-to-connect system - plug it together and go
• Allows operation of 12v and 230v loads, as well as 5v usb consumers
• usb charging possibility directly at the charge controller (max. 2,4A)
• Easy to read lcd display informs about all operating parameters
• Flexible mounting possibility thanks to 10m connection cable from module to controller
• Extensive electronic protection functions, such as overload protection, overtemperature protection, undervoltage shutdown, short-circuit protection, reverse polarity protection, etc.
• rs485 communication port on the voltage transformer offers extensive configuration possibilities via pc (interface cable rs485 to usb included)
• Charge controller enables temperature compensated charging - temperature sensor included in delivery
• Configurable 12v load output at the charge controller for loads up to max. 45a - suitable e.g. for lighting control

Application areas

This complete system can be used in many different ways. Whether as a stationary system on the mountain hut or in the allotment garden - the permanent operation of small coolers and refrigerators, as well as the charging of cell phones and laptops succeeds easily with this system. Installation on the motor home is also conceivable - we also carry the corresponding brackets and adhesive sets for mounting.

Extensive connection options

• 230v ac 50hz 2000w (permanent 2000w - peak power 4000w) Schuko socket at the sine wave voltage converter
• 12v consumer output with 45a power directly at the charge controller
• 2 x usb charging port at the charge controller with max. 2.4a (total)
• 1 x usb charging port at the voltage converter with max. 1a power

Parts list - what's inside

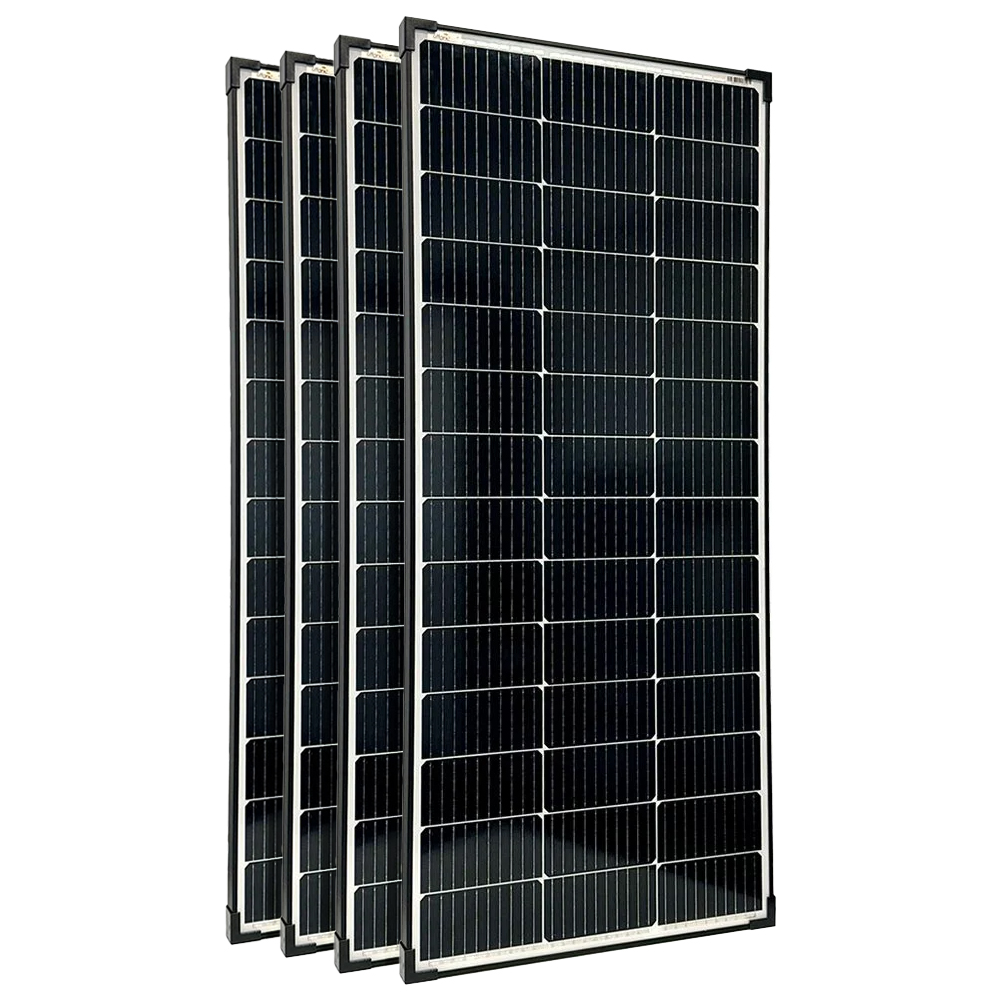

• 4 x 150W Offgridtec MONO Solar Panel V2 23V Black Frame - 018395 - 1350 x 590 x 35 mm

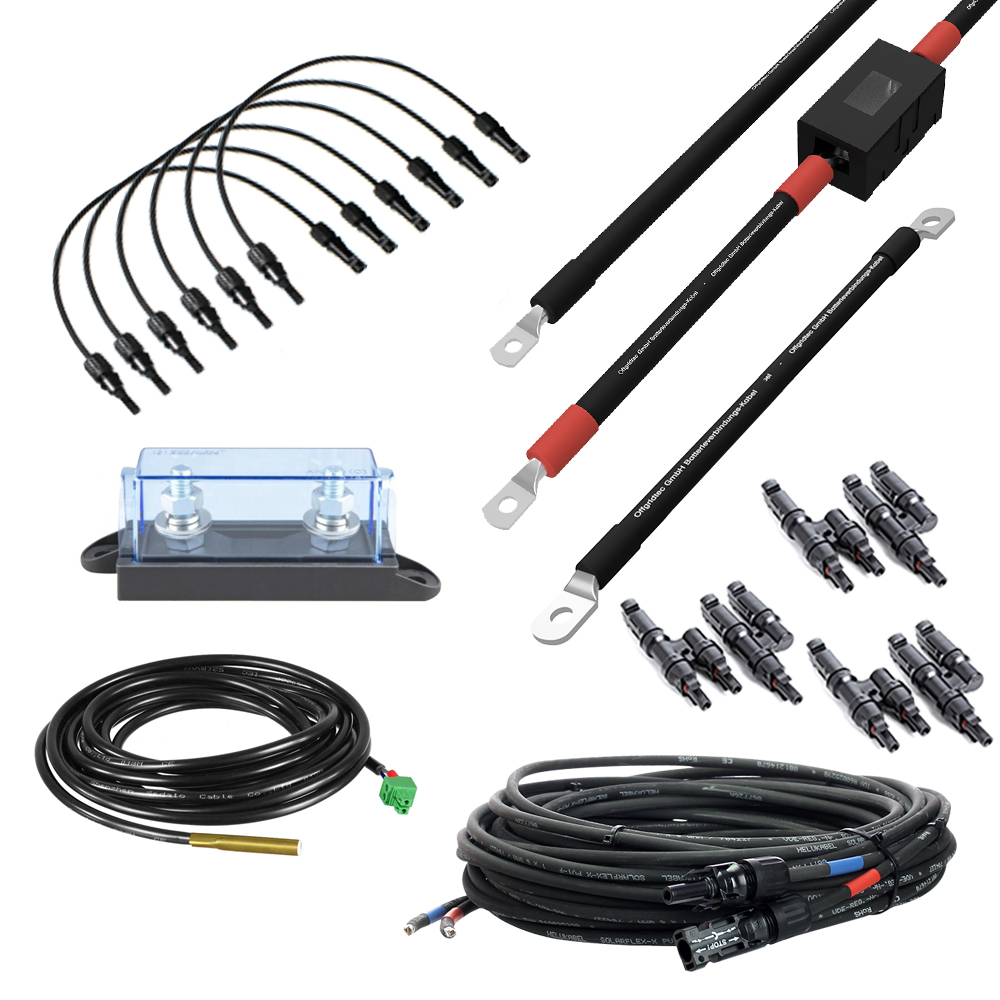

• 1 x ready made cable harness with Junction boxes and Connecting cablesfor connection of all modules

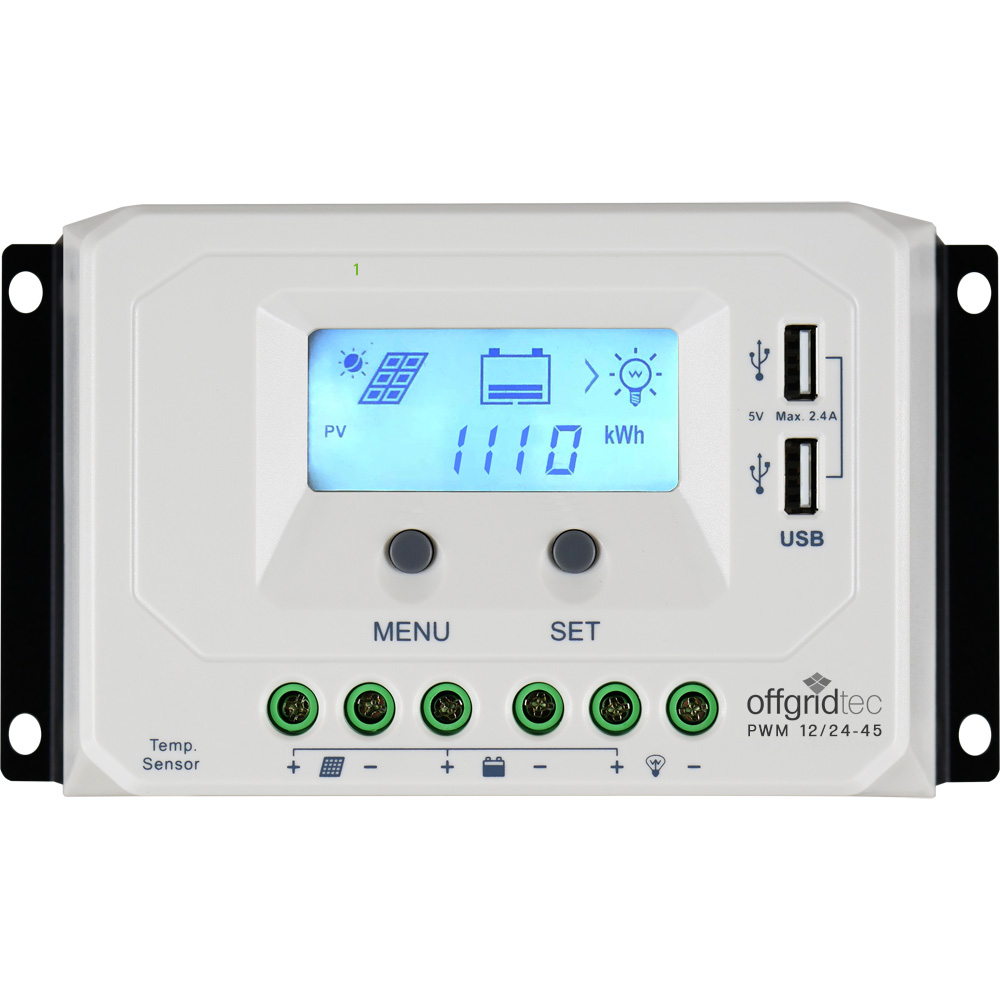

• 1 x 45a pwm charge controller with clear lcd display and usb charging possibility - the device also has a 45a load output and is easy to operate - all important parameters can be read on the display

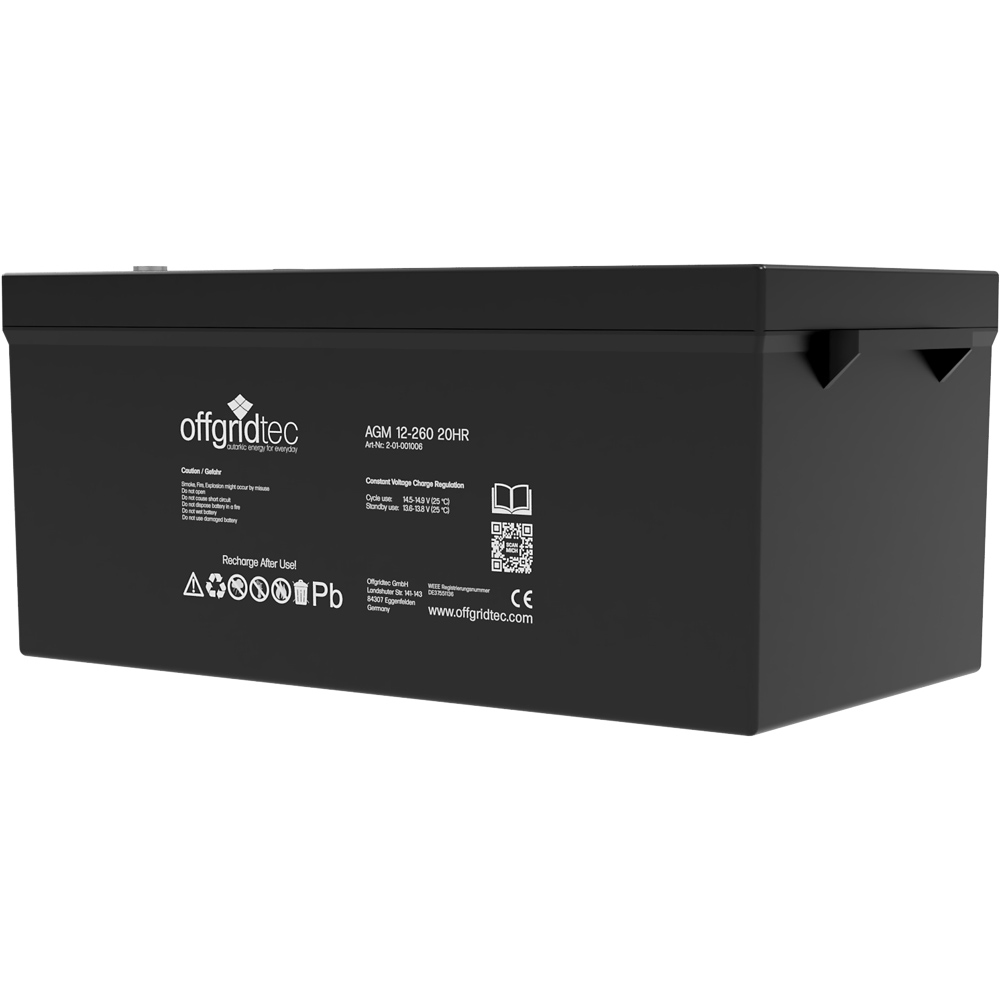

• 1 x Offgridtec AGM 260Ah 20HR 12V solar battery with M8 screw terminal - dimensions: 520 x 268 x 220mm (+29mm terminal) - the battery is absolutely maintenance-free and leak-proof and lasts up to 10 years depending on use

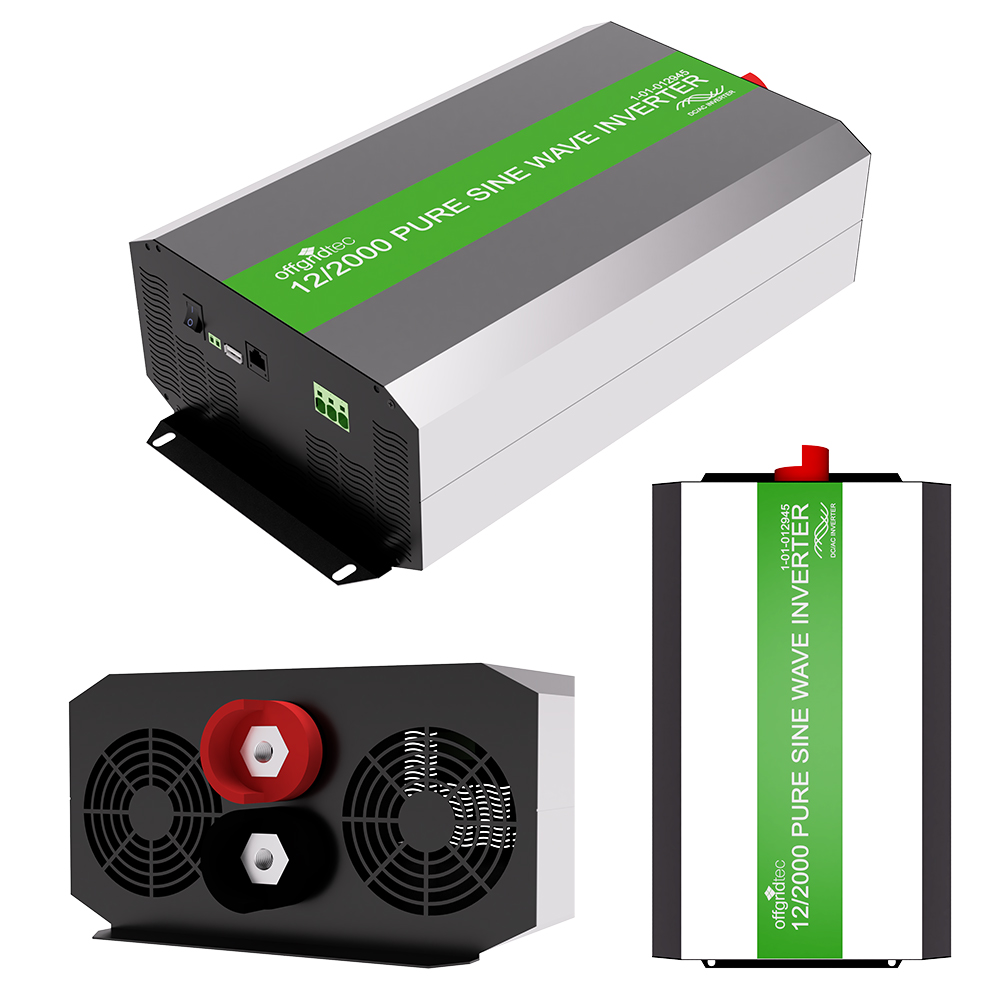

• 1 x 2000w 12v to 230v sine wave voltage converter with an earthed socket - it outputs a constant continuous power of 2000w - and can handle short time starting currents up to 4000w
• 1 x 10m 10mm² professional connection cable solar module to charge controller with original Stäubli mc4 connectors and high quality Lapp Ölflex 2x10mm² solar cable
• 1 x 1.5m 10mm² professional battery connection cable with MIDI fuse holder and 50a MIDI fuse and m8 ring terminals for the connection between charge controller and battery
• 1 x Temperature sensor with 3m length for connection of the controller to the battery
• 1 x 1m 35mm² connection cable from inverter to battery (fuse holder included with the voltage converter)

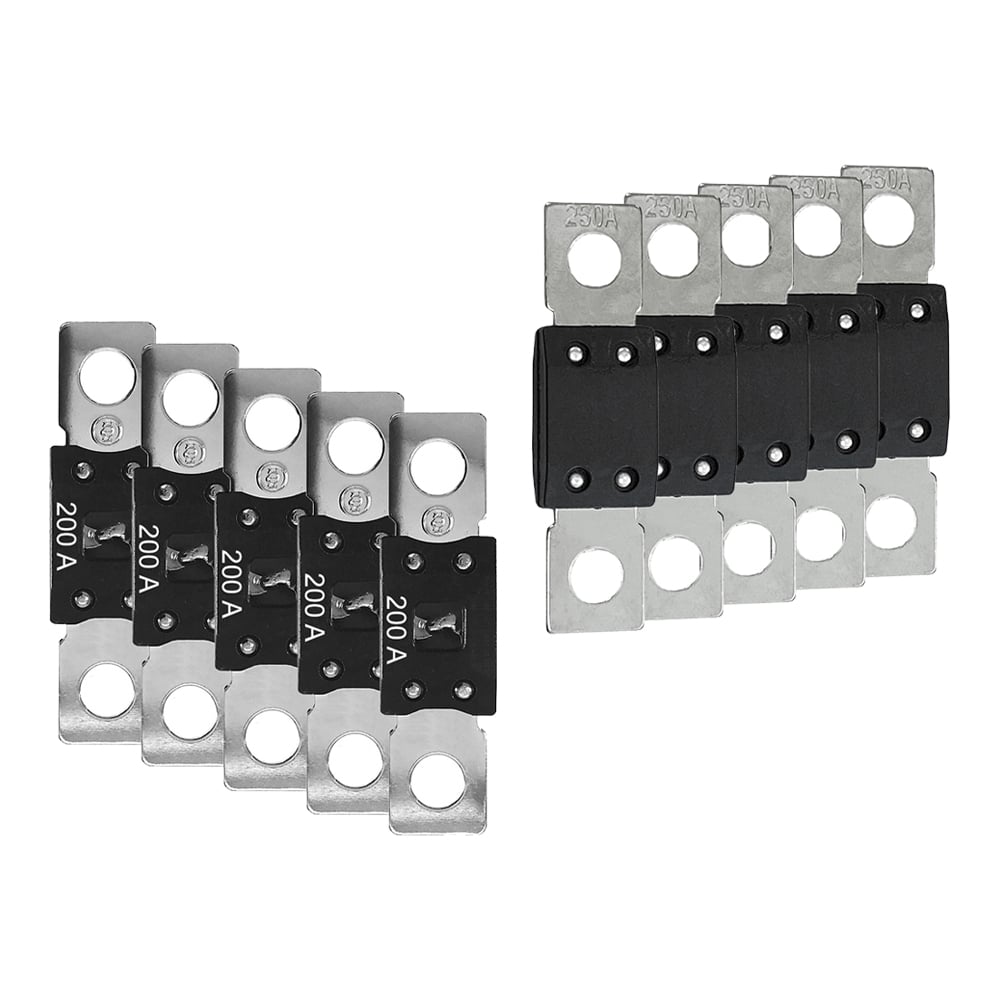

• 1 xHolder for Mega fuse +250a Mega fuse for installation between voltage transformer and battery positive pole for protection against short circuit

Roof mount for the solar module

Since there are different requirements for the mounting of a module and this varies greatly depending on the type of roof, the systems of the Autark series are not equipped with a roof mount as standard. This can of course be purchased additionally - find suitable suggestions here:

• Solar module holder for flat roof or wall mounting
• Mounting kit for pitched roof mounting on roof tiles (Frankfurter Pfanne etc.)
• Mounting kit for pitched roof mounting on roofing felt, corrugated hernite and sheet metal roofs with wooden substructure
• Fastening kit for pitched roof installation on Bieberschwanz tiles

Scope of delivery:

1x Solaranlage Autark XXL-Master with 4x150W solar panel, 45a pwm charge controller with lcd display and usb ports, 2000w sine wave voltage transformer, 260Ah agm battery, user manuals
