Offgridtec© 12V Autarkic XL-Master 310W Solar System - 1500W AC Output 12V 230V

Powerful all-in-one complete solar system

The Autark XL-Master is one of the larger complete systems of the Autark family and delivers an average daily yield of 1200 watt hours between March and October. The generated electricity is stored in the cycle-proof 154Ah AGM battery - the high-quality charge controller with integrated display provides you with information about the battery's state of charge while your 230V consumers can be operated at the sine voltage converter. Of course, the whole system is supplied with a professional connection cable kit - plug it together and get started. The system is suitable for a whole range of applications - from 12V lighting, charging laptop, mobile phone and camera batteries and other small consumers, to 230V household appliances with a maximum continuous power of 1500W (15min).

Features of the Autark XL-Master

• If required, can be extended by 2 x 150W on the module side with little installation effort.
• Average daily yield between March and October: approx. 1200Wh (approx. 100Ah)
• Plug & Play ready-to-connect system - plug together and go
• Allows operation of 12V and 230V loads, as well as 5V USB consumers
• USB charging possibility directly at the charge controller (max. 2.4A)
• Easy-to-read LCD display provides information on all operating parameters
• Flexible installation thanks to 8m connection cable from module to controller
• Extensive electronic protection functions, such as overload protection, overtemperature protection, undervoltage cut-off, short-circuit protection, reverse polarity protection, etc.
• RS485 communication port on the voltage transformer offers extensive configuration options via PC (interface cable RS485 to USB included)
• Charge controller enables temperature-compensated charging - temperature sensor included in delivery
• Configurable 12V load output on the charge controller for loads up to max. 45A - suitable e.g. for lighting control

Areas of application

This complete system can be used in a variety of ways. Whether as a stationary system on a mountain hut or in an allotment garden - the permanent operation of small coolers and refrigerators, as well as the charging of mobile phones and laptops, is easy with this system. Installation on a motor home is also conceivable - we also have the corresponding brackets and adhesive sets for mounting.

Extensive connection options

• 230V AC 50HZ 1500W (15min - 1500W / permanent - 1200W) Schuko socket on the sine wave voltage converter
• 12V consumer output with 45A power directly at the charge controller
• 2 x USB charging port on the charge controller with max. 2.4A (total)
• 1 x USB charging port on the voltage converter with max. 1A output

Parts list - what's inside

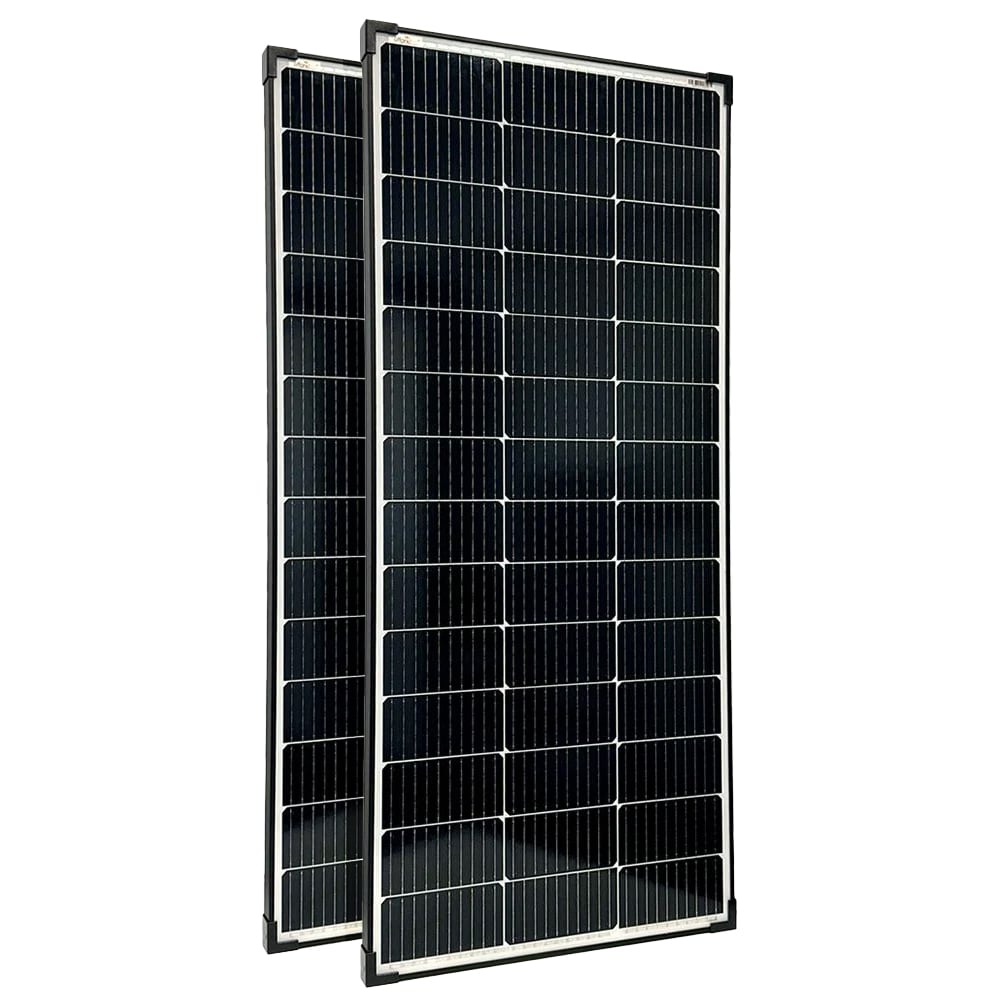

• 2 x 150W Offgridtec MONO Solar Panel V2 23V Black Frame - 018395 - 1350 x 590 x 35 mm
• 1 x 1 pair of solar connectors compatible junction sockets for connecting the two solar modules in parallel

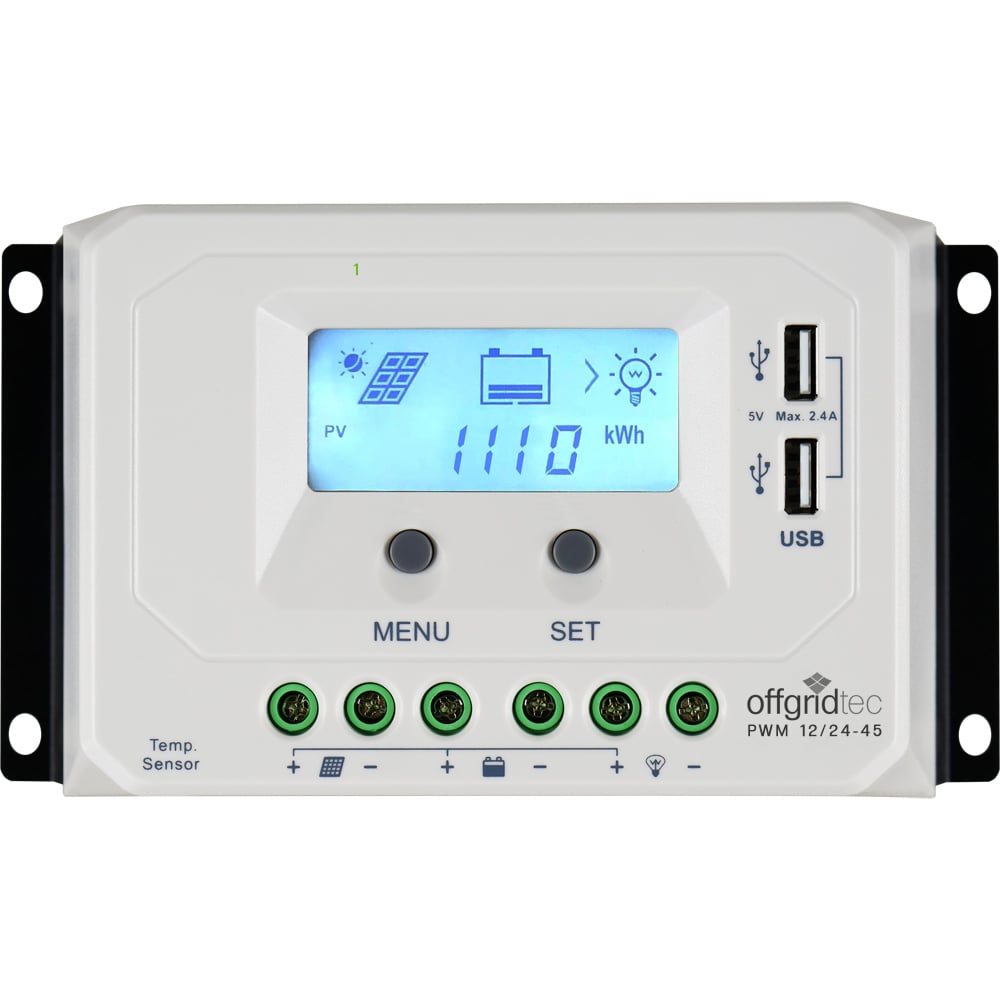

• 1 x 45A PWM charge controller with clear LCD display and USB charging option - the unit also has a 45A load output and is easy to operate - all important parameters can be read on the display

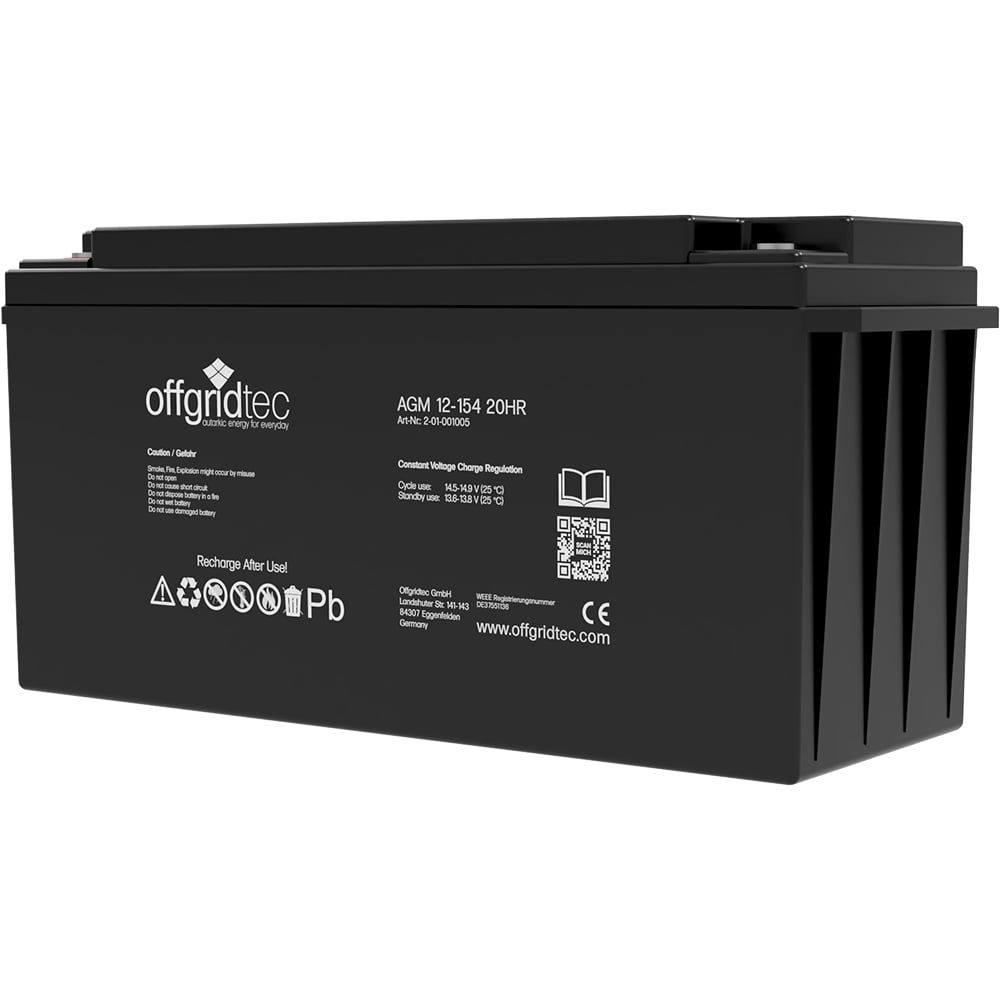

• 1 x 154Ah AGM battery with M8 screw terminal terminal Dimensions: 485 x 172 x 240mm (+5mm terminal) - the battery is absolutely maintenance-free and leak-proof and lasts up to 10 years depending on use

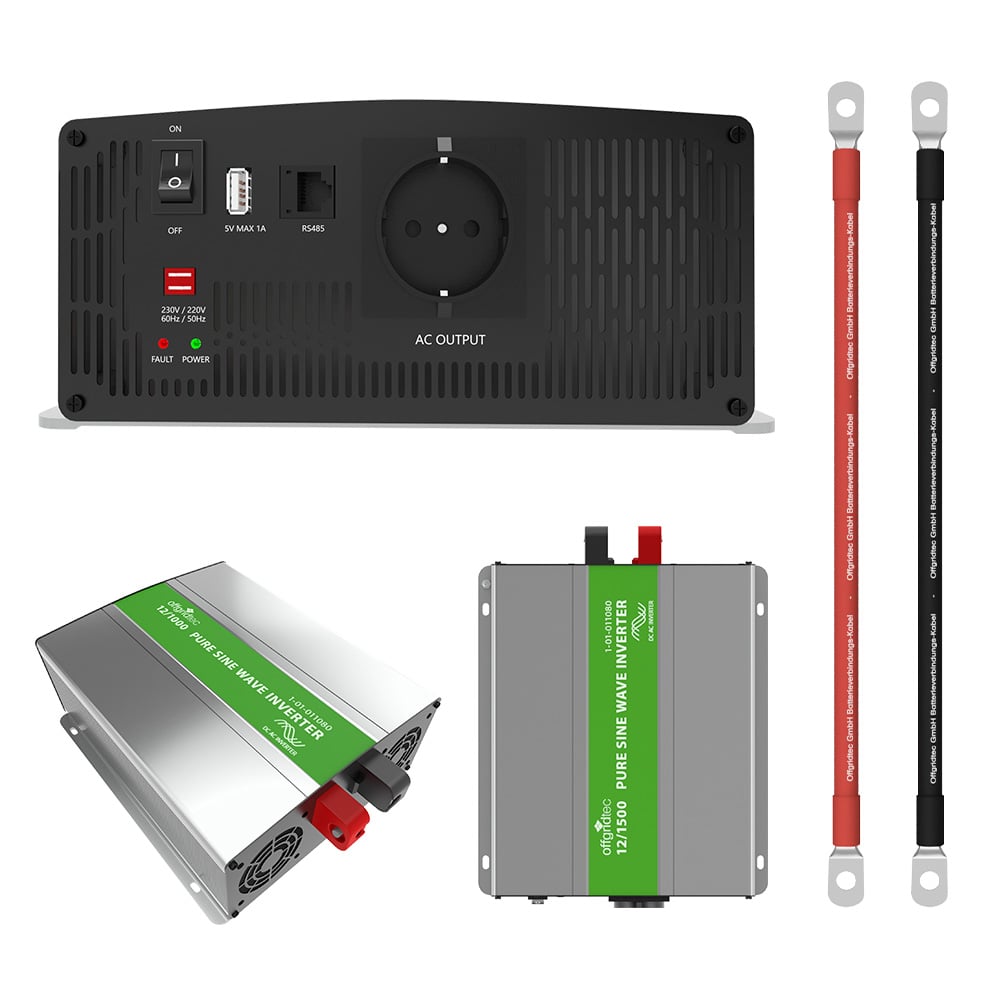

• 1 x 1500W 12V to 230V sine wave voltage converter with a shock-proof socket incl. connection cable - the rated power of 1500W can be output by the unit for 15 minutes - in addition, the inverter has an output of 1200W and can handle short-time starting currents of up to 2400W

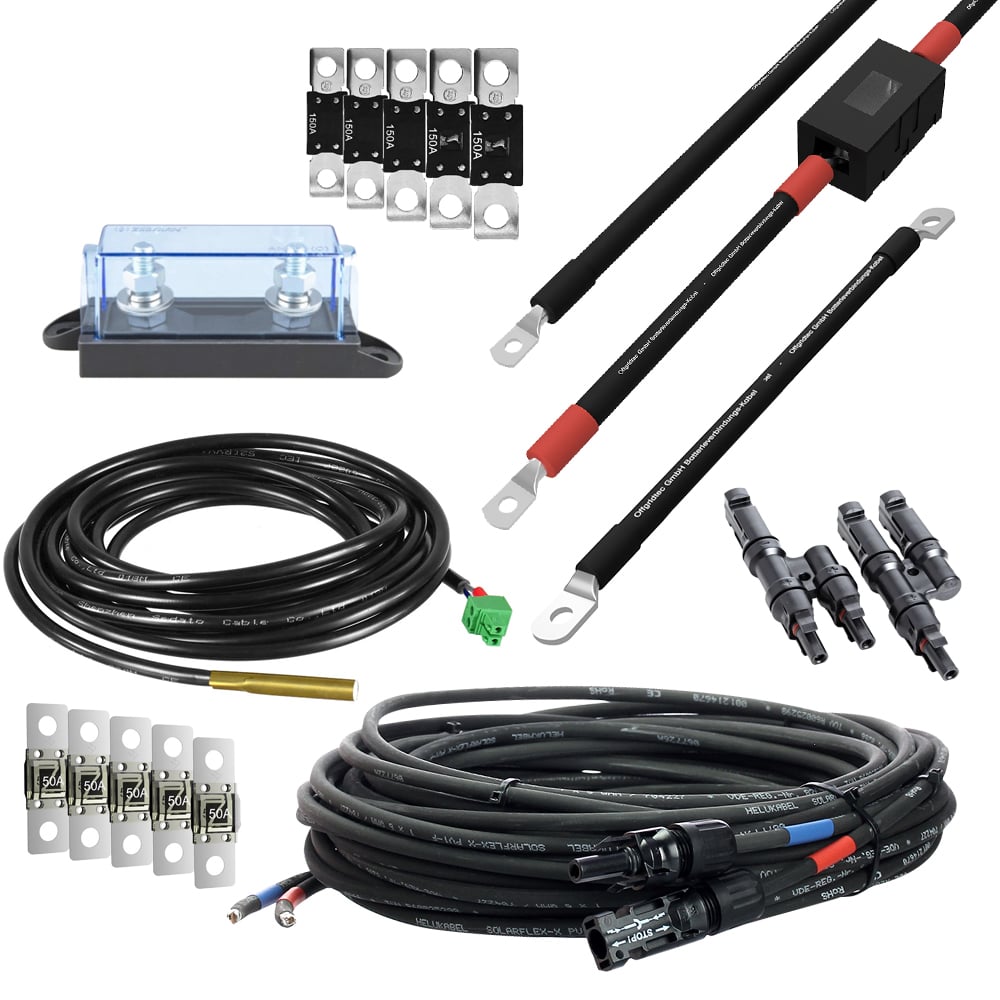

• 1 x 8m 6mm² professional connection cable solar module to charge controller with solar connector plug
• 1 x 1.5m 10mm² battery connection cable with MIDI fuse holder and M8 ring terminals for connection between charge controller and battery
• 1 x Temperature sensor with 3m length for connecting the controller to the battery
• 1 x Battery connection cable 25mm² 40cm Ozone, UV and temperature resistant
• 1 x Fuse holder
• 1 x 150A Mega fuse For installation between voltage transformer and battery positive pole for protection against short circuit
• 1 x 50A Midi Fusse

Roof bracket for the solar module

As there are different requirements for the mounting of a module and this varies greatly depending on the type of roof, the systems of the Autark series are not equipped with a roof mounting as standard. This can, of course, be purchased additionally - find suitable suggestions here:

• Solar module holder for flat roof or wall mounting
• Solarmodulhalter für Flachdach- oder Wandmontage
• Fastening kit for pitched roof installation on roofing felt, corrugated hernite and sheet metal roofs with wooden substructure
• Fixing kit for pitched roof mounting on beavertail tiles

Scope of delivery:

1x Solar system Autark XL-Master with 2x150W solar module, 45A PWM charge controller with LCD display and USB ports, 1500W sine wave voltage converter, 154Ah AGM battery, operating instructions
