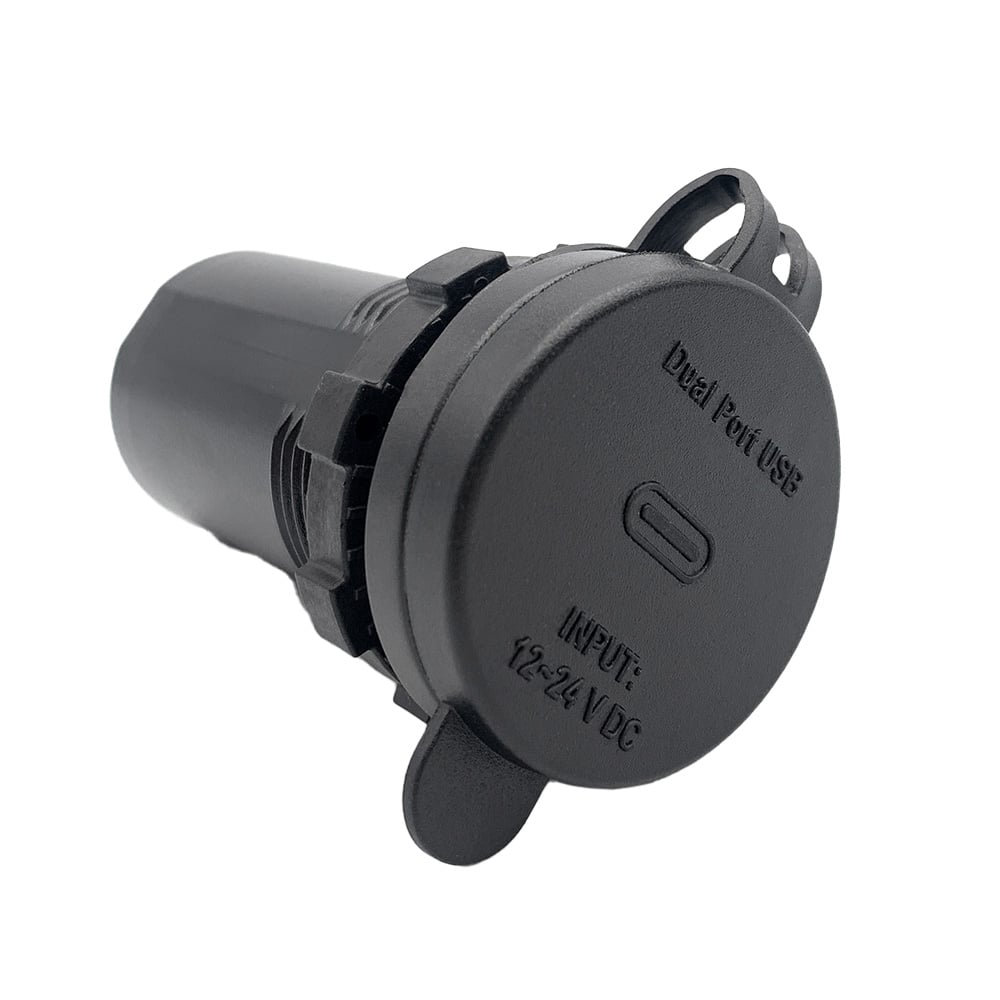

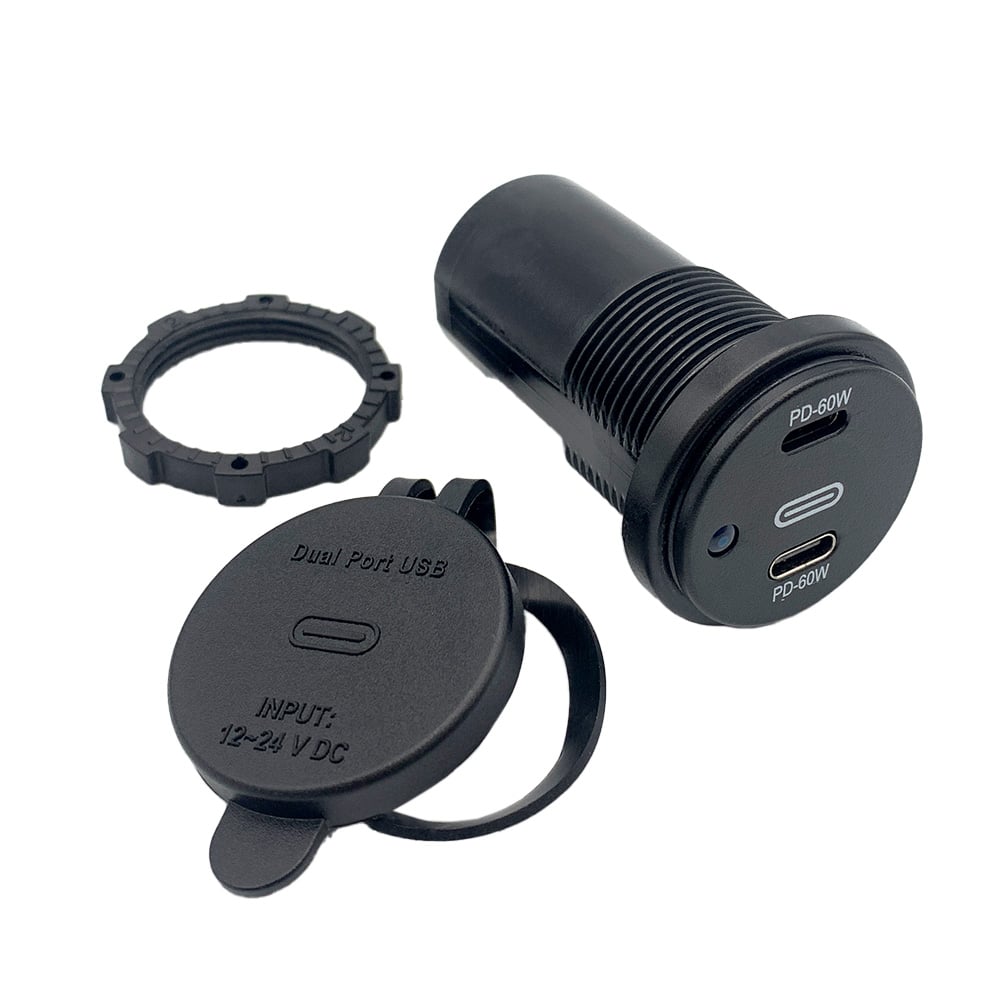

The usb double socket from Offgridtec offers you the option of using two usb-c connectors via a dual port. The usb cover provides additional protection when the product is not in use. This can also be removed from the socket. The double socket outlet is suitable for use with mounting housings.

Product information

  • Protection class: IP65
  • Connection terminals: Copper/nickel coating 1/4" (6.3mm)
  • Material: plastic
  • Color: Black

Protective functions

  • overvoltage protection
  • overcurrent protection
  • overtemperature protection
  • Short circuit protection
  • Reverse polarity protection

Technical data

  • Rated voltage: 12v/24v dc
  • Operating voltage: 12v/32v dc (max.)
  • Peak voltage: 36v dc (max. 3-4 seconds)
  • Operating frequency: 100-150kHz
  • Current consumption (quiescent current): 20mA
  • Operating temperature range: -20°C - +60°C

Input: 12V

  • Type-C1 output: 5v-12v (max. 36w)
  • Type-C2 output: 5v-12v (max. 36w)
  • Type-C1 + Type-C2: 36w + 36w

Input: 24V

  • Type-C1 output: 5v-20v (max. 60w)
  • Type-C2 output: 5v-20v (max. 60w)
  • Type-C1 + Type-C2 60w + 60w

Dimensions

  • Total length: 69.9 mm
  • Diameter: 36.5 mm

Scope of delivery:

1x Offgridtec usb double socket (2x usb-c)

8-01-014900_Offgridtec_USB-Doppelsteckdose.pdf Download
Manufacturer: Offgridtec
Product Type: Plug
Protection type: IP65

Manufactuerer Information

Offgridtec GmbH

Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
Germany

Mail: info@offgridtec.com

Tel.: +49 8721 9199400

offgridtec.com Reviews with ekomi.de
Wieviel Ampere zieht die Doppelsteckdose maximal?
Diese Doppelsteckdose zieht maximal 6A unter voller Auslastung.
