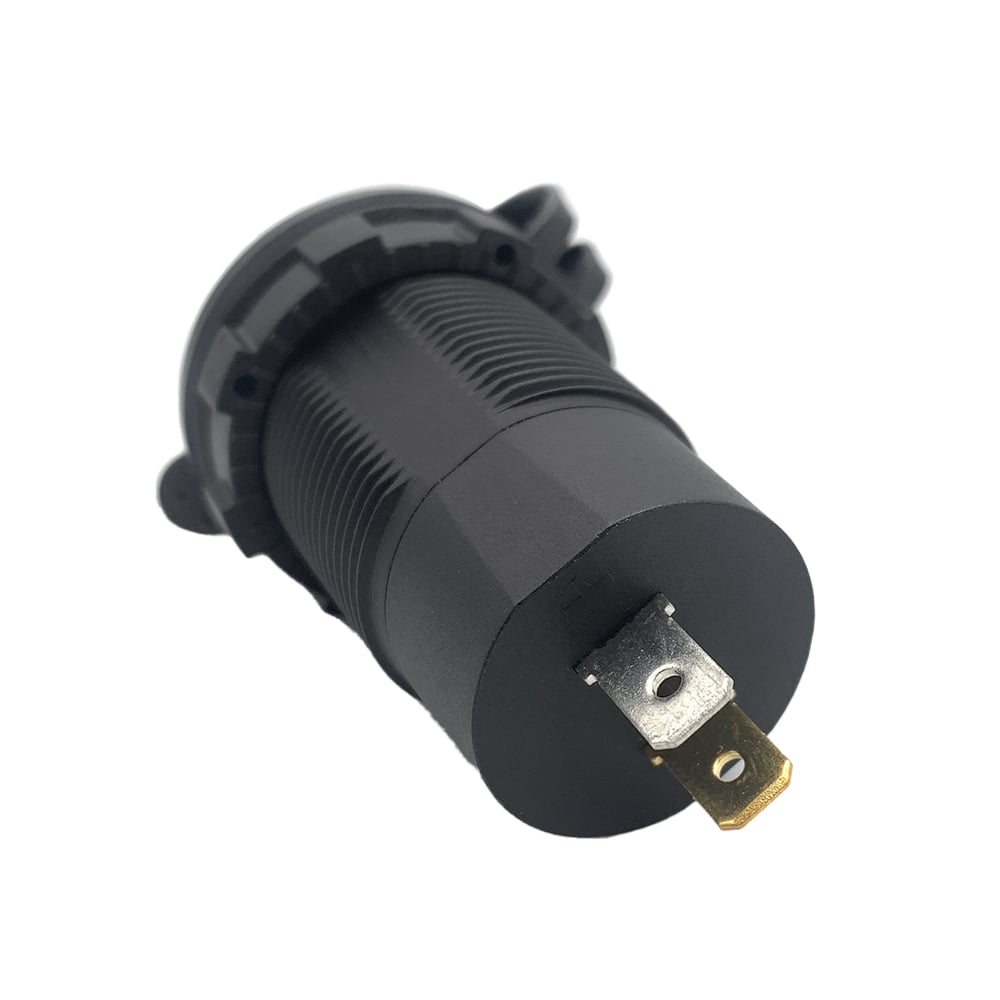

Offgridtec USB double socket outlet 12V/24V 5V/4.8A - 3.6V/32W
Product number:
8-01-014885
8-01-014885

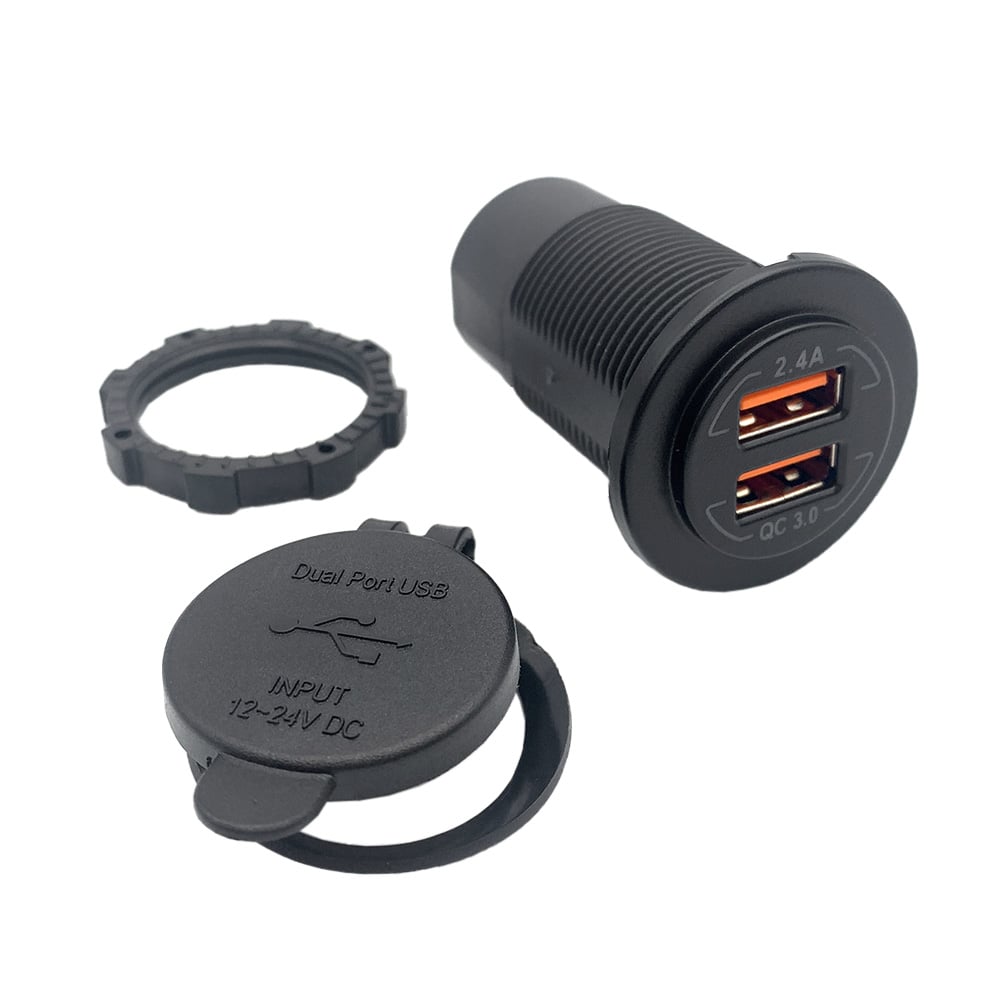

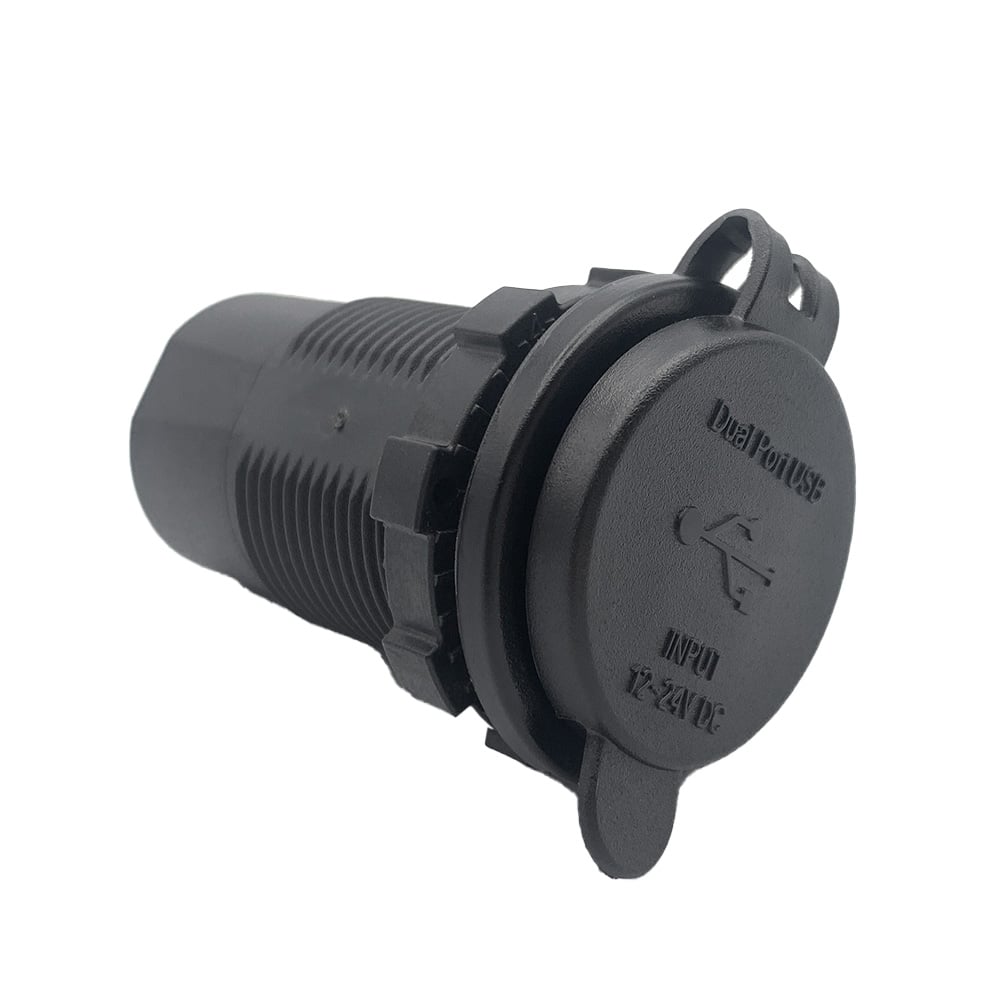

The usb double socket from Offgridtec offers you the option of using two normal usb connectors via a dual port. The usb cover provides additional protection when the product is not in use. It can also be removed from the socket. The dual socket is suitable for use with mounting housings.
Features:
- Protection class: IP65
- Material: plastic
- Color: Black
- Voltage: 12-24v DC
- Illumination color: blue

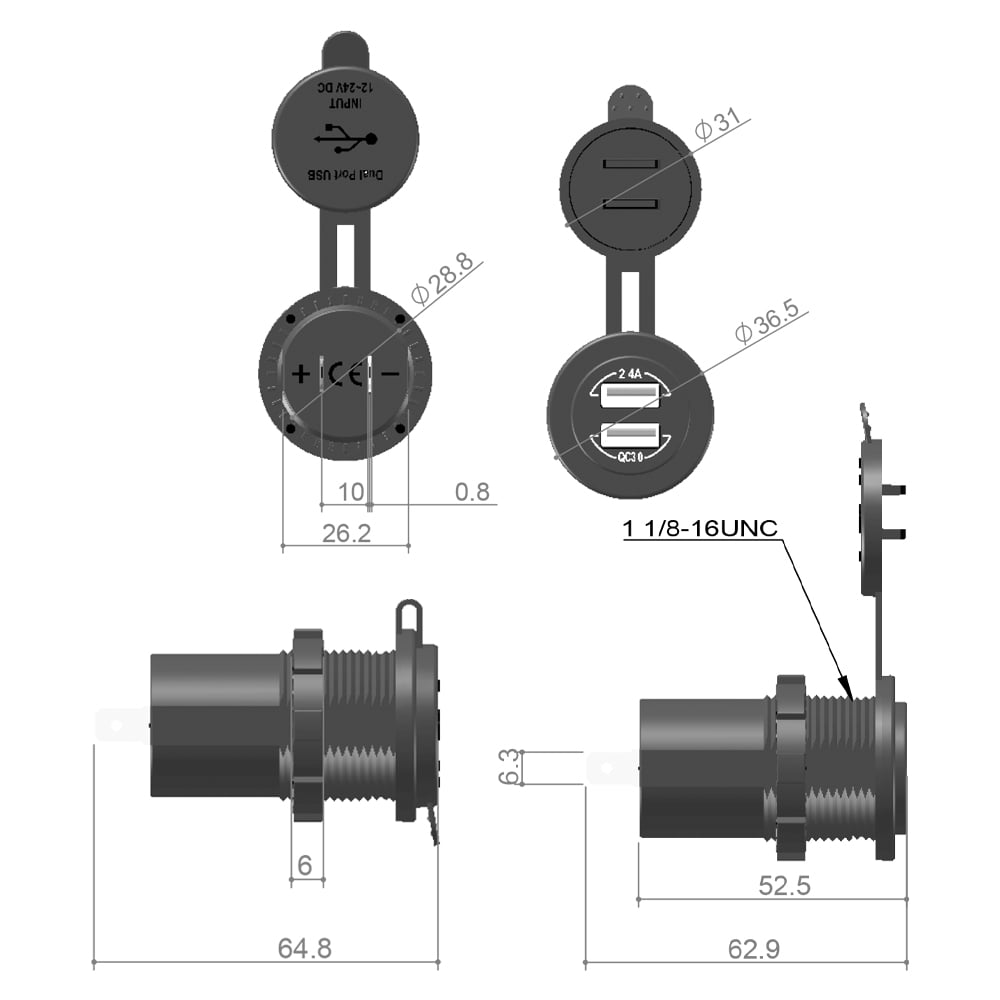

Dimensions:
- Total length: 65 mm
- Thread diameter: 29 mm
- Body length: 45 mm
- Body length with contacts: 55 mm
- Max. Front panel thickness: 22 mm
Scope of delivery:
1x Offgridtec usb double socket
Offgridtec_Steckdose_8-01-014885_Datenblatt.pdf
Download
Manufacturer:
Offgridtec
Product Type:
Plug
Protection type:
IP65
Manufactuerer Information
Offgridtec GmbH
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
Germany
Mail: info@offgridtec.com
Tel.: +49 8721 9199400
8-01-014885
Beträgt die Ausgangsspannung bei 12V input Standard-5V?
Ja. Die USB Steckdosen haben 5V Spannung.
Kann man diese Steckdose an einer 25.6v LiFePo4 Batterie (29.2V Ladeschlussspannung) betreiben?
Ja, dies wäre möglich. Die Betriesspannung liegt zwischen 12V und 32V DC.
