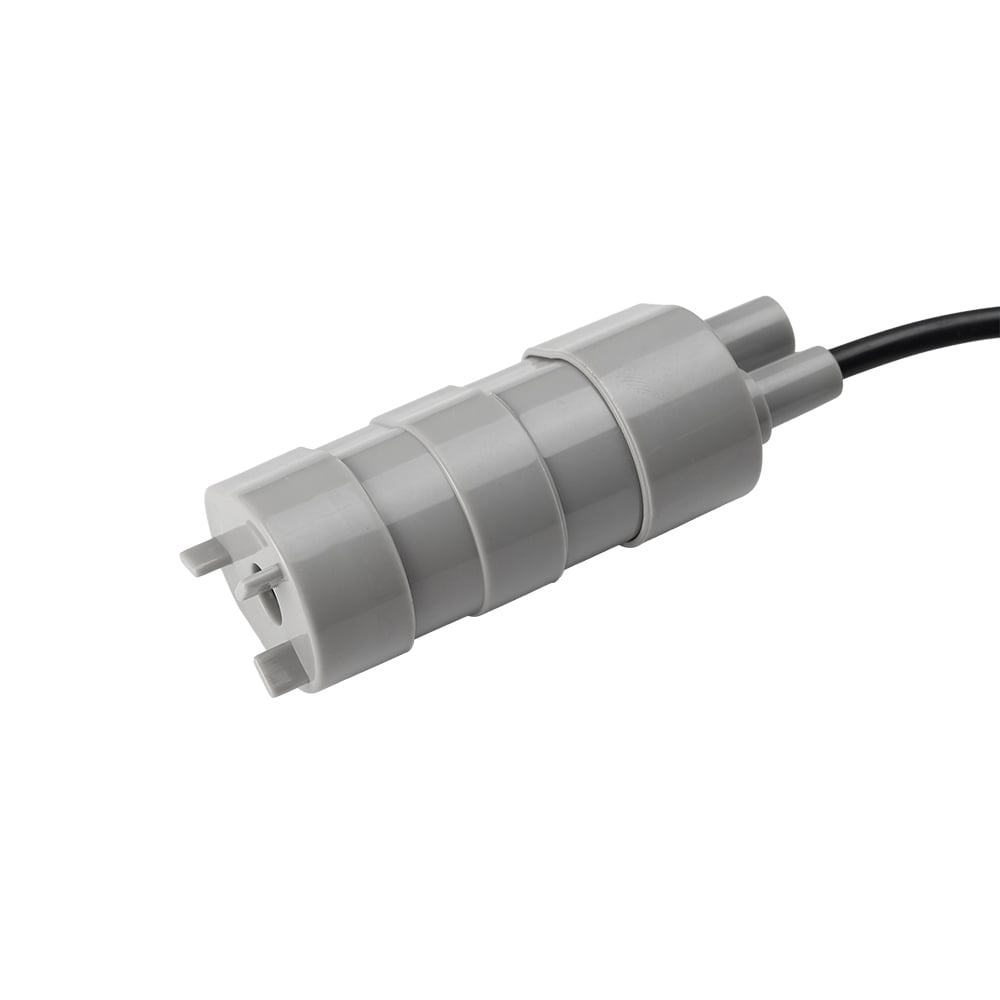

Offgridtec Submersible pump 12V DC 10l 0.5 bar max. 5m pumping height
With the compact 12v submersible pump from Offgridtec you can pump out liquids easily and without great effort. In contrast to external models, the versatile pump is immersed directly in the medium to be pumped. It delivers a flow rate of 10 liters per minute and can generate a maximum pressure of 0.5 bar. You can use the pump conveniently when camping, in your motorhome or at home.
about the submersible pump
- Cable length: 1.5 m
- Material: ABS plastic
- Compact and space-saving
- Versatile in use
- Operating fluid: water, alcohol, diesel, other liquids
- no acidicacidic or alkaline solutions
- Long service life of >2000 h
- Noise level: <40 dB
Notes
1. This water pump is a direct current pump. Therefore, it is necessary that the voltage source has direct current, similar to solar power, battery power or a DC power supply. The input voltage should be within the specified nominal voltage range.
2. It is important to ensure that there is a continuous flow of water through the device to ensure smooth operation. Try to avoid the pump coming into contact with acidic or alkaline solutions. Furthermore, you should not use the device in liquids with impurities or magnetically conductive particles larger than 0.5 mm. If the water quality is not optimal, we recommend that you clean the pump chamber regularly.
Technical data
- Voltage: 12v dc
- dc current: 1.2 A
- dc rated power: 14.5 W
- Starting voltage: 3v dc
- Power source: Wired
- Max. Pump pressure: 0.5 bar
- Max. Delivery rate: 10 l per minute
- Max. Flow rate: 600 L/h
- Protection class: IP68
- Motor: rs-385 11000 rpm
- Operating temperature range: -40°C - +60°C
Scope of delivery
1x Offgridtec Submersible pump 12v dc 10l 0.5 bar max. 5m pumping height
