Offgridtec® Solar-Direct 400W HMS-400W-1T balcony power station

The Solar-Direct balcony power station from Offgridtec(MPN 019460) presents you with an efficient solution for generating part of your household electricity yourself and significantly reducing your overall electricity costs.in addition to 2 monocrystalline solar modules with an output of 200w each and the hms-400w-1t micro inverter from Hoymiles, this system includes all the accessories you need to easily connect the components.

How does a balcony power plant work?

The Offgridtec balcony power station is a compact Solaranlage consisting of 2 solar modules and a matching Hoymiles micro inverter to feed the electricity generated into the home's own power grid. The inverter is connected directly to the solar connectors on the module. The connection cable is connected via the inverter's Betteri connection and routed directly to the socket. No special settings are required to use the solar power generated in the home's power grid. If electricity from other sources is available in the house, this is used preferentially and supplemented by mains power if required.

The balcony power station contains:

• 1x Offgridtec® Balcony solar module set 12v 2x 200w with metal cable ties
• 1x Hoymiles hms-400w-1t WiFi module inverter

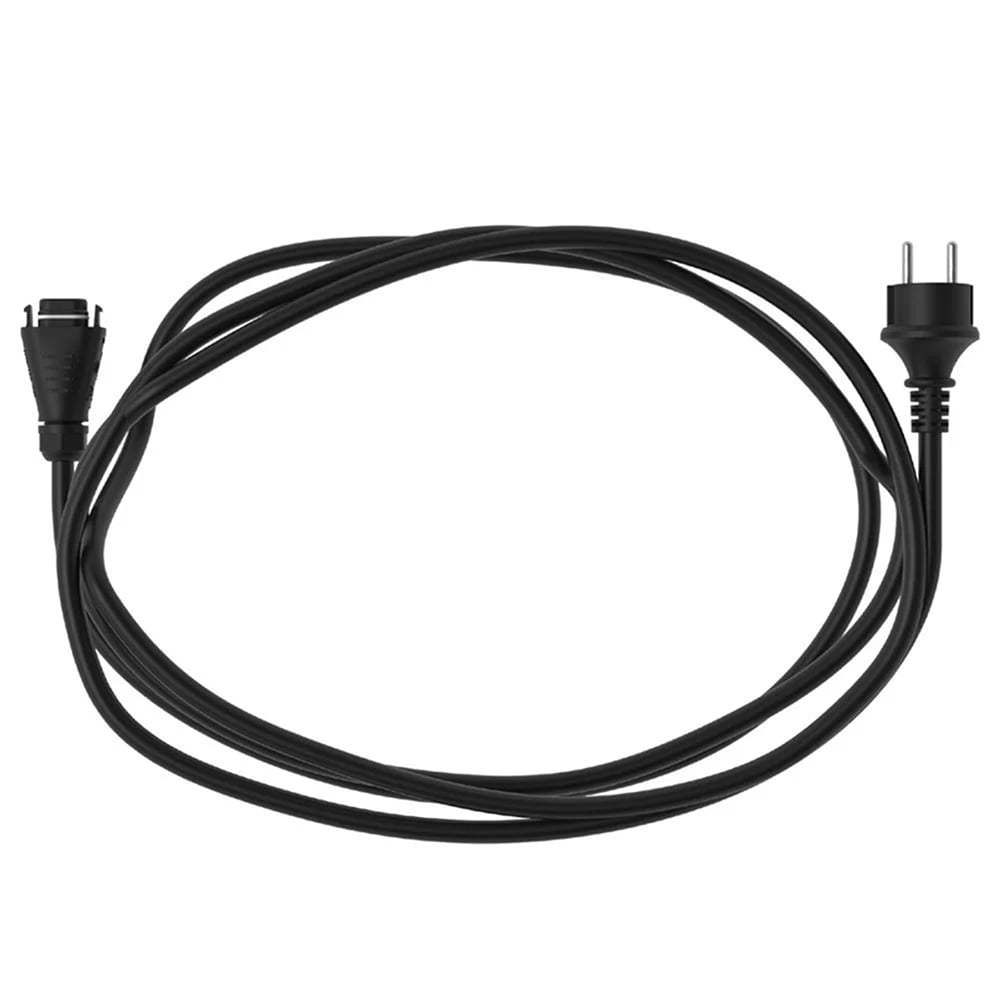

• 1x Hoymiles hms connection cable Field Connector Plug&Play 5m

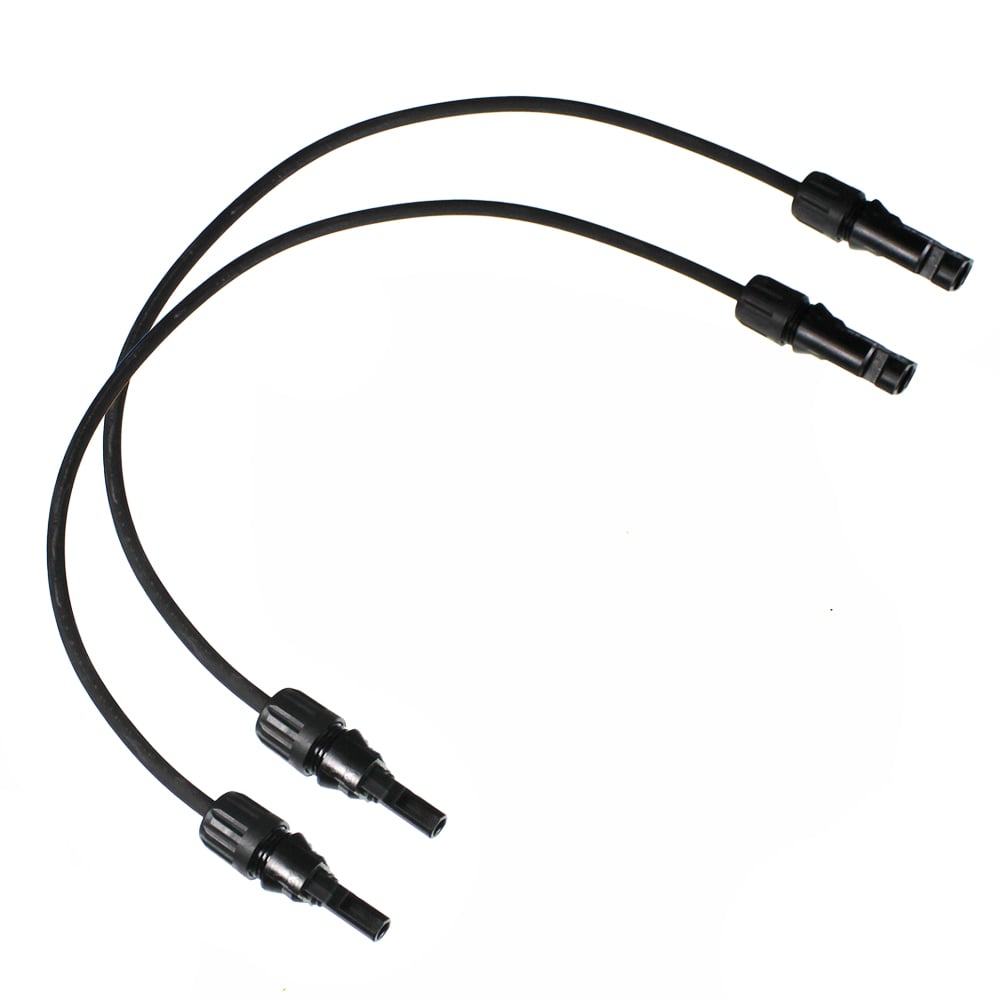

• 2x Offgridtec 5m 6mm² MC-4 connection cable plug/socket extension

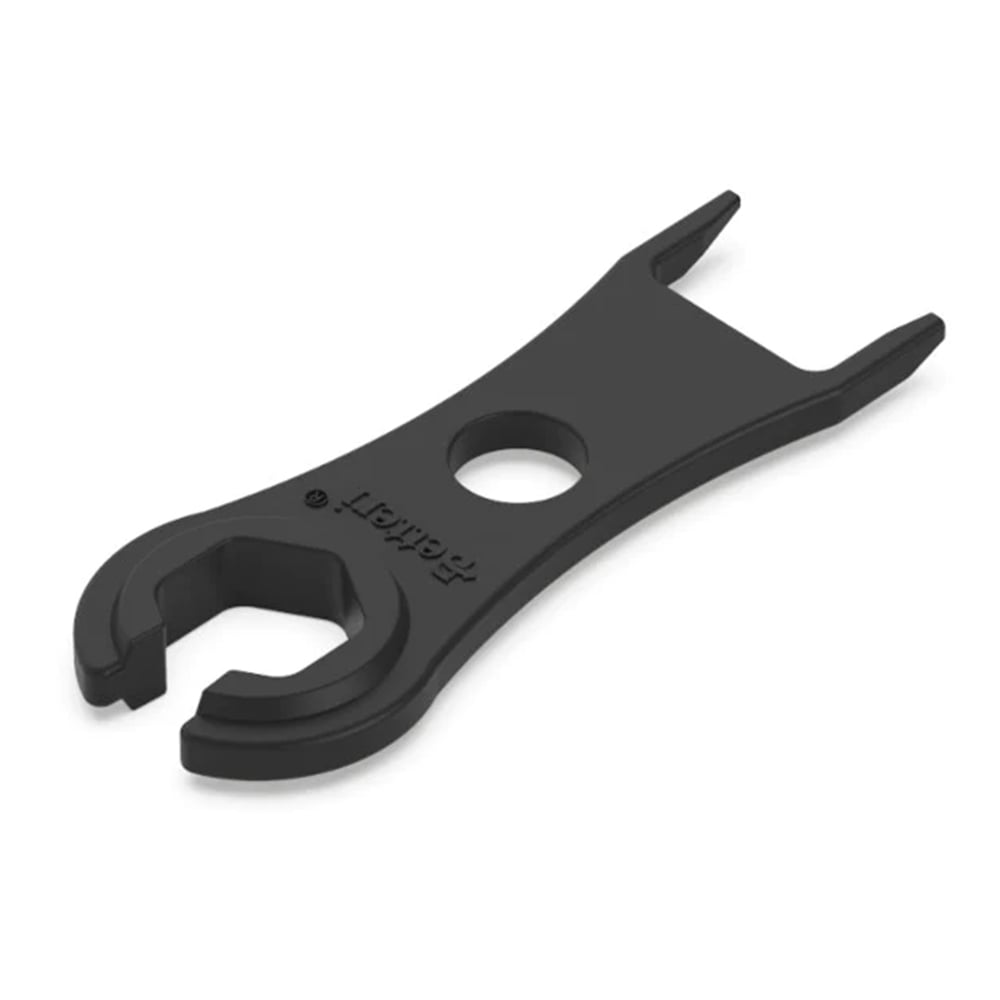

• 1x Hoymiles disconnect tool for ac box hms microinverter disconnect tool

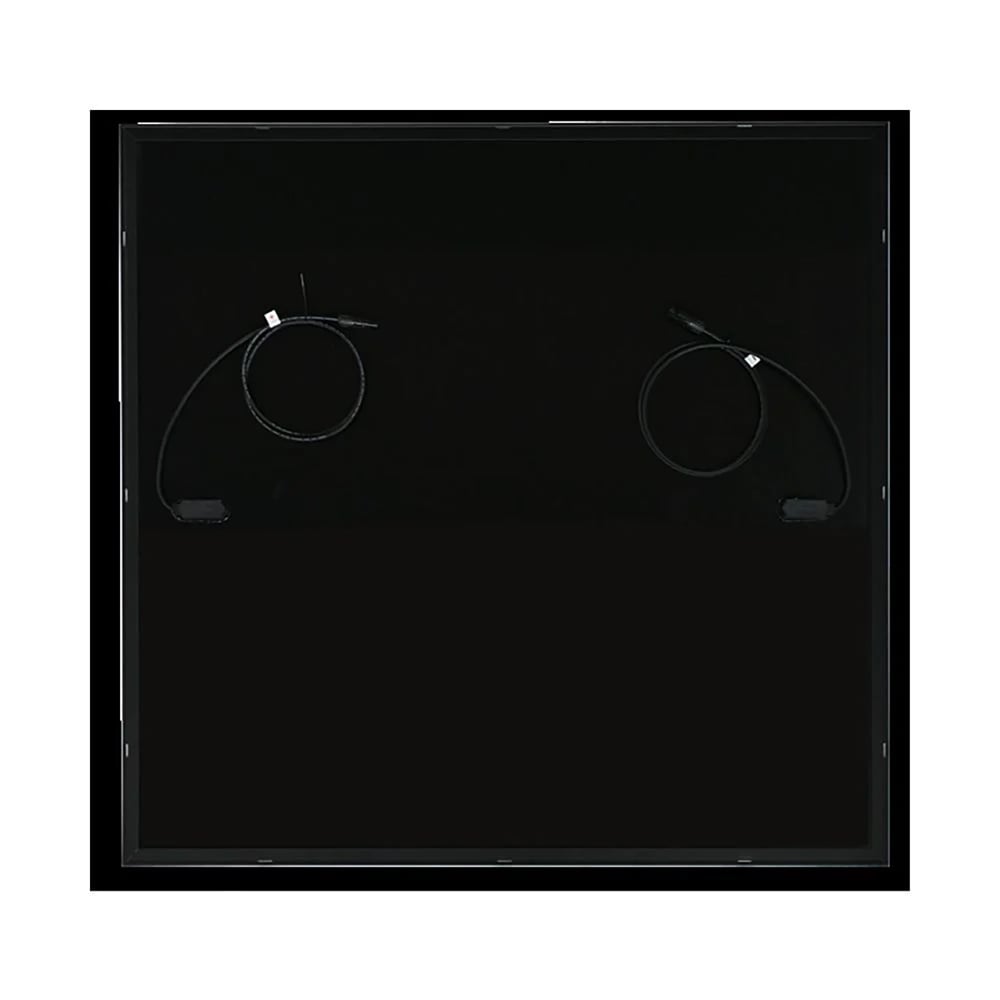

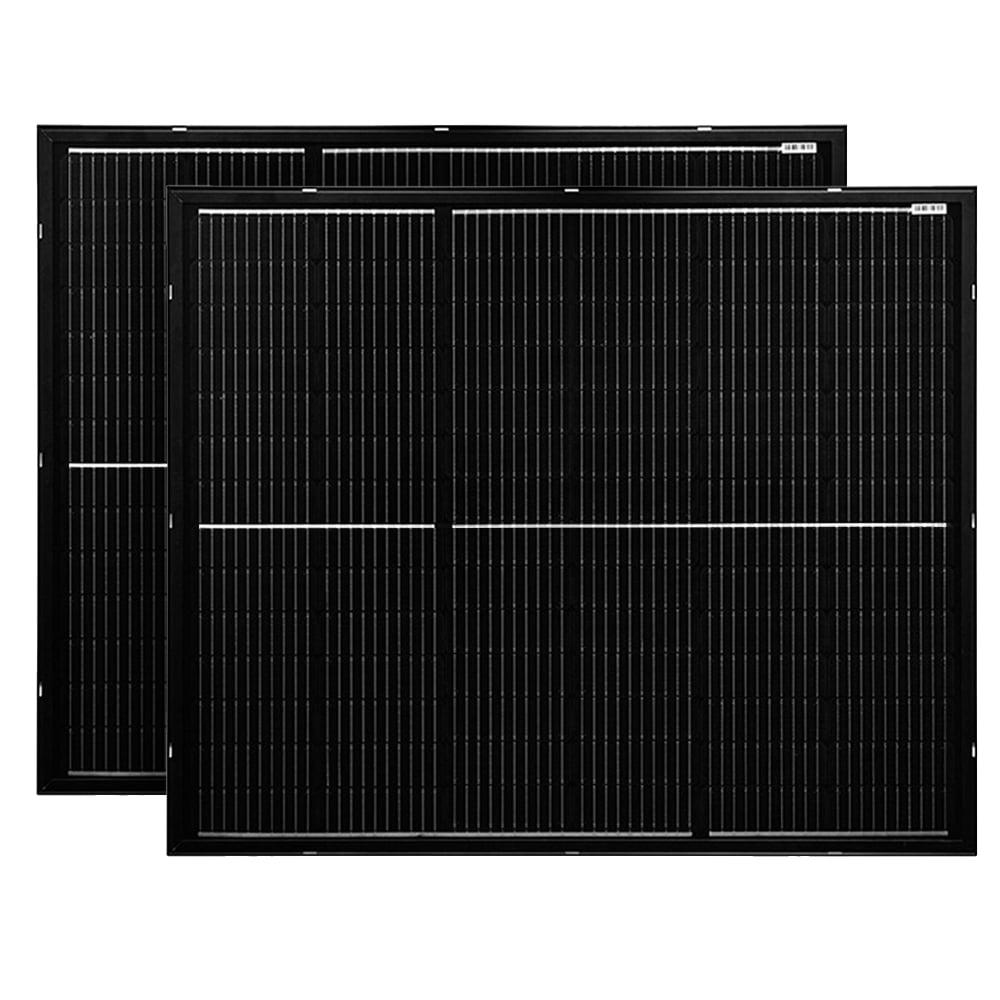

Offgridtec Balcony solar module set

The Offgridtec Balcony solar module set consists of two solar modules, each with an output of 200w, which work with monocrystalline solar cells and a remarkable efficiency of 22.7%.

• Powerful, monocrystalline solar cells
• 8mm thin aluminum frame
• Incl. metal cable ties for easy installation

Technical data per module

• Power: 200w
• Module voltage (Vmp): 24.2 V
• Max. Current (Imp): 8.27 A
• Open circuit voltage (Voc): 28.3 V
• Short-circuit current (Isc): 8.68 A

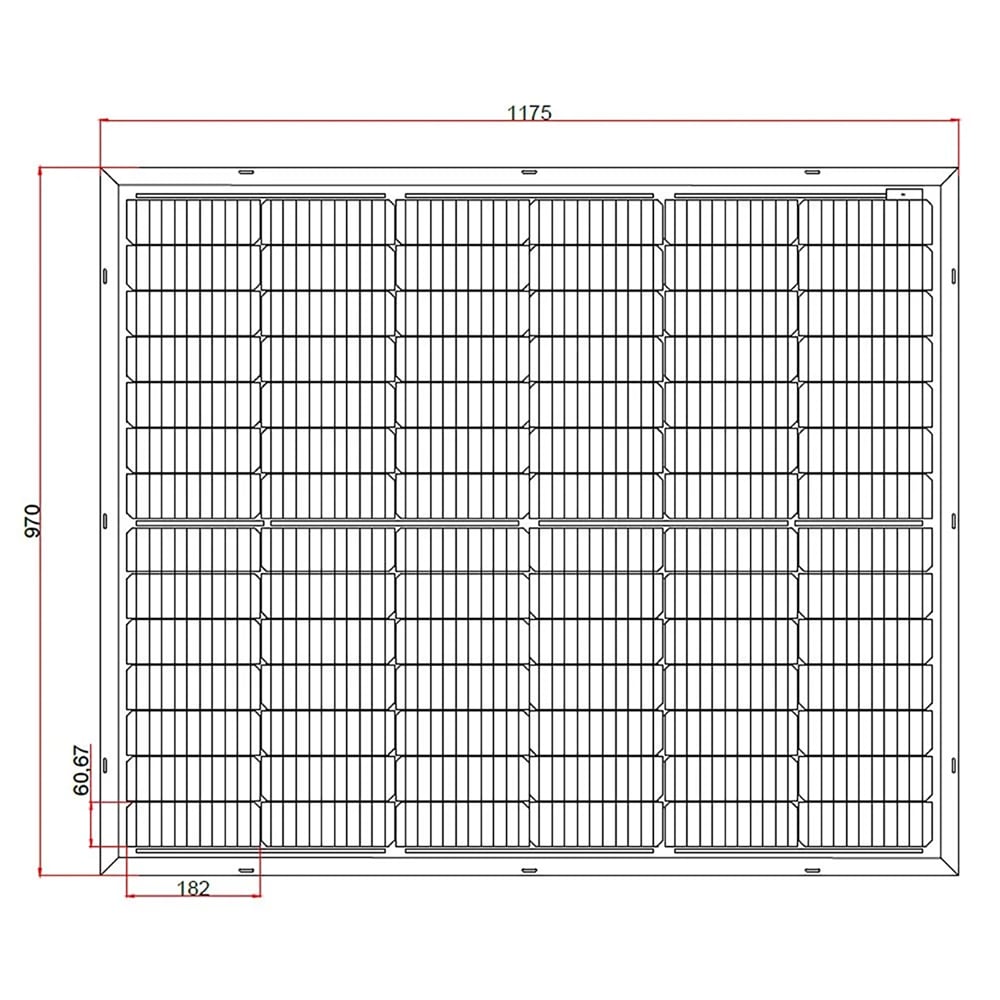

• Dimensions: 1175 x 970 x 8mm
• Weight: 9,8kg

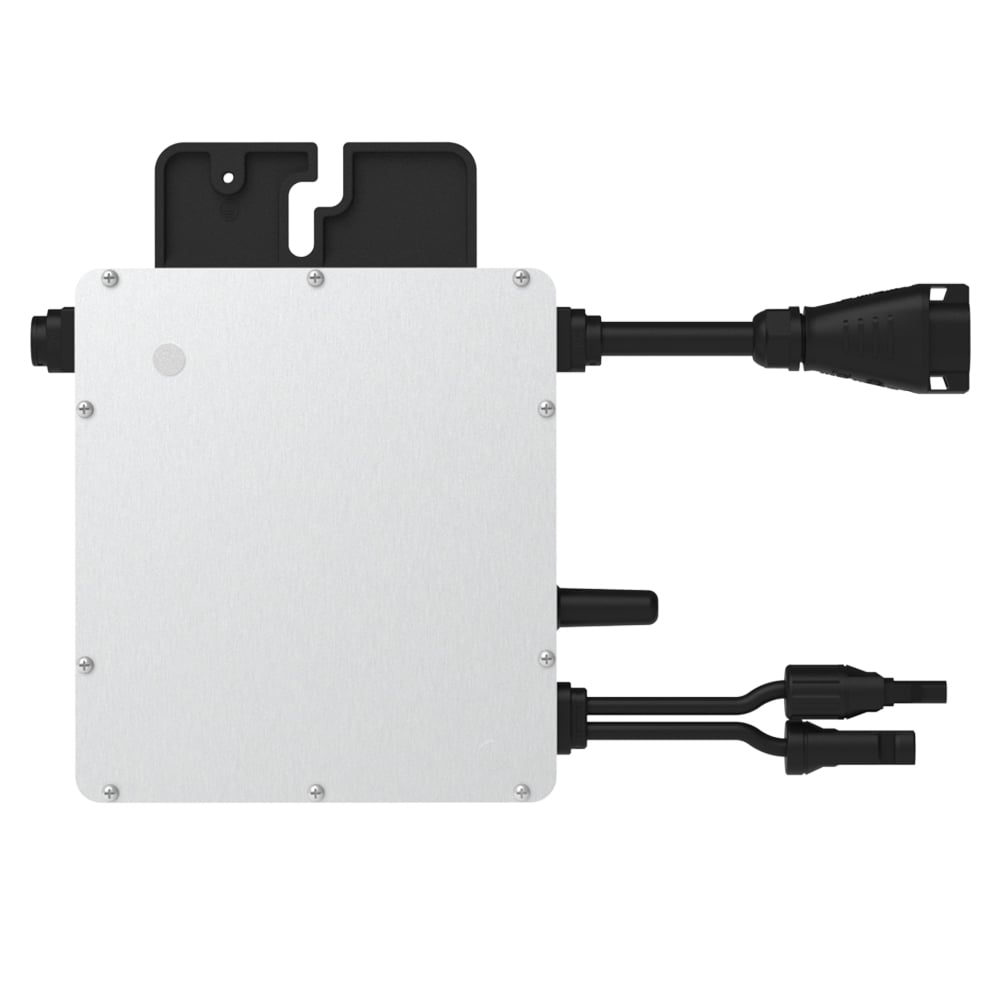

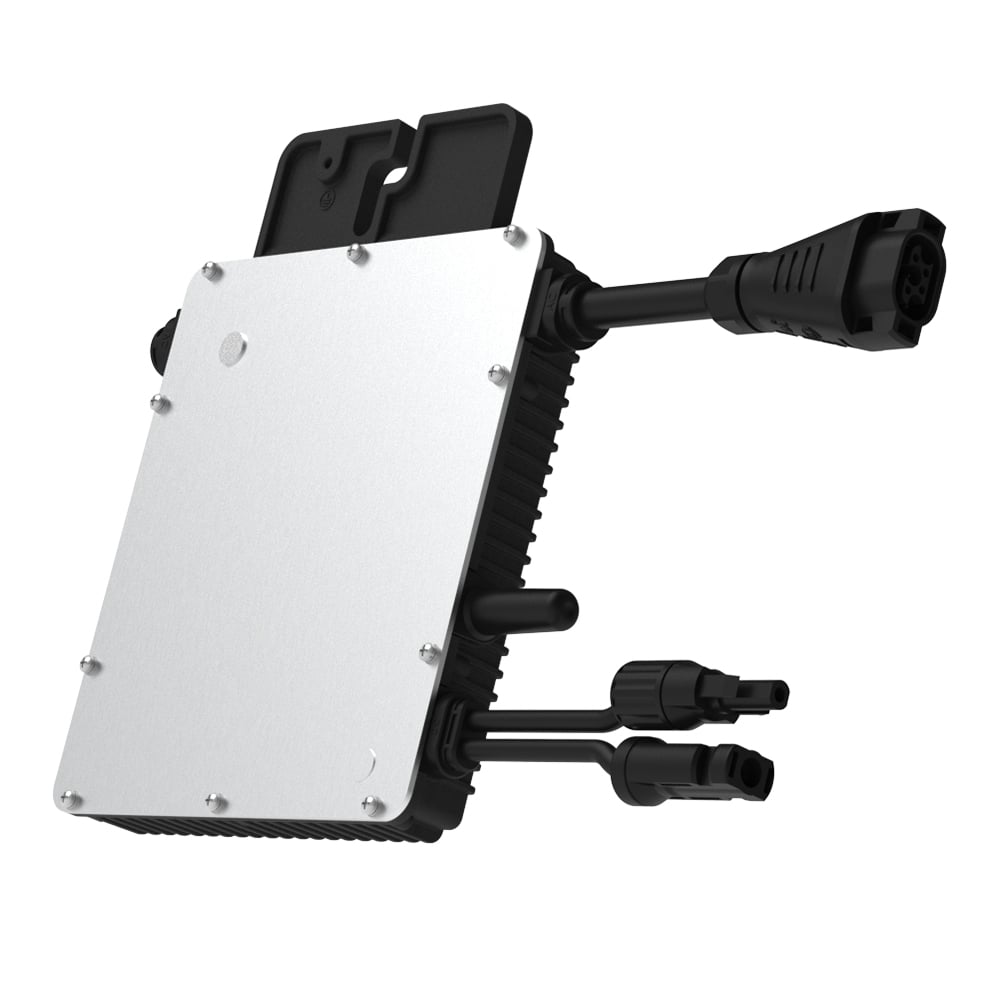

The hms-400w-1t

The Hoymiles Hms-400w-1t micro inverter has been specially developed for mini solar systems on open spaces such as balconies. With an output power of 400w, it is suitable for solar power production in the range of 320 to 540+ watts.

• Integrated WiFi module
• Plug-and-play design for balcony solar systems
• Output power adjustment function to customize the power output
• Minimization of the effects of e.g. shading, dust or aging through MPPT
• Peak efficiency of 96.7%

Technical data

• Number of MPPTs: 1
• MPPT voltage range: 16-60V
• Maximum input voltage: 65V
• Maximum input short-circuit current: 25A
• Nominal output voltage/range: 230v / 180-275V

Balcony power stations in Germany

There is currently no law or ordinance in Germany that regulates the generation of solar power for purely personal use. The maximum limit of 600w ac PV power is a reserve value which, according to the current VDE standard, can be fed into an existing socket circuit of a house without overloading it. Nothing is described for independent circuits without additional load. Every electrical installation should be VDE-compliant. However, operating a balcony power station via the standard earthed socket is not prohibited. Registration with the Federal Network Agency is mandatory. However, there are no known cases of fines for non-registration of balcony power stations or insurmountable problems with network operators. Compliance with and implementation of standards and obligations is the responsibility of the system operator. A great deal of technical and legal information can already be found on relevant websites.
