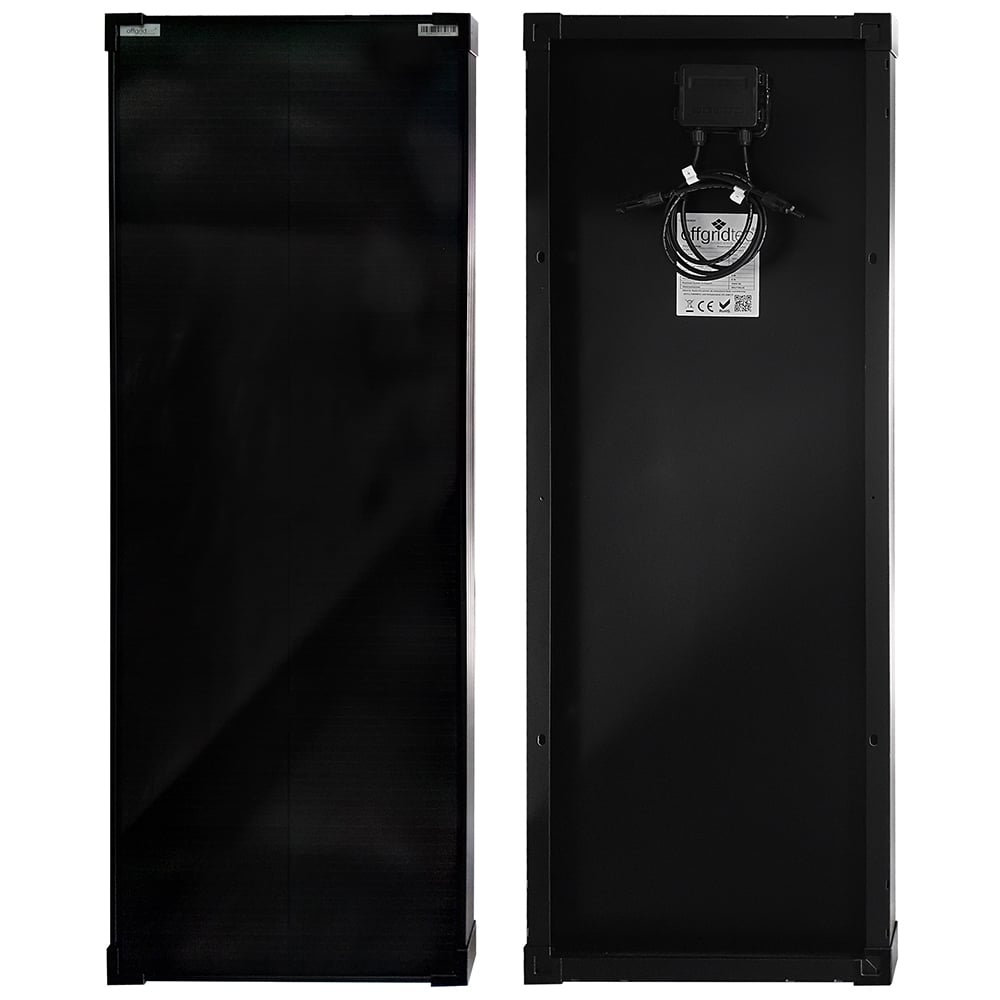

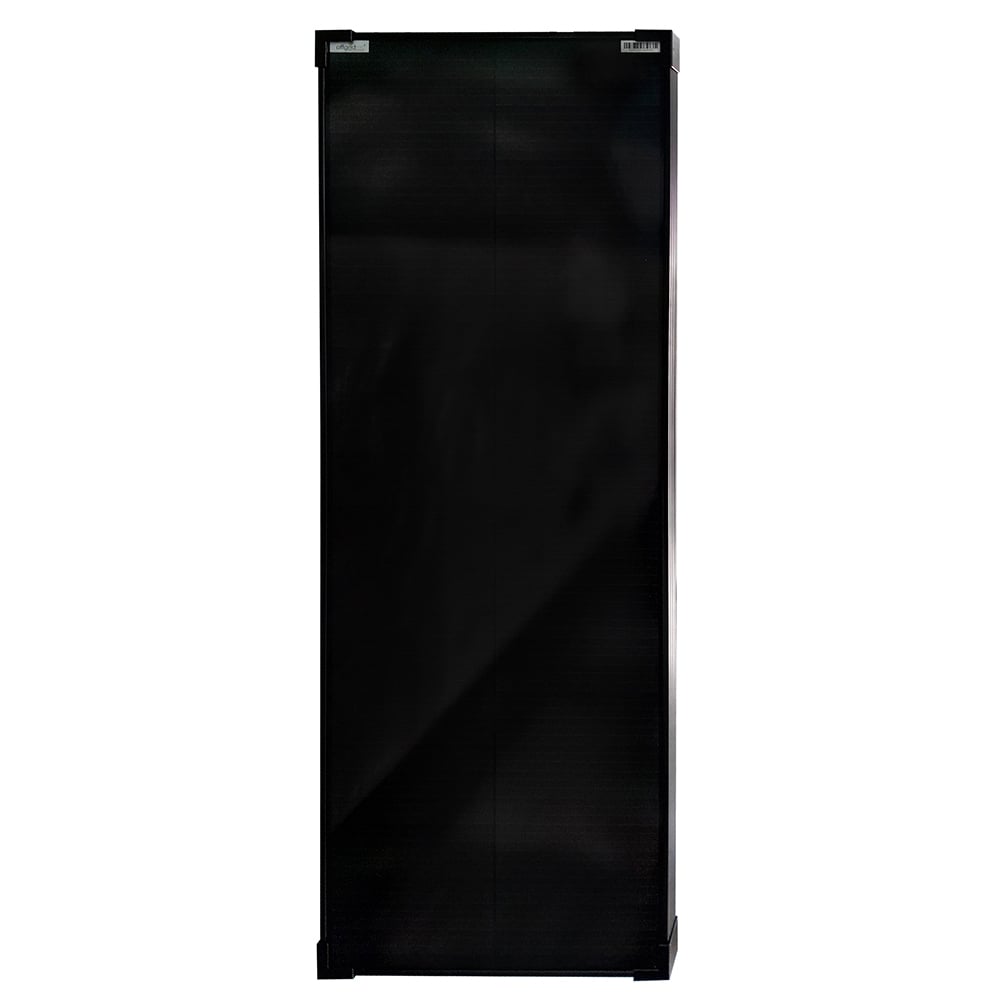

Offgridtec® OLP 100W V2 Solar Panel 19V Shingle Technology PERC

The 100wOffgridtecolp v2 (mpn 018475) combines overlapping wafer design and modern PERC technology. Its optimized performance, compact dimensions and modern look make it ideal for 12v systems and various applications that require a powerful, space-saving power source.

It is the improved version of the popular olp 100w 12v solar module (mpn 3-01-011070), which offers optimal performance and a compact design for flexible installations. The increased short-circuit current and the increased module voltage significantly boost the overall performance. In the new version, the solar modules are equipped with both improved solar cells and 11 busbars, which leads to improved light absorption and reduces the effect of partial shading.

Unique features of the olp series from Offgridtec®

• Unique module design with overlapping wafer arrangement (overlapping design)
• Innovative PERC technology
• Less loss with partial shading
• Modern, homogeneous optics without visible conductor tracks
• High performance with small dimensions
• Cell efficiency of over 22.68%

Overlapping design

Overlapping in the wafer design of monocrystalline solar modules is crucial for their extraordinarily high module efficiency. It enables more precise use of the available surface area, minimizes power losses through reduced lead resistance and limits material losses during production. The targeted arrangement of the wafers effectively minimizes empty spaces between them, thereby increasing the power density and optimizing the overall efficiency of the modules. This method is therefore particularly advantageous for Solaraapplications in rooms with limited space, as it maximizes energy generation per unit area.

Innovative PERC technology

PERC technology, also known as Passivated Emitter Rear Cell or rear-side passivation, is a key technology in Offgridtec olp solar modules that increases the efficiency of solar cells. It creates a dielectric layer between the conventional aluminium metallization and the silicon wafer layer on the back of the cell. A laser is applied to this layer to create tiny holes. This dielectric layer reflects light, which normally penetrates through to the rear side without generating charge carriers, back into the solar cell. This gives photons an extra chance to generate electricity. PERC technology improves efficiency across different wavelengths, increases the likelihood of electrons contributing to electricity generation and helps to reduce system costs and increase energy yield per unit area.

Technical data:

• Generator output: 100 Wp
• Module voltage (Vmp): 19.4 V
• Max. Current (Imp): 5.16 A
• Open circuit voltage (Voc): 22.90 V
• Short-circuit current (Isc): 5.46 A
• Max. System voltage: 1000v DC
• Cell type: Monocrystalline PERC
• Power tolerance: +/- 3%
• Operating temperature: -40 to +85°C
• Cells per module: 2 x 34
• Cell size: 210 x 33.7mm

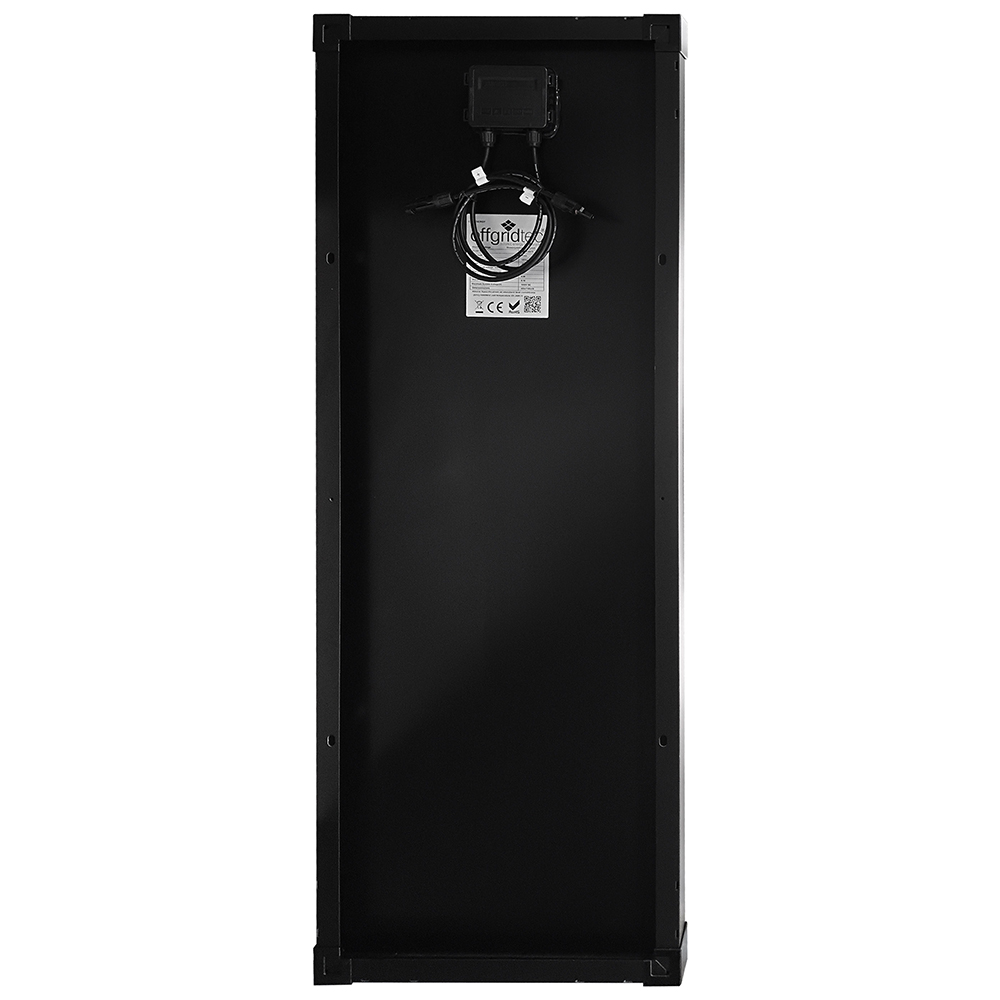

• Accessories: xc802 + 0.9m cable + MC4
• Dimensions: 450 x 1195 x 35mm
• Weight: 6,28 kg

Scope of delivery:

1x Offgridtec® olp 100w v2 19.4v solar panel 12v shingle technology PERC
