Offgridtec mTriple camper solar system with 1 x 180W 45/30/350 VBCS Triple Charger and 5748 VPC Jupiter combi panel

The mTriple l solaranlagen offer the ideal power supply for your motorhome or camper. The combination of the vbcs Triple from Votronic and the OlP solar module from Offgridtec provides a reliable power supply and optimum yields. The permanent supply is ensured in three different ways. Charging from the mains while stationary, while driving with the help of the charging booster, and the combination of solar module and MPPT charge controller in sunshine.

The compact combination of the vbcs and the highly efficient solar module is ideal where installation space is limited. The system is not only suitable for stand-alone operation, and with the framed solar panel it is also predestined for use on expedition vehicles.

Features of the mTriple l:

• Average daily yield of 720Wh or 1440Wh (March - October)
• Permanent power supply with 3 charging options
• Device combination of mains charger, charge booster and solar controller
• Suitable for all common battery types (lead-acid, agm, GEl, lithium)
• Resistant framed solar module - ideal for motorhome & camper mounting
• With lCD display for monitoring system parameters
• Mounting hardware and cable package included
• All components perfectly matched
• quick and easy installation according to plug & play principle

The mTriple l solaranlage contains:

• Offgridtec OLP 180w V2 solar panel 23,4v with shingle technology PERC (1x or 2x depending on selection)
• 1x Votronic 3244 vbcs 45/30/350 Triple-CI device combination
• 1x Votronic 1247 Charge Control s Display
• or 1x Votronic 5748 vpc Jupiter 200 combo panel
• 1x Offgridtec Roof bushing 1-fold for cable diameter 13mm-18mm black
• 1x Dekalin Dekasyl Ms-5 adhesive set black
• 1x 8m Offgridtec Connection cable from solar module to charge controller
• 1x 1,5m 10mm² Offgridtec battery cable with MIDI fuse holder - screw terminal connection on M8
• 1x 2.5m 10mm² Offgridtec Battery cable with MIDI fuse holder - screw terminal connection on M8
• 1x Offgridtec 60a 58v MIDI fuse & 1x Offgridtec 80a 58v MIDI fuse
• additional for 2 modules1x Offgridtec Jacks & 1x Dekalin Adhesive Ms-5 black

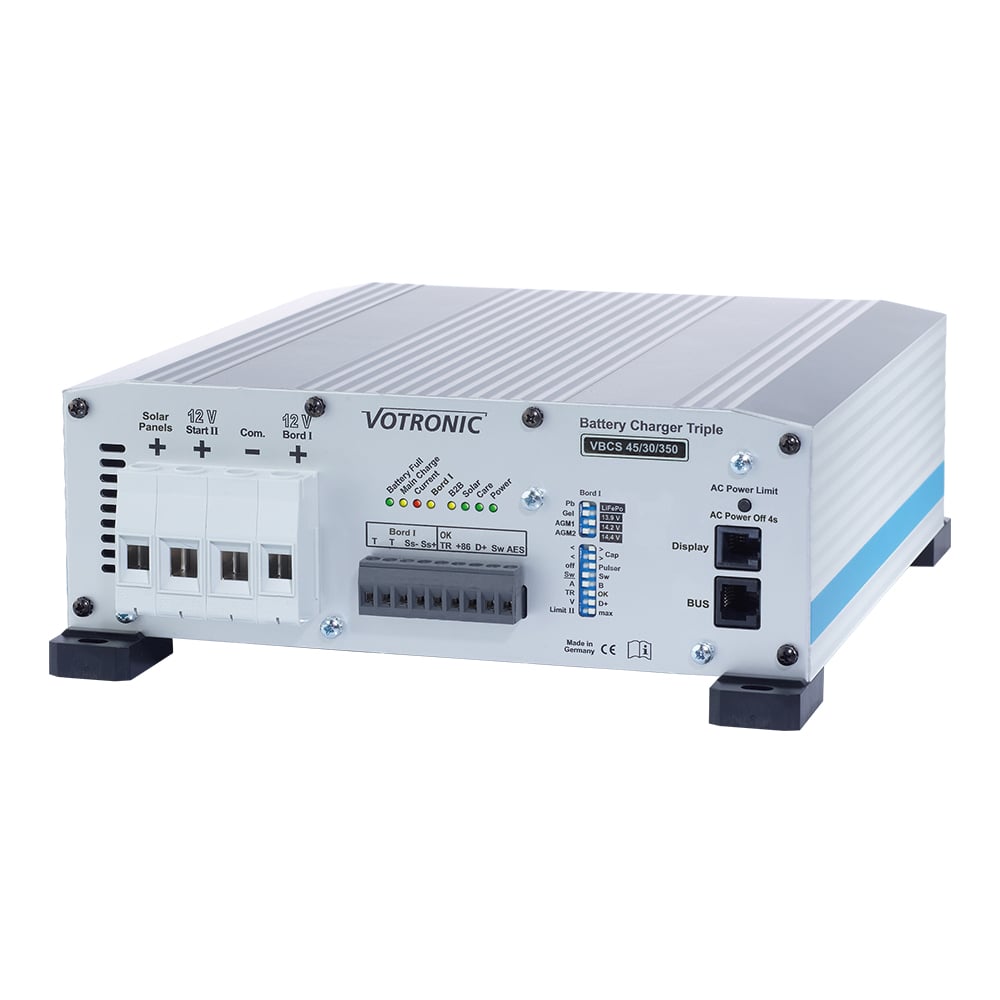

The electronics core - the Votronic vbcs triple device combination

The vbcs Triple ensures your permanent power supply in three ways. With the Pb mains charger with 30a you can charge your battery efficiently in standby mode from the mains. The VCC charging converter with 45a allows you to charge your on-board battery while driving. The third option offers the charging with solar energy with the help of the MPP solar regulator for max.350Wp.The supplied temperature sensor ensures the optimal charging of your batteries.

• PB mains charger:The powerful charging of the on-board battery and supply of the 12v consumers from the mains. The full charging power in the universal range of 110v/ac-230v/ac without switching is available worldwide even in case of large deviations of the mains supply (undervoltage/overvoltage, sinusoidal shape, frequency). Thanks to the long-term charging characteristics, the device can be constantly connected to the mains (operational, winter break)
• VCC charge converter:The powerful charge booster allows full charging of the on-board battery while driving. It increases/decreases the voltage to the required level so that the on-board battery can be charged with the optimal charging characteristic. It fully compensates for line losses and severe alternator voltage fluctuations, which are common in Euro 6 vehicles. The supplied 12v consumers are protected against overvoltage and voltage fluctuations.
• MPP solar controller:The MPP charge controller ensures a charge current gain of 10-30%, shorter charging times and the best possible power utilization of your solarasystem. The MPP technology automatically determines the maximum power output of the connected solar modules several times per second.

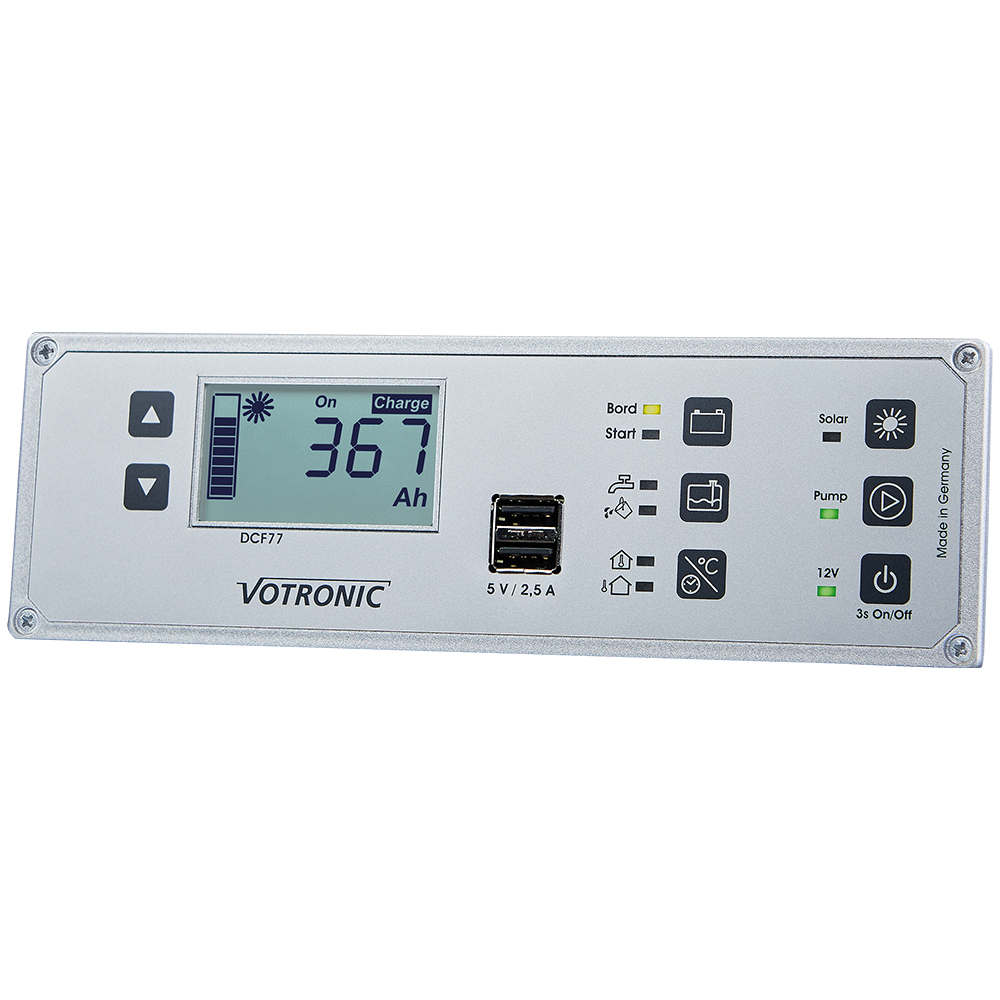

The complete system also includes either the Charge Control s display or the vpc Jupiter 200 combination panel from Votronic. With both displays, the current output of the solarasystem can be reliably displayed, monitored and controlled. The Jupiter panel offers the additional options of a battery computer and water management.

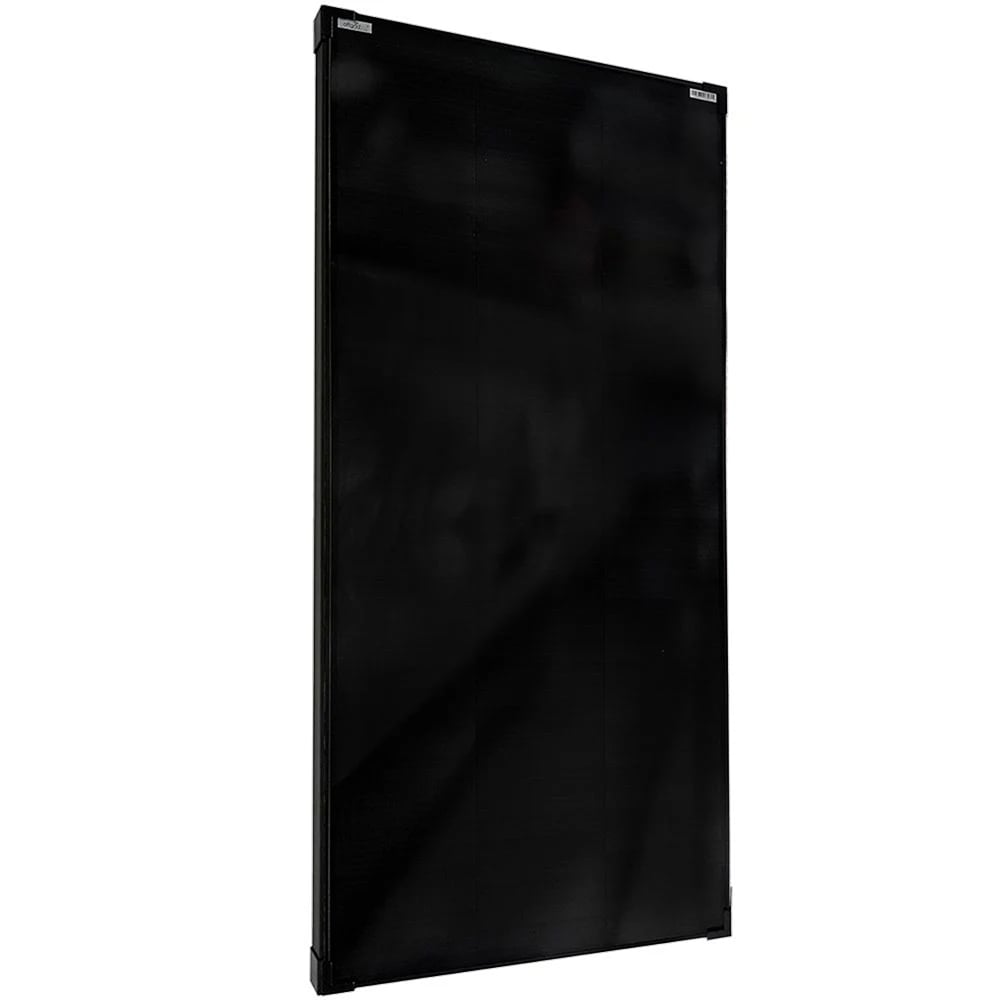

Highly efficient solar supply - the Offgridtec OlP 180w solar module

The powerful 12v OlP solar module with innovative overlapping design delivers optimal power flow through minimized power losses and significantly higher module efficiency through better space utilization. The innovative PERC technology or backside passivation provides improved absorption at longer wavelengths, e.g. at flat irradiation angles or in cloudy conditions, and the potential loss in case of partial shading is reduced. The modern, homogeneous optics without visible conductor paths perfectly round off this high-quality module.

• power (Pmax): 180wp
• voltage (Vmp): 23,4 V
• max. current (Imp): 7,70 A
• Short circuit current (Isc): 8,16 A
• max. system voltage: 1000V/DC
• Weight: 10,42 kg
• Dimensions: 670 x 1435 x 35 mm

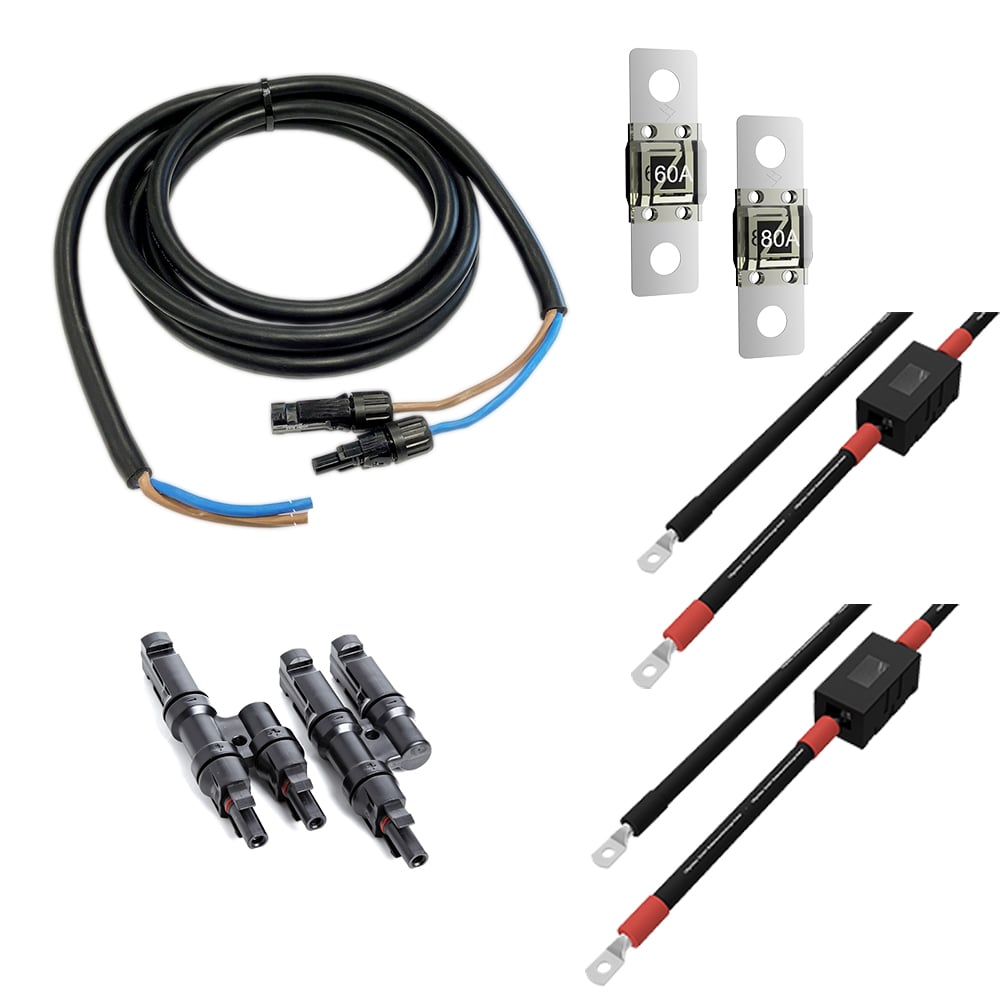

Optimal cabling - Manufactured in the Offgridtec cable manufactory

The mTriple solarasystem is supplied, according to the Plug & Play principle, with all the connecting cables required for commissioning the system. The cables are all manufactured in our own cable factory and have an optimal connection quality. The 8m long connection cable from module to charge controller allows a flexible installation, depending on the conditions on site. The battery cables have an integrated MIDI fuse holder to protect the charge controller and the technology behind it in the event of a short circuit or overcurrent. The appropriate fuses for the system are also included.

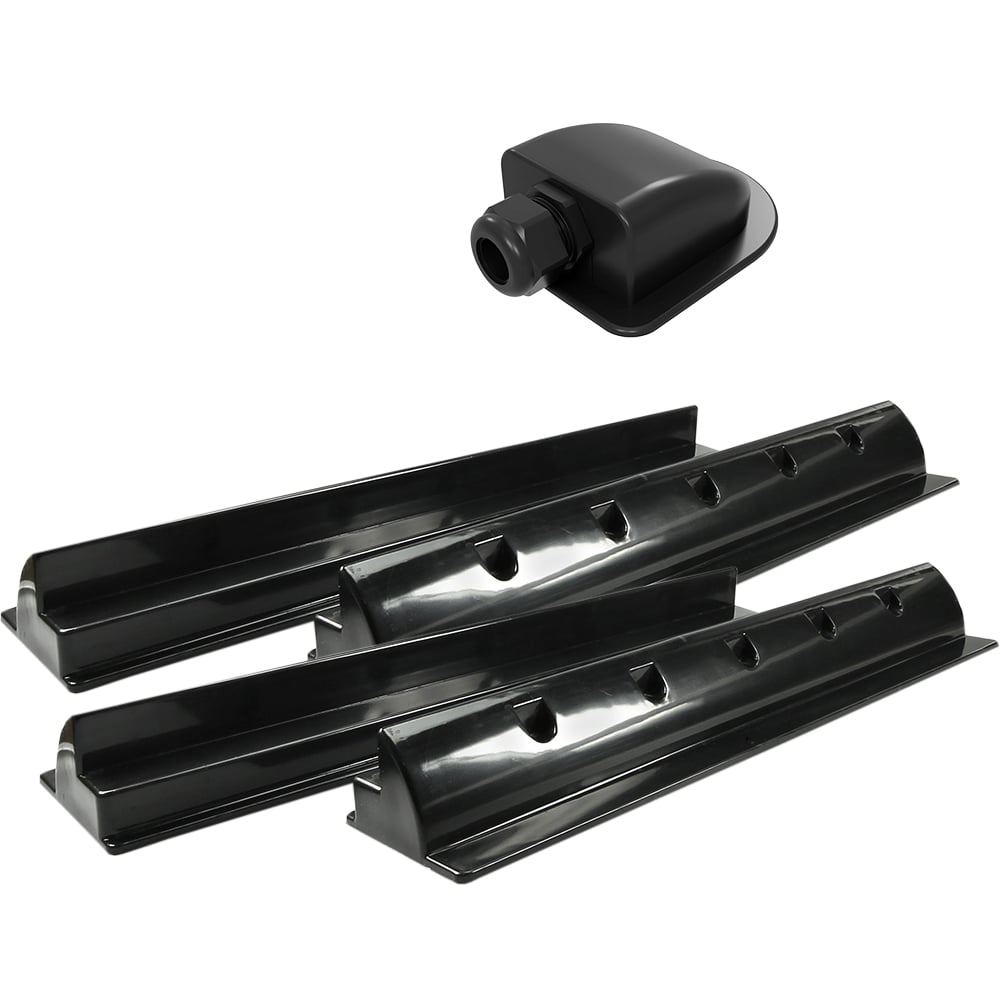

Mounting material included

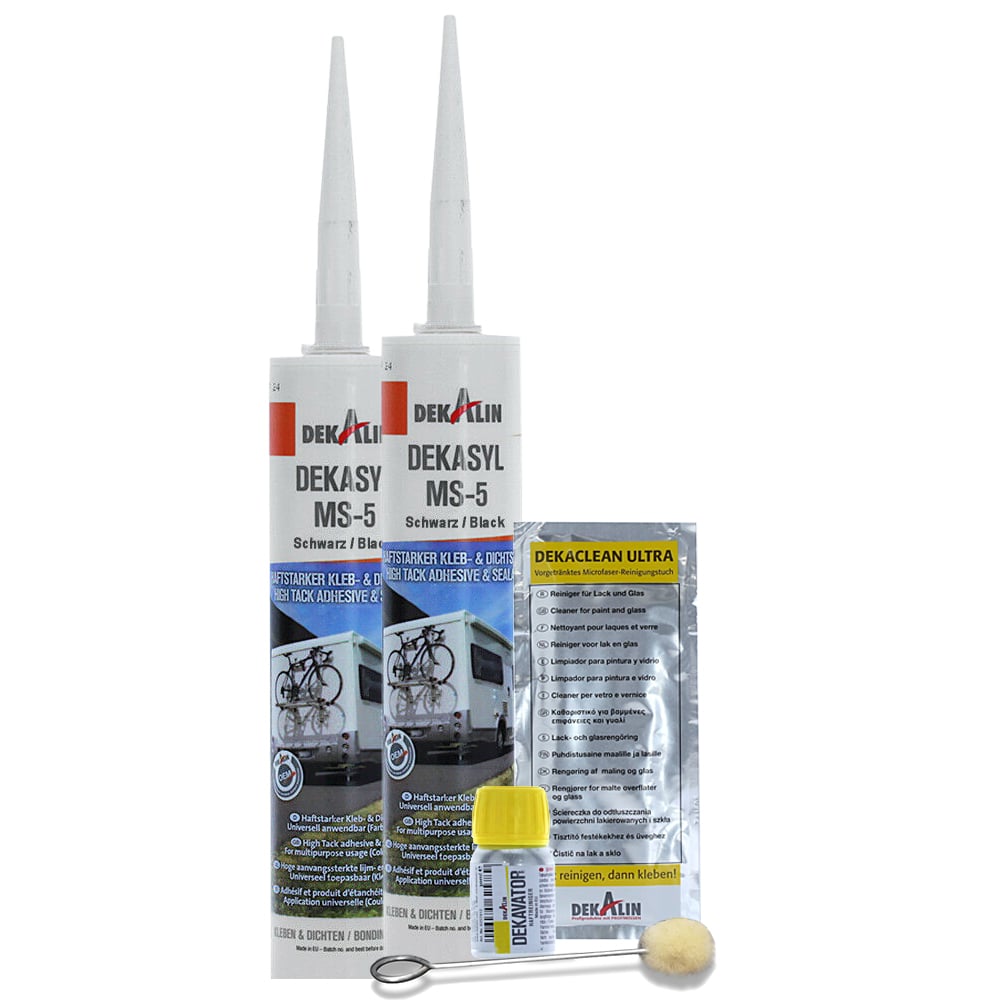

The complete system is delivered with all mounting material needed to mount it on your vehicle. The Dekalin adhesive set for bonding the solar modules to the vehicle roof contains, in addition to the white power adhesive, cleaning cloths, a wool wiper and the Dekavator bonding agent. The Offgridtec roof feed-through creates the connection between the solar module on the roof and the charge controller inside the vehicle. The version with two solar modules also contains a pair of junction boxes for parallel connection of the two modules.

Individual adaptations

As with all our complete systems, individual adaptations are possible. contact us! Please ask our customer service for possible costs.
