Offgridtec mPremium-XL 150W 12V Motorhome Solar System

The Offgridtec 150W Premium-L 12V (MPN 4-01-007500) is the perfect solar set for self-sufficient power supply in your motorhome or caravan and really leaves nothing to be desired. Installation takes less than two hours - practised hands are much quicker still. The expected daily output (April to October) is 600Wh/day on average (max. 1200 Wh on sunny days in Germany). The system is ideally suited for charging 12V AGM, GEL or lead-acid batteries.

150W complete motorhome set: simple, proven, high quality

The set contains all the components you need to charge your mobile batteries. The special thing about our solar systems for motorhomes: We use an exra solid mounting system that can simply be glued on. The module can be unscrewed from the spoiler at any time if you need to access the area under the solar module. This set is designed so that it can be extended by another module in the same power class.

We have also paid special attention to the critical point, the cable feed-through into the interior of the motorhome. The cable grommet supplied is made of the same sturdy material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely watertight and will last for many, many years.

Important performance features

• We are the only manufacturer to offer you a complete motorhome solar system in which all components are supplied from our own production - of course, as usual, in the highest Offgridtec quality.
• The Premium-Mobile system class is probably the best-selling motorhome solar system on the market and has already been successfully installed thousands of times. In addition, the Premium-Mobile series established itself on the market more than 5 years ago and has been improved again and again on the basis of customer experience and constantly supplemented with technical innovations.
• As a customer, you therefore benefit from a product that is highly mature and reliable at a solid price.

Components of the Offgridtec 150W Premium L 12V

• 1x Offgridtec PWM-Pro12/24-30 PWM Solar Charge Controller - 12V 30A PWM controller with display, load output, USB and more
• 1x Offgridtec 150W MONO V2 - monocrystalline solar module 018395

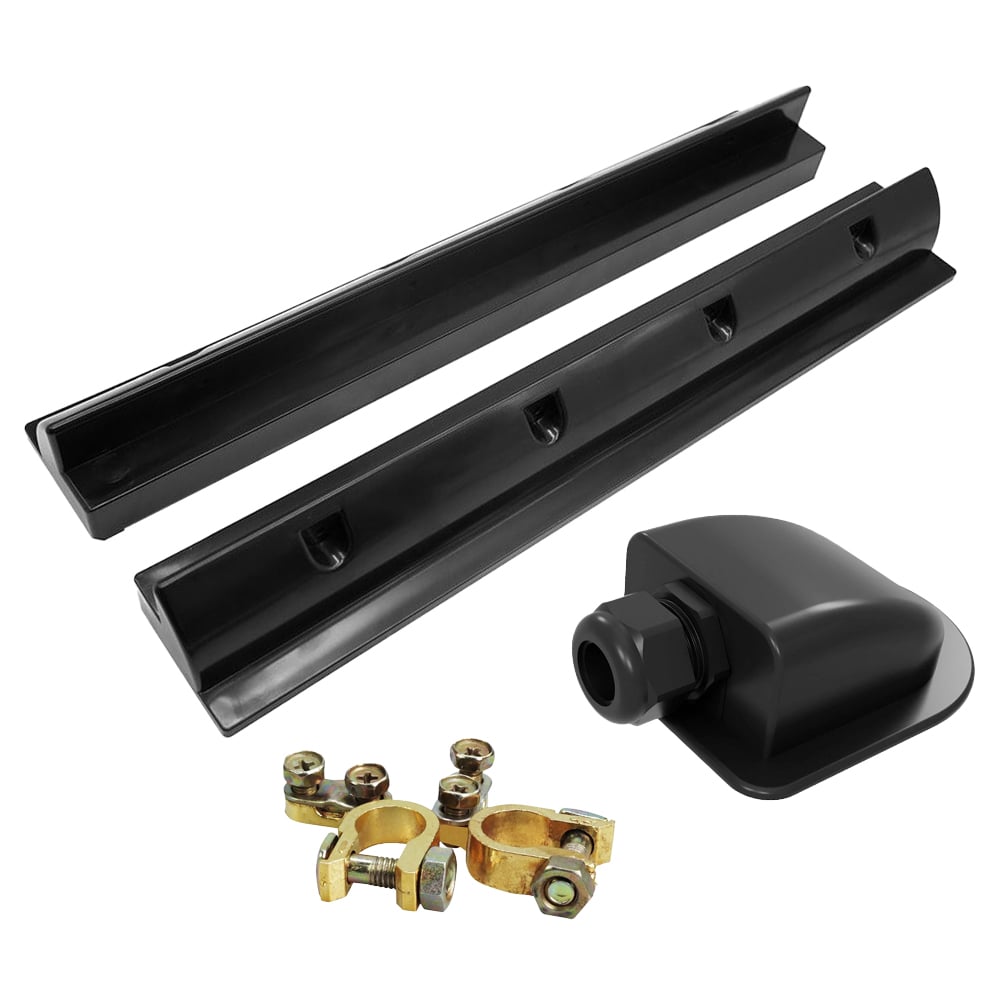

• 1x Offgridtec ABS cable entry 1-fold - black with waterproof PEG gland
• 1x Offgridtec ABS Mounting Spoiler 590mm black Pre-drilled incl. Stainless Steel Screws
• 1x Offgridtec Connection cable solar module to solar charge controller in motorhome design
• 1x Offgridtec 1,5m 10mm² Battery connection cable with MIDI fuse holder - Solar charge controller to battery connection cable
• 1x Offgridtec Battery poles clamps (1 pair)

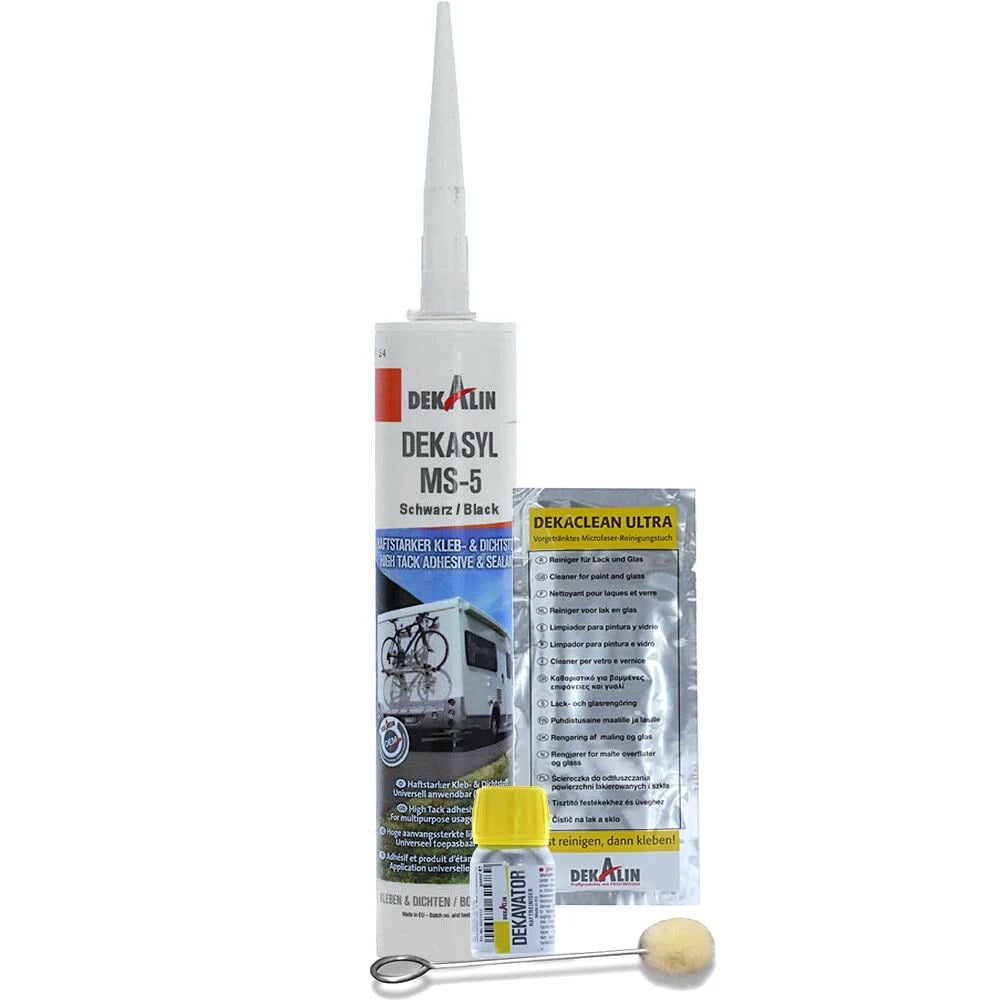

• 1x Assembly adhesive set with instructions and necessary accessories for pre-treatment

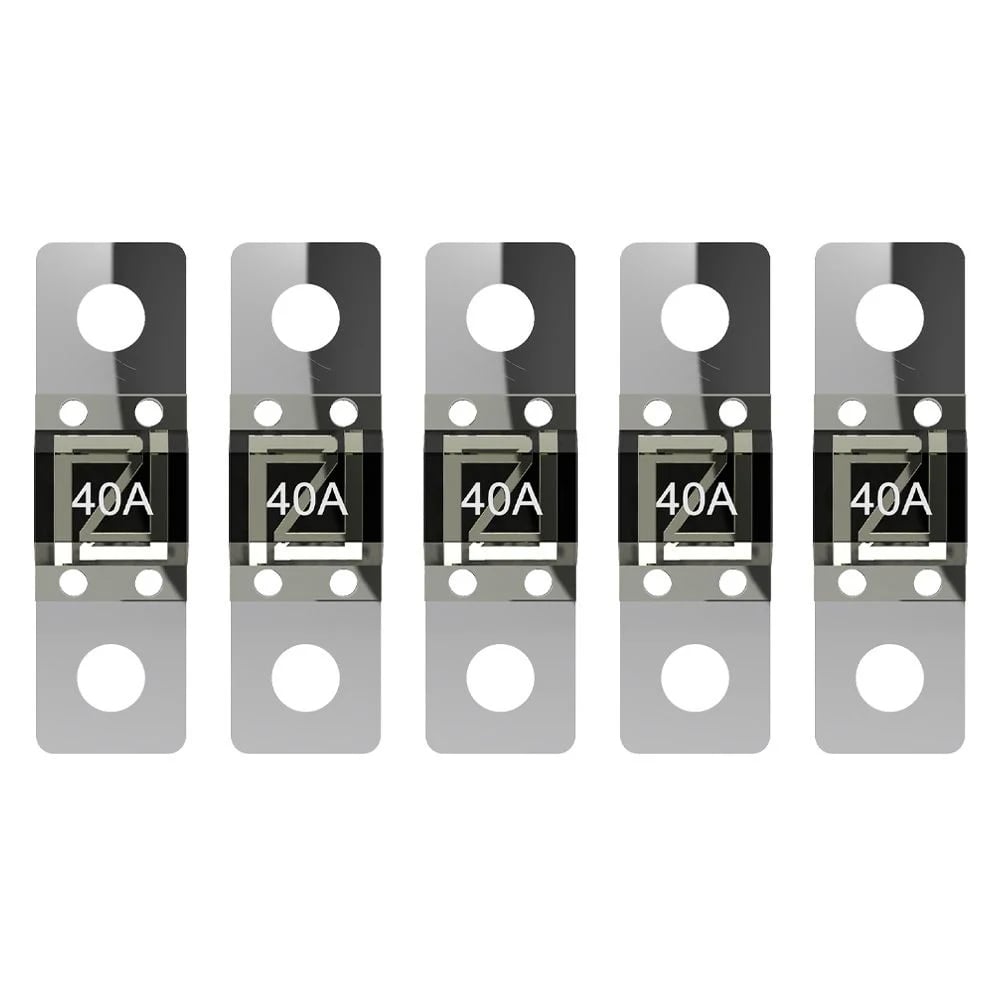

• 1x MIDI fuse 40A 58V

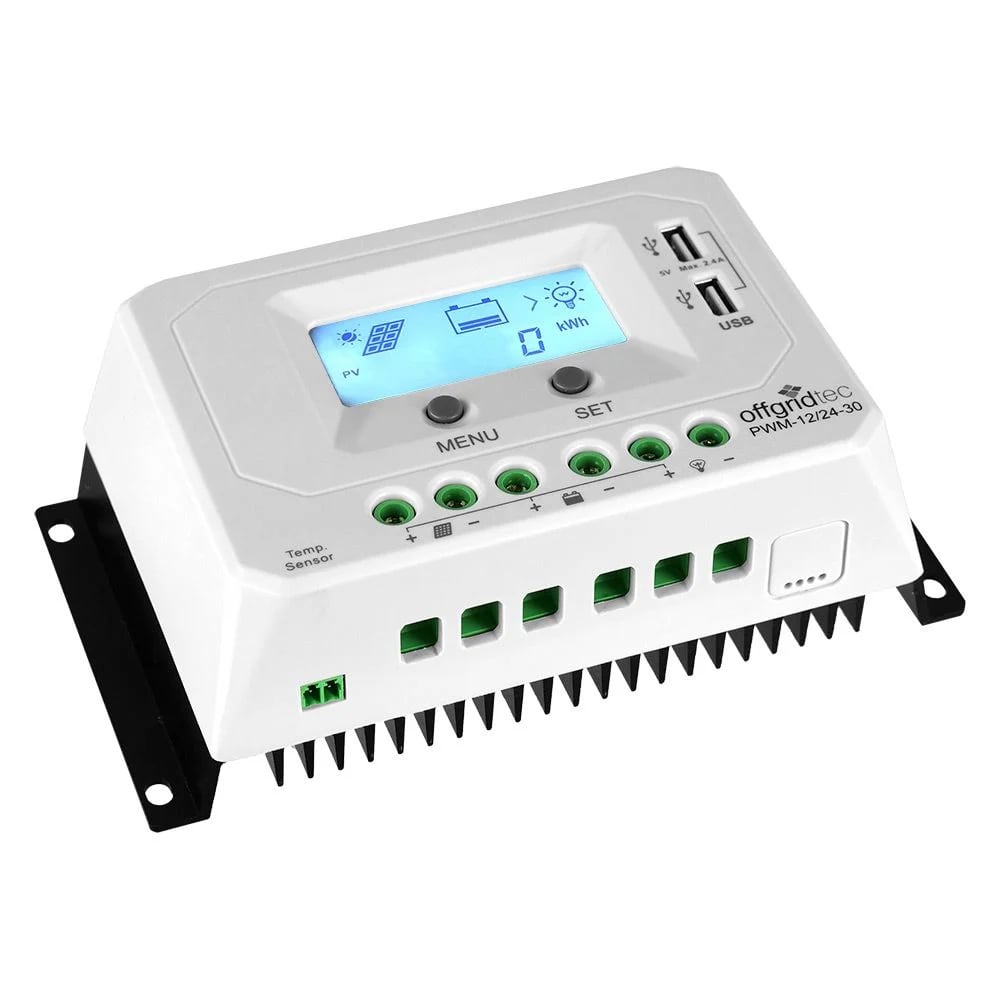

The Offgridtec PWM-PRO 12/24-30 Solar Charge Controller

The Offgridtec PWM-Pro 12/24 charge controller series offers a large, convenient LCD display and works with the latest charging technologies. A large display informs the user about all operating states with the help of symbols. The state of charge is visually displayed in the manner of a fuel gauge. Data such as voltage, current and state of charge can also be shown digitally as a number on the display. In addition, the controller has a KWh counter that the user can reset himself. A controllable load output and 2 USB 5V outputs are also integrated into the controller and supply your 12V and 5V DC consumers with power. Please refer to the documentation of the charge controller for the complete range of functions.

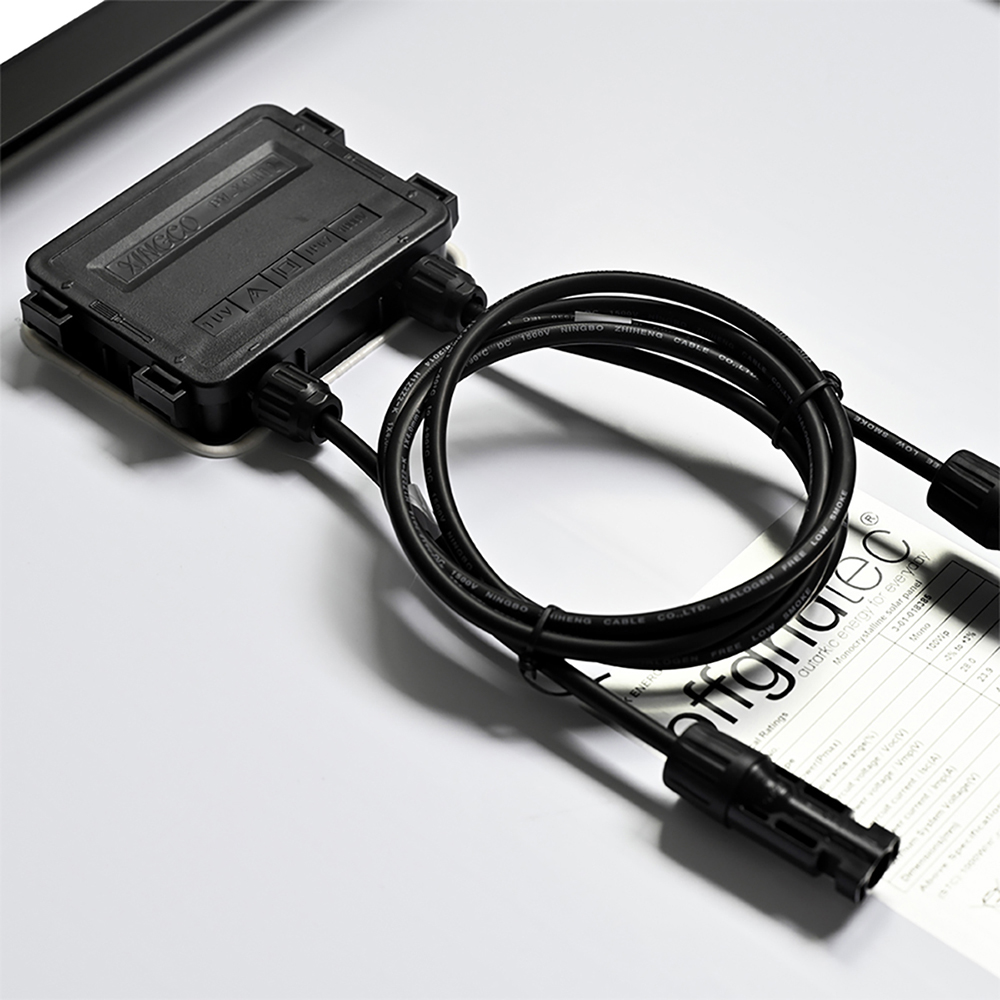

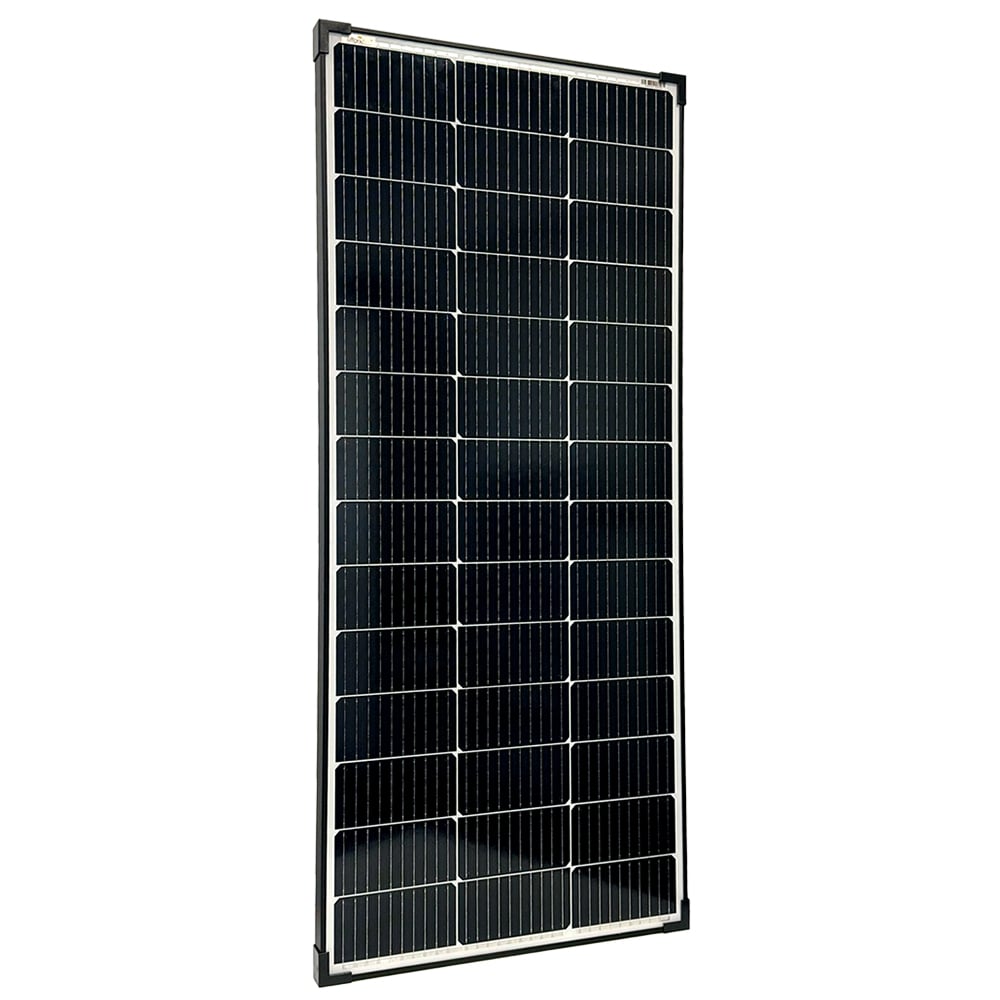

The Offgridtec 150W MONO V2 solar panel

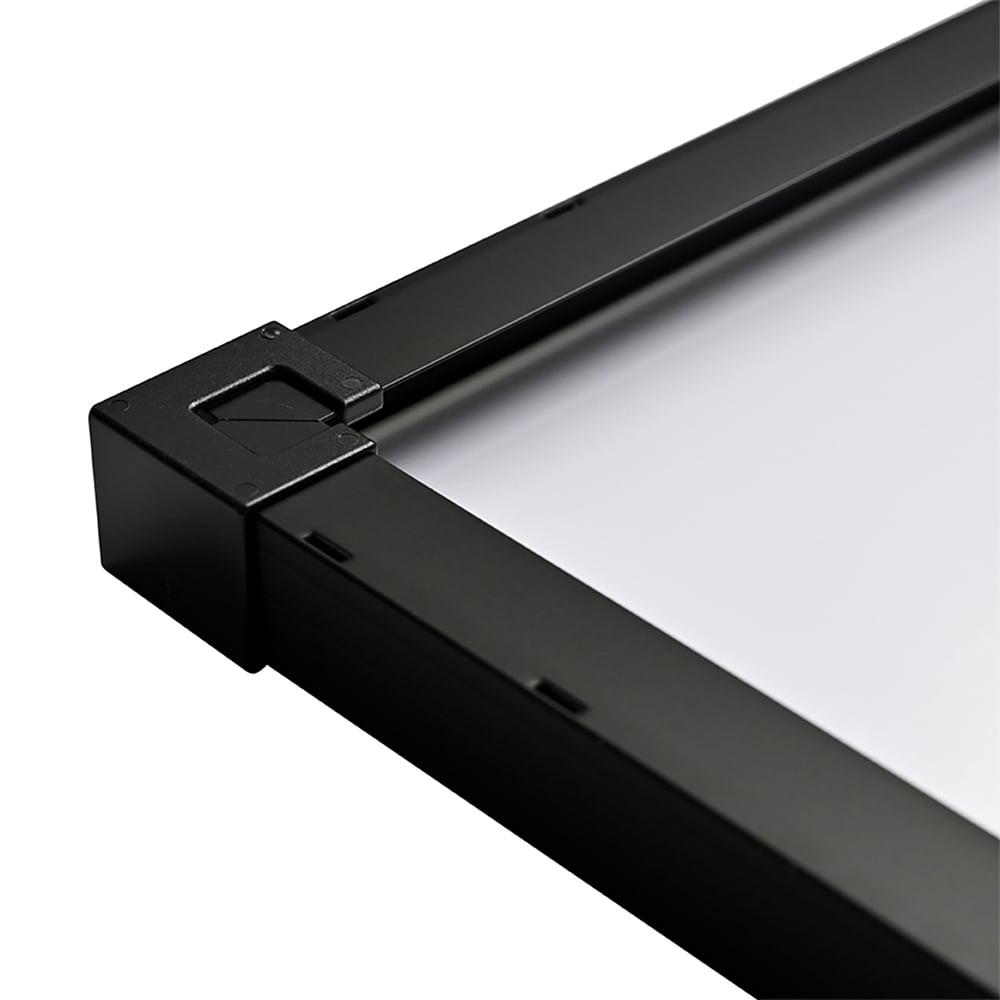

Only monocrystalline solar cells of the highest quality are used in the production of our modules. The module has a frame made of anodised aluminium and has specially hardened ESG solar glass, which makes it particularly resistant to external influences (weathering, etc.).

The expected daily output (April to October): 600Wh/day on average (max. 1200 Wh on sunny days in Germany).
Solar module dimensions: 1350 x 590 x 35 mm

Professional Solar Mounting System

Our ABS spoilers from Offgridtec are the ideal brackets for your solar module when it comes to achieving minimal weight with solid stability. The ABS plastic spoilers, available in black and white, provide an excellent solution for attaching solar panels to the roofs of motorhomes, campers, or caravans. Due to their elegant appearance, the spoilers, when paired with a solar module, not only offer functionality but also contribute to a well-rounded look for your motorhome. To minimize noise level and wind resistance, they have been aerodynamically shaped. The spoiler holes come pre-drilled from the factory and include matching stainless steel screws. Additionally, the product includes an installation manual for proper setup.

About the Holding Spoilers:

• ABS plastic
• Secure grip
• Aerodynamic shape
• Pre-drilled holes for easy and secure installation
• Mounting materials included

Product Features:

• Dimensions: L x W x H: 59cm x 8.9cm (of which approximately 3cm is the module contact area per spoiler) x 6.5cm
• Manufacturer: Offgridtec
• Material: ABS
• Finish: polished
• Color: black
• Weight: 0.640 kilograms

The professional cabling set

All necessary cables are supplied plug & play and are already pre-crimped with specialist tools. So you do not need to buy special pliers for the MC-4 connectors.

Components of the wiring set

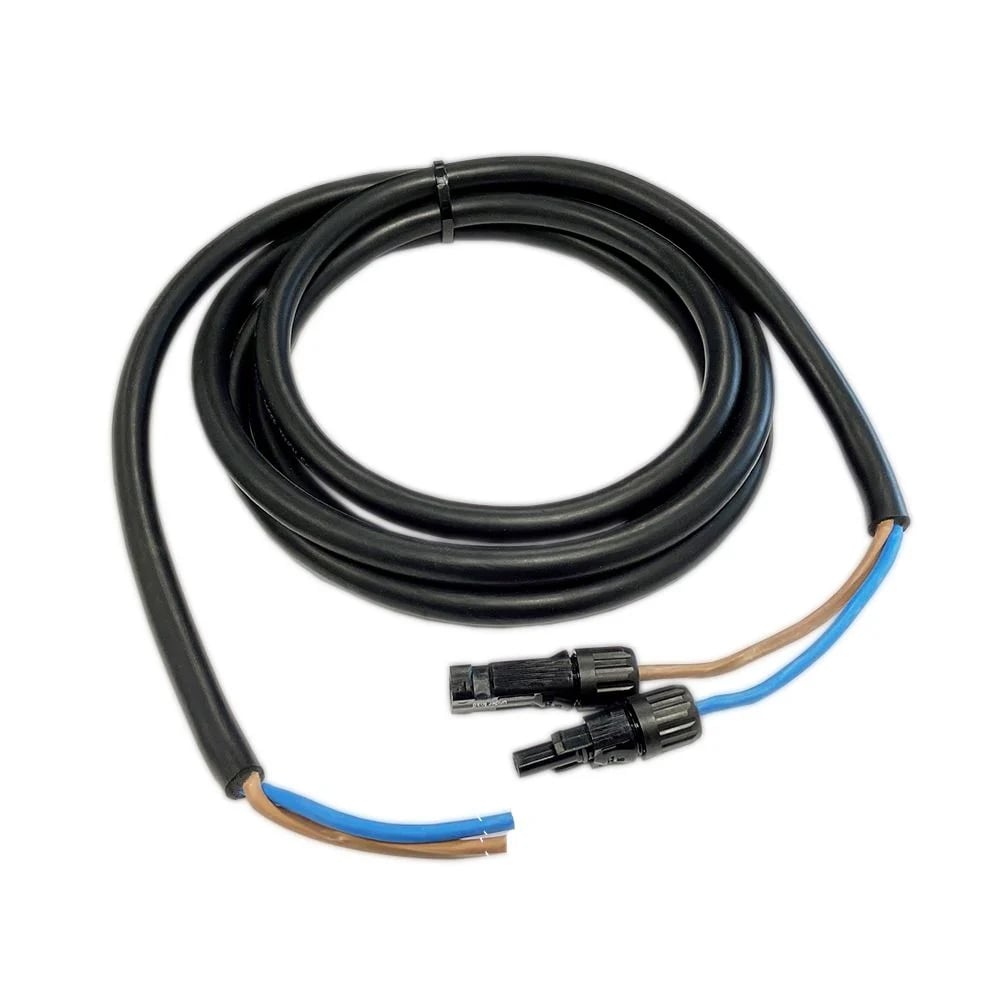

• 1x Offgridtec 8m 2x6mm H07RN-F connection cable solar module to solar charge controller complete with appropriately equipped cable ends.
• 1x Offgridtec 1.5m 2x6mm battery connection cable with flat fuse holder, matching ATO fuse and a pair of pole terminals. The cable fits M8 screw terminals or batteries with round terminals.

Individual system adaptation possible on request

If you would like a different charge controller from our range, for example to charge board and service batteries together via solar, or if you would like the cables to have a different length, you are welcome to contact us at any time. The colour of the spoilers can also be changed from white to black. A short request for quotation with article number and change request to our customer service is sufficient. Any costs that may be incurred should be enquired about with our customer service.

Scope of delivery:

1x Offgridtec 4-01-007500 Premium-L 150W 12V motorhome solar system with all the above components
1x instruction manual
