Offgridtec mPremium L-200W 12V Motorhome Solar System

The Offgridtec 200W Premium-L 12V (MPN 4-01-002735) is the perfect solar set for self-sufficient power supply in your motorhome or caravan and really leaves nothing to be desired. Installation takes less than two hours - practised hands are even much faster. The expected daily output (April to October) is 800 Wh/day on average (max. 1700 Wh on sunny days in Germany). The system is ideally suited for charging 12V AGM, GEL or lead-acid batteries.

200W complete motorhome set: simple, proven, high quality

The set contains all the components you need to charge your mobile batteries. The special thing about our solar systems for motorhomes: We use an exra solid mounting system that can simply be glued on. The module can be unscrewed from the spoiler at any time if you need to access the area under the solar module. This set is designed so that it can be extended by another module in the same power class.

We have also paid special attention to the critical point, the cable feed-through into the interior of the motorhome. The cable grommet supplied is made of the same sturdy material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely watertight and will last for many, many years.

Important performance features

• We are the only manufacturer to offer you a complete motorhome solar system in which all components are supplied from our own production - of course, as usual, in the highest Offgridtec quality.
• The Premium-Mobile system class is probably the best-selling motorhome solar system on the market and has already been successfully installed thousands of times. In addition, the Premium-Mobile series established itself on the market more than 5 years ago and has been improved again and again on the basis of customer experience and constantly supplemented with technical innovations.
• As a customer, you therefore benefit from a product that is highly mature and reliable at a solid price.

Components of the Offgridtec 200W Premium L 12V

• 1x solar charge controller - 12V 30A PWM controller with display, load output, USB etc.
• 2x Offgridtec 100w V2 Solarpanel 23V black frame
• 1x Offgridtec ABS cable gland 1-fold - black with waterproof PEG gland
• 2x Offgridtec ABS Mounting Spoiler 590mm black Pre-drilled incl. Stainless Steel Screws
• 1x Offgridtec 8m 2x6mm H07RN-F - connection cable solar module to solar charge controller in motorhome design
• 1x Offgridtec solar connector branching sockets
• 1x Offgridtec 1,5m 10mm² battery connection cable with MIDI fuse holder - connection
  cable solar charge controller to battery
• 1x Offgridtec battery terminals (1 pair)
• 1 x Mounting adhesive set with instructions and necessary accessories for pre-treatment
• 1x MIDI fuse 40A 58V
• 1x Dekalin 6252212 DEKAsyl MS-5 290ml white single cartridge power adhesive

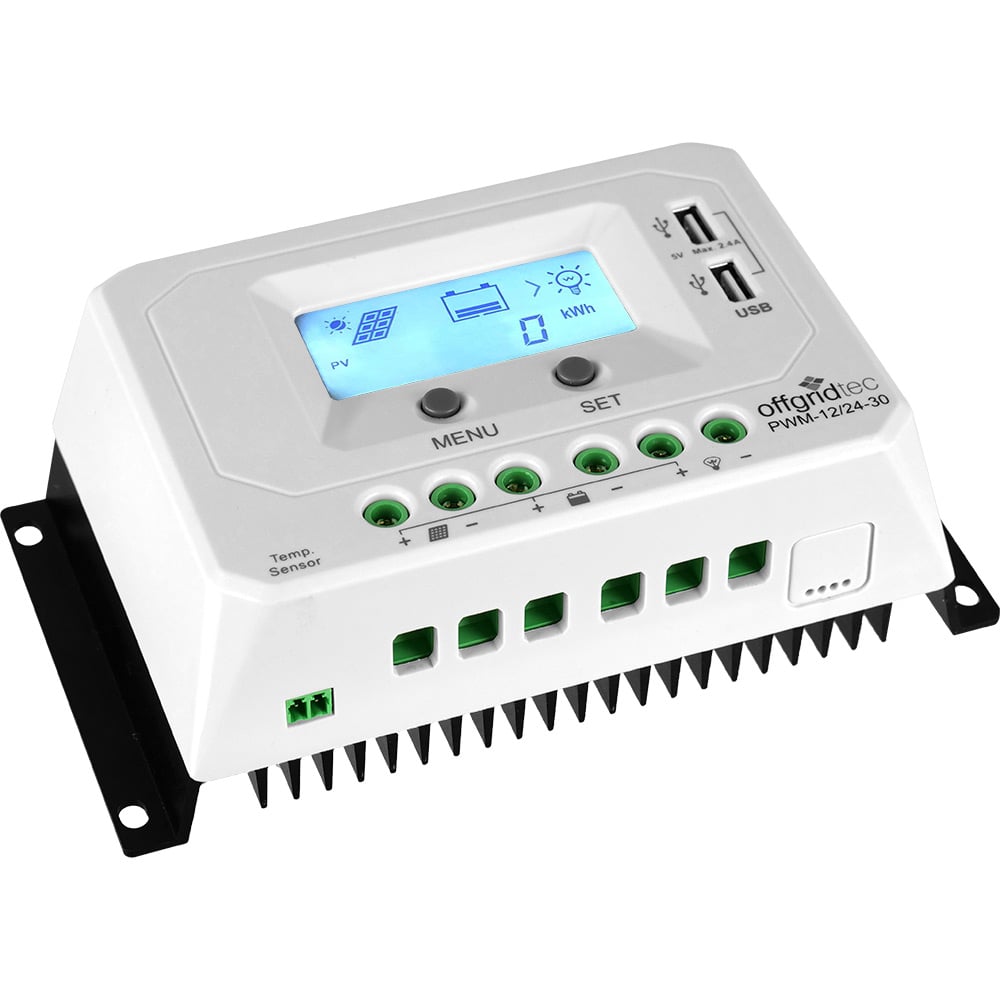

The Offgridtec PWM-PRO solar charge controller

The Offgridtec PWM-Pro 12V 30A charge controller series offers a large, convenient LCD display and works with the latest charging technologies. A large display informs the user about all operating states with the help of symbols. The state of charge is visually displayed in the manner of a fuel gauge. Data such as voltage, current and state of charge can also be shown digitally as a number on the display. In addition, the controller has a KWh counter that the user can reset himself. A controllable load output and 2 USB 5V outputs are also integrated in the controller and supply your 12V and 5V DC consumers with power. Please refer to the documentation of the charge controller for the complete range of functions.

The Offgridtec MONO 100W V2 Solar Panel

The MONO 100W 23V is one of over 40 proven solar panels in the Offgridtec portfolio, benefiting from Offgridtec's expertise in manufacturing high-quality 12V and 24V solar cells. Thanks to its extremely durable solar glass, the module can be used even in very adverse operating conditions. It easily withstands storms or extreme cold and heat, and with the monocrystalline PERC cells, you can expect significant yields even on cloudy days.

Technical Specifications

• Power (Pmax): 100W
• Operating Voltage (Vmp): 23.9V
• Open-Circuit Voltage (Voc): 28V
• Maximum Current (Imp): 4.2A
• Efficiency: 22.3%
• NOCT: 45+/-2°C
• Short-Circuit Current (Isc): 4.4A
• Maximum System Voltage: 1000V
• Permissible Ambient Temperature: -40°C to +85°C
• Dimensions: 925 x 560 x 35mm
• Part Number: 3-01-018385
• Weight: 6.22kg

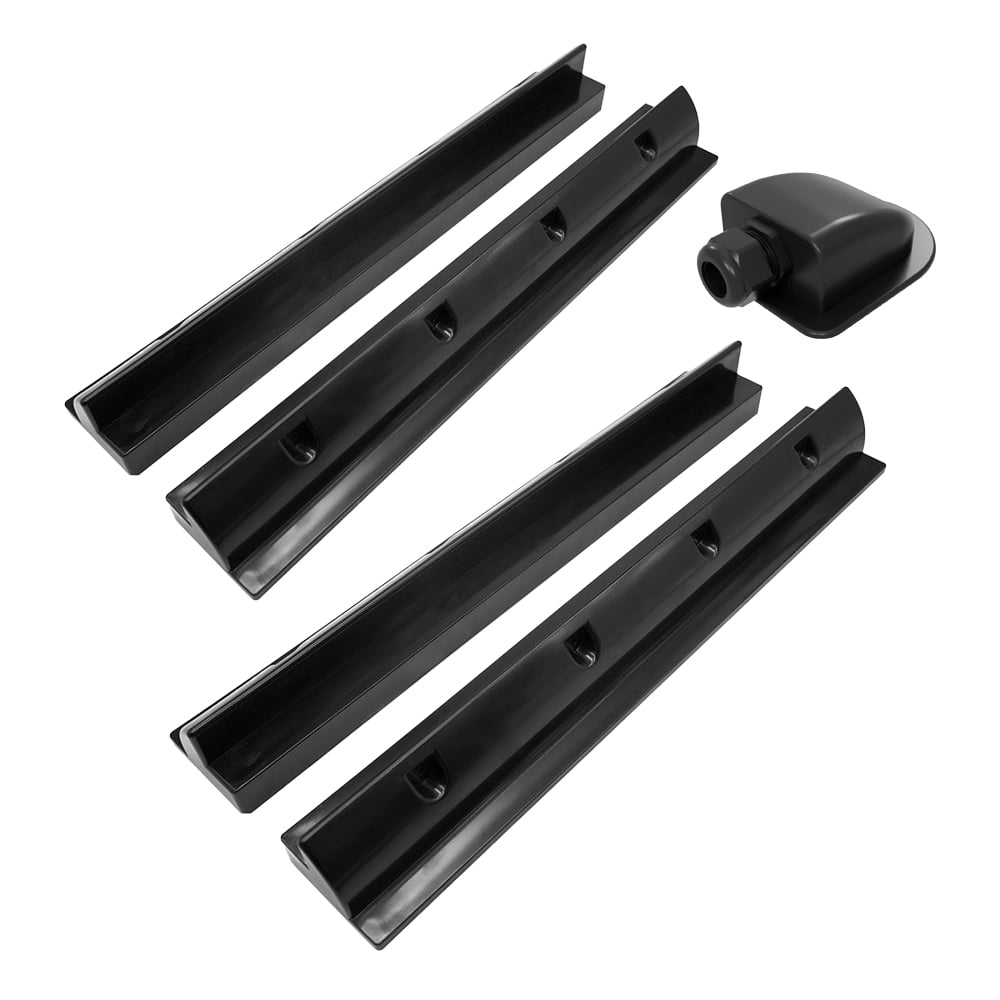

Professional Solar Mounting System

Our ABS spoilers from Offgridtec are the ideal brackets for your solar module when it comes to achieving minimal weight with solid stability. The ABS plastic spoilers, available in black and white, provide an excellent solution for attaching solar panels to the roofs of motorhomes, campers, or caravans. Due to their elegant appearance, the spoilers, when paired with a solar module, not only offer functionality but also contribute to a well-rounded look for your motorhome. To minimize noise level and wind resistance, they have been aerodynamically shaped. The spoiler holes come pre-drilled from the factory and include matching stainless steel screws. Additionally, the product includes an installation manual for proper setup.

About the Holding Spoilers:

• ABS plastic
• Secure grip
• Aerodynamic shape
• Pre-drilled holes for easy and secure installation
• Mounting materials included

Product Features:

• Dimensions: L x W x H: 59cm x 8.9cm (of which approximately 3cm is the module contact area per spoiler) x 6.5cm
• Manufacturer: Offgridtec
• Material: ABS
• Finish: polished
• Color: black
• Weight: 0.640 kilograms

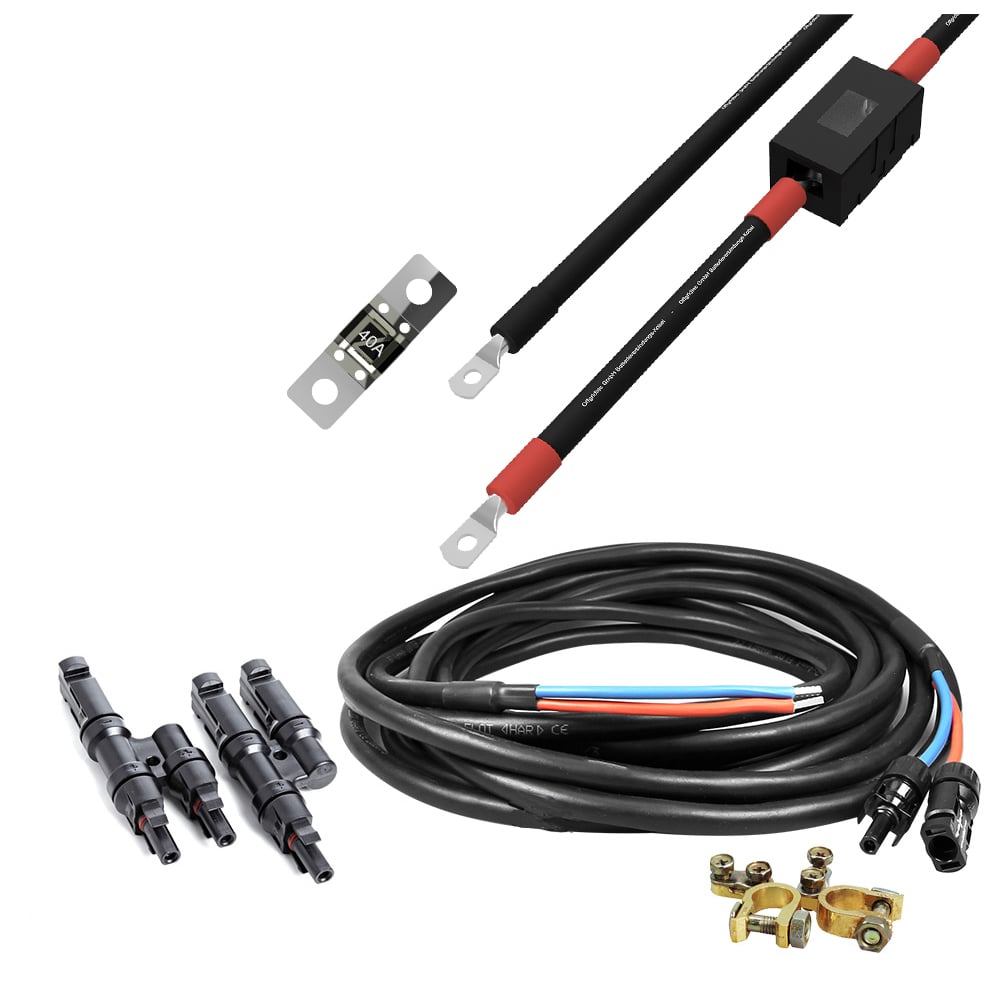

The professional cabling set

All necessary cables are supplied plug & play and are already pre-crimped with specialist tools. You therefore do not need to buy special pliers for the solar connectors.

Components of the wiring set

• 1x Offgridtec 8m 2x6mm H07RN-F connection cable solar module to solar charge controller complete with appropriately equipped cable ends.
• 1x Offgridtec 1.5m 2x6mm battery connection cable with flat fuse holder, matching ATO fuse and a pair of pole terminals. The cable fits M8 screw terminals or batteries with round terminals.
• 1x Offgridtec solar connector junction socket set - for parallel connection of the two solar modules.

Individual system adaptation possible on request

If you would like a different charge controller from our range, for example to charge board and service batteries together via solar, or if you would like the cables to have a different length, you are welcome to contact us at any time. The colour of the spoilers can also be changed from white to black. Simply send a quotation request with the item number and change request to our customer service. Any costs that may be incurred should be enquired about with customer service.

Scope of delivery:

1x Offgridtec 4-01-002735 Premium-L 200W 12V motorhome solar system with all the above-mentioned components.
1x instruction manual
