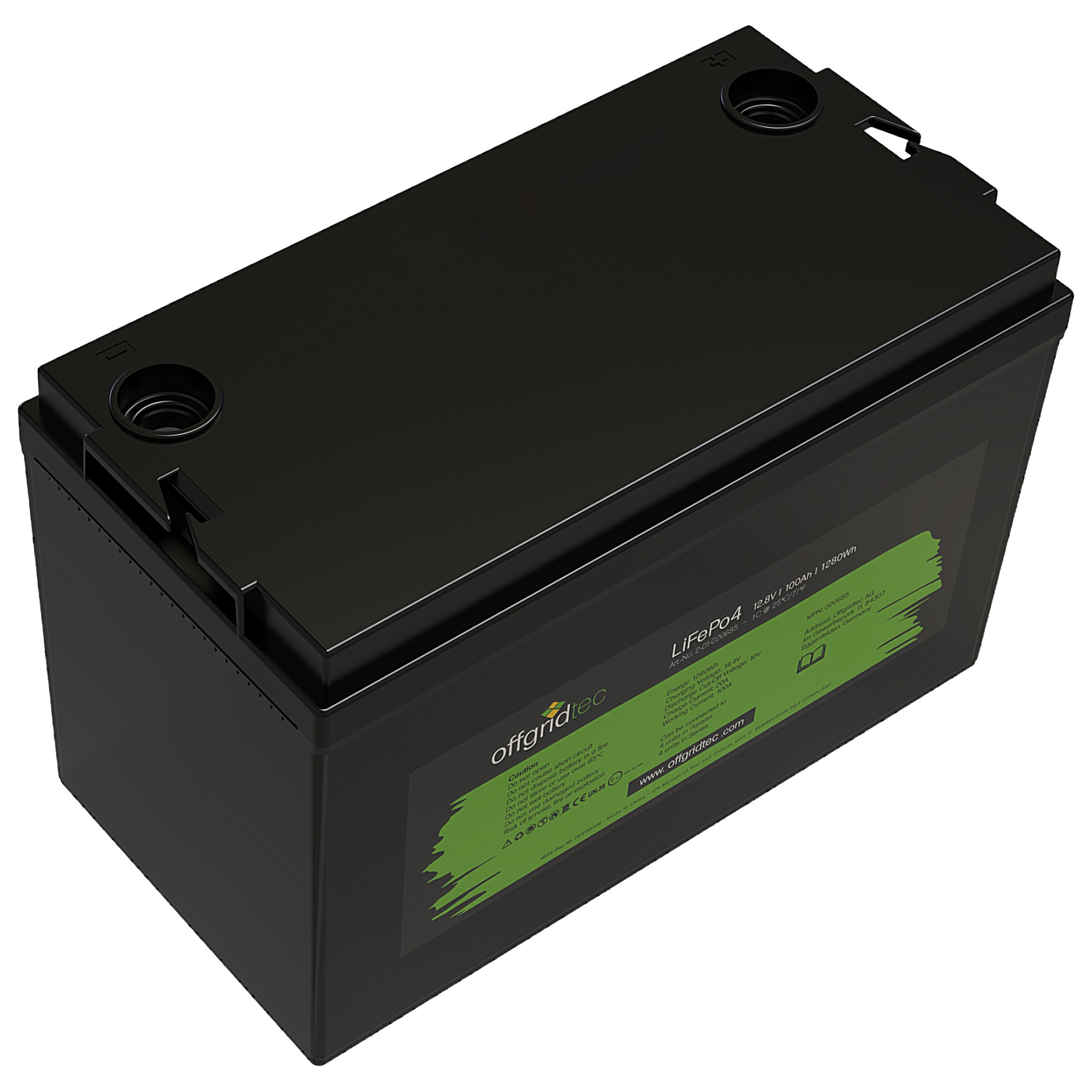

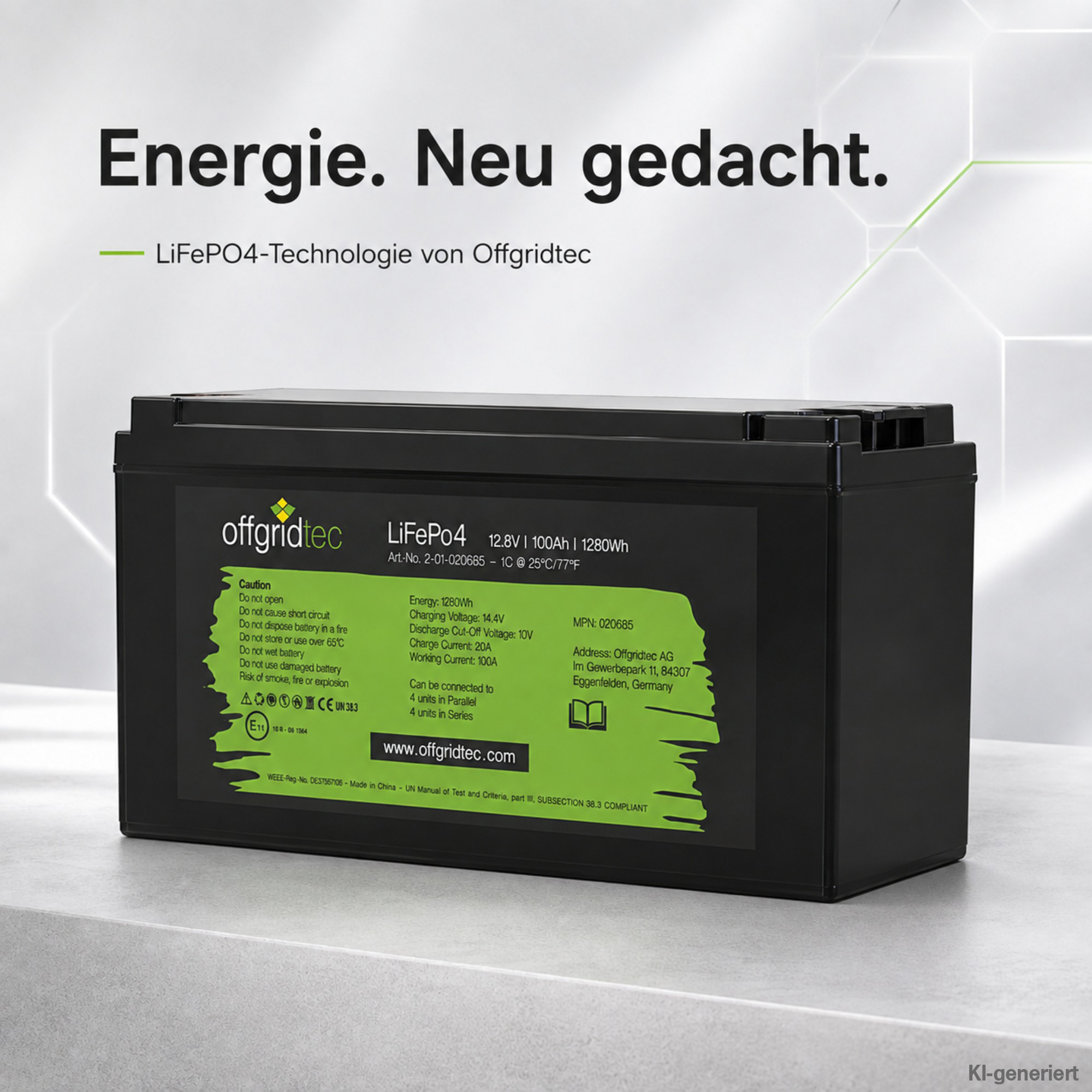

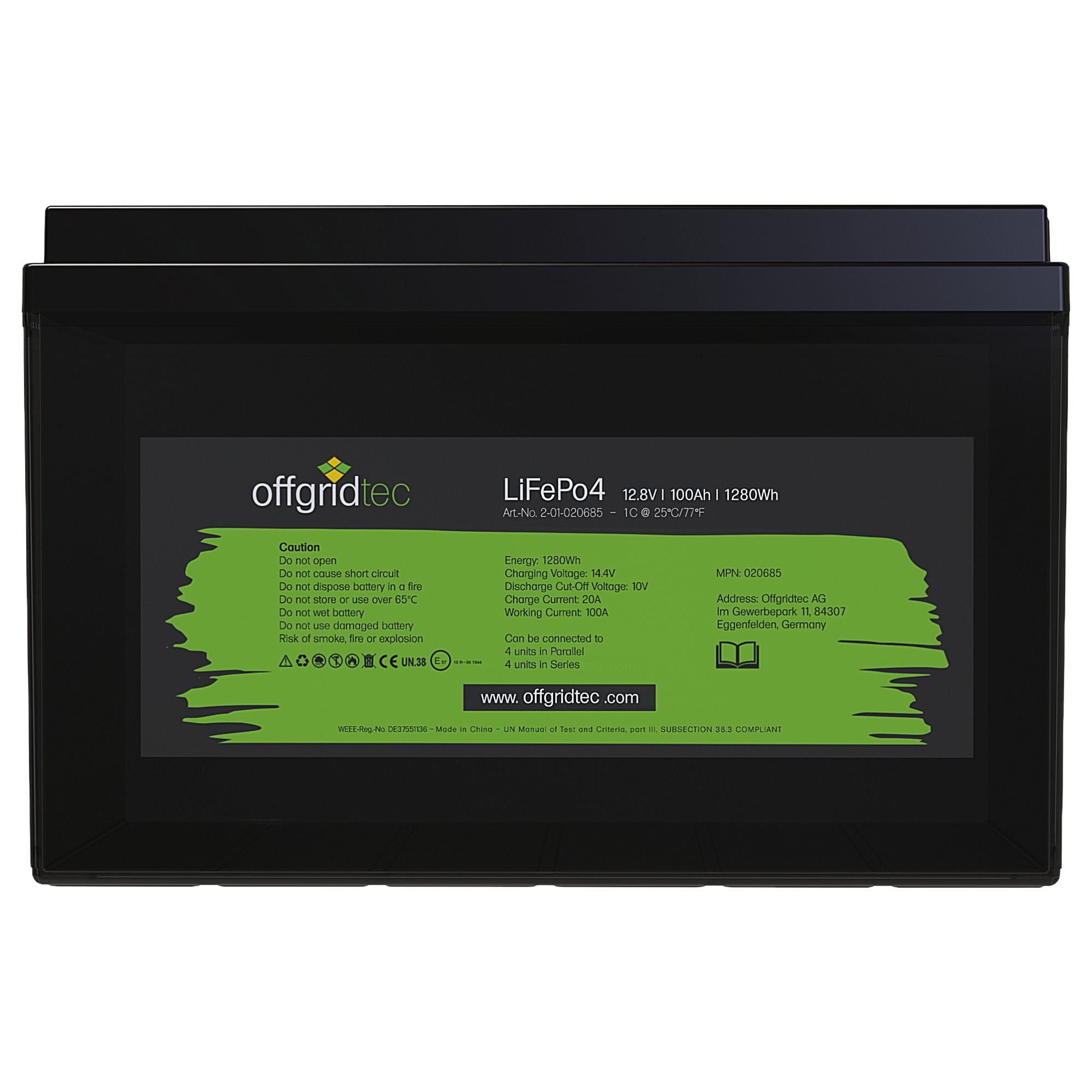

Offgridtec LifePo4 battery 12/100 12.8V 100Ah BMS integrated 1280Wh

The LiFePO4 12/100 battery from Offgridtec (MPN 020685) is an ultra-modern and efficient energy storage solution. With a capacity of 100Ah and a nominal voltage of 12.8V, it guarantees both safety and outstanding performance. Thanks to its compact and maintenance-free design, the battery is easy to install and can be flexibly integrated into individual energy storage systems through parallel connection. Equipped with an integrated battery management system (BMS), the battery is protected against overcharging, deep discharge, short circuits and overheating. This not only extends the runtime, but also increases safety during operation. The powerful battery impresses with a service life of up to 5,000 charging cycles, so you benefit from a reliable power supply for a long time.

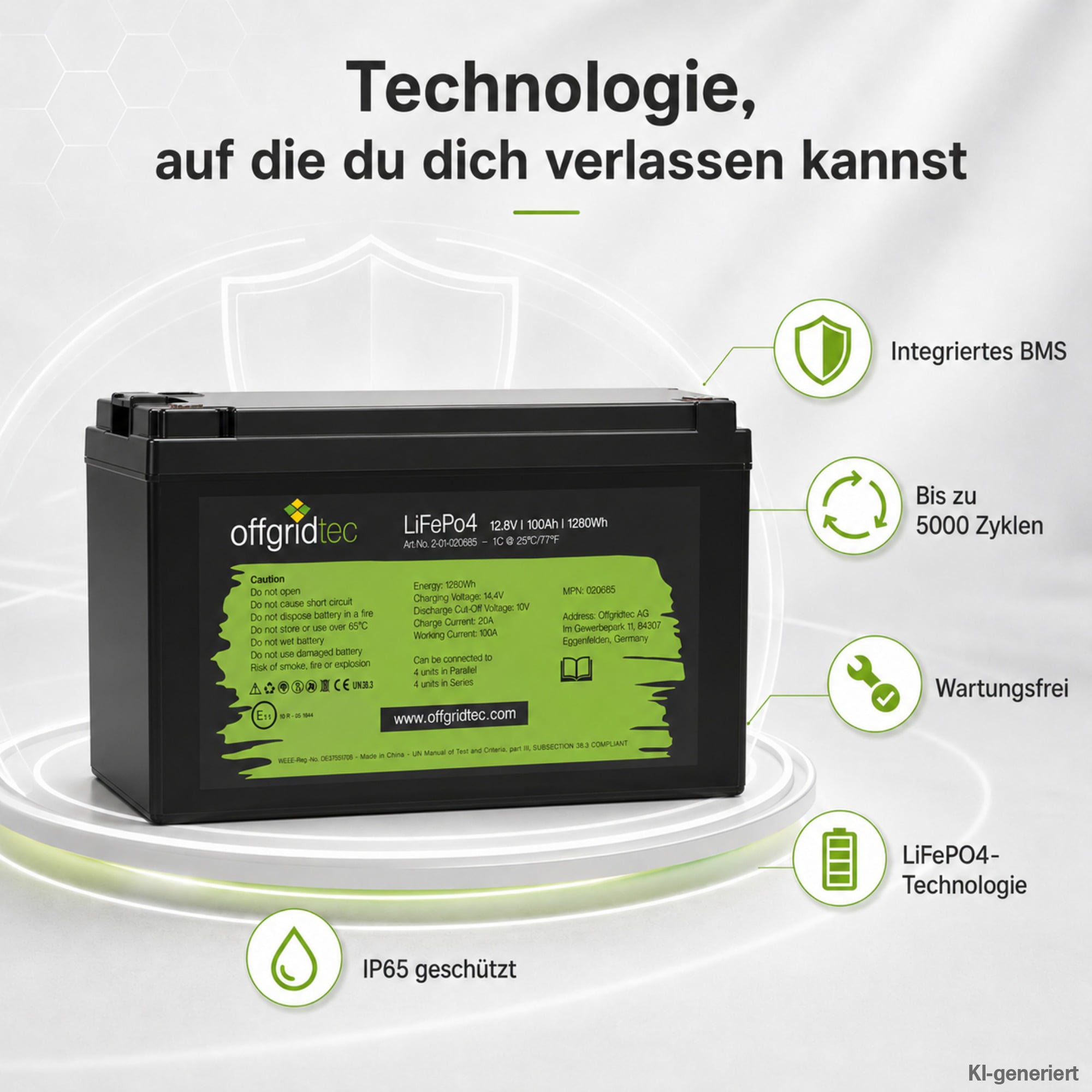

The LiFePO4 rechargeable battery 12/100 at a glance

• Integrated BMS with numerous protective devices
• Long service life: 5000 cycles
• UPS, emergency power supply
• Low weight
• Higher performance
• superior safety
• Increased flexibility
• up to 4 in parallel connection
• Fast charging, 98% high power density

All-rounder - flexible with lithium technology from Offgridtec

The LiFePO4 batteries from Offgridtec offer an excellent price-performance ratio despite higher acquisition costs compared to AGM or gel batteries. With a service life of up to 5000 charging cycles, they generally significantly exceed the maximum service life of the best lead-acid batteries. The LiFePO4 with a nominal voltage of 12.8V and a nominal capacity of 100Ah impresses with its space-saving design and a weight of just 19.6 kg, which represents a weight reduction of around 70 % compared to conventional batteries. The energy extraction efficiency is an impressive 92 %, which is considerably higher than the 80 % of lead-acid batteries. This aspect can be particularly important for off-grid systems, especially for off-grid solar or wind power systems.

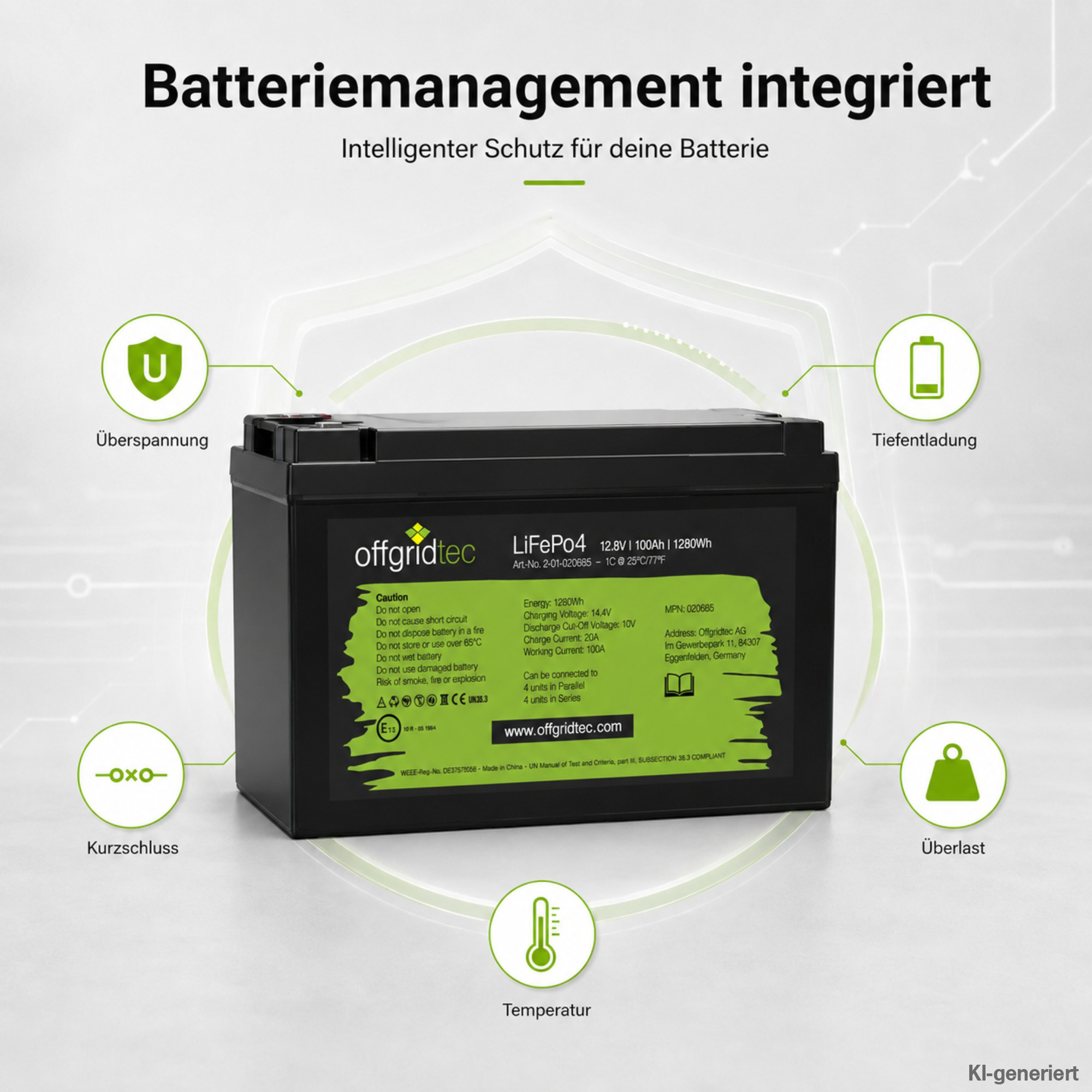

Integrated BMS

The LiFePO4 offers automatic protection through the internal battery management system. The lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to strong shocks, overcharging or short-circuiting. By precisely controlling these parameters, the BMS ensures optimal use of the battery and extends the battery's service life.

• overvoltage protection
• Undervoltage protection
• overload protection
• Short-circuit protection
• Protection of the cells against excessively high or low temperatures

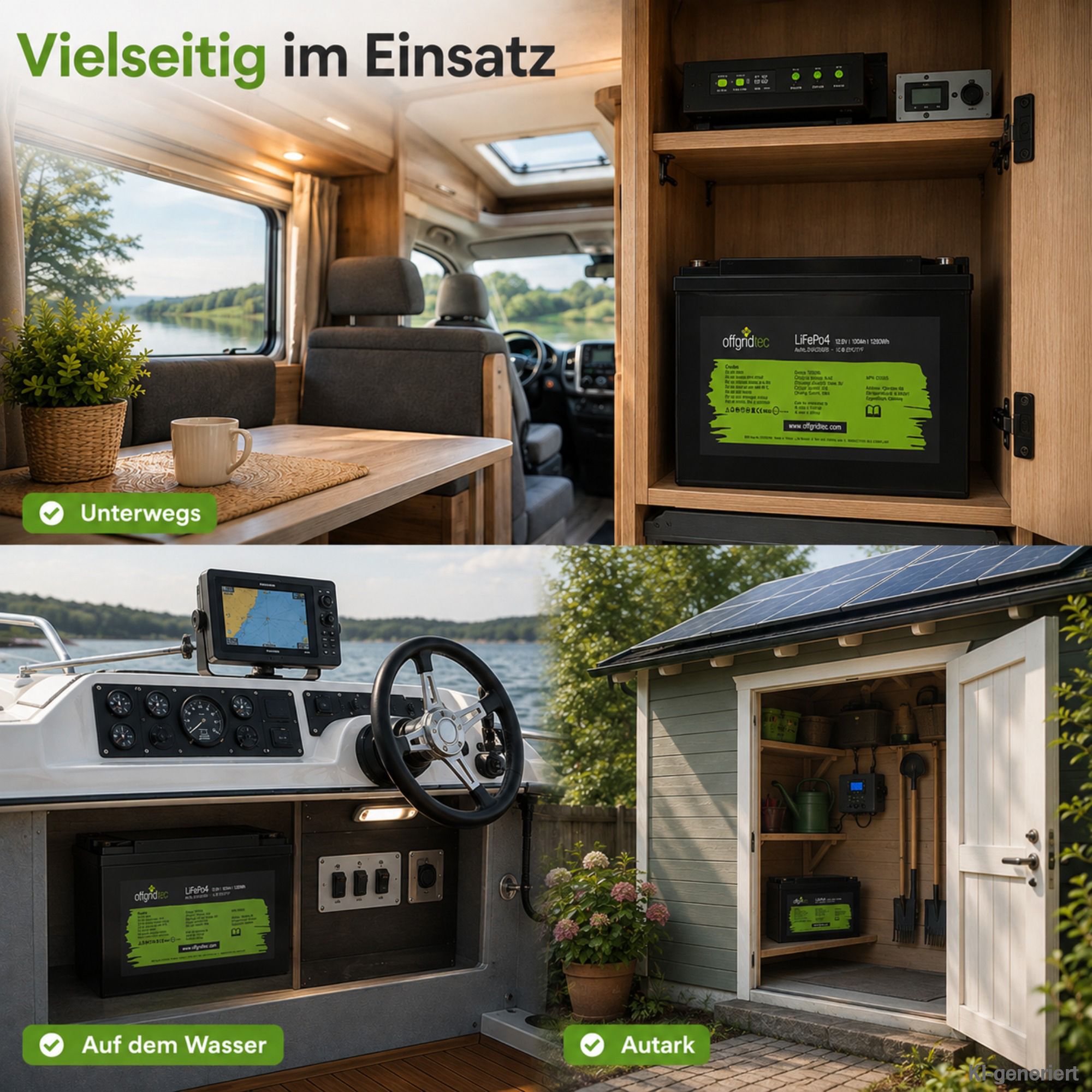

Areas of application

• Renewable energy systems, such as photovoltaic & solar systems
• Vehicles, such as motorhomes, caravans and campers
• Marine applications, such as fishing and electric boats
• Uninterruptible power supply (UPS) for emergencies

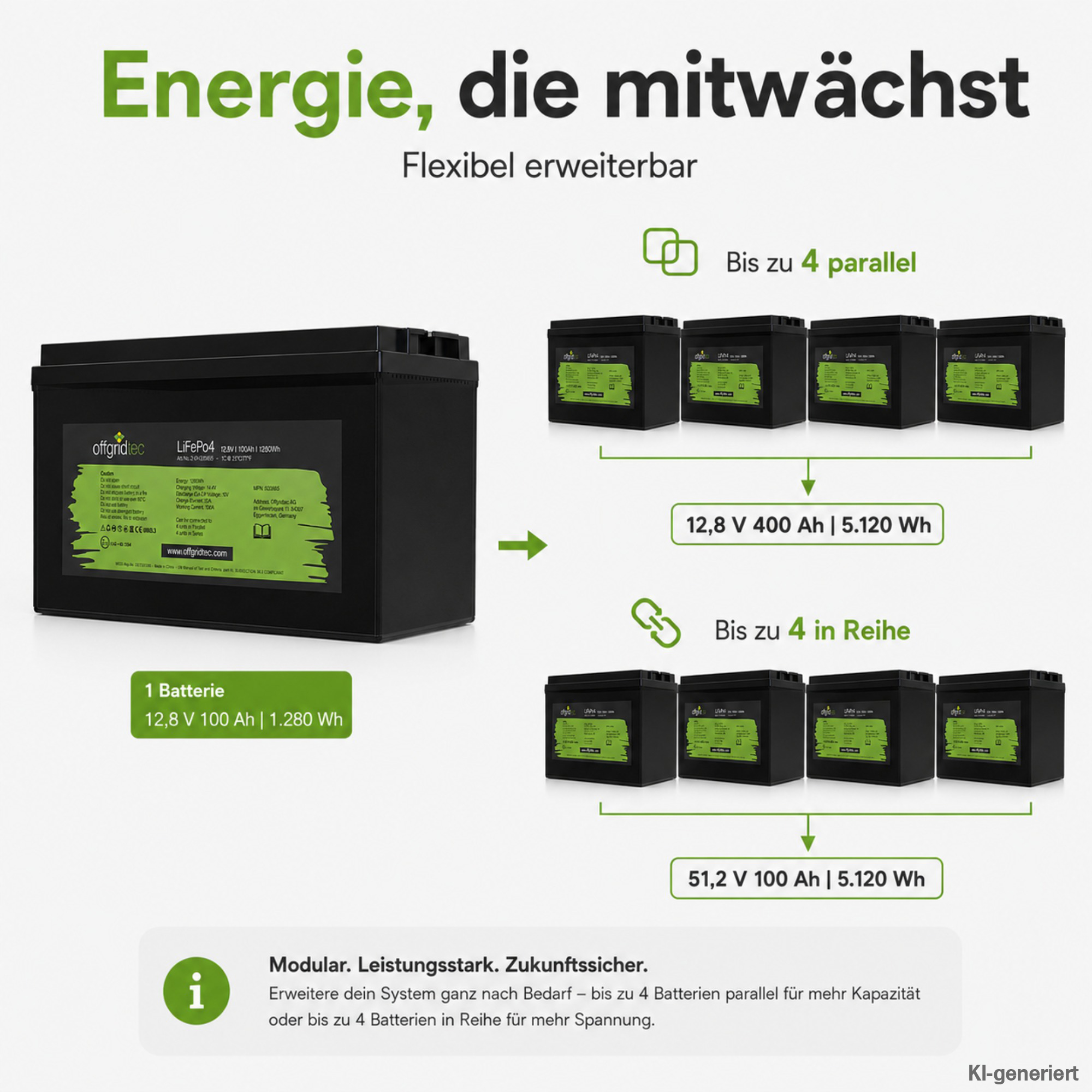

Parallel connection

The parallel connection of our LiFePO4 batteries offers you increased flexibility. With the modular design, you can use up to four batteries in series and four in parallel with the 12.8V versions. This allows you to easily adjust the capacity and performance of your system.

LiFePO4 technology

A LiFePO4 battery stands for "lithium iron phosphate battery" and is a type of lithium-ion battery. It is characterized by a specific chemical composition that uses lithium iron phosphate as the cathode material. The batteries can go through thousands of charge cycles, resulting in a longer overall lifespan compared to other types of batteries. They are considered safer than some other lithium-ion batteries as they are less prone to overheating or thermal instability. Furthermore, they offer a constant voltage and power over the majority of their discharge cycle, a high discharge rate and a low weight.

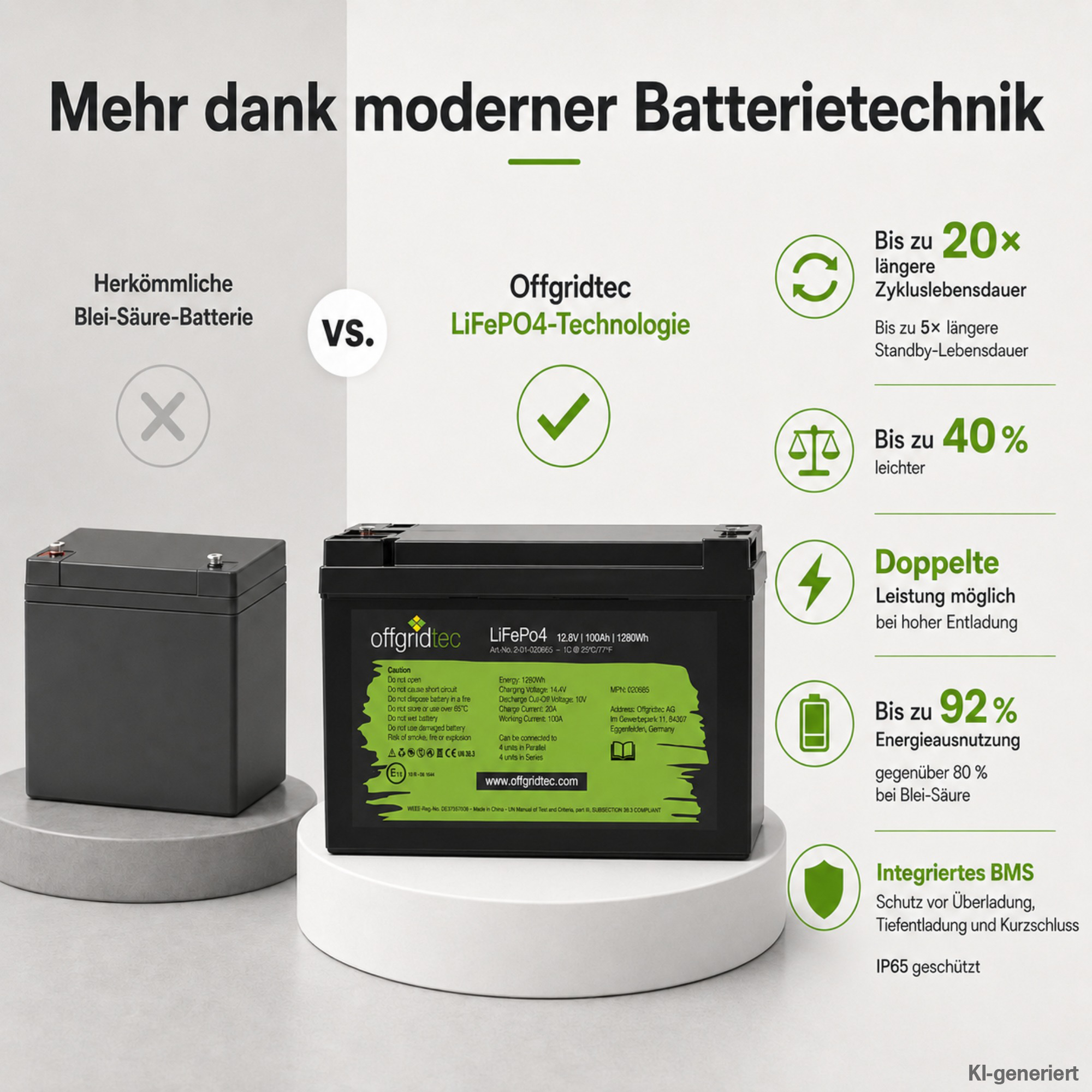

Advantages of Offgridtec LiFePO4 over conventional batteries

• Longer cycle life: Up to 20 times longer in cycle and 5 times longer in standby compared to lead batteries
• Low weight: Up to 40% lighter than comparable lead batteries
• Higher power: Twice the power of a lead-acid battery at high discharge rates
• Low self-discharge: Delivers twice the power of a lead-acid battery, even at high discharge rates
• Highly efficient: 92% energy utilization compared to 80% for lead-acid batteries
• Improved safety features: Integrated BMS protects against overcharging, deep discharge and short circuits, waterproof and dustproof

Technical specifications

• Nominal voltage: 12.8V
• Nominal capacity: 100Ah
• Max. Charging voltage: 14.6V
• Discharge voltage: 10V
• Charging current: 20A
• Operating current: 100A
• Max. Pulse current: 200A
• Nominal battery energy: 1280Wh
• Connection: M8
• Protection class: IP65
• Weight: 10.1 kg

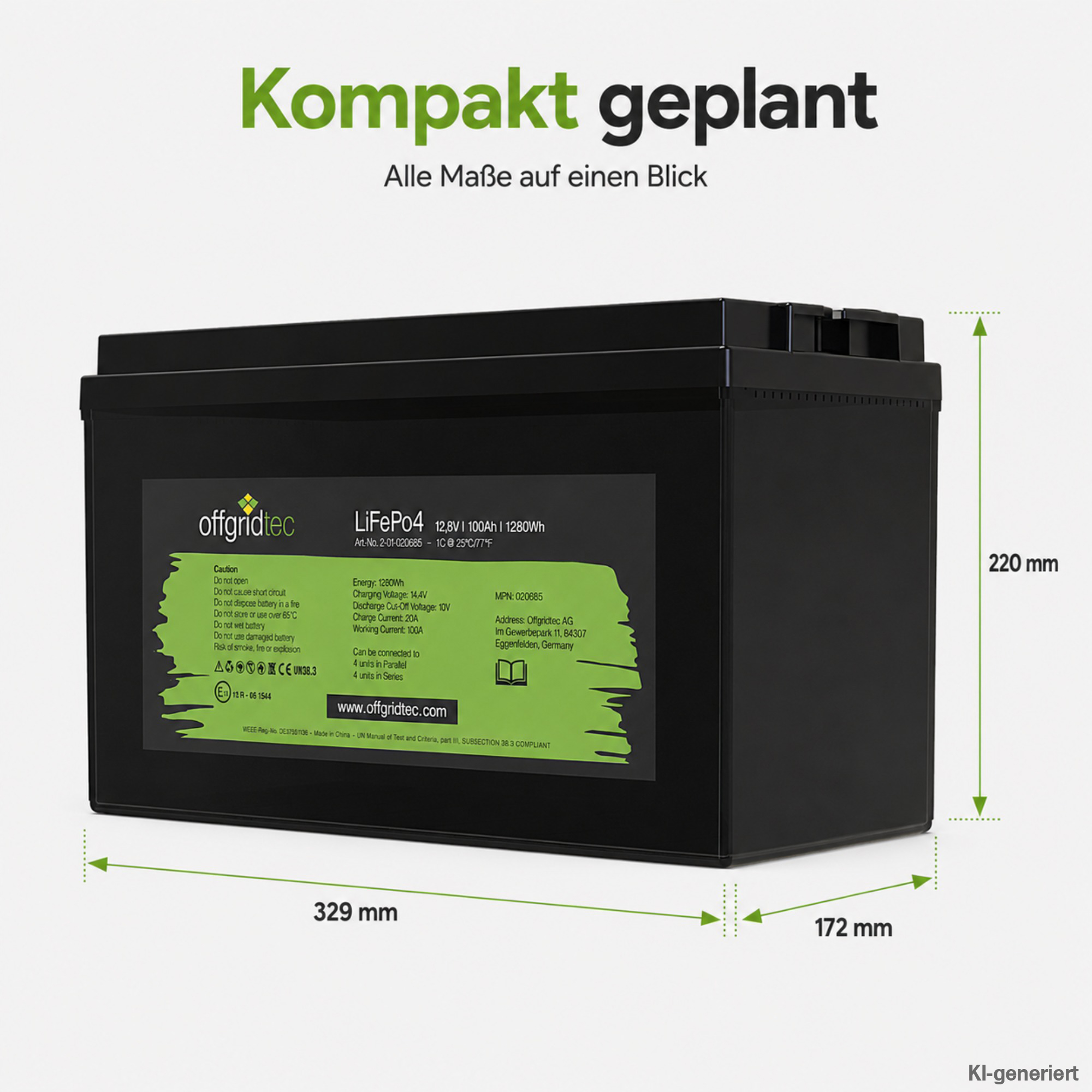

• Dimensions: 329 x 172 x 214 mm
• Service life: 5000 cycles

Scope of delivery

1x Offgridtec LifePo4 battery 12/100 12.8V 100Ah BMS integrated 1280Wh
