Extremely Versatile Complete Package
The Offgridtec® HomePremium Series (3-phase) offers versatile application possibilities at an unbeatable price-performance ratio. It can be used both as an uninterruptible power supply (UPS) backup solution with the option to switch between grid and battery priority, as well as for self-consumption systems. The capability of this PV system is flexibly adjustable and can be expanded according to individual needs, both in terms of solar modules and batteries. Additional inverters can be added if required to increase output power.
Included in the delivery are, in addition to the power electronics from Victron Energy, the storage from Pytes and the solar modules from Luxen also all necessary connection components, with the exception of the solar module mounts, which must be ordered separately. All other components are plug-and-play, meaning that no complicated plug assembly is required – just connect and get started.
Parts List – What's Included
- 30x Luxen Solar 450W Bifacial TopCon N5 Full Black Solar Modules
- 3x Victron MultiPlus-II 48/5000/70-50 230V
- 1x Victron Cerbo GX MK2 Communication Center System Monitoring
- 1x Victron GX Touch 50 Display Panel for Cerbo GX

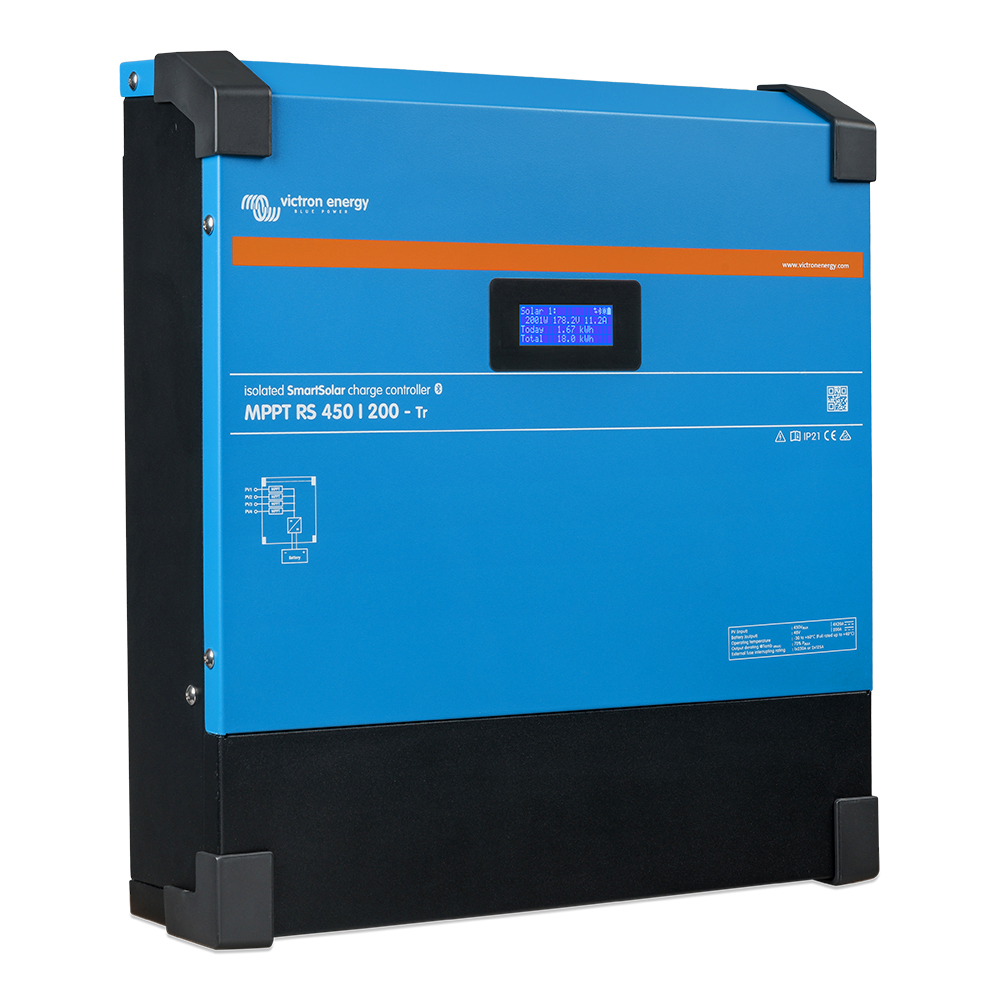

- 1x Victron SmartSolar MPPT RS 450/200-MC4 48V Charge Controller
- 4x Pytes E-Box-48100R-C 100Ah 51V LiFePO4 Battery

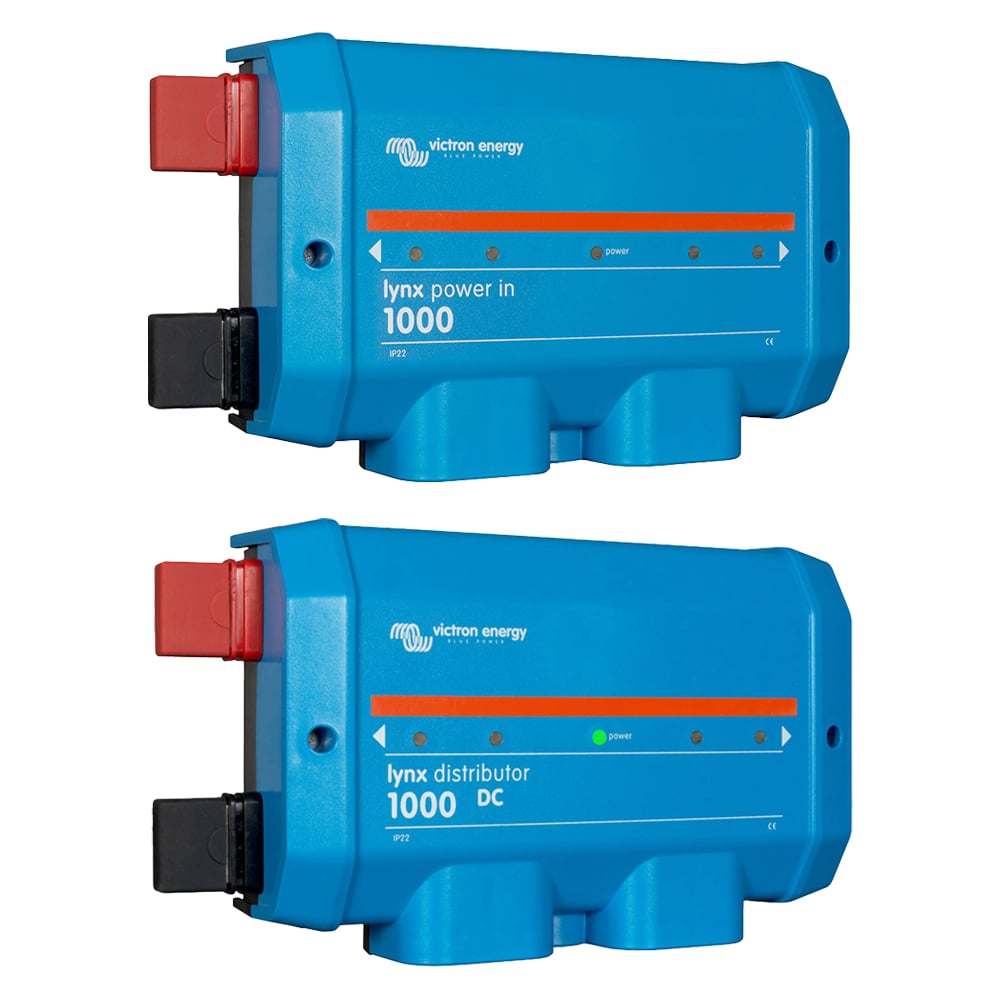

- 1x Victron Energy Lynx Power In (M8)
- 1x Victron Lynx Distributor (M8)

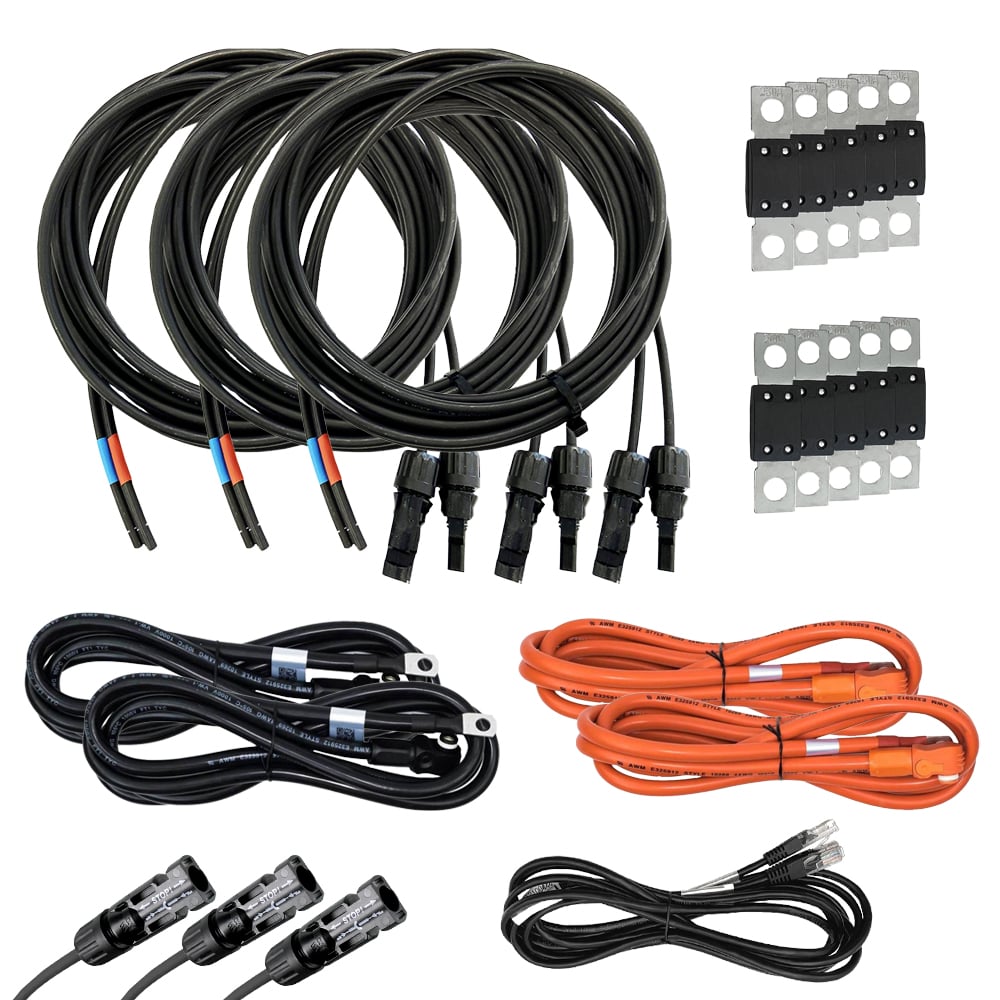

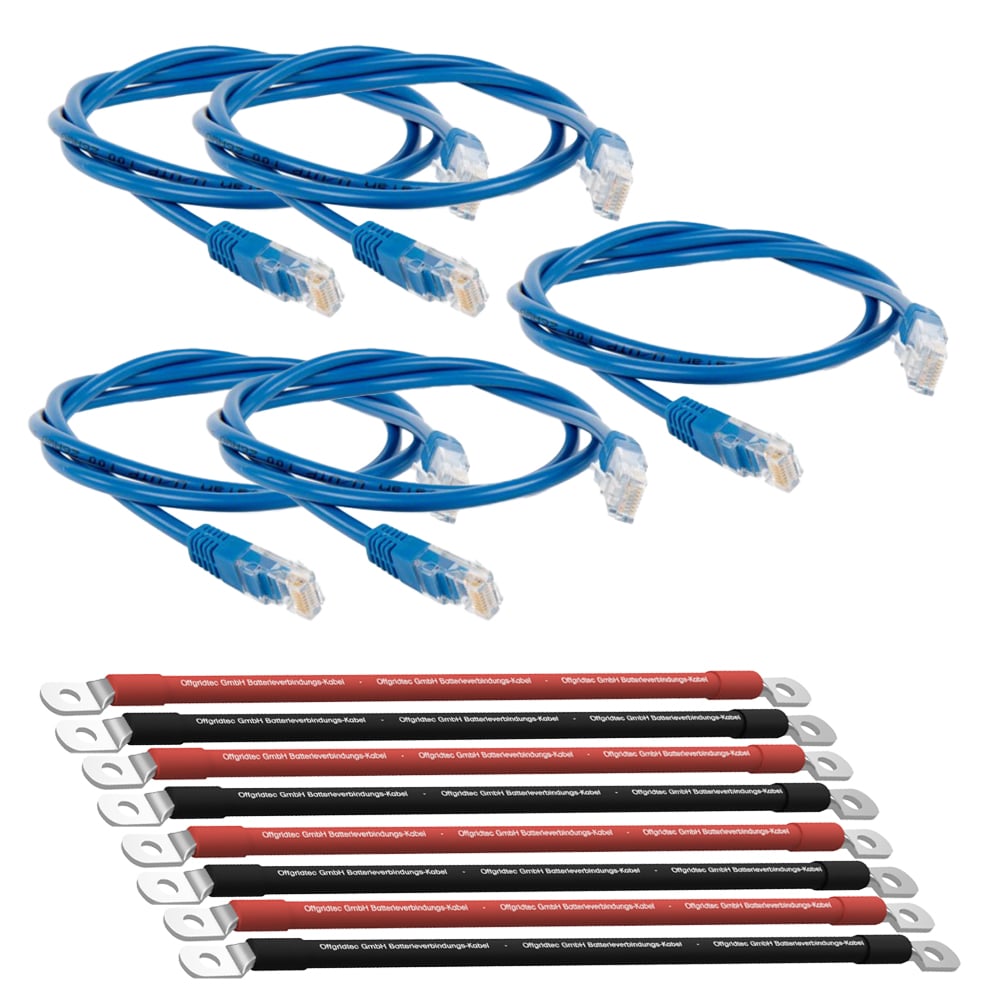

- 4x Offgridtec® 1m Battery Cable 50mm² M8 Eyelets on Both Sides
- 3x Offgridtec 10m MC4 to MC4 Connection Cable 6mm² Red/Black
- 2x 3m Victron RJ45 UTP Cable
- 1x Offgridtec 5-piece MEGA Fuse 200A 70V for 48V Systems
- 1x Offgridtec 5-piece MEGA Fuse 250A 70V for 48V Systems
- 1x Pytes Data Cable Battery to Victron Inverter 3.5m MultiPlus 2
- 1x Pytes Power Cable Battery to Inverter 2m, Positive (M8, 25mm² 125A)
- 1x Pytes Power Cable Battery to Inverter 2m, Negative (M8, 25mm² 125A)
When Selecting Energy Meter
Extended Use of Your HomePremium System
The delivery of the HomePremium system is optionally available with or without the Victron energy meter and cables, whereby the installation of an energy storage system requires an energy meter with an attachment cable.
With this energy meter, you can perform a grid-parallel installation and subsequently monitor your energy consumption or control your energy costs. Thanks to phase compensation, you could even use the 3-phase meter for single-phase systems. This allows for seamless integration of decentralized energy sources and consumers into the existing power grid.
Luxen Solar 450W Full Black Solar Module
The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as the LECO N-TOPCon cell technology and a 96-cell half-layout to maximize efficiency. Additionally, it utilizes SMBB Half-Cut cell technology to optimize performance.
- LECO N-TOPCon Cell Technology
- SMBB Half-Cut Cell Technology
- Low BOS & LCOE
- Bifacial Cell Module Technology
- Excellent Anti-PID and Low LID Performance
- Reduced Hotspot Risk
- 3 Bypass Diodes - Minimized Power Loss in Partial Shading
- High Cell Efficiency of over 22.52%
Technical Specifications
- Maximum Power: 450W
- Module Voltage (Vmp): 30.08V
- Max. Current (Imp): 14.96A
- Open-Circuit Voltage (Voc): 35.21V
- Short-Circuit Current (Isc): 16.02A
- Module Efficiency: 22.52%
- Maximum Operating Voltage: 1500V DC
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 1762 x 1134 x 30mm
- Cells: 96 (6x16)
- Protection Class: IP68
- Connection: MC4
- Weight: 24kg

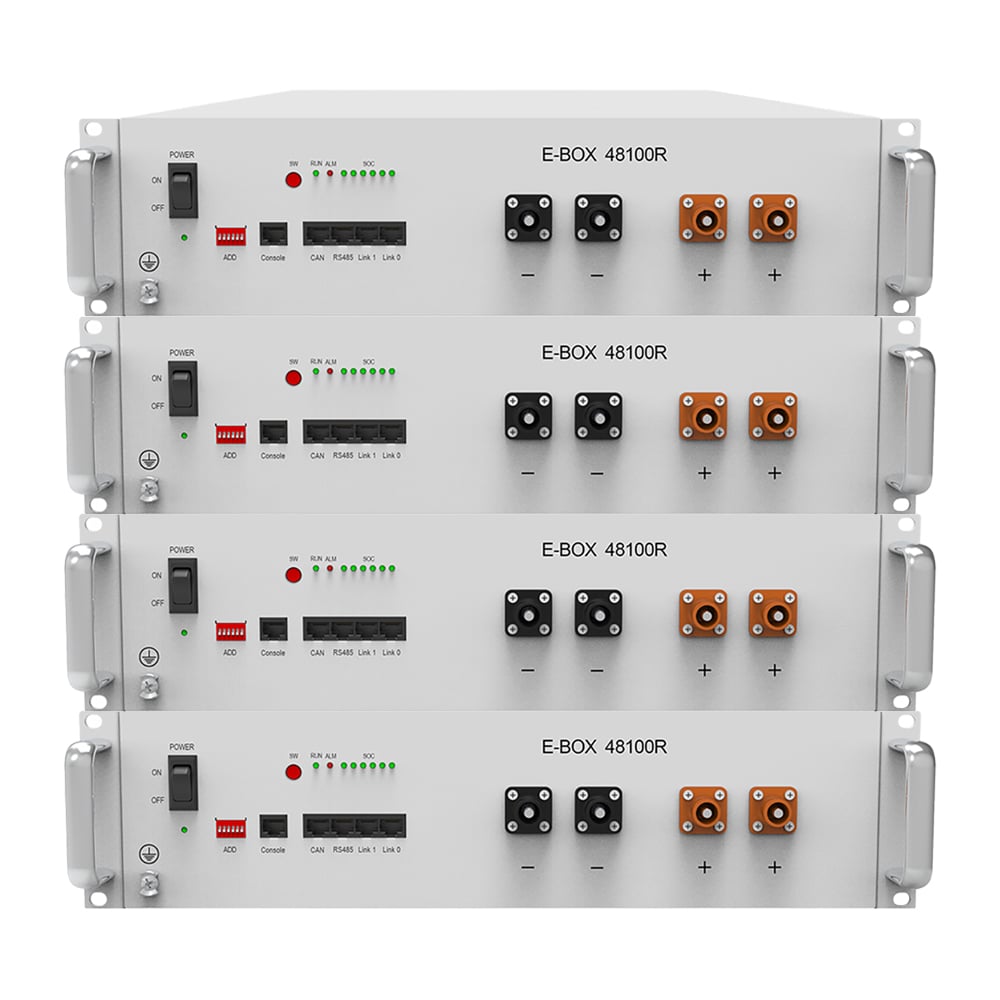

The Pytes E-Box 48100R-C
The Pytes E-BOX 48100R-C (MPN 110402100007) is a state-of-the-art LFP battery with a capacity of 100 Ah and is characterized by its high safety, well-thought-out construction, and impressive performance. The battery is compact, easy to install, maintenance-free, and can be used as a basic component of an energy storage system through parallel connection. Its applications range from self-consumption coverage in private homes to small commercial and industrial energy storage systems, as well as telecommunications stations.
- Next-Generation LFP Storage
- Over 6000 Cycles at 90% DoD
- Intelligent Energy Management
- Ideal for Emergency Power Supply
- Wide Compatibility
- Modular Expandable
- CAN & RS485 Communication
Technical Specifications
- Battery Chemistry: Lithium Iron Phosphate (LFP)
- Nominal Voltage: 51.2 V
- Voltage Range: 47.5-57.6 V
- Nominal Capacity: 100 Ah
- Nominal Energy: 5.12 kWh
- Max. Charge Current: 50 A
- Max. Discharge Current: 50 A
- Charge Temperature: 0~50°C
- Discharge Temperature: -10~50°C
- Efficiency: ≥95%
- Communication Protocol: RS-232, RS-485, CAN
- Cycle Life: >6000 Cycles at 90% DoD
- Dimensions: 440 x 620 x 117 mm
- Weight: 51 kg

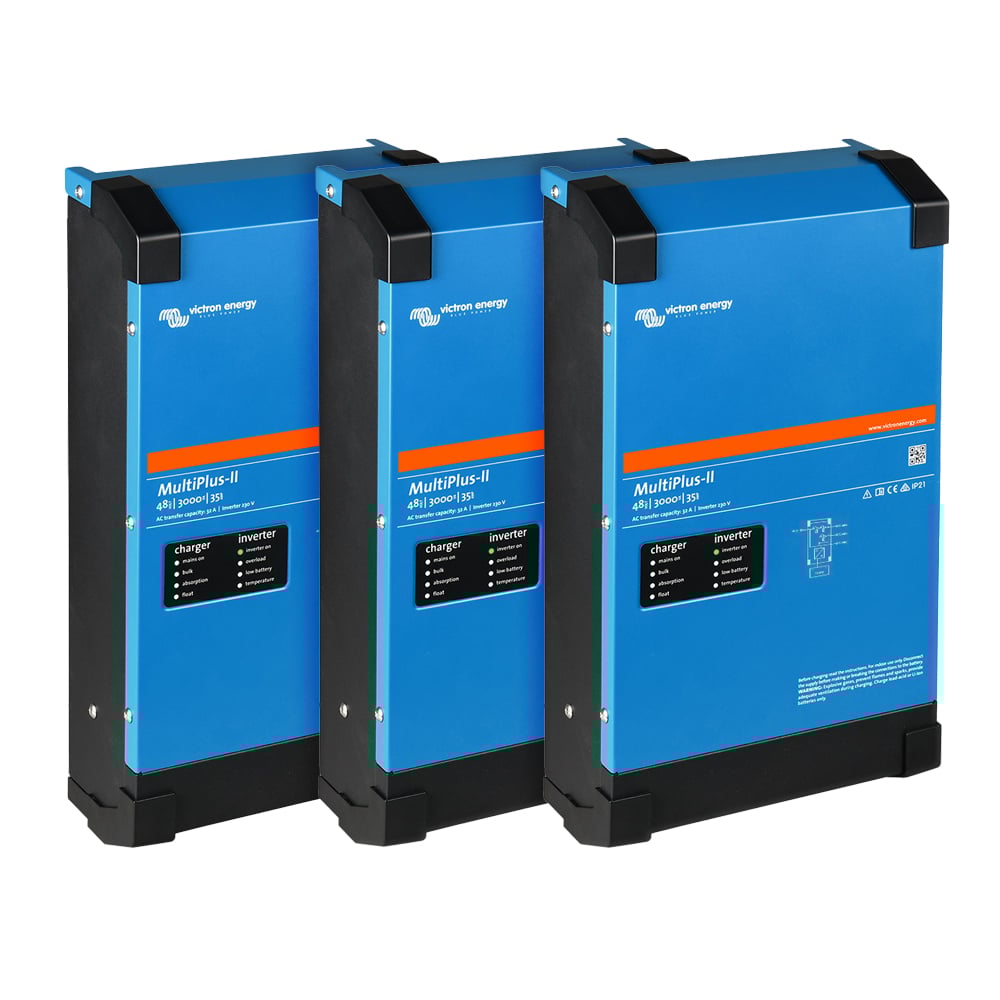

The Heart of the System – the Victron MultiPlus-II 48/5000
The MultiPlus-II 48/5000/70-50 is a high-end device combination from Victron Energy (MPN PMP482505010) that combines classic MultiPlus components with an external current sensor and integrated anti-islanding function. This expands the functions of PowerControl and PowerAssist to 100 A and extends the potential areas of application to ESS applications. The inverter module delivers a solid 5000 W under nonlinear loads, or 4000 W under linear continuous load. The 48 V battery charger is also well-proportioned at 70 A and is complemented by a 50 A transfer switch, allowing for rapid switching between AC connections.
- PowerControl and PowerAssist – increasing grid or generator power
- Built-in anti-islanding function and connection option for an external current sensor (optional)
- Can be used as a backup device in grid-connected systems for power supply during grid outages
- Ideal for professional marine applications, yachts, vehicles, and land-based, off-grid applications
- VE.Bus interface for parallel and three-phase operation, remote monitoring, and system integration
- Practically unlimited power through parallel and three-phase operation
- Can be configured on-site or remotely using VEConfigure software
Technical Features
- 5000 W output under nonlinear load, 4000 W continuous load, and 9000 W peak power
- For 48 V battery voltage, 50 A transfer switch, and 70 A battery charger
- Output Voltage: 230 VAC, Frequency: 50 Hz
- Maximum efficiency is 95%, Protection Class IP22
Configuration
The delivery of the MultiPlus-II is standardly unconfigured. You can find the configuration instructions for the system in the download area. If you would like us to pre-configure it for you, we can do so for an additional charge. To do this, add the above item Offgridtec Pre-configuration to your shopping cart during the ordering process. In this case, delivery may take an additional 3-5 business days until the configuration is completed.

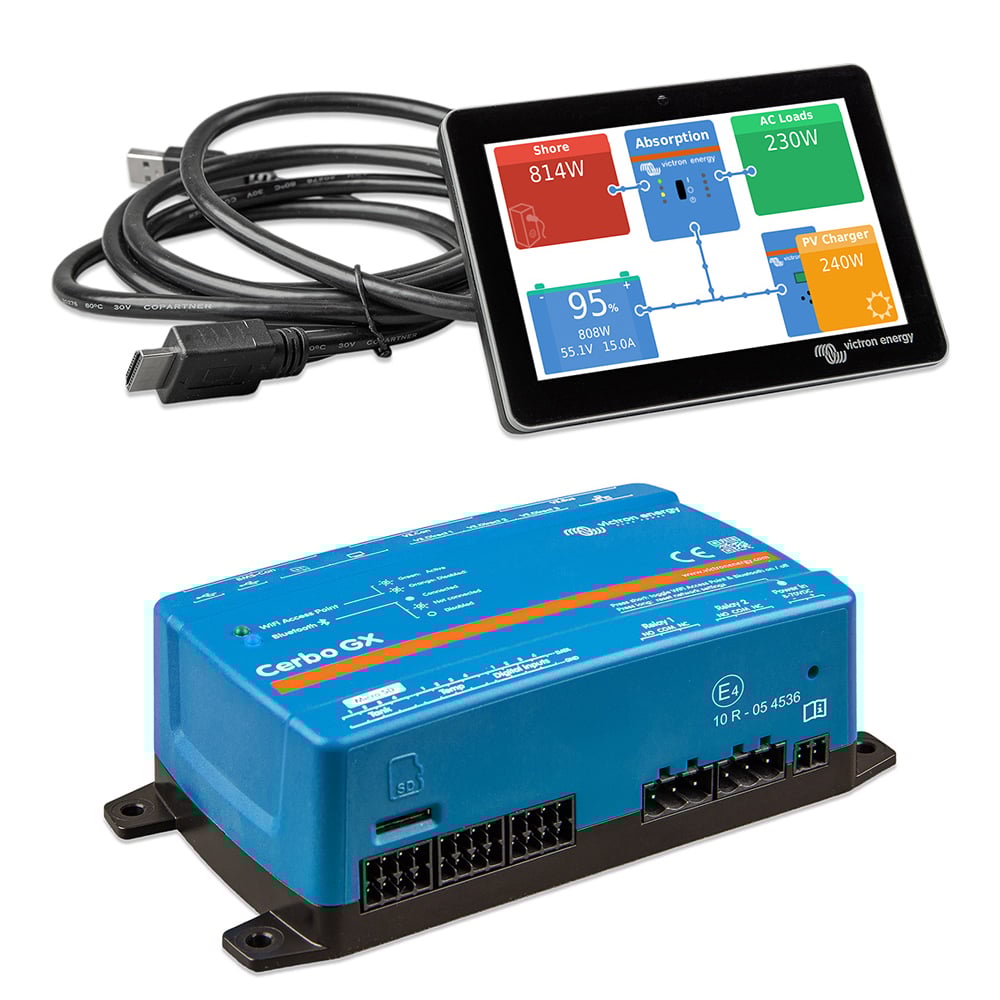

Victron Energy Cerbo GX MK2 and GX Touch 50 – the Communication Center of Your System
The latest development in system monitoring from Victron Energy allows you to easily control and configure your system. Complemented by the GX Touch 50 – a waterproof 5-inch touchscreen – you will always have an overview of your system parameters. With the functions of the Cerbo, the system can be perfectly controlled and monitored, and it allows the maximization of system performance in an unprecedentedly simple manner.
The corresponding module can be used with solar charge controllers as well as grid-connected inverters. The mounting materials and necessary connection cables are, of course, included in the delivery. With the Bluetooth capability of the GX Touch 50, access to your system is even faster and easier. A wall mount for the GX Touch 50 is the only optional item that must be ordered separately if needed.
The Victron Remote Portal (VRM) is a free Victron Energy service that allows for remote reading of your system’s data and configuration of the devices accordingly. This means you will always have full control and an overview of all relevant system parameters, even in your absence. The functionality is available online as a demo version and is well-suited to give you a first impression - https://vrm.victronenergy.com/landingpage
Safety Warning: Have this complete system installed and commissioned only by a qualified electrician.
