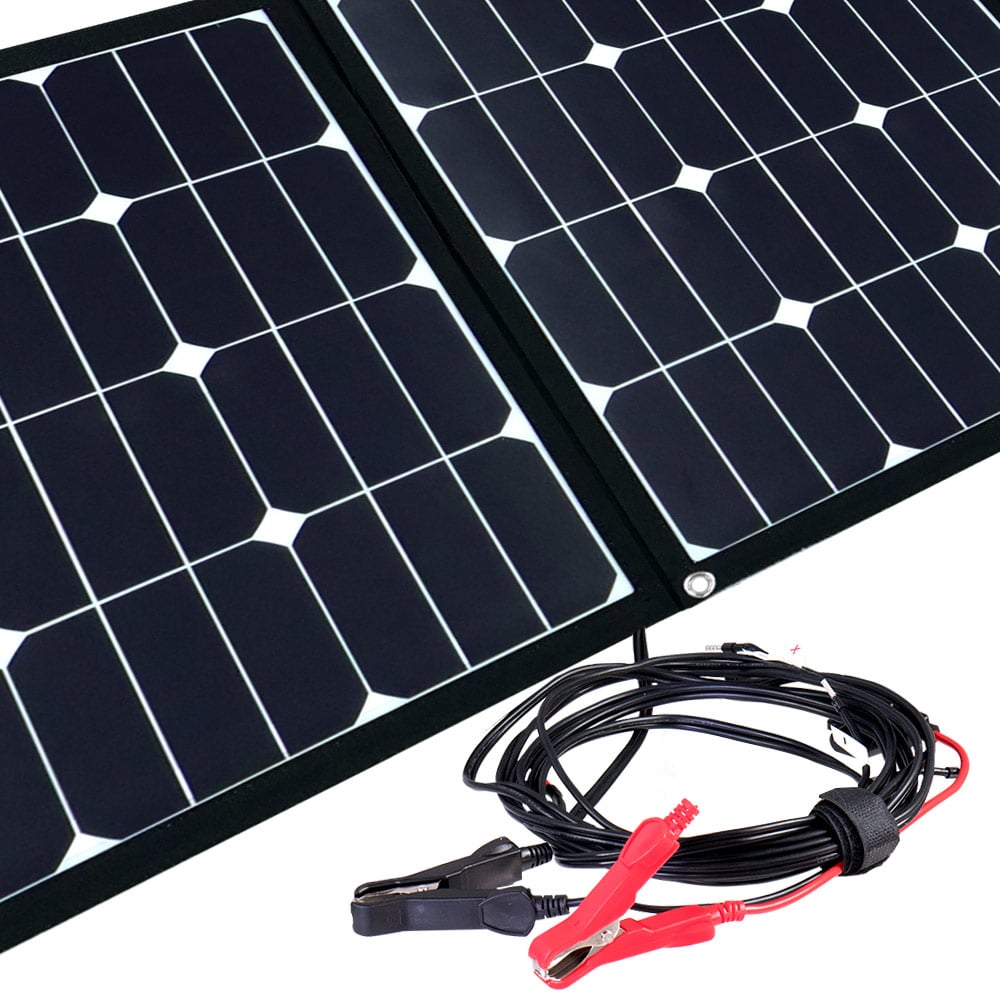

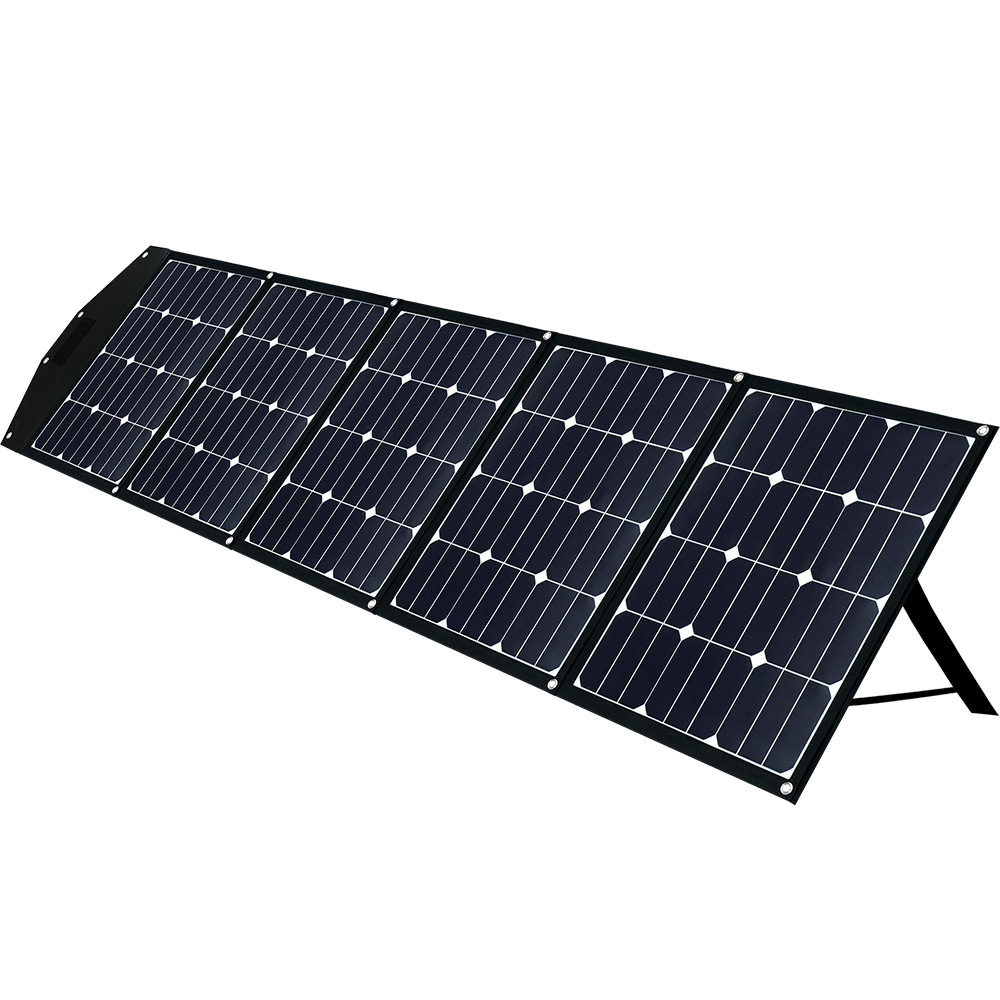

Offgridtec FSP-2 225W Ultra foldable solar module

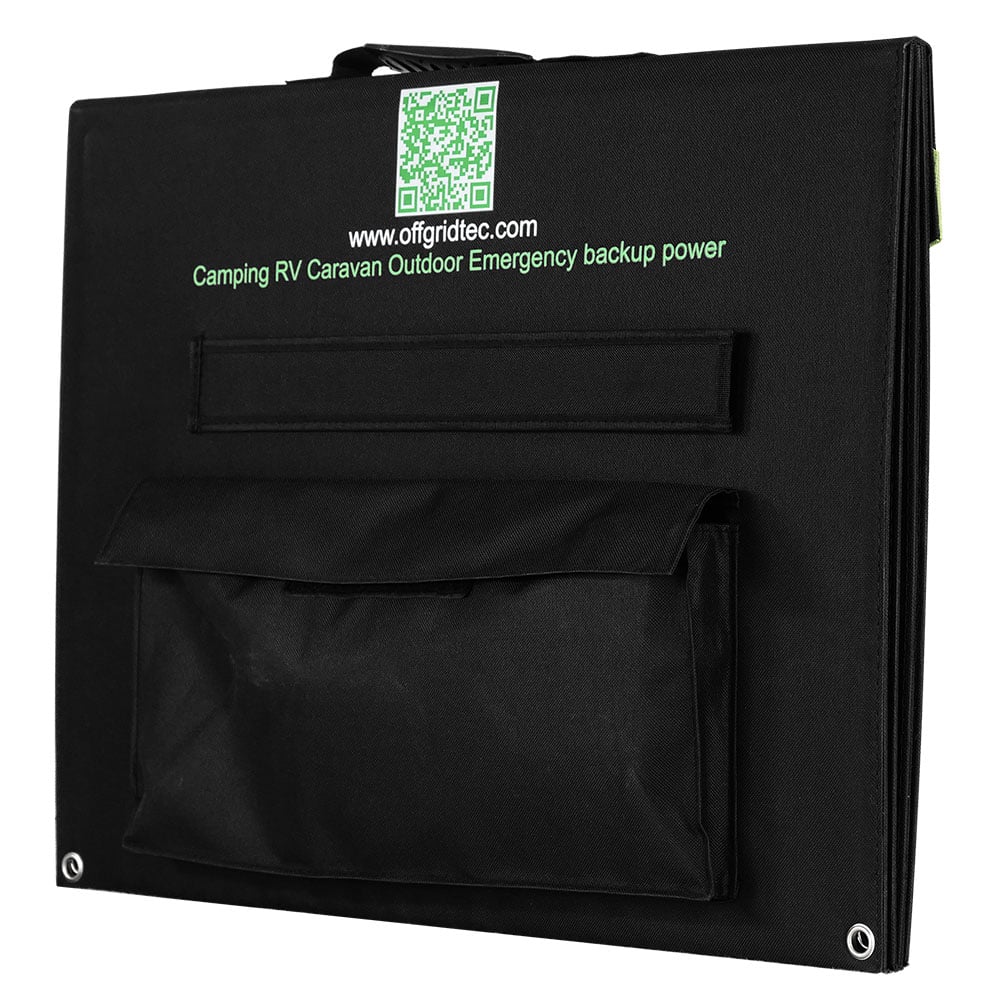

The FSP-2 225W 12/24V is the largest member of the Offgridtec FSP family and is also one of the most powerful foldable solar modules in the range. It has a 5-sided design and is supplied with a suitable connection kit, with which you can quickly and easily establish a connection to the charge controller of your choice and the battery to be charged. The FSP-2 225W 12/24V can be ordered in three versions. The connection kit is housed in a lockable bag directly on the module. So you always have a small power station at your side, ready for immediate use.

Performance that sets standards

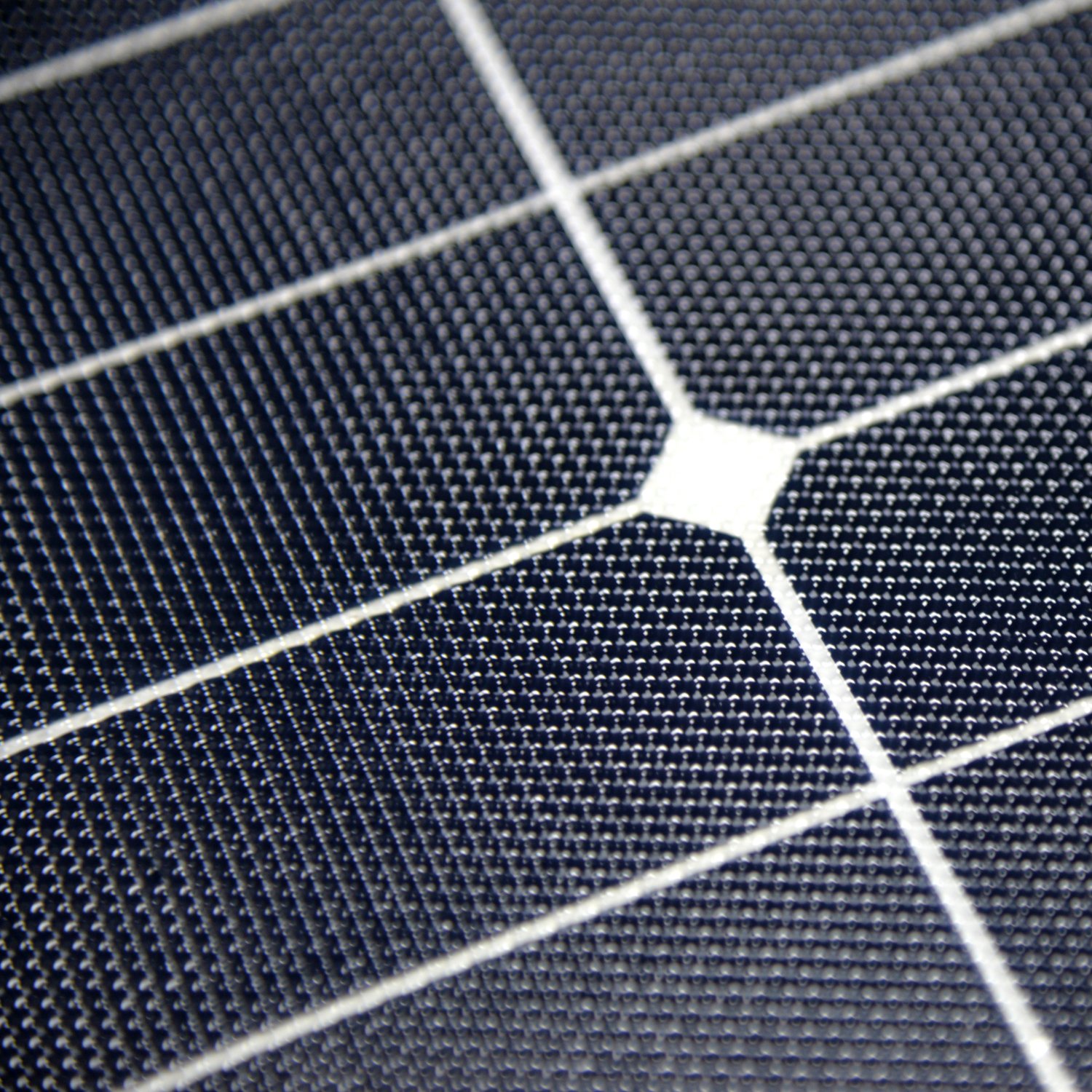

The FSP-2 225W Ultra is equipped with American SPR back-contact cells from a well-known manufacturer. The cells are completely black, giving the FSP-2 225W a very modern, high-quality look. The SPR cells ensure a very high efficiency of the panel and, in combination with the low weight and compact dimensions of the FSP-2 panel, set new standards in this performance class.

extensive range of applications:

• excellent for use in the camping sector
• or for expeditions, climbing tours and much more...
• for vehicles and boats without a fixed solar installation ...
• and numerous other applications in a wide variety of areas...

Technical highlights FSP 2 225W Ultra foldable solar panel

• Rated power: 225Wp
• Number of sides: 5 x 45 Wp
• Module voltage (Vmp): 37.2 V
• Max. Charging current (Imp): 6.05 A
• Open circuit voltage (Voc): 43.7 V
• Short-circuit current (Isc): 6.41 A

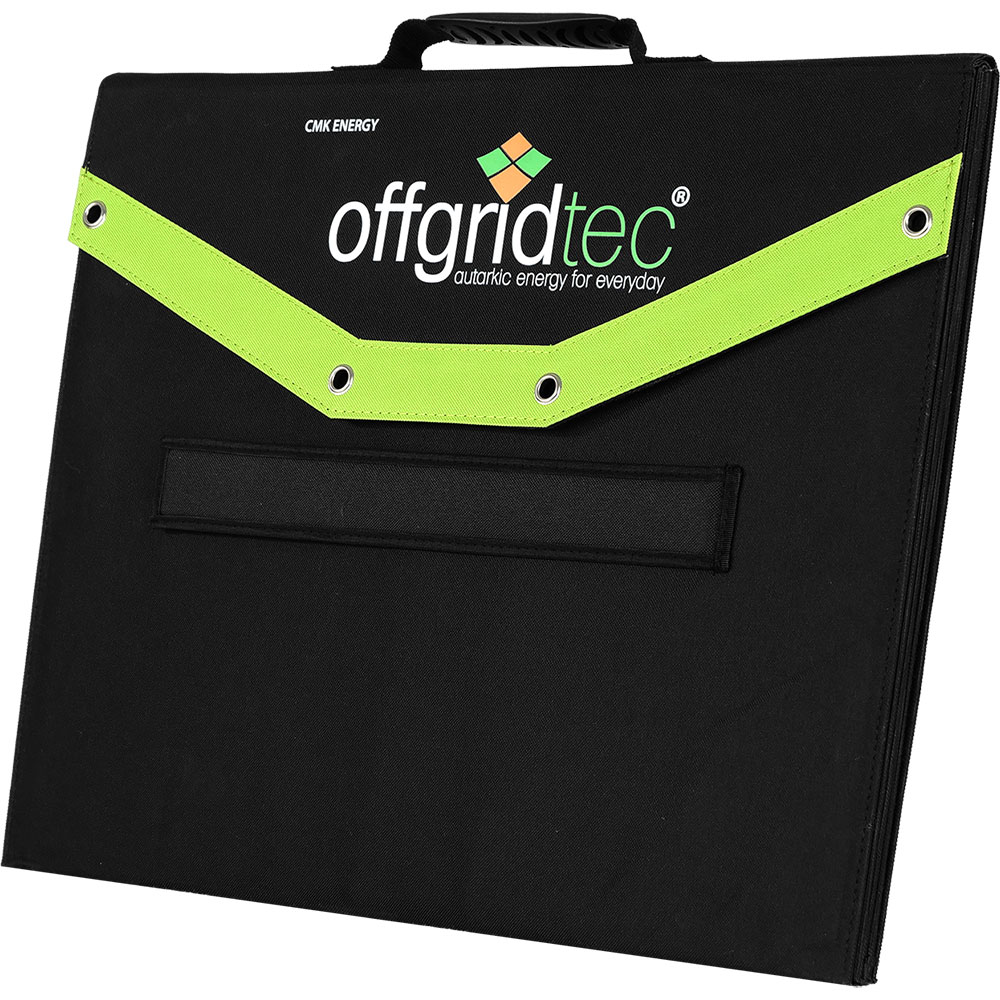

• Dimensions closed: 560 x 440 x 20 mm

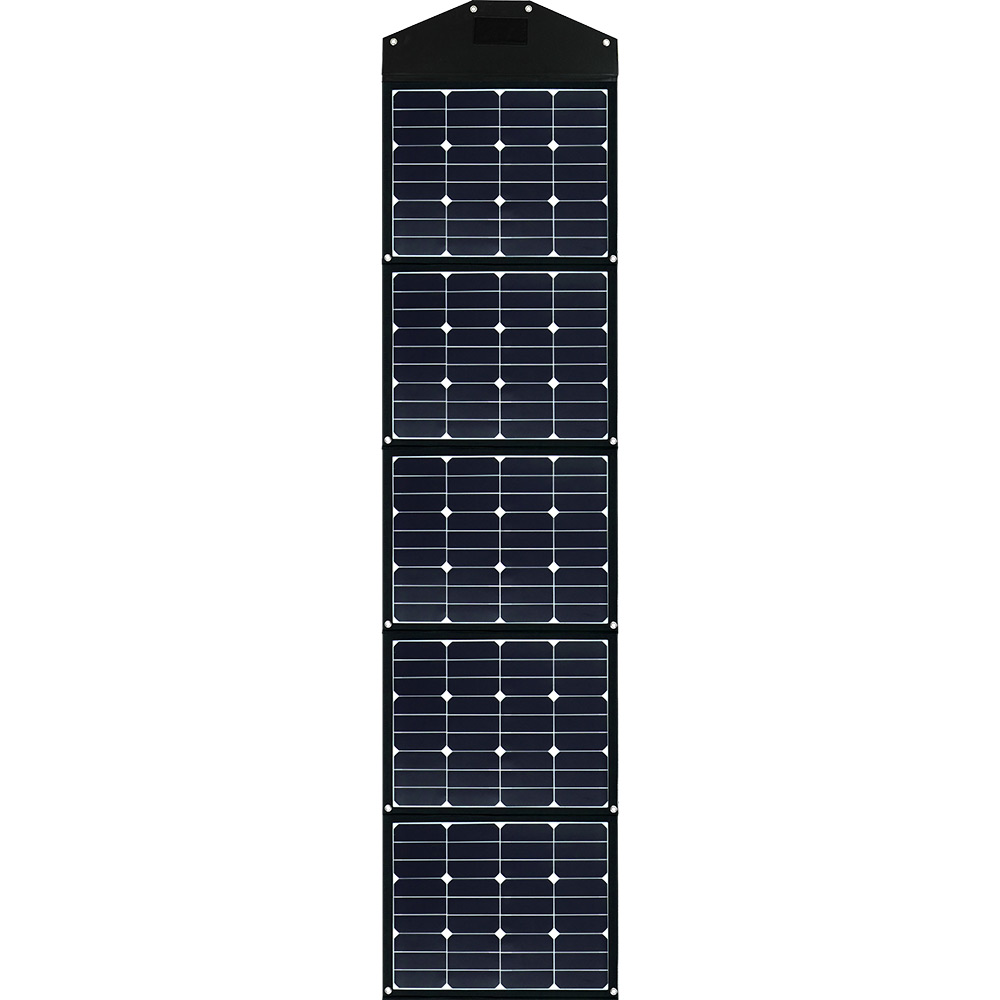

• Open dimensions: 560 x 2430 x 8 mm
• Weight: 7 kg

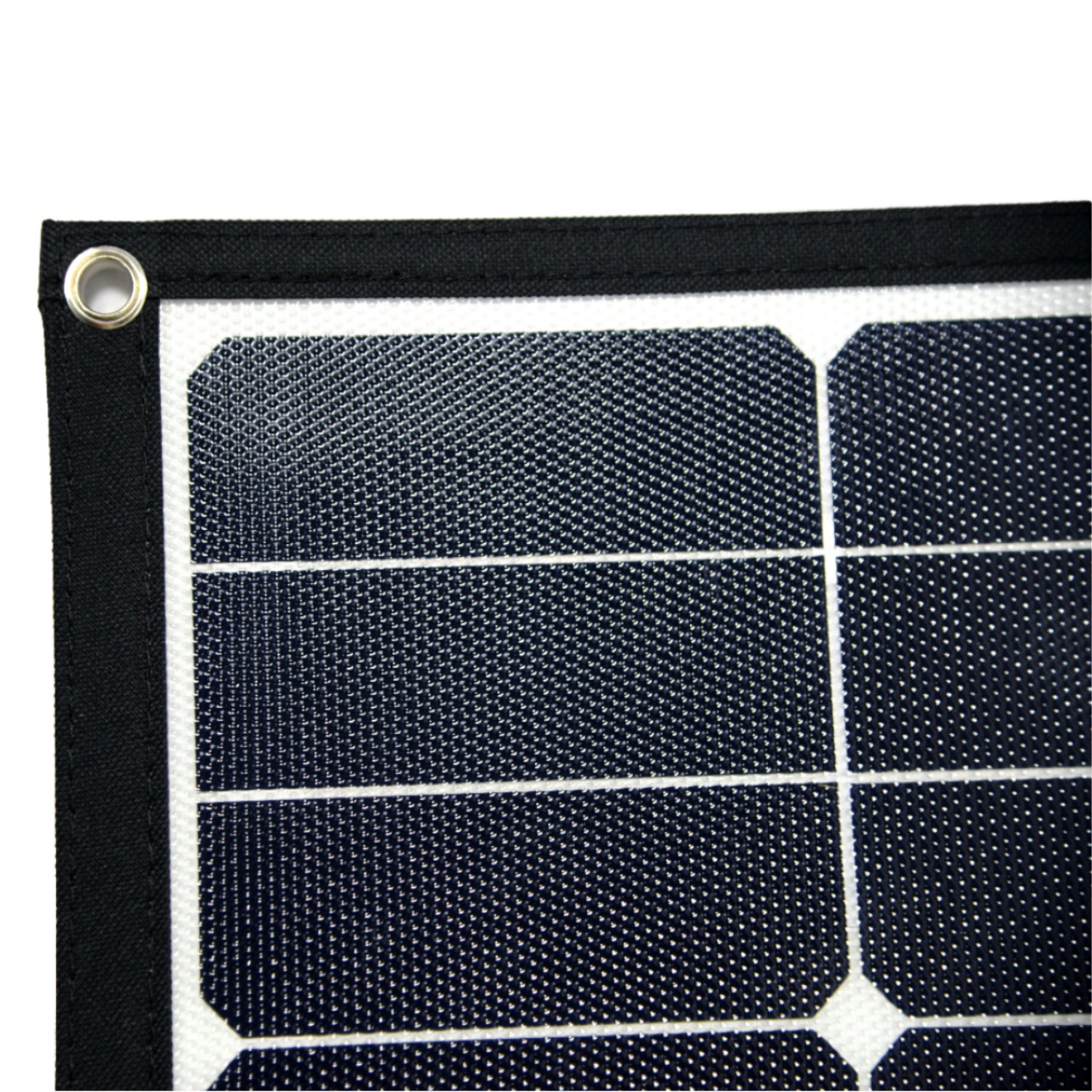

• ETFE coating
• SunPower high-performance cells
• 6.0m 2x6mm² connection cable from the FSP-2 to the solar charge controller with Anderson connector on the solar side
• 0.5m 5mm² connecting cable Anderson plug to wire end ferrule (for fixed screw connection to the charge controller)
• 1m battery connection cable solar charge controller to battery with pre-assembled tapping terminals on the battery side
• Short-circuit-proof connection to the battery thanks to integrated flat fuse holder with 15A ATO fuse
• 2-year warranty - information on the warranty conditions can be found here

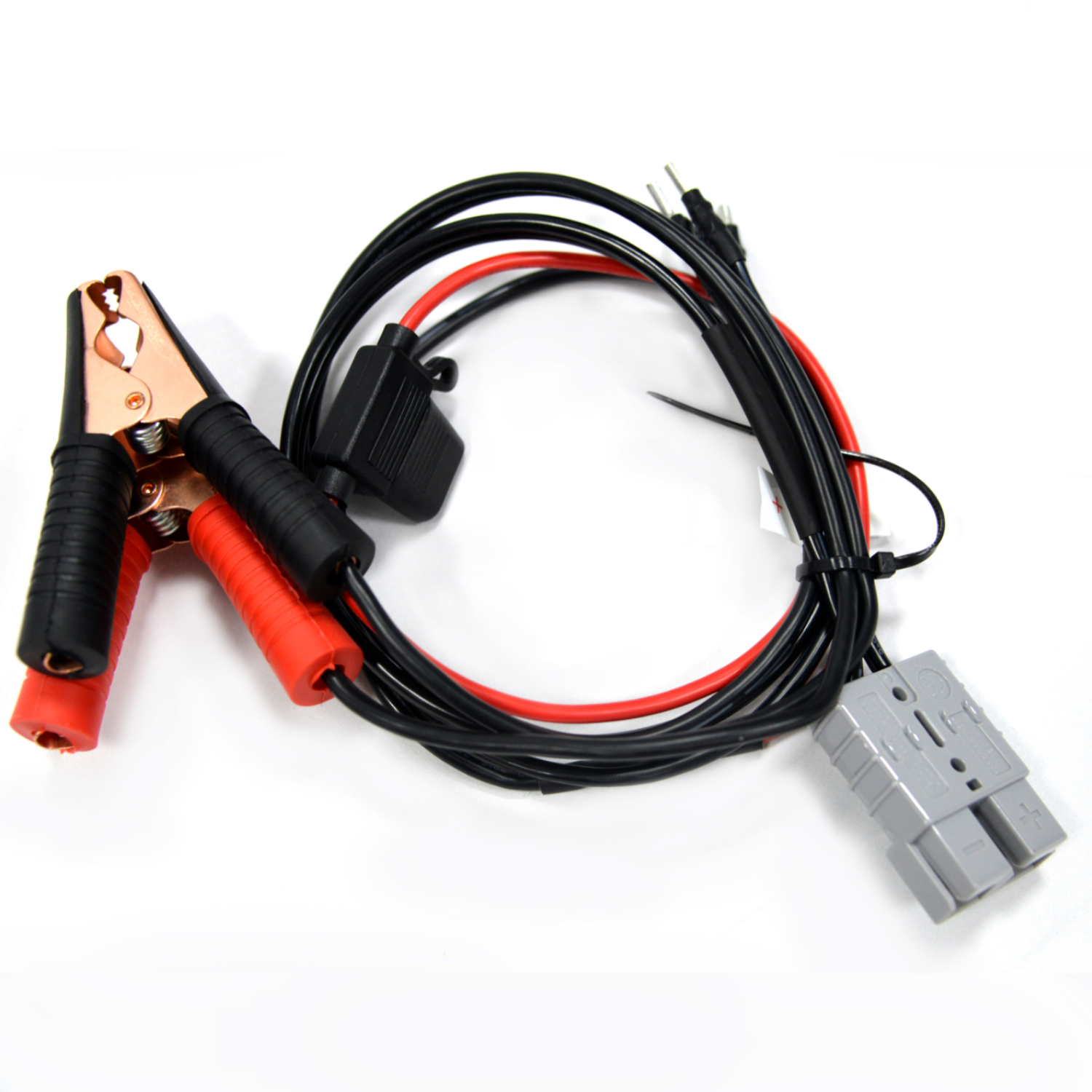

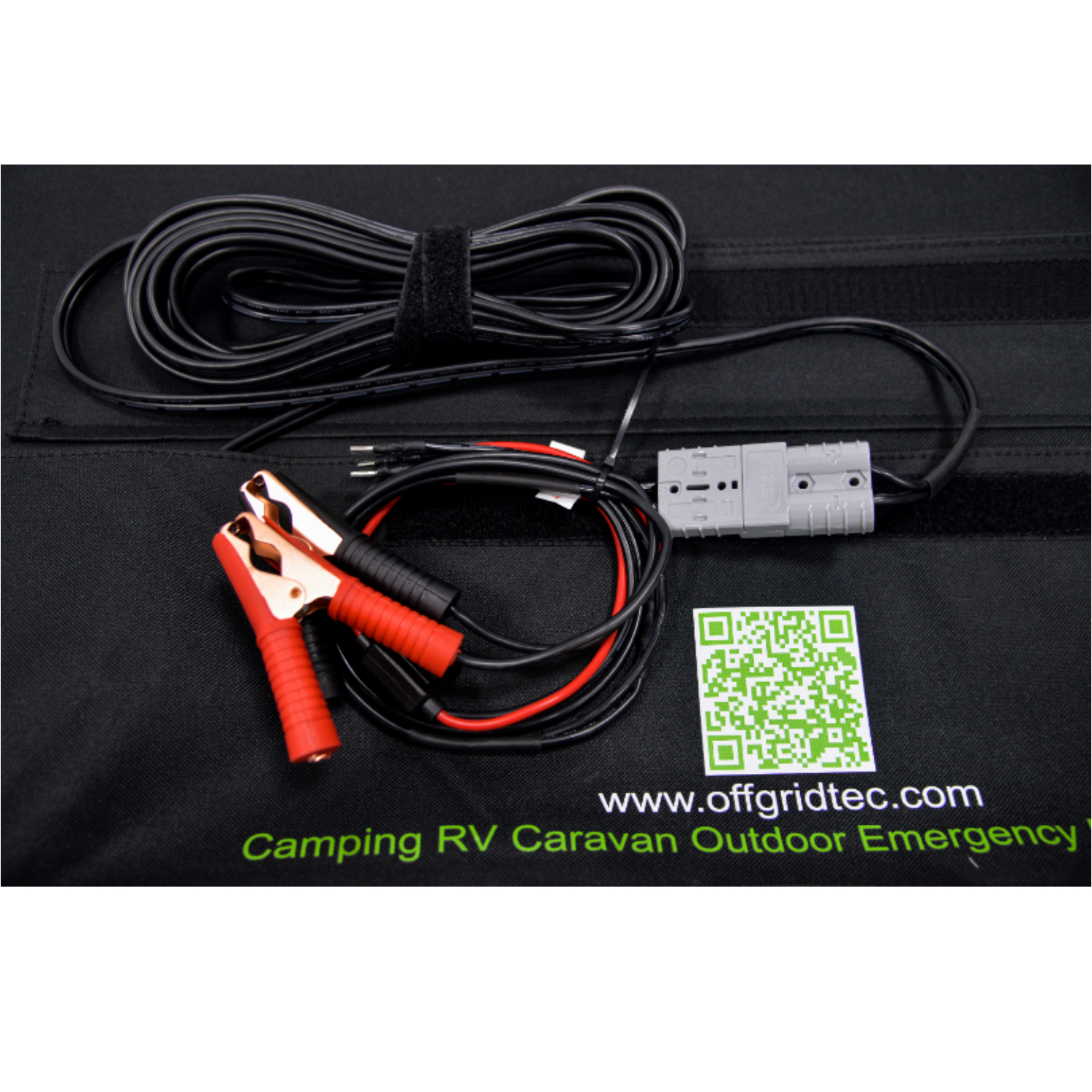

The included professional connection kit

The connection kit included in the scope of delivery offers everything you need to get the mobile solar set up and running quickly. Each FSP-2 has a 6.0 m connection cable with a high-quality Anderson connector at the end. A second 0.5 m connection cable is also supplied, which is screwed directly to the solar input of the charge controller and is also equipped with an Anderson plug on the other end. This means that you can quickly connect or disconnect the controller at any time using the Anderson connectors without having to unscrew the cables from the charge controller.

A 1 meter long Plug & Play connection cable is also included for connecting the charge controller to your battery. This is screwed to the battery input of the controller and is equipped with universal crocodile clips on the battery side, which can be conveniently connected to all standard battery terminals. The battery cable also has a flat fuse holder with a corresponding ATO fuse.

about the FSP-2 series

As with all Offgridtec solar module series, the FSP series also places great emphasis on high quality and durability. The FSP 2 225W Ultra works with back-contacted solar cells like those used in our SP high-performance series. These cells generate efficiencies of over 24% and are the best currently available on the market. In addition, the entire FSP-2 series is provided with an ETFE coating, which provides better protection and at the same time ensures very high light transmission. We also produce our solar modules in accordance with current norms and standards, which, together with the high-quality materials, makes our modules high-end products that deliver top technical performance even under the most adverse conditions.

Scope of delivery:

1x Offgridtec FSP-2 225W 12/24V, 3-01-010765
1x 6m 2x6mm² module connection cable with Anderson SB50 plug
1x Offgridtec FSP-2 connection kit
