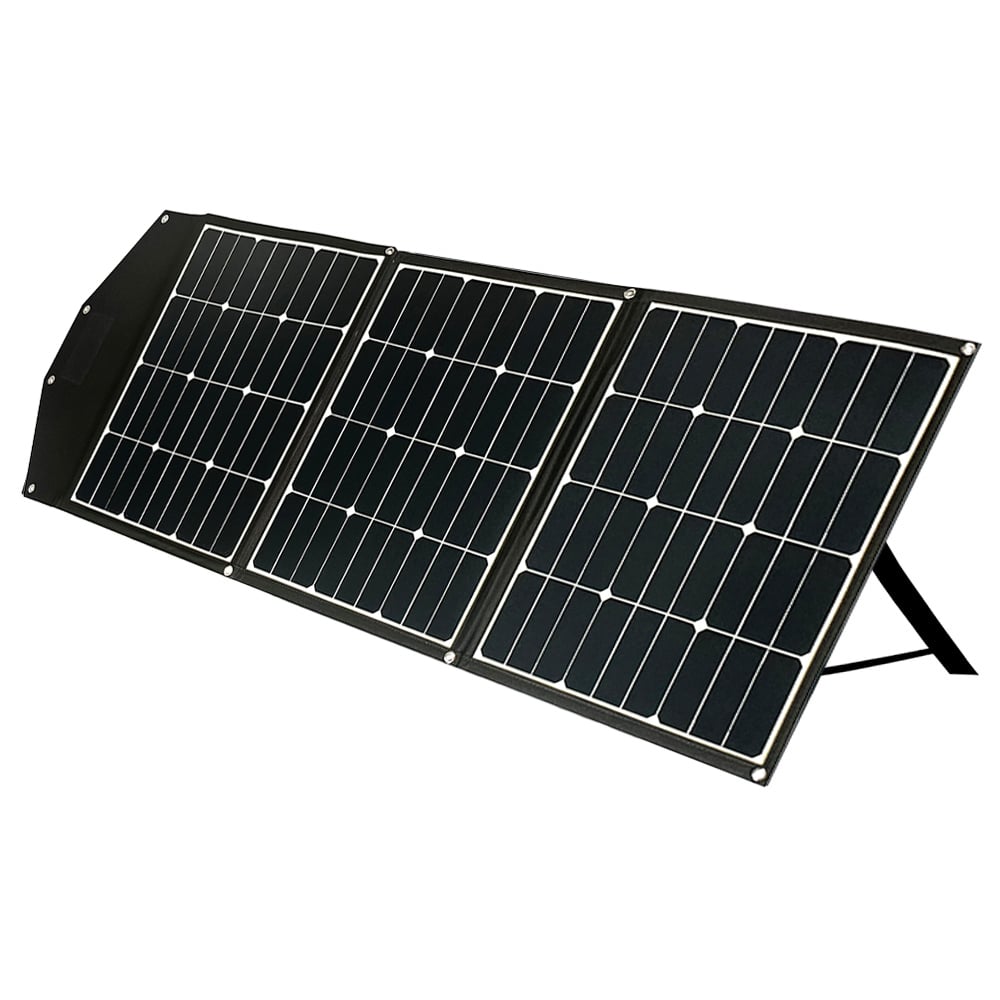

Offgridtec FSP-2 135W Ultra KIT MPPT 15A foldable solar module

The FSP-2 135W ULTRA MPPT KIT 12V is a combination of the foldable 135W FSP-2 solar module and a smart MPPT controller of the latest generation. The FSP-2 135W is one of the latest models in the family and at the same time one of the most powerful foldable solar modules currently available. It has a 3-sided design and is supplied with a matching Connectino kit, which allows you to quickly and easily establish a connection to the charge controller and the battery to be charged.
When it comes to charging technology, we rely on the high-quality Victron Smart-Solar 75/15 charge controller for the FSP-2 135W KIT MPPT. A high-quality device that can be conveniently controlled via Bluetooth and a free APP and is also equipped with a 15A load output for DC consumers. The connection kit is housed in a lockable bag directly on the module. So you always have a ready-to-use, small power station at your side.

Performance that sets standards

The FSP-2 135W Ultra is equipped with American SPR back-contact cells from a well-known manufacturer. The cells are completely black, giving the FSP-2 135W a very modern, high-quality appearance. The SPR cells ensure a high efficiency of the panel and, in combination with the low weight and compact dimensions of the FSP-2 panel, set new standards in this power class.

Wide range of applications:

• Excellent for use in the camping sector
• Or for expeditions, climbing tours and much more
• For vehicles and boats without a fixed solar installation
• And numerous other applications in a wide variety of areas

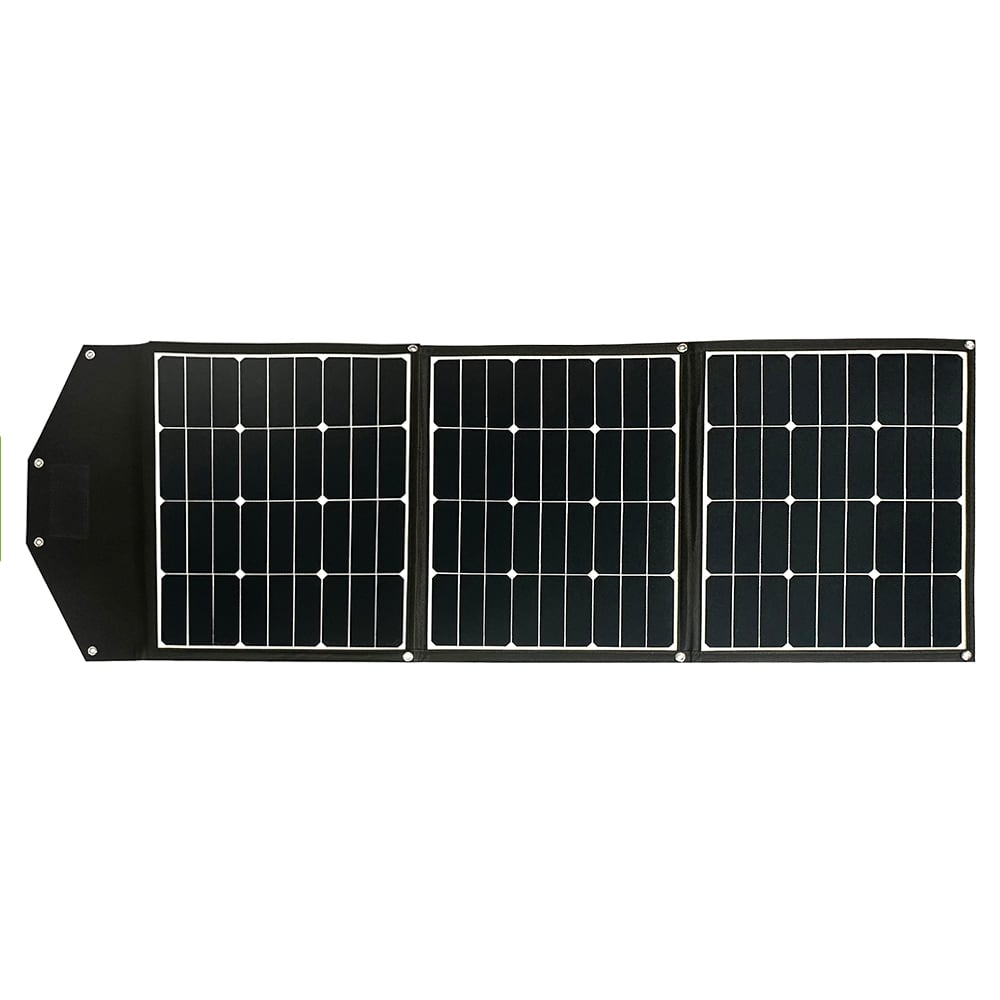

Technical highlights FSP-2 135W solar module

• Nominal output: 135Wp, number of sides: 3 x 45 Wp

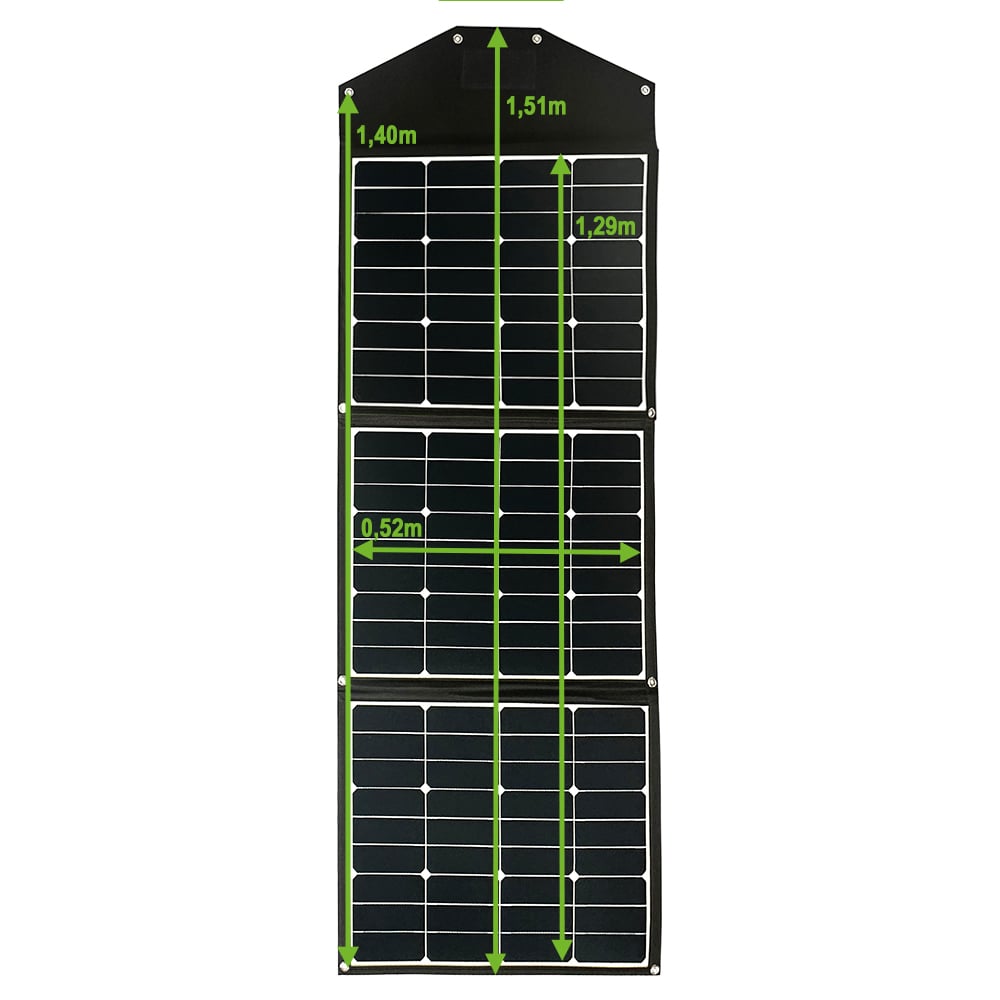

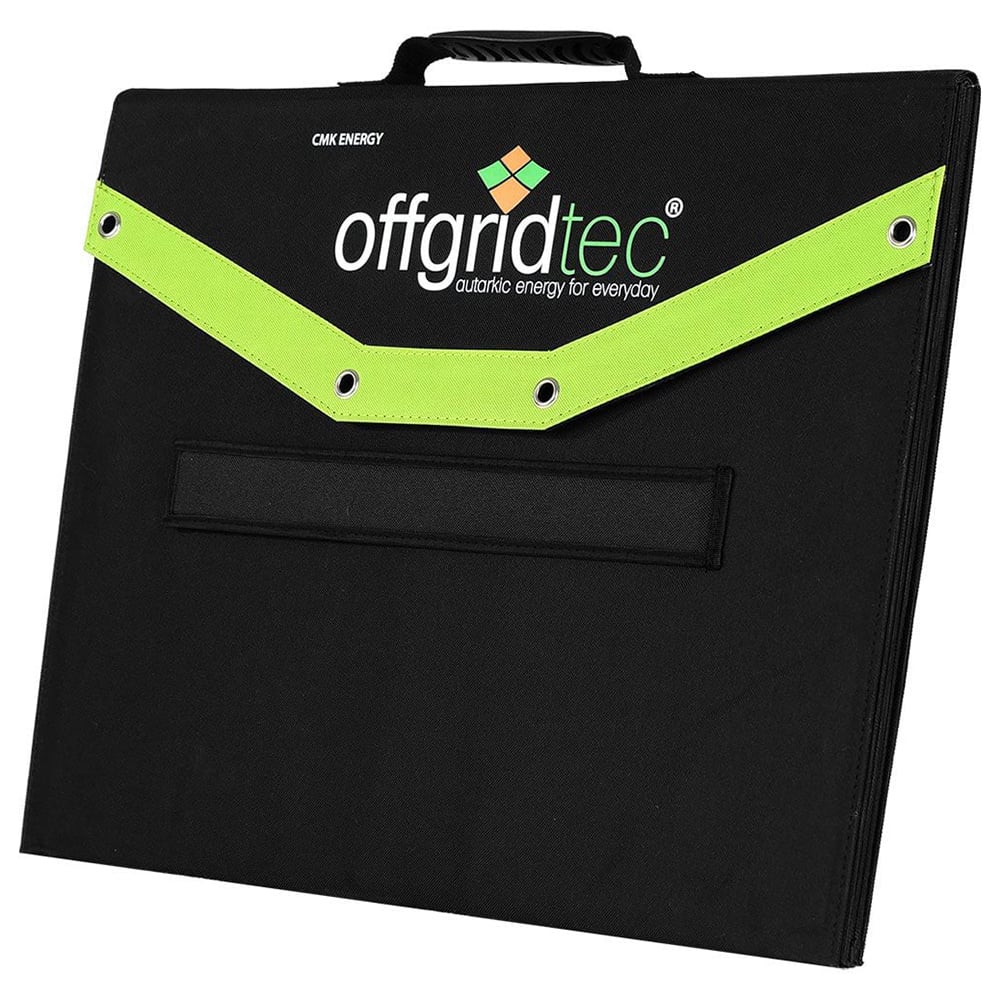

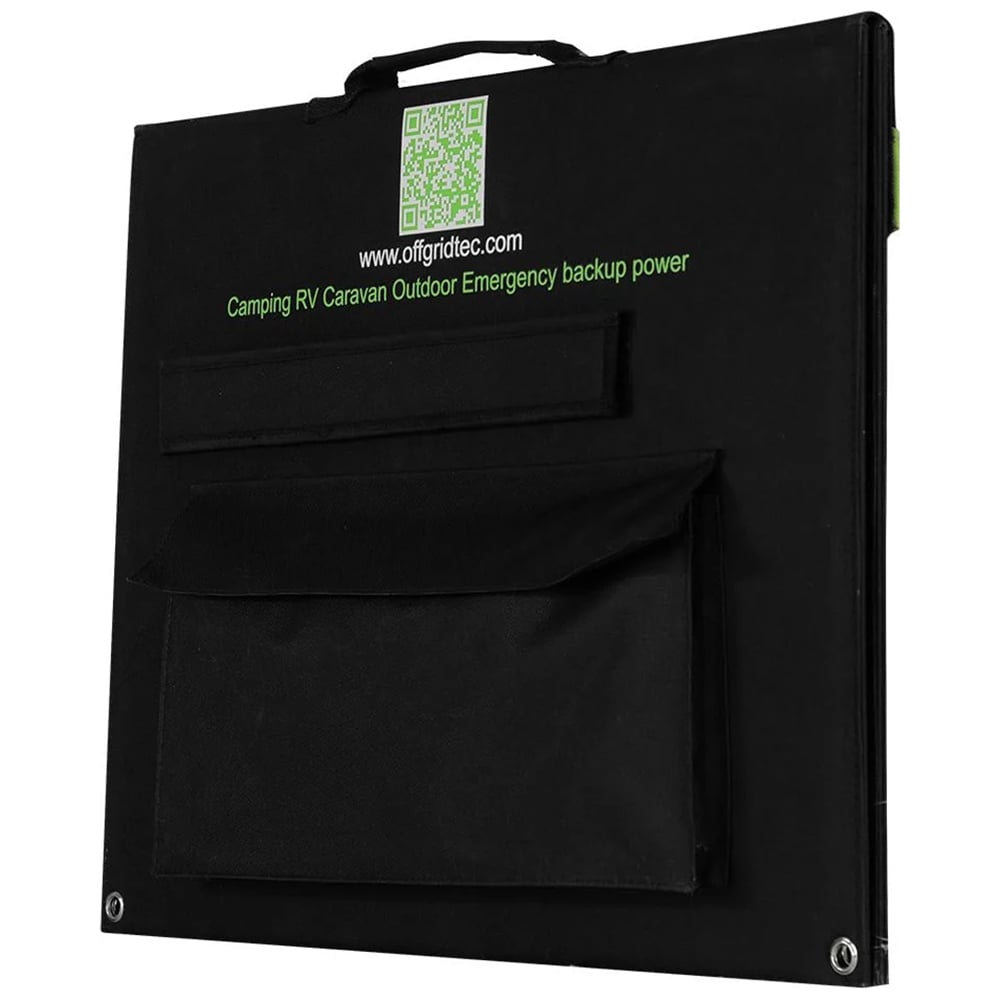

• Closed dimensions: 560 x 440 x 20 mm; open dimensions: 560 x 1545 x 6 mm
• Module weight: 4.8 kg
• equipped with high-end solar cells
• Module voltage (Vmp): 19.8V - Max. Charging current (Imp): 6.82A
• Open-circuit voltage (Voc): 23.3V - Short-circuit current (Isc): 7.22A
• ETFE coating
• SunPower high-performance cells
• 6.0m 2x6mm² connection cable from the FSP-2 to the solar charge controller with Anderson connector on the solar side
• 0.5m 5mm² connecting cable Anderson plug to wire end ferrule (for fixed screw connection to the charge controller)
• 1m battery connection cable solar charge controller to battery with pre-assembled tapping terminals on the battery side
• Short-circuit-proof connection to the battery thanks to integrated flat fuse holder with 15A ATO fuse
• 2-year warranty - information on warranty conditions can be found here

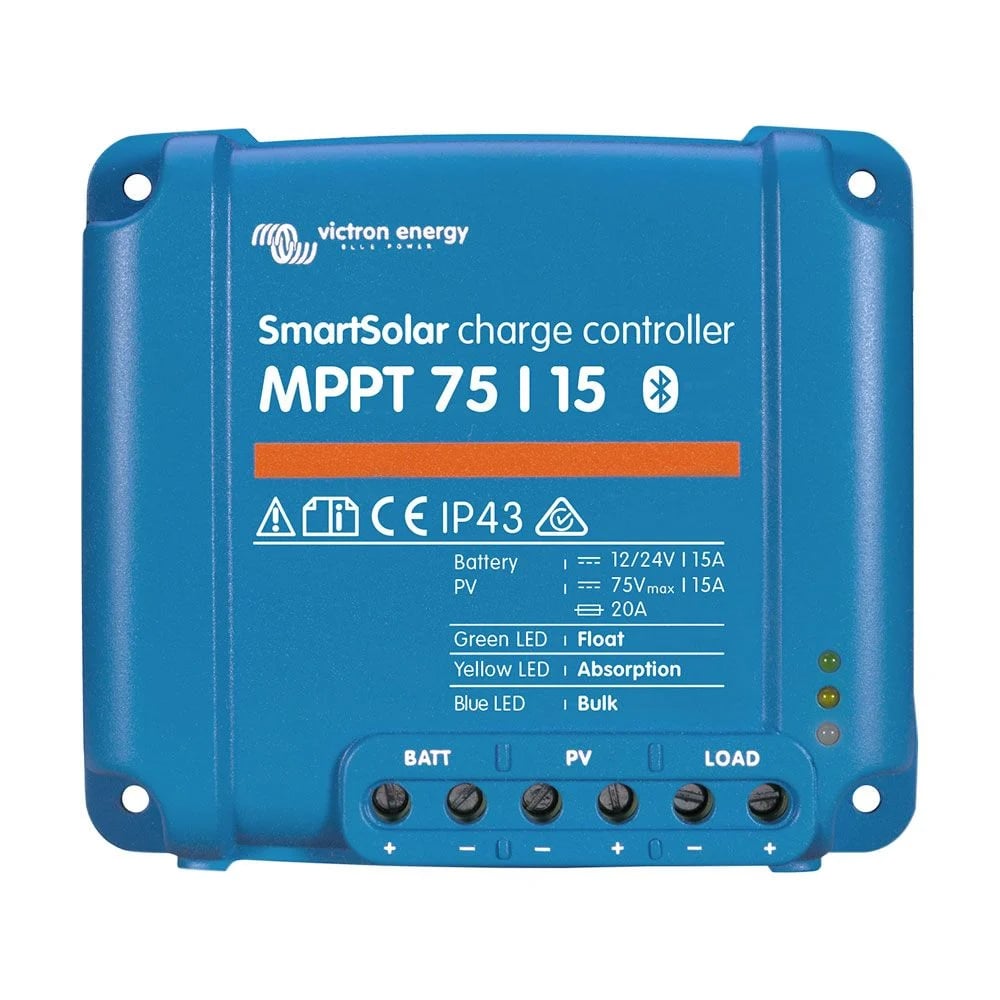

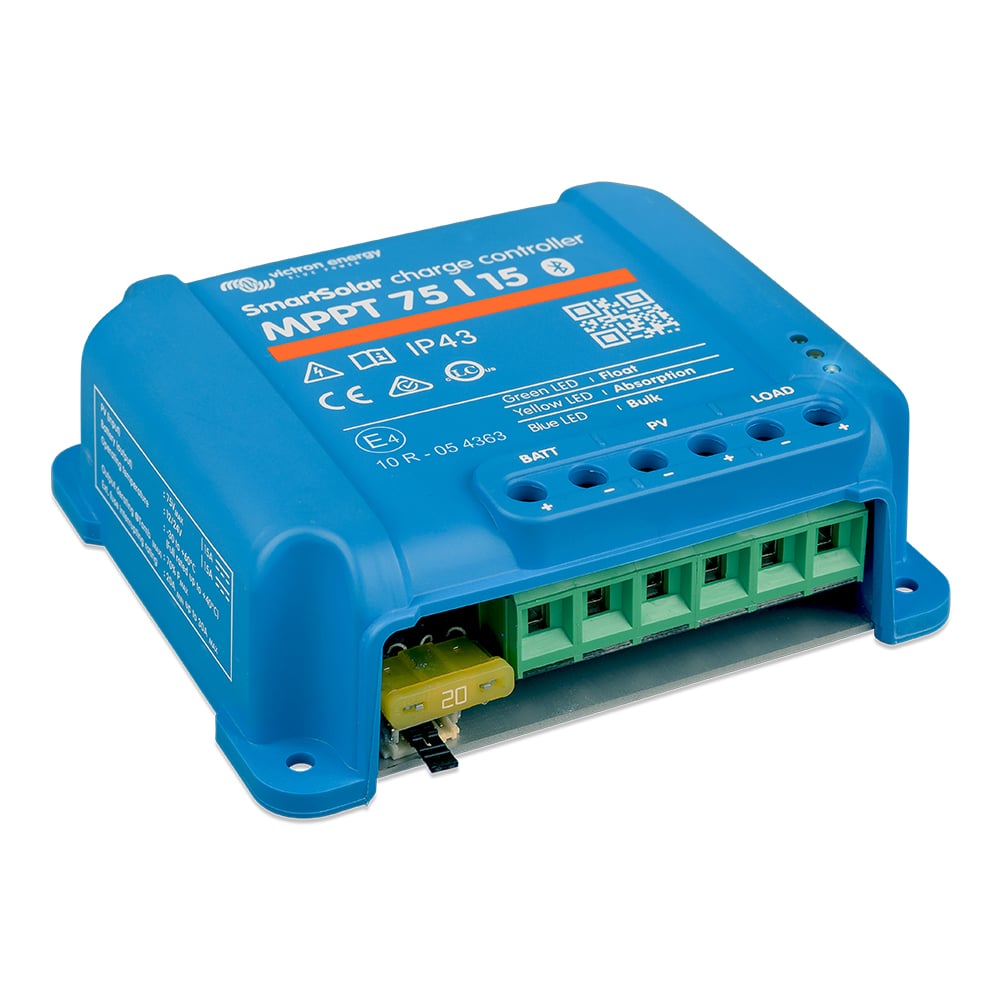

Including Victron SmartSolar MPPT 75/15 charge controller

The Smartsolar 75/15 from Victron Energy (MPN SCC075015060R) is an MPPT solar charge controller with 15A max. charging current for charging 12V and 24V batteries. In contrast to the BlueSolar 75/15, the Smart version has integrated Bluetooth, making the purchase of a Bluetooth dongle superfluous. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control GX or the MPPT Control.

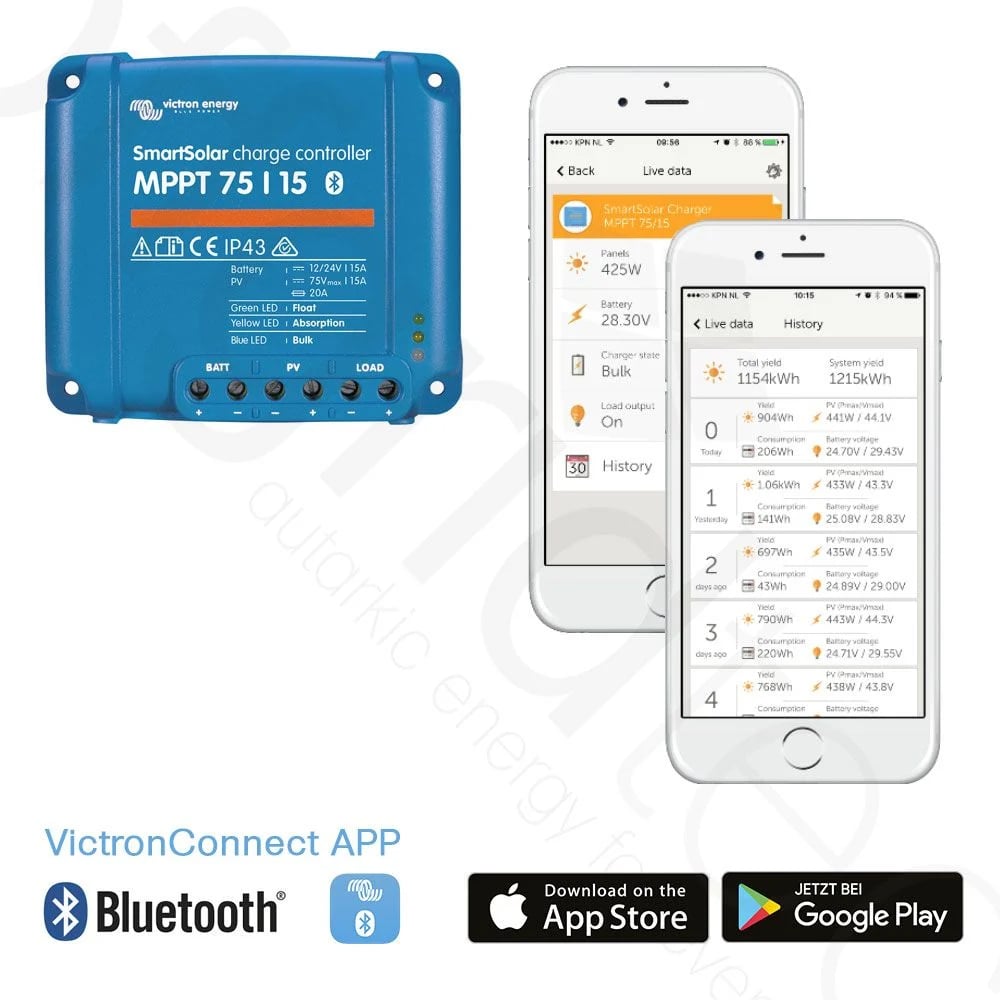

The integrated Bluetooth in the SmartSolar series is the wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.

The most important technical features of the charge controller at a glance

• 15A load output
• high peak efficiency of 98%
• freely programmable battery charging algorithm (via the free Victron Connect APP)
• Programmable light dimming functions (via the free Victron Connect APP)
• Ultra-fast maximum power point tracking
• max. PV open circuit voltage: 75V
• Charging algorithm: multi-stage, adaptive
• integrated Bluetooth module
• Dimensions: 100 x 113 x 40 mm
• Weight: 0.5 kg

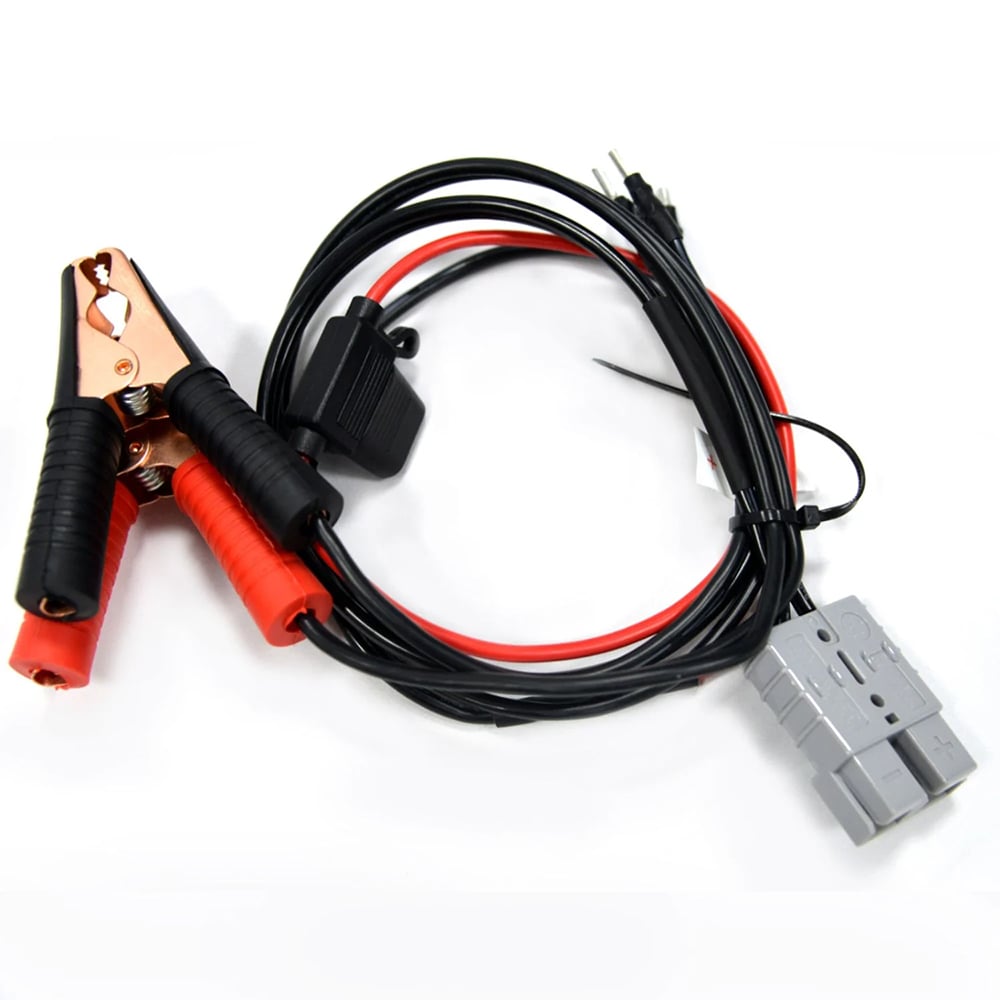

The included professional connection kit

The connection kit included in the scope of delivery offers everything you need to get the mobile solar set up and running quickly. Each FSP-2 has a 6.0 m connection cable, which is fitted with a high-quality Anderson connector at the end. A second 0.5 m connection cable is also supplied, which is screwed directly to the solar input of the charge controller and is also equipped with an Anderson plug on the other end. This allows you to quickly connect or disconnect the controller at any time using the Anderson connectors without having to unscrew the cables from the charge controller.
A 1 meter long Plug & Play connection cable is also included for connecting the charge controller to your battery. This is screwed to the battery input of the controller and is equipped with universal crocodile clips on the battery side, which are compatible and can be conveniently connected to all standard battery terminals. The battery cable also has a flat fuse holder with a corresponding 20A ATO fuse and can therefore establish a short-circuit-proof connection to the battery.

about the FSP-2 series

As with all Offgridtec solar module series, great importance has been attached to high quality and durability with the FSP series. The FSP-2 135W Ultra works with back-contacted solar cells like those used in our SP high-performance series. These cells generate efficiencies of over 22% and are the best currently available on the market. In addition, the entire FSP-2 series is provided with an ETFE coating, which provides better protection and at the same time ensures very high light transmission. We also produce our solar modules in accordance with current norms and standards, which, together with the high-quality materials, makes our modules high-end products that deliver top technical performance even under the most adverse conditions.

Scope of delivery:

1x Offgridtec FSP-2 135W 12V
1x Victron Energy SCC075015060R SmartSoalr MPPT 75/15 15A 12V 24V solar charge controller
1x 6m 2x6mm² module connection cable with Anderson SB50 plug
1x Offgridtec FSP-2 Connection-Kit
