Offgridtec FSP-2 135W Ultra foldable solar module

The FSP-2 135W Ultra is a foldable high-end solar panel with battery terminals as well as 3 integrated fold-out supports that allow you to set up the FSP-2 panel easily and anywhere at a 45 degree angle. The FSP-2 Ultra is the successor to our MP-105W and is equipped with high-efficiency solar cells and delivers a full 135W of solar power in optimum orientation and sunshine.

Together with the very compact dimensions when folded and the low overall weight, the FSP-2 sets new standards in terms of flexibility and efficiency among mobile, foldable solar modules. The price of the new Offgridtec FSP-2 Ultra also sets standards among comparable panels and stands up to any comparison.

The basic solution for solar-supported, mobile charging of batteries up to max. 200Ah:

• for camping
• for expeditions
• for vehicles and boats without a fixed solar installation
• and numerous other applications in a wide variety of areas

Technical data foldable solar module FSP-2 135W Ultra

• Rated power: 135Wp
• Module voltage (Vmp): 19.8V
• Max. Charging current (Imp): 6.82A
• Open circuit voltage (Voc): 23.3V
• Short-circuit current (Isc): 7.22A
• Charge controller: not included
• Dimensions closed: 560 x 440 x 20 mm

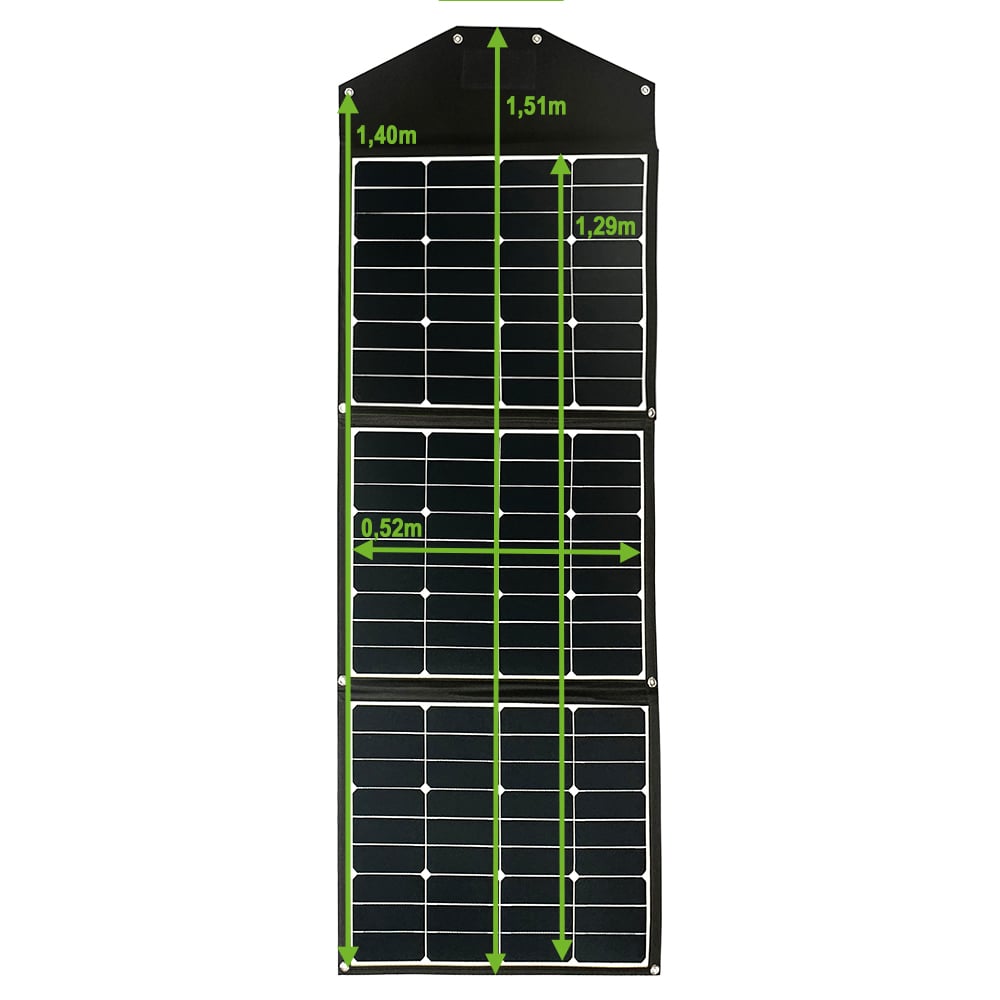

• Open dimensions: 560 x 1545 x 6 mm
• Weight: 4.8 kg
• ETFE coating
• SunPower high-performance cells
• 6.0m 2x6mm² connection cable from the FSP-2 to the solar charge controller with Anderson connector on the solar side
• 0.5m 5mm² connecting cable Anderson plug to wire end ferrule (for fixed screw connection to the charge controller)
• 1m battery connection cable solar charge controller to battery with pre-assembled tapping terminals on the battery side
• Short-circuit-proof connection to the battery thanks to integrated flat fuse holder with 15A ATO fuse
• 2-year warranty - information on the warranty conditions can be found here

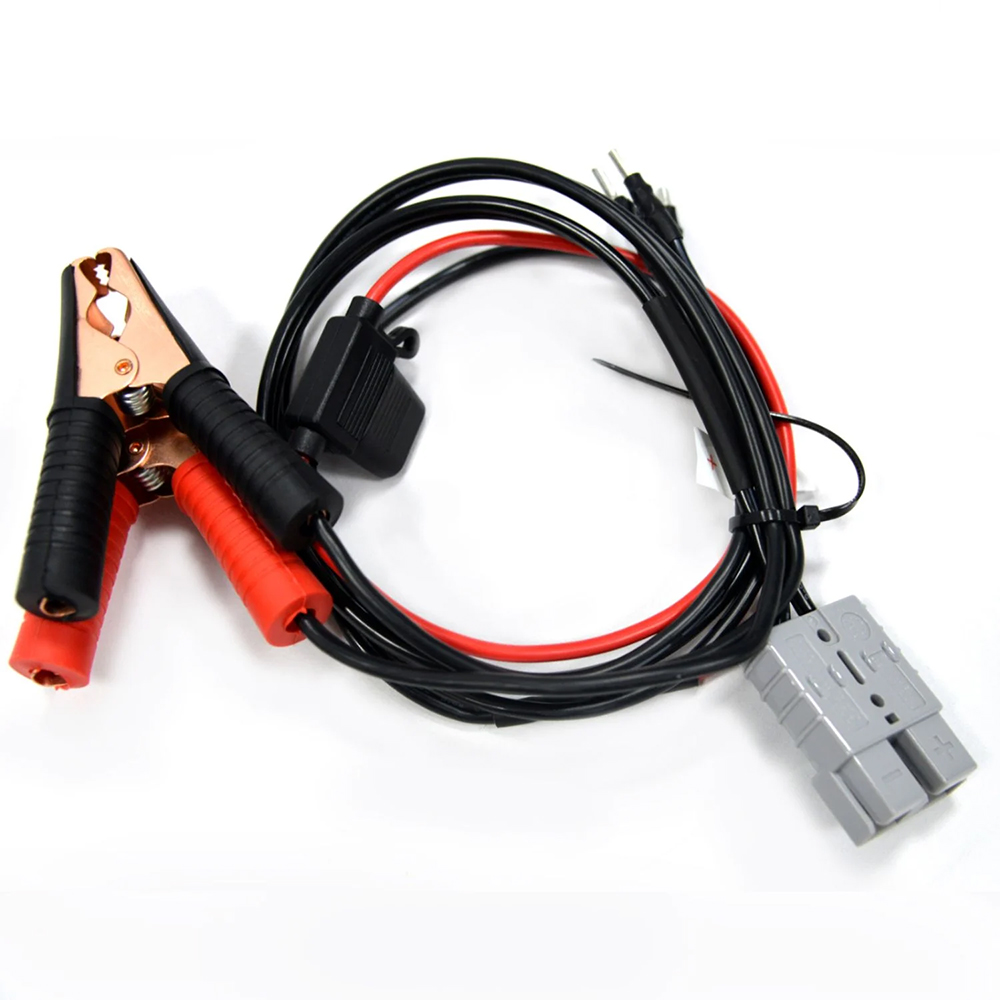

The professional connection kit supplied

The connection kit included in the scope of delivery offers everything you need to get your mobile solar set up and running quickly. Each FSP-2 has a 6.0 m connection cable, which is fitted with a high-quality Anderson connector at the end. A second 0.5 m connection cable is also supplied, which is screwed directly to the solar input of the charge controller and is also equipped with an Anderson plug on the other end. This means you can quickly connect or disconnect the controller at any time using the Anderson connectors without having to unscrew the cables from the charge controller.

A 1 meter long Plug & Play connection cable is also included for connecting the charge controller to your battery. This is screwed to the battery input of the controller and is equipped with universal crocodile clips on the battery side, which can be conveniently connected to all standard battery terminals. The battery cable also has a flat fuse holder with a corresponding ATO fuse.

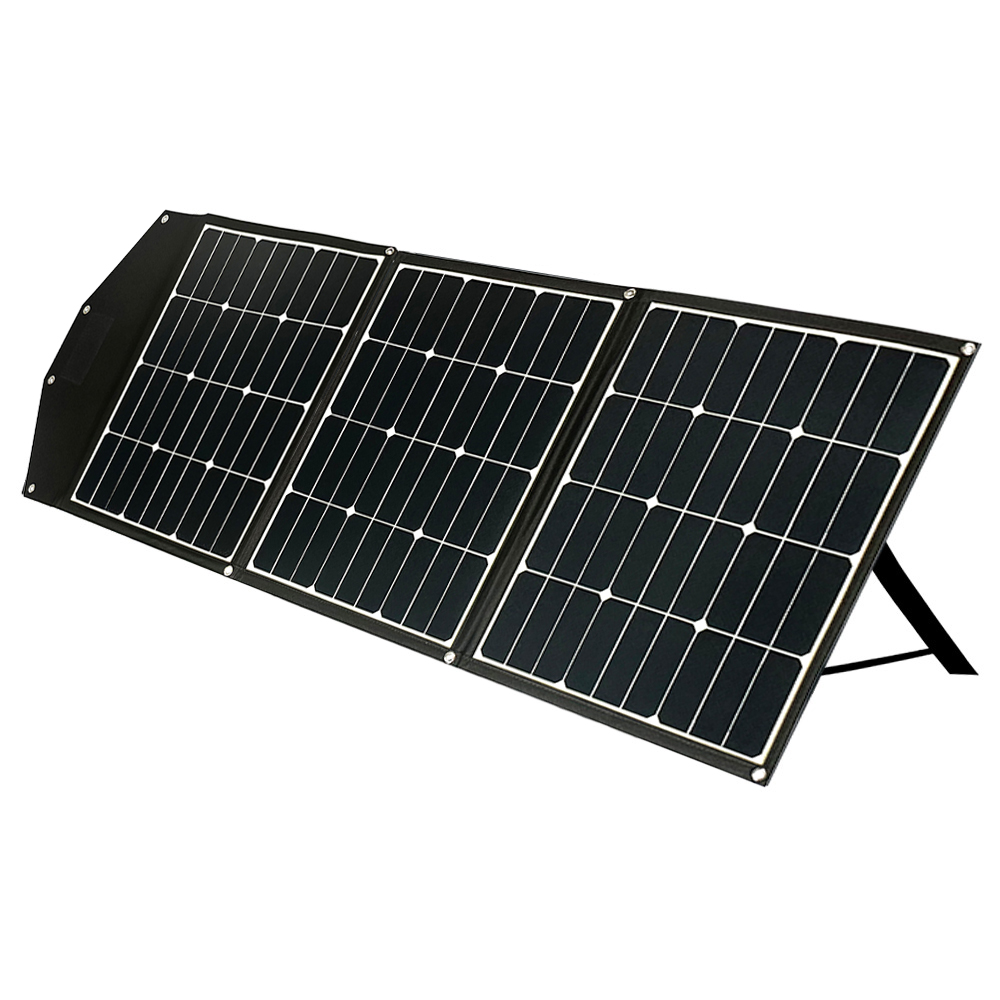

Easy to set up thanks to 3 integrated feet

Three feet are firmly sewn onto the FSP bag, which can be easily folded out if required to place the panel on the floor at an angle of just under 45 degrees. This means that the module is fully assembled and ready for use within a minute.

about the FSP-2 series

As with all Offgridtec solar module series, the FSP-2 series has been designed with high quality in mind. The FSP-2 135 works with high-performance solar cells from SunPower. These cells generate efficiencies of over 22% and are the best currently available on the market. In addition, the entire FSP-2 series has an ETFE coating, which provides better protection and at the same time ensures very high light transmission. We also produce our solar modules in accordance with current norms and standards, which, together with the high-quality materials, makes our modules high-end products that deliver top technical performance even under the most adverse conditions.

Scope of delivery:

1x Offgridtec FSP-2 135W 12V
1x 6m 2x6mm² module connection cable with Anderson SB50 plug
1x Offgridtec FSP-2 connection kit
