Offgridtec ETFE SPR-F-100 V2 120W flexible solar module

Product number: 3-01-010895

Shipped in 1-3 days

€202.36*

Content: 1

Prices incl. 19% VAT plus shipping costs

€170.05**

Content: 1

Incl. 0% VAT plus shipping costs for orders according to §12 Abs. 3 UStG

Product number: 3-01-010895

VAT-exempt delivery possible*

VAT-exempt order for Germany according to § 12 para. 3 UstG

§ Section 12 (3) UstG only applies if you are a private individual and the product is installed in Germany. To benefit from the 0 percent rate, please confirm at the checkout that you are eligible for the zero tax rate according to § 12 para. 3 UstG. Subsequently, the tax rate will automatically be set to zero for eligible items.

The Offgridtec 010895 ETFE SPR-F-100 V2 120W is a semi-flexible high-performance solar cell that is ideally suited both as a solar module for motorhomes and especially for marine use on sailing yachts, motor yachts and other types of boats.

The module is ideally suited for 12V system voltages. The ETFE 120W 12V solar cell is semi-flexible and can also be walked on when mounted completely flat.

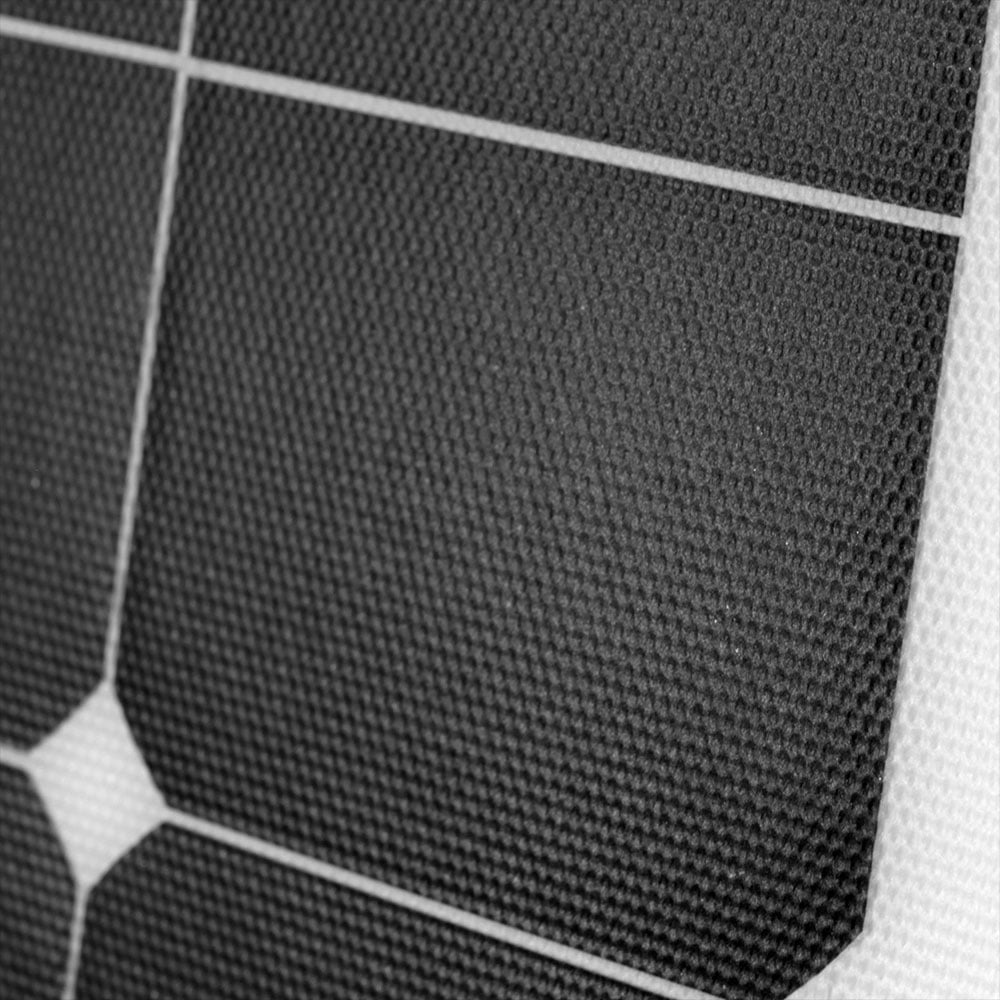

ETFE high-tech plastic solar glass combined with SPR high-performance cells

The front of the solar panel is covered with a high-tech plastic layer based on ethylene tetrafluoroethylene copolymer ETFE - a Teflon derivative (PTFE) - and offers excellent protection against harmful environmental influences and is also suitable for use in salt water. ETFE is lighter and at the same time more translucent than other plastic solutions on the market. Together with the installed SPR (Sunpower) high-performance cells from American production, these two components form an optimum basis for a top-class marine solar panel.

Technical properties of the ETFE SPR-F-100 V2 120W solar module

120W nominal output at an operating voltage of 19.8V and a current of 6.07A
walkable

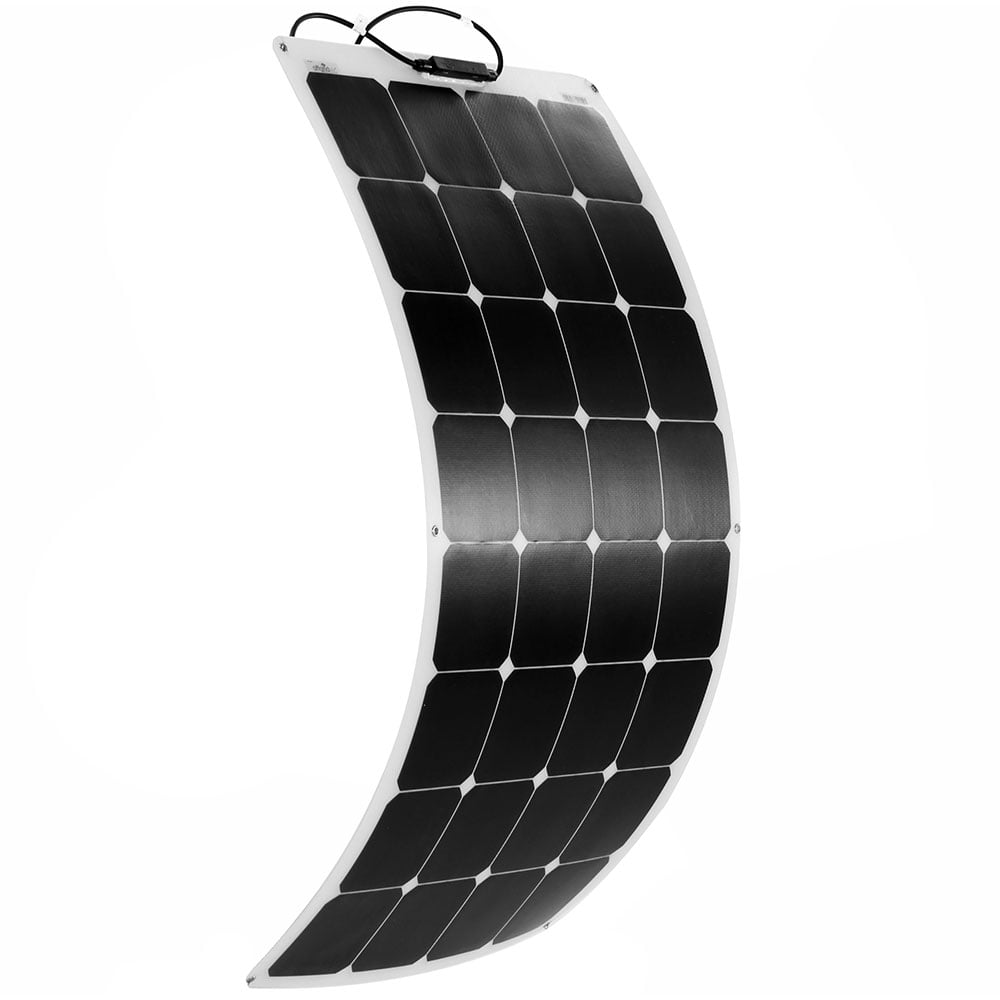

semi-flexible - can be bent up to a maximum of 30 degrees (lengthwise)
easy installation of the solar panel by gluing or using the eyelets
specially developed for long-term marine use
ETFE high-tech plastic ensures weight savings and high light transmission of max. 96%
equipped with market-leading high-performance solar cells from Sunpower for maximum efficiency
Junction box with protection class IP65
easy installation thanks to pre-assembled solar cable with solar plug connector and socket

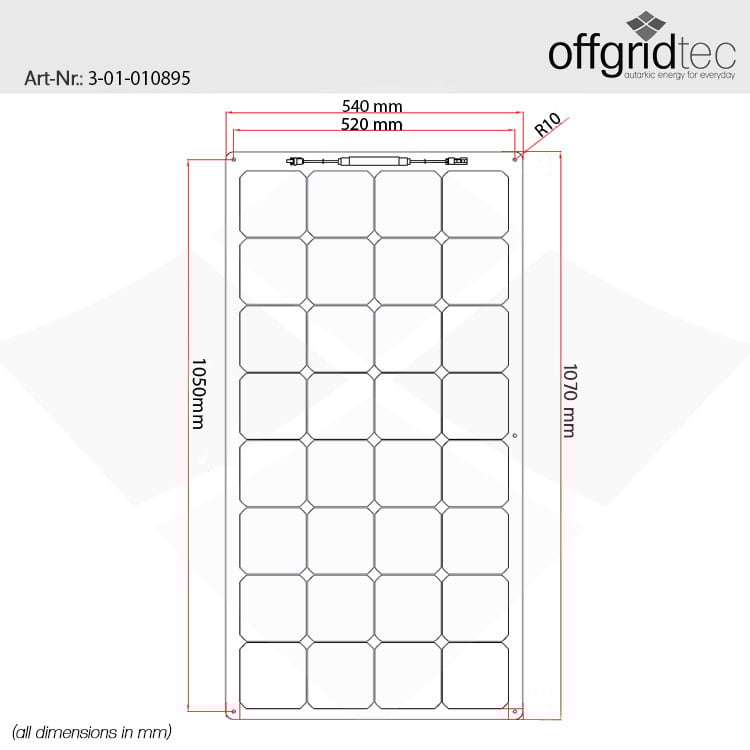

small dimensions (LxWxH): 1070 x 540 x 2 mm
Mounting of the solar panel by gluing or using the eyelets
Manufacturer part number (MPN): 010895
low weight: only 2.08 KG
proven Offgridtec quality: made exclusively from premium raw materials of the highest quality level
2-year warranty - information on the warranty conditions can be found here

Scope of delivery:

1x Offgridtec ETFE SPR-F-100 V2 120W 12V flexible solar module

Offgridtec_Solarmodule-V2-ETFE_semiflex_Benutzerhinweise.pdf Download

Garantiebestimmung_semi-flexible_Solarmodule.pdf Download

Datenblatt_3-01-010895_DE.pdf Download

Ambient temperature: -40°C - +85°C

Category name: Flexible solar modules

Cell type: monocrystalline SPR high performance cells

Generator output wp: 120 Wp

Humidity: max. 100 %, non-condensing

Manufacturer: Offgridtec

Max. System voltage: 200 V/DC

Module voltage (VMP): 19,8 V

Open circuit voltage (VOC): 23,3 V

Short circuit current (ISC): 6,42 A

Solarmodul - eyelets: 6 ring eyes

Solar module - Walkability: walkable*

Solar module - bendability: max. 30 degrees (lengthwise)

Solar module - cable length: 0,8 m

Solar module - cell type: SPR monocrystalline high performance cells (original Sunpower)

Solar module - diodes installed: 1 x Shotky

Solar module - junction box: HX-021

Solar module - junction box (IP): IP67

Solar module - performance guarantee: 2 years

Solar module - plug type: MC4

Solar module - size connection cable: 4 mm - 6 mm

Solar panel - size eyelets: 6,75 mm

System voltage: 12 V

Tolerance: +/- 3%

Weight: 2,08 kg

ean: 4250983255515

max. current (IMP): 6,07 A

mpn: 010895

Manufactuerer Information

Offgridtec GmbH

Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
Germany

Mail: info@offgridtec.com

Tel.: +49 8721 9199400

Your name / alias

Your eMail

Product question

Publish question

Fields marked with asterisks (*) are required.

I have read and accepted the privacy notice.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Asked from MP at 27.06.2022

Kann ich die Module mit dem Klebeband von 3M VHB Klebeband GPH-160GF auf dem Wohnmobildach befestigen?

Es sollte möglich sein die Module mit dem Klebeband zu befestigen. Zu beachten wäre die UV-Beständigkeit bei der Wahl des Klebebandes.
Für ein optimales Ergebnis empfehlen wir jedoch immer den Klebstoff DekaSyl MS-5.

Asked from MP at 04.05.2022

Ist die ETFE-SPR-F V2 Serie auch für die Montage auf weichen, flexiblen Oberflächen wie z.B. dem Spayhood-Dach einer Segelyacht geeignet?

Hierzu sollten Sie definitiv eine separate Grundplatte z.B. aus Alu-Dibond verwenden.
Ohne zusätzliche Maßnahmen könnten Sie z.B. unsere PCB-ETFE oder ETFE-AL Serie verwenden.
