Offgridtec Battery Selector Switch for switching between two battery circuits, consumers, charging sources 175A
With the battery selector Switch by Offgridtec (MPN 012820) you can turn on an off two batteries as well as control them seperately to reduce the power consumption, when the device, vehicle or boat is not in use. The Switch is suitable for automotive electronic, electronic devices and all Kinds of 12V/24V/48V vehicles, boats, camper etc.

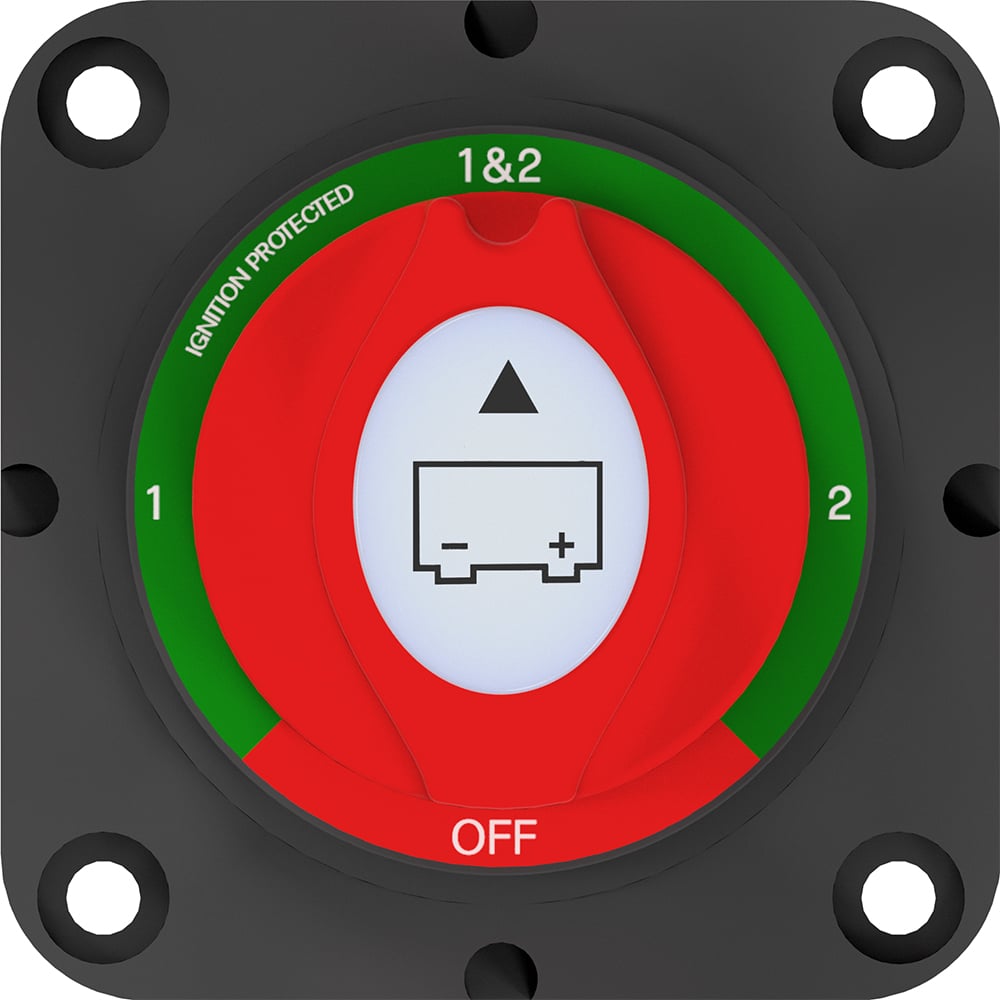

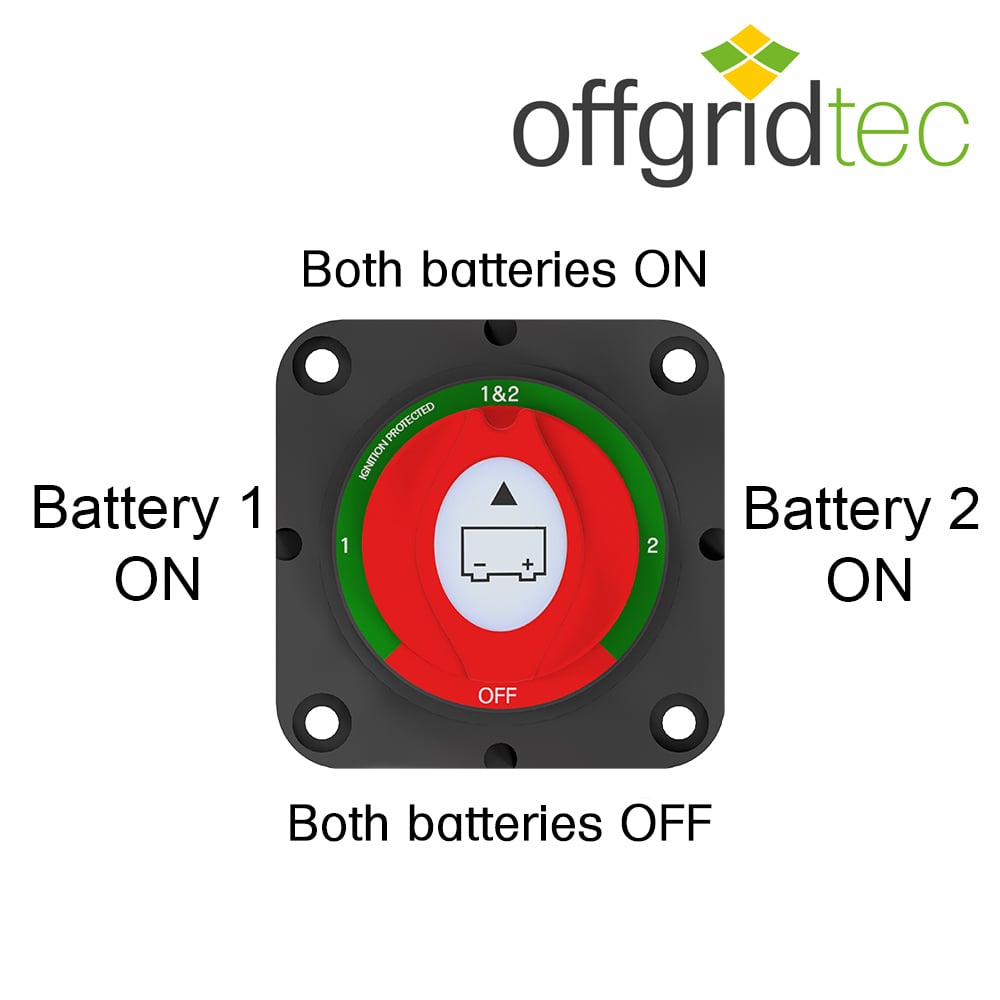

The practical Rotary Switch is easy to serve and works smoothly. With Switch Position 1 or 2 you can turn on one of the connected batteries, with 1&2 both batteries are connected with the circuit and OFF (red) means turning off both batteries. When the device or vehicle is not in use, you can use the Switch to separate the Connection between the batteries safe and to reduce the energy consumption.
Features
- Suitable for 12V/24V/48V
- Continuous current 12V DC: 200A
- Intermittently current 12V DC: 455A
- Momentary current 12V DC: 1250A
- Weight: 260g

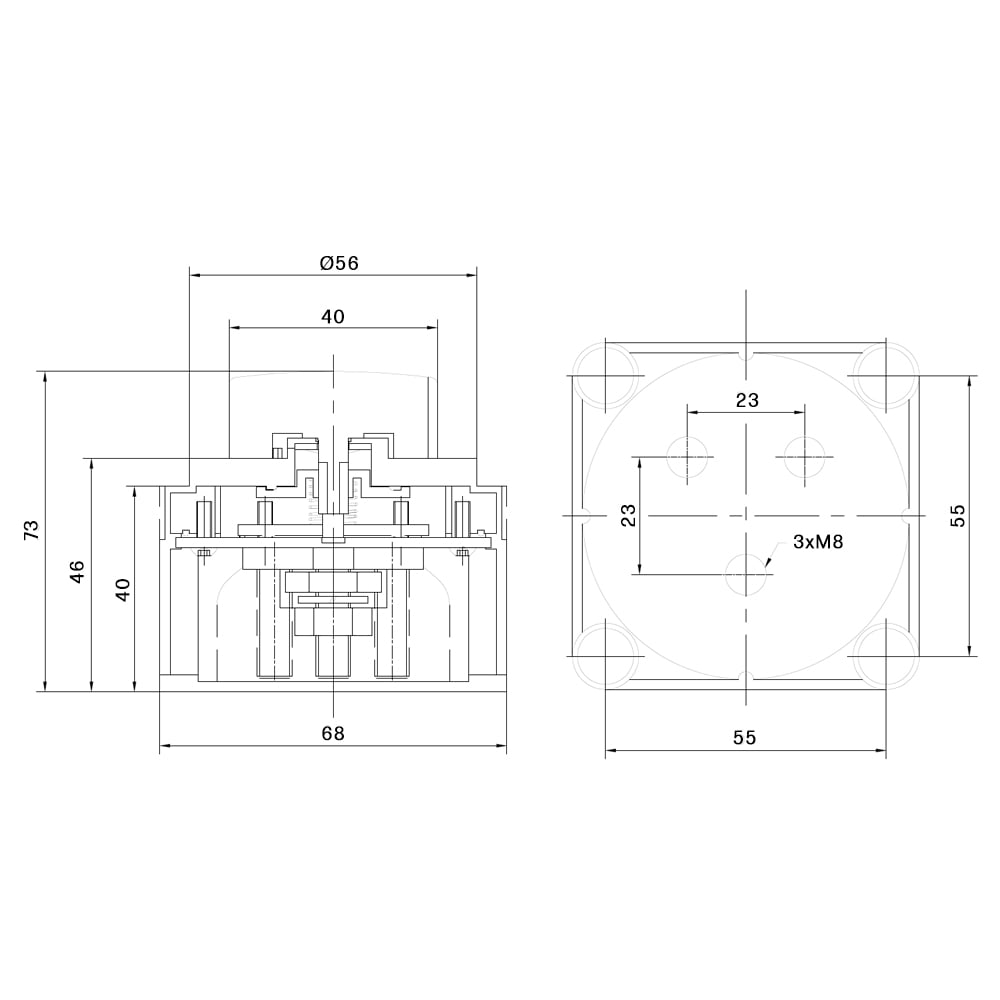

- dimensions of selector switch: 69 x 69 x 74mm
- dimensions for the 4 removable cable glands: 45 x 20mm
Guard and locking service
The locking System can be used as Independent unit or parallel to other Switches. It can protect the power supply, reduce the battery loss and extend the battery lifespan. More important is that the Switch prevents the leave of electricity and protect your personal security. The switch is not removable.
Durable material
The selector Switch is manufactured out of CE-certified, high-Quality ABS-flame retardant, reinforced Nylon and bolts made of silver plated red copper. It is humidity-, UV- and aging resistant and disposes a Long lifespan. The back cover is isolated, to prevent short circuits, fulfill security conditions and prohibit electrical accidents.
Easy installation
The battery selector Switch can be installed easily and fast. You have to keep an eye on the arragement of the positive and negative wires, then you install the corresponding covering lamella and tighten the four screws, to prevent the cable connector from oxidizing.

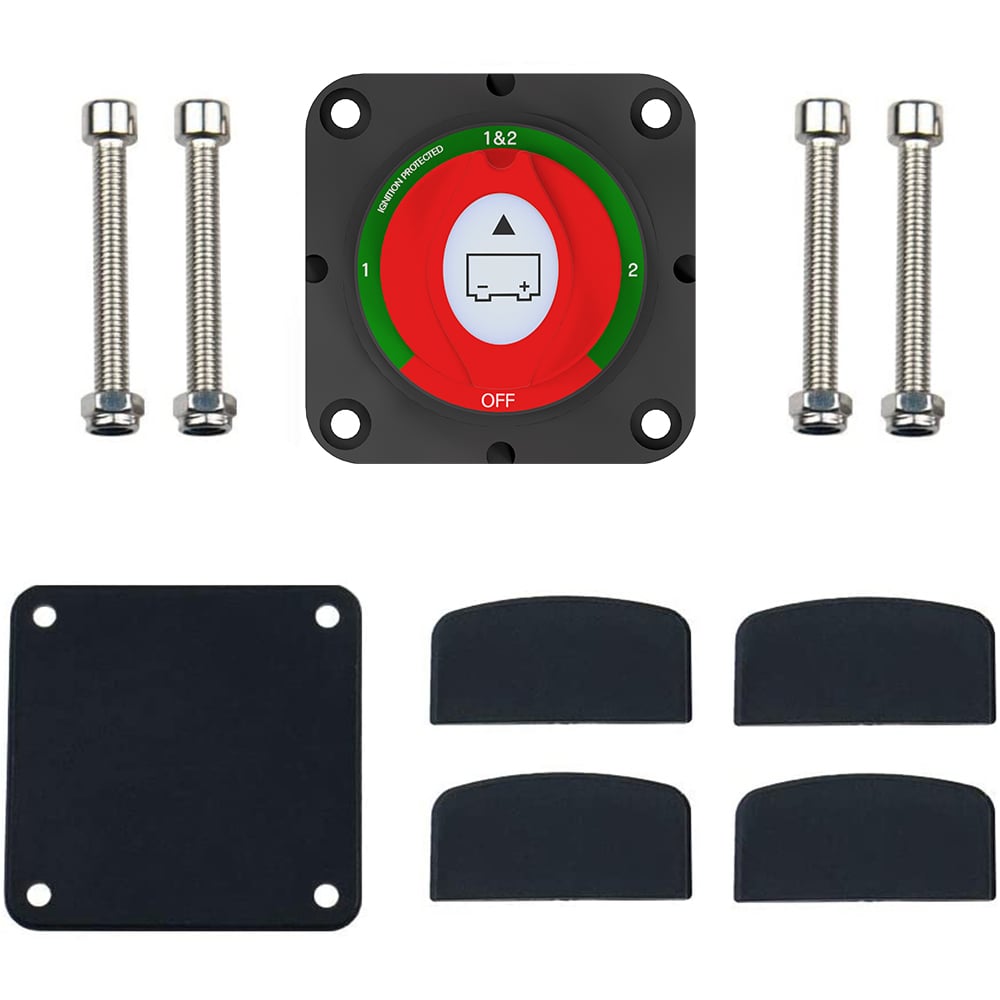

Scope of delivery:
1x Battery selector swith
4x detachable side plate
1x bottom plate
4x screws
4x nuts
