Offgridtec battery disconnect switch 12v 24v 275a m10 screw terminal

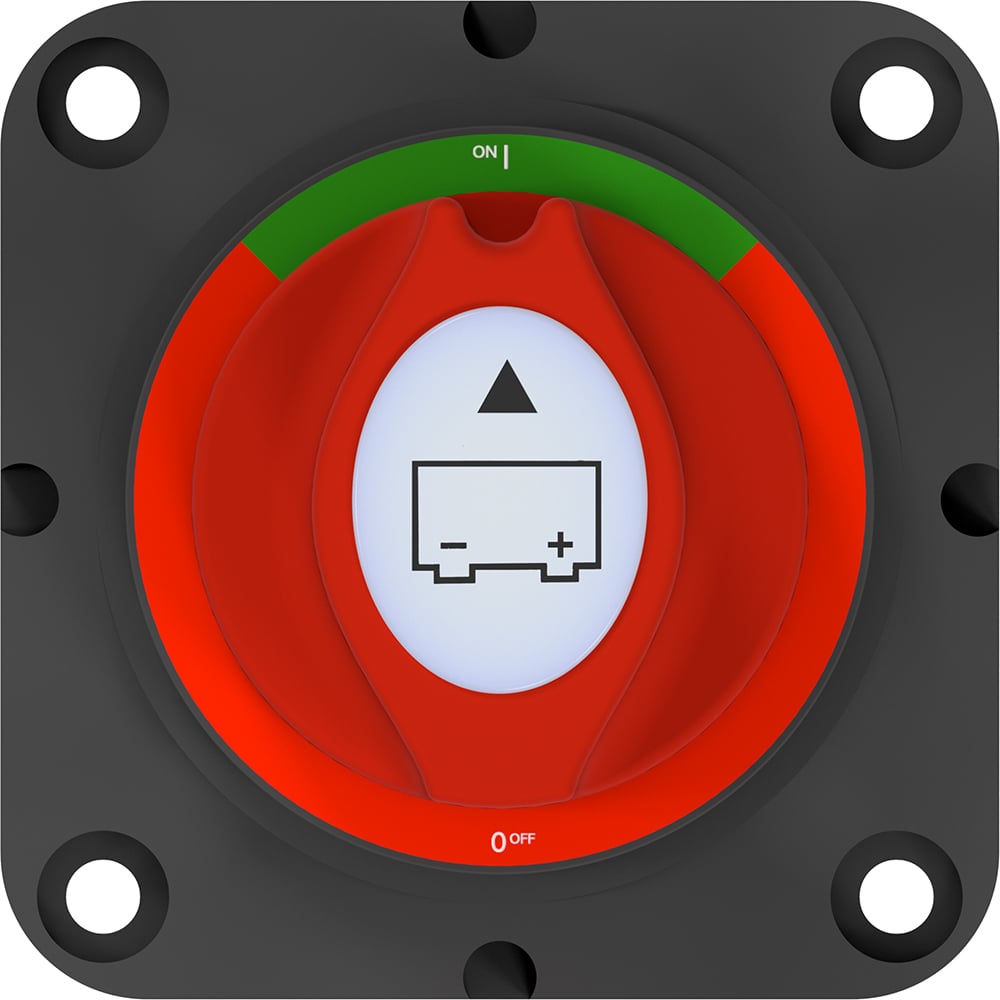

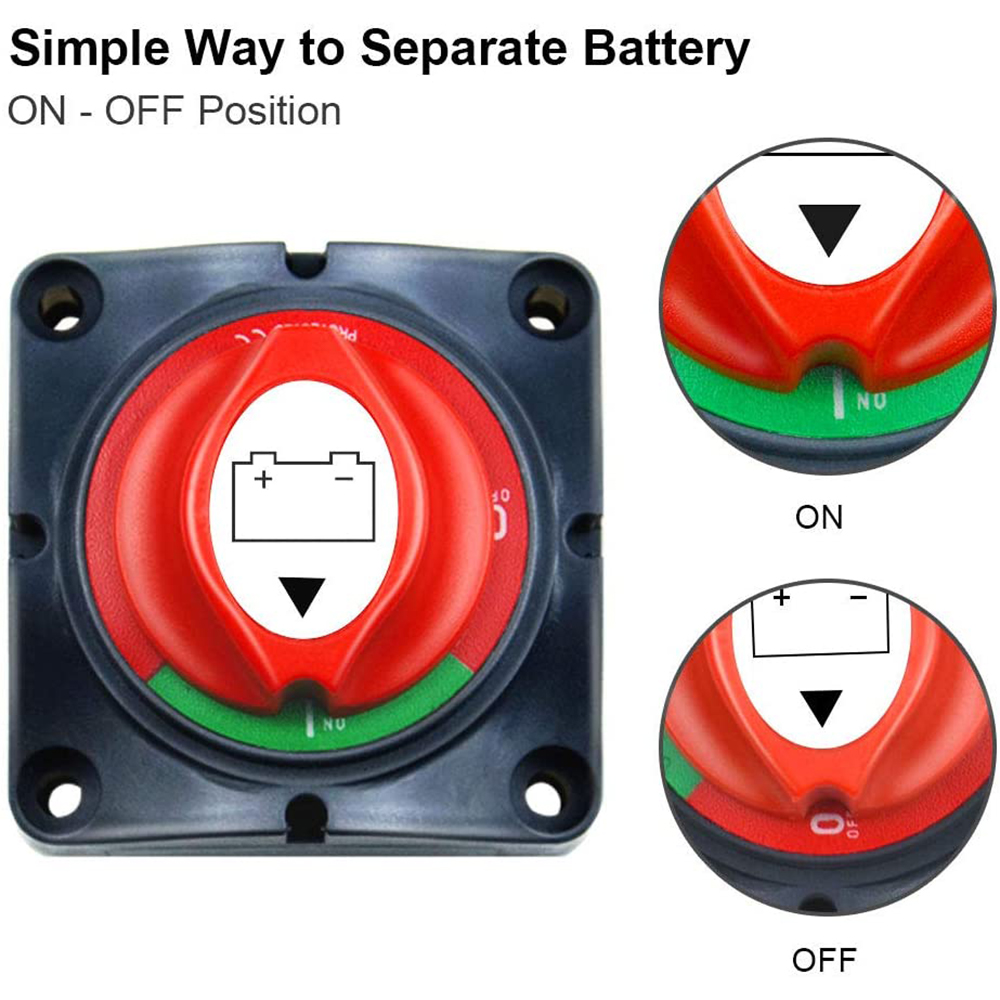

With the Battery Disconnect Switch by Offgridtec (MON 012815) your battery can be disconnected safe, to lower the power consumption, if the device, vehicle or boat is not in use. The switch is suitable for automotive electronics, electronic devices and all kinds of 12V/24V vehicles, boats, campers etc. The practically rotary switch is easy to serve and works smoothly. ON (Green) means switch on the circuit and OFF (Red) means switch off the circuit. Switch the power supply on and off, to avoid a electric shock.
Features
- Suitable for use in 12-48V applications
- Reduces your power consumption
- Protects the battery and extends its service life
- Made from high quality materials
- Moisture and UV resistant
Guard and locking system
Durable material
The switch ist manufactured from CE-certified, high-quality flame retardant, reinforced nylon and bolts out of silver plated red copper. It is humidity-, UV- and aging-resistant and provides a long lifespan. The back cover is isolated, to prevent short circuits, fulfill security requirements and prohibit electrical accidents.
Easy installation

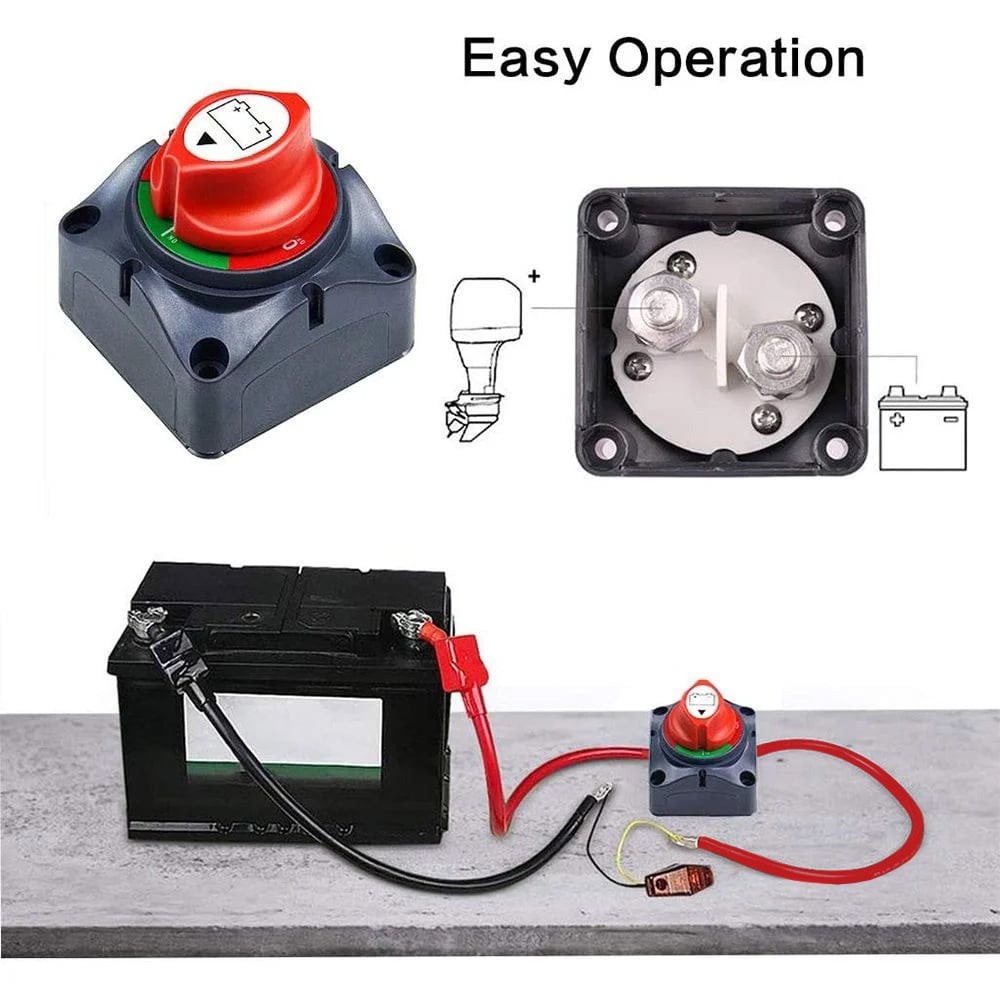

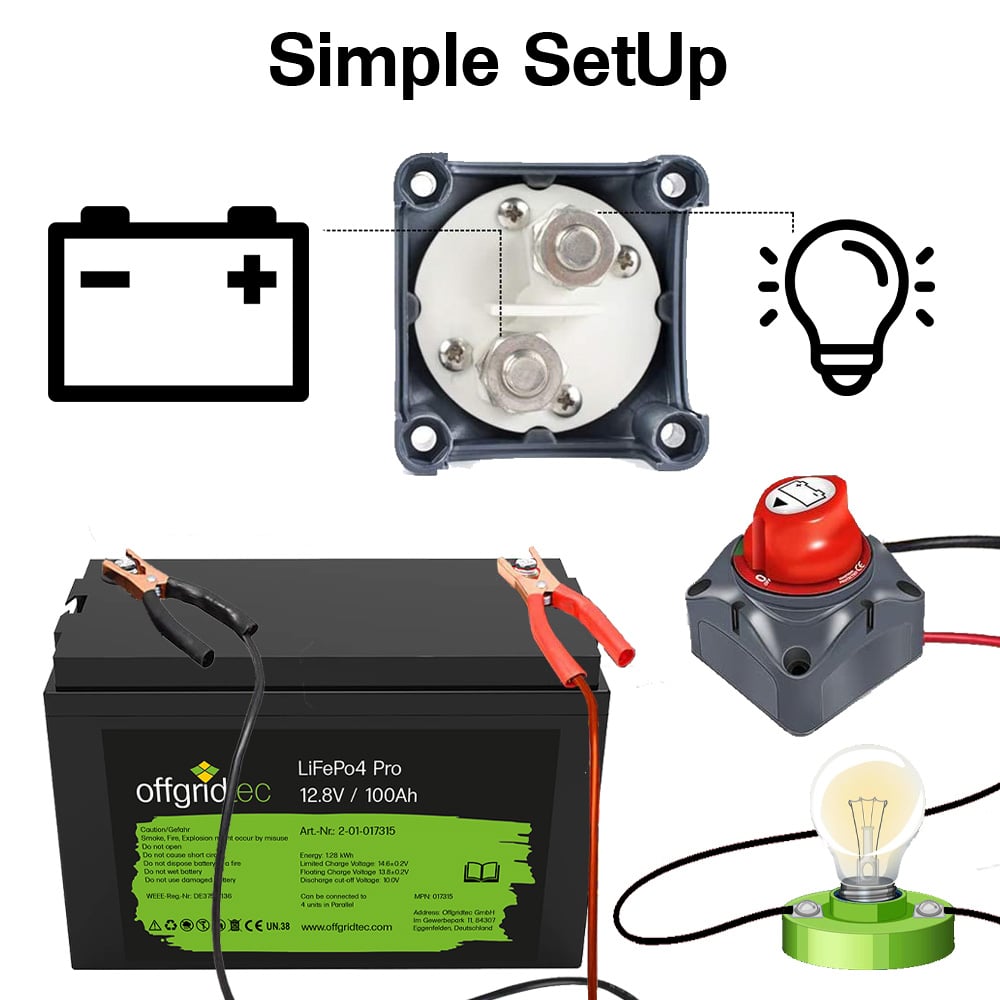

The Switch can be installed easily and fast. You have to pay attention to the arrangement of the positive and negative wires, then you install the corresponding covering lamella and tighten up the four screws, to prevent the cable connector against air and oxidation.
Technical Data
- Rated current: 275A DC
- Rated current for 5min: 455A DC
- Peak current: 1250A DC (10s)
- Rated voltage: 48V DC
- Bolts and nuts: tinned copper
- Connection studs: 2x10mm (3/8 inch)
- Mounting: flush-mounted/surface-mounted

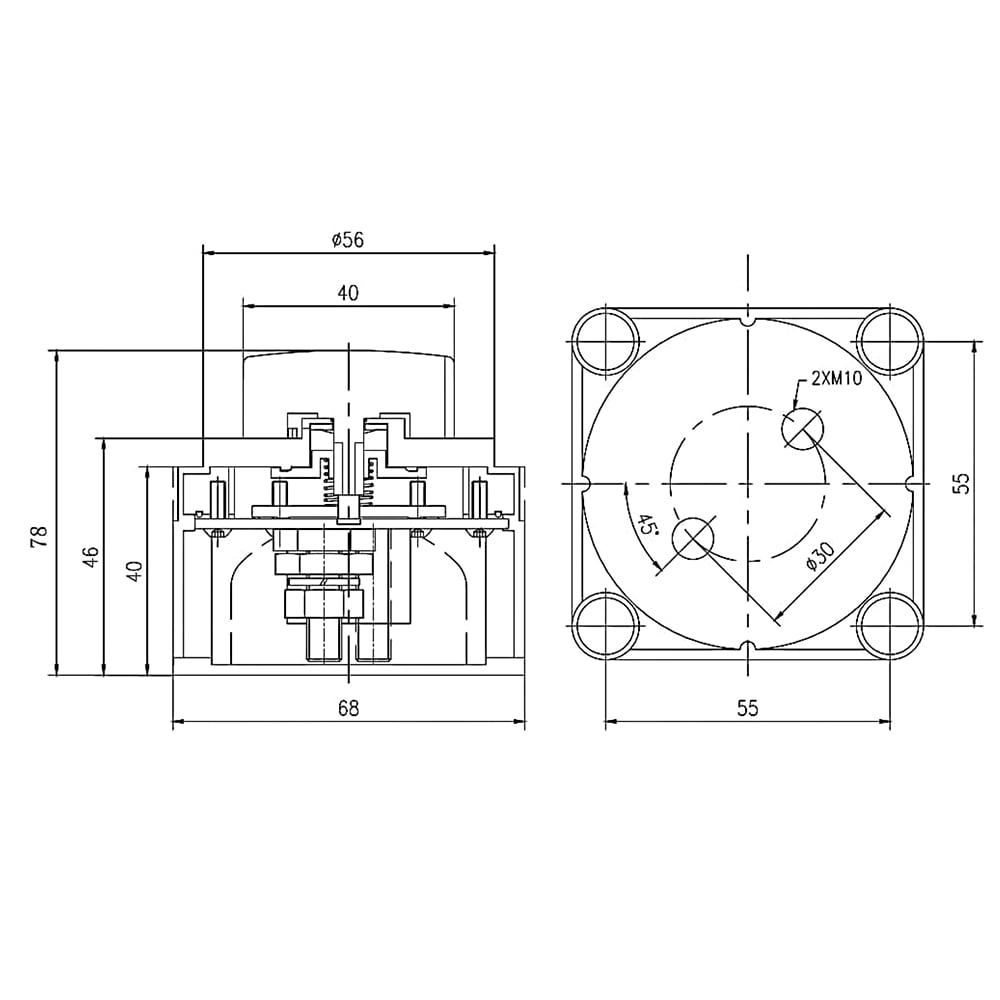

- Dimensions: 69 x 69 x 75mm
- Weight: 260g

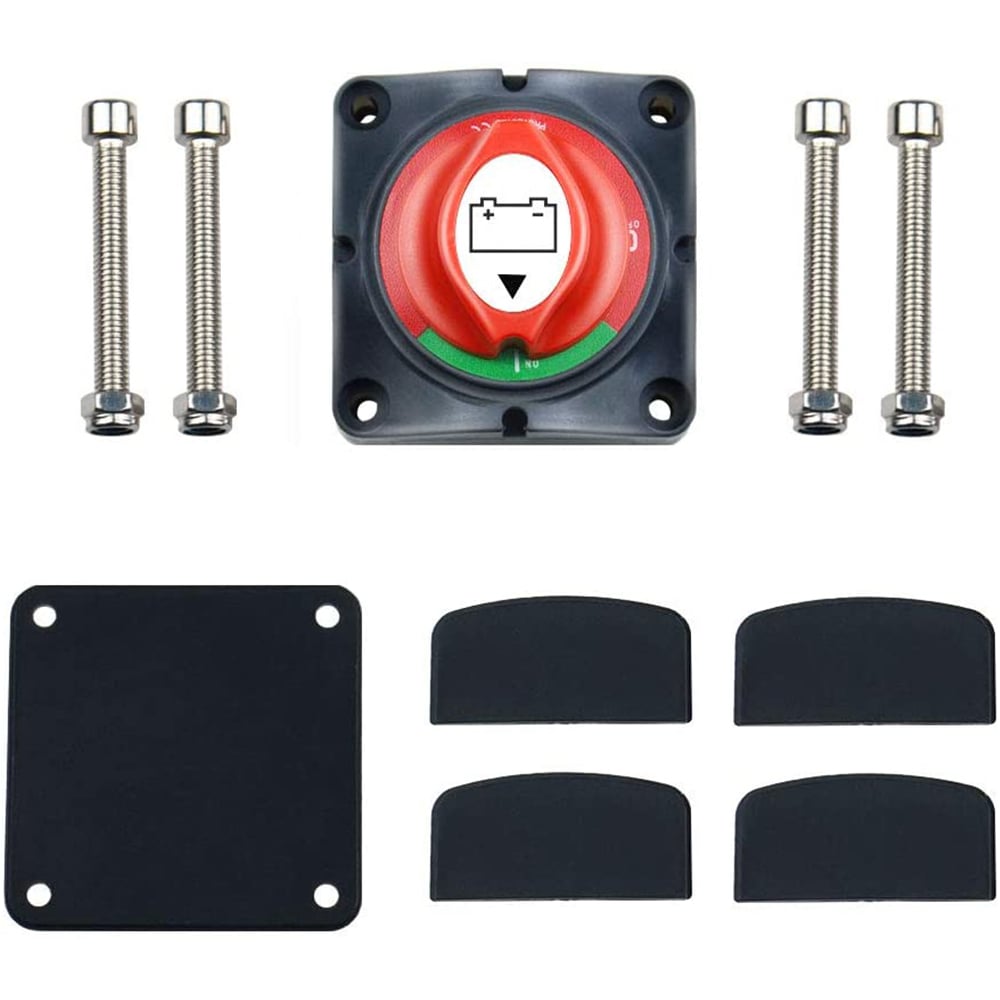

Scope of delivery:
1x Battery Disconnect Switch
1x bottom cover
4x screws + nuts for mounting
