Offgridtec® basicPremium-XL 620W solar power system 12V/24V complete system

The basicPremium-XL 600W solar system 12V 24V from Offgridtec (MPN 4-01-002605), is based on four high-quality, monocrystalline 150 Wp V2 solar modules of the OLP series and the convenient PWM-12/24-45A charge controller with LCD display. The basicPremium series also comes with a matching 8m solar connection cable (solar module to charge controller) and 1.5m battery connection cable. The average daily yield in the period from March to October is about 2400 Wh*. The system offers all the basic components needed to charge your battery with self-produced solar power. This combination makes it the perfect basis for a wide range of possible solar applications.

High-quality basic set for a wide range of applications

Offgridtec solar sets of the basicPremium series consist of basic components that every self-sufficient solar power system needs, regardless of whether the system is to be used on a garden shed, the garage or in a mobile area. We constantly focus on the high quality of all delivered components to ensure reliability and a long life expectancy of the system. Our 150W V2 solar module is equipped with the best monocrystalline cells and is produced and tested using the latest manufacturing technology. The remaining components of the set also follow this quality standard: The Plug & Play connection cables "made in Germany" are designed to keep the installation effort as low as possible without compromising on the connection quality. With its convenient display and up-to-date charging algorithms, the PWM-12/24-45A Pro charge controller ensures that the system is easy to operate and your batteries are perfectly charged. The basicPremium family is a mature product that has proven itself thousands of times in practice and offers the ideal starting point for a wide range of applications.

Applications solar system

• 12V or 24V DC power supply in garden sheds, allotments and similar objects
• self-sufficient systems for outdoor lighting applications
• self-sufficient monitoring and communication systems or weather stations
• charging smartphones, tablets or other devices with 12V / 5V DC power supply

Performance parameters at a glance

• Average daily yield: 2400 Wh
• Solar output can be extended to max. 750 Wp (at 24V = 1050 Wp) if the same panel is used.
• Available current outputs: 5V DC and 12V DC at the charge controller (230V only with optional voltage converter)

Components of the basicPremium-XL 620W solar system 12V 24V

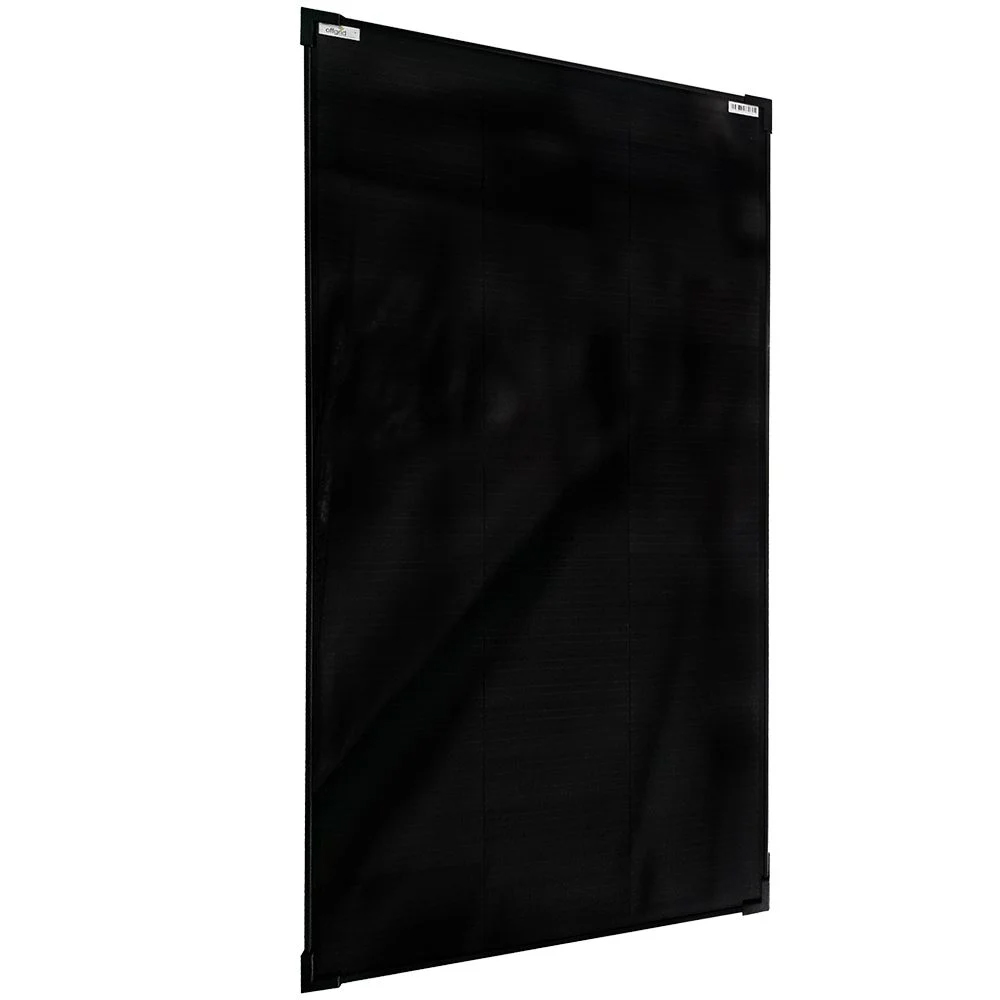

• 4 x Offgridtec OLP 150W Solar Panel V2 PERC
  • Rated power: 150W, Part number 3-01-018480
    Module voltage: 19,4V, Max. System voltage: 1000V/DC
    Max. Current: 7.74A, Short circuit current: 8,20A, Open circuit voltage: 22,90V
    Weight: 9.8kg, Dimensions: 670 x 1195 x 35mm
    Cell efficiency: >22%, Cell type: Monocrystalline PERC
• 1 x PWM-12/24-45 Pro solar controller 12V/24V
  • max. charging current 45 A, max. PV power with 12V / 24V system: 590 W / 1180 W
  • modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies)
  • 3 battery types adjustable: AGM, GEL, and liquid lead acid
  • Intuitive operation via 2 buttons directly on the unit
  • Large LCD display with numerous display options, including kWh meter
  • 2 USB ports with a maximum output of 2.4A
  • Load output with numerous configuration options, e.g. for light control
  • Temperature-compensated battery charging (optional temperature sensor required)

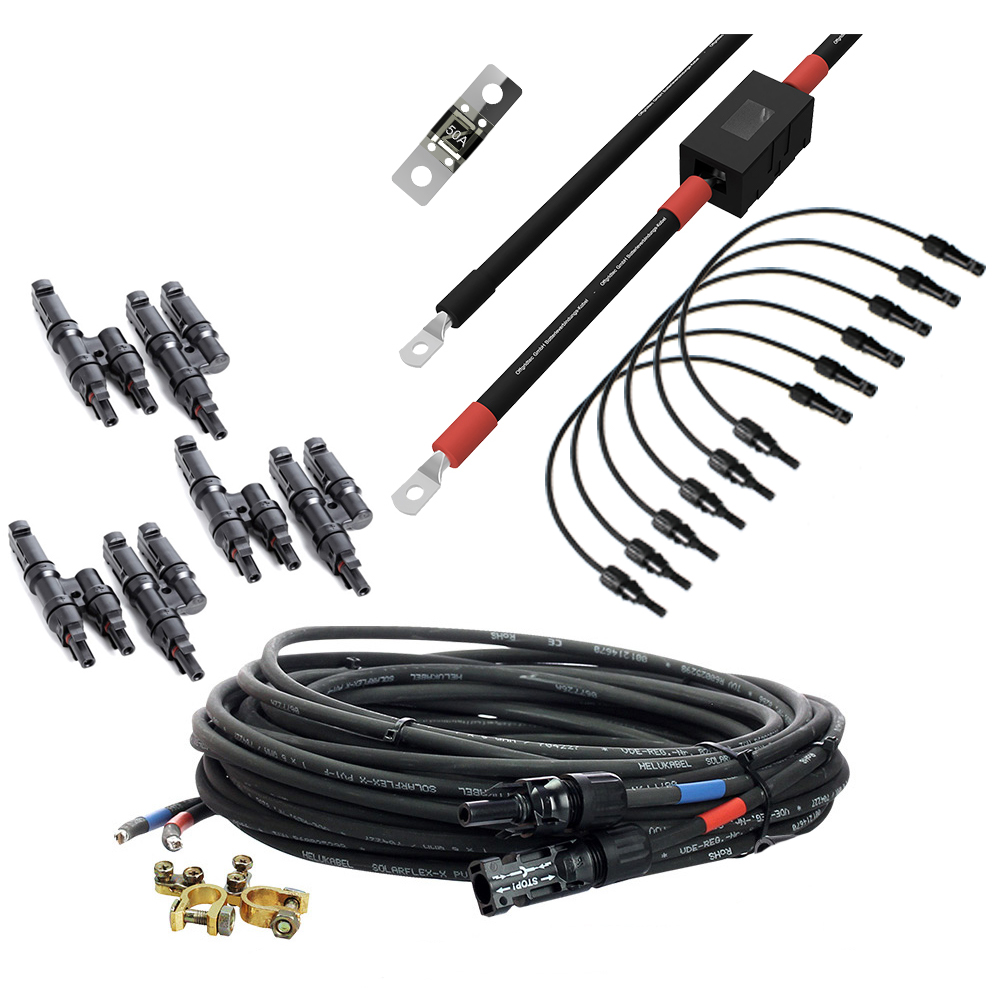

• 1x 10m 2x10mm² solar connection cable controller/solar module
  • TWIN cable, Plug & Play - ready for immediate useSolar connector on the solar module side, wire end sleeves on the charge controller side
  • High-quality solar cable: TWIN cable
  • Wire cross-section: 2x10mm², length: 10m
• 1x 1.5 2x10mm² 50A battery connection cable controller/battery
  • Plug & Play - ready for immediate usewire cross-section: 10mm², length: 1.5m
  • MIDI fuse holder included
  • Screw terminal connection on charge controller side, M8 ring terminals on
  • battery side
• 6x 50cm solar plug connection cable 6mm²
• 3x Solar-Y connectors (Offgridtec, 000-000-002)
• 1x battery pole terminal set
• 1x MIDI fuse 50A 58V

Flexible and very easy to install

The system is very easy to install, even for people who have little experience with solar technology. The cables are all supplied plug & play, i.e. ready for connection. You only need to connect the components and the electricity production can begin.

Expandable, customisable

Like every Offgridtec system, the basicPremium-S can be individually adapted and modified to your requirements. Our technical sales team looks forward to your enquiry. Please contact customer service for any costs that may be incurred.

Scope of delivery:

1x Offgridtec 4-01-002605 basicPremium-XL 620W 12V 24V solar system
1x instruction manual
including all components listed above
